Co-immobilization of amine dehydrogenase and glucose dehydrogenase for the biosynthesis of (S)-2-aminobutan-1-ol in continuous flow
Bioresources and Bioprocessing volume 11, Article number: 70 (2024)
Abstract
Reductive amination by amine dehydrogenases is a green and sustainable process that produces only water as the by-product. In this study, a continuous flow process was designed utilizing a packed bed reactor filled with co-immobilized amine dehydrogenase wh84 and glucose dehydrogenase for the highly efficient biocatalytic synthesis of chiral amino alcohols. The immobilized amine dehydrogenase wh84 exhibited better thermo-, pH and solvent stability with high activity recovery. (S)-2-aminobutan-1-ol was produced in up to 99% conversion and 99% ee in the continuous flow processes, and the space-time yields were up to 124.5 g L-1 d-1. The continuous reactions were also extended to 48 h affording up to 91.8% average conversions. This study showcased the important potential to sustainable production of chiral amino alcohols in continuous flow processes.
Introduction
Biocatalysis significantly contributes to a number of key research areas focusing on integrating green chemistry into the pharmaceutical industry. (Sheldon and Brady 2019) One of the challenges for applications of biocatalysis in the synthesis of key pharmaceutical building blocks is limited stability and recyclability of the enzymes, which can be alleviated by continuous flow processes. The utilization of immobilized enzymes and packed bed reactors (PBRs) in continuous flow processes represents major opportunities in biocatalysis field. (Basso and Serban 2019; Britton et al. 2018; Thompson et al. 2019b) Growing demands have been explored in pharmaceutical industry to replace the batch reactors with continuous flow processes. (Coloma et al. 2021; Cosgrove and Mattey 2022; Otvos and Kappe 2021; Plutschack et al. 2017; Sokač Cvetnić et al. 2023; Tamborini et al. 2018; Wan et al. 2022) Key benefits have been proposed including lower production cycle time, less waste, and reduced operating costs. (Brufani et al. 2023; De Santis et al. 2020) Particularly, in biocatalytic applications, continuous flow enables the reuse of immobilized enzymes in more cycles, in-situ removal of the products to reduce the product inhibition, (Meyer et al. 2022) and enhanced cofactor recyclability (Reus et al. 2024). Lipases (hydrolases, esterases), alcohol dehydrogenases, oxidases (glucose oxidases, galactose oxidases), (Cao et al. 2017; Chapman et al. 2018) ω-transaminases (TAs), (Andrade et al. 2014; Bohmer et al. 2019; Mattey et al. 2021) sugar derivatizing enzymes, HRPs (horse radish peroxidases), halohydrin dehalogenase, (Zhang et al. 2018) amidases, (Lin et al. 2019) and whole cell biocatalysts (Jin et al. 2019; Chen et al. 2022) have all been immobilized on various carriers and subjected to continuous flow processes.
Asymmetric reductive amination (ARA) is one of the prominent methodologies to produce chiral amines from the corresponding ketones or aldehydes. In particular, chiral vicinal amino alcohols are present in a variety of pharmaceuticals or natural products (Chen et al. 2019). Using free ammonia as the amine donor, amine dehydrogenases (AmDHs) are capable of catalyzing ARA of hydroxyl ketones, affording amino alcohols in high yields and ee. Ever growing research interests have focused on the identification and engineering of AmDHs to expand the substrate scope, improve the stability and activity of the enzymes. Since the first conversion of AmDHs from LeuDH by Bommarius et al. in 2012 (Abrahamson et al. 2012), a variety of AmDHs were converted from leucine dehydrogenases (LeuDHs) (Chen et al. 2018, 2019), phenylalanine dehydrogenases (PheDHs) (Jiang and Wang 2020; Li et al. 2022; Liu et al. 2020; Pushpanath et al. 2017; Ye et al. 2015), L-lysine dehydrogenases from Geobacillus stearothermophilus (LysEDHs) (Tseliou et al. 2019, 2021), or identified as native AmDHs (Bennett et al. 2022; Mayol et al. 2016, 2019). These investigations have inspired further applications of AmDH for the production of chiral amines as building blocks for pharmaceutical industry. Previously, we have performed genome mining and identified five AmDHs (GsAmDH from Geobacillus stearothermophilus, BsAmDH from Bacillus stearothermophilus, LsAmDH from Lysinibacillus sphaericus CBAM5, SpAmDH from Sporosarcina psychrophile, and TiAmDH from Thermoactinomyces intermedius) that were able to catalyze the ARA of prochiral α- and β-hydroxy ketones. (Tong et al. 2021; Wang et al. 2020). Subsequently, protein engineering was conducted and high stereoselectivities and activities were obtained (Ming et al. 2022) towards the hydroxyl ketones to produce amino alcohols. These highly active mutants were subjected to ARA reactions under relatively large scale and high substrate concentrations, thus demonstrating the utility of the mutants for potential applications. Therefore, it is in urgent need to design and optimize immobilization techniques to enable continuous use of the enzymes in industrially viable packed bed reactors (PBR). However, the dependence on co-factors and recycling systems implies complexity for the applications of AmDHs. (Hu et al. 2022) The examples of using continuous enzymatic recycling NAD(P)H are scarce. (Croci et al. 2022; Romero-Fernandez and Paradisi 2021; Zhang et al. 2023; Zor et al. 2017) In particular, the specific activities of the immobilized enzymes (especially when immobilizing with crude enzymes or cell-free extracts) are often lower due to diffusion problems, variations in structures, or insufficient enzyme loading, etc. (Zhang et al. 2023) Though there have been reports for the immobilization strategies involving AmDHs, (Caparco et al. 2020; Liu et al. 2017; Ren et al. 2017) to date only a couple of studies have investigated the continuous flow processes with AmDHs, which afforded only moderate conversions. (Franklin et al. 2021; Thompson et al. 2019a)

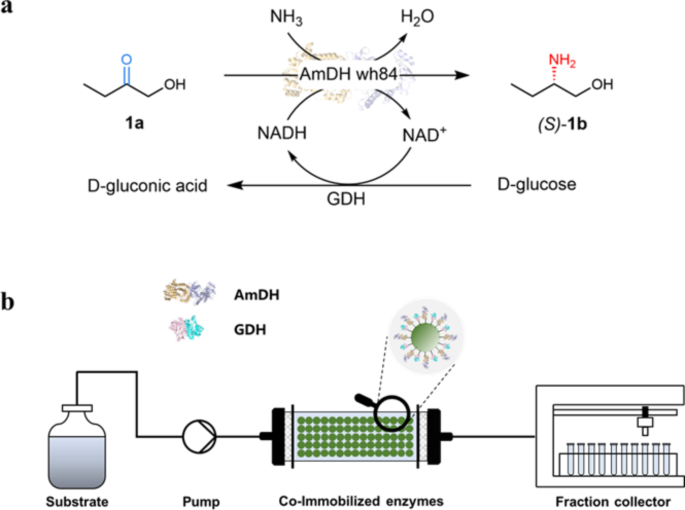

Herein, we envisioned a continuous flow process using PBRs with co-immobilized variant of AmDH wh84 and GDH for the co-factor recycling of the reductive amination of 1-hydroxybutan-2-one (1a) to produce the optically active (S)-2-aminobutan-1-ol ((S)-1b) (Fig. 1 and Scheme S1). The co-immobilization of AmDH wh84 and GDH on polymer-based porous bead carriers was characterized and optimized, and subsequently the advantages of the continuous flow processes were demonstrated with comparison of batch reactions. This study showcases the potentials of using co-immobilized AmDHs and GDH in the industrial processes with continuous flow and offers paradigm for the future design of large-scale bioprocesses.
Experimental section
Materials
An engineered strain, AmDH wh84, was constructed from our previous work and used in the current study. Resin carriers were purchased from Xi’an Lan Xiao Technology Co., Ltd., (Xi’an, China) and Tianjin Nankai He Cheng Technology Co., Ltd. (Tianjin, China). The magnetic nanoparticles were purchased from Yeasen Biotechnology Co. Ltd. (Shanghai, China). 1-hydroxy-2-butanone, 2-amino-1-butanol and other chemicals were purchased from Shanghai Macklin Biochemical Technology Co., Ltd and Bide Pharmatech Ltd.
Preparation of crude extracts of AmDH and GDH
The genes encoding AmDH or GDH were cloned into the commercially available pET-24a vector containing the NdeI and XhoI restriction sites, and were constructed with an N-terminal 6xHis tag. The transformed E. coli BL21(DE3) cells were stored in 50% glycerol at -80 °C. To initiate protein expression, cells were thawed, inoculated into 5 mL LB medium containing 50 µg mL-1 kanamycin, and incubated at 37 °C with shaking at 220 rpm for 8–12 h. A 1 mL aliquot of the seed culture was then transferred to 500 mL of TB medium containing 50 µg mL-1 kanamycin and grown at 37 °C with shaking at 220 rpm until an OD600 of 0.6–0.8 was reached. Protein expression was induced by adding 0.1 mM isopropyl β-D-1-thiogalactopyranoside (IPTG) and incubating the cells at 20 °C with shaking at 220 rpm for 15 h. The cells were collected by centrifugation (4 °C, 4000 rpm, 10 min) and resuspended in PBS buffer (50 mM, pH 7.4), followed by centrifugation to remove the supernatant. The cells were then resuspended in the same buffer at a concentration of 0.1 g ml-1 (cell wet weight). Subsequently, the cells were disrupted using a high-pressure cell homogenizer and centrifuged (4 °C, 12,000 rpm, 40 min) to remove the precipitates, resulting in crude protein extracts of AmDH and GDH.
Immobilization of enzymes on amino resins
First, 6.0 g amino resin was washed three times with 24 mL of PBS buffer (50 mM, pH 7.4), and then the resin carriers were filtered and dried under reduced pressure. Next, the resulting amino resins were mixed with 24 mL of 2% glutaraldehyde solution at 20 °C for 1 h and subsequently washed by PBS buffer. Finally, the resins were mixed with 24 mL crude protein extract and stirred at 200–250 rpm, 20 °C for 18 h, followed by 1 h of settling. The supernatant was collected to determine the protein loadings and immobilization yields. The immobilized enzymes were washed with PBS buffer (50 mM, pH 7.4) two to three times, filtered and stored for further experiments.
Immobilization procedures of enzymes on epoxy resins
Firstly, 6.0 g epoxy resin was washed three times with 24 mL PBS buffer (50 mM, pH 7.4), and then the resin carriers were filtered and dried under reduced pressure. Next, the resulting epoxy resins were mixed with 24 mL crude protein extract and stirred at 200–250 rpm, 20 °C for 18 h, followed by 1 h of settling. The supernatant was collected to determine the protein loadings and immobilization yields. Finally, the immobilized enzymes were washed with PBS buffer (50 mM, pH 7.4) two to three times, filtered and stored for further experiments.
Enzyme assays
Conditions for enzyme activity analysis of AmDH: 200 mg co-immobilized AmDH and GDH or 200 µL AmDH (crude extract) and 50 µL GDH (crude extract), 1 mM NAD+, 100 mM glucose, 50 mM Tris-HCl (pH 9.5) buffer (including 1 M NH4Cl), 10 mM 1a, 30 °C, 30 min, total volume: 1 mL. The reaction was then terminated using acetonitrile. The product (S)-1b was quantified by HPLC after derivatization with Marfey’s reagent (N-alpha-(2,4-dinitro-5-fluorophenyl)-L-alaninamide). Detection conditions (Li et al. 2017): Zorbax SB-C18 column (4.6*150 mm, 5 μm), 340 nm wavelength, with 25 ℃ column temperature, at 1 mL min-1 flow rate; mobile phase A: ultrapure water, mobile phase B: methanol. Elution program: 60% A/40% B, hold at 40% B for 6 min, increase B to 60% within 9 min, hold for 3 min, then decrease B to 40% within 2 min, hold for 5 min. One unit (U) of activity was defined as the amount of enzyme required to produce 1 µmol of (S)-1b per minute under the standard assay conditions.
The activity recovery (AR) is defined as the ratio of the immobilized enzymatic activity over the total free enzymatic activity added to the reaction mixture for the immobilization. Immobilized activity (IA) defined as the activity of AmDH per gram of co-immobilized enzyme. The protein loading (PL) is defined as the mass of enzyme immobilized on one gram of resins. The immobilization yield (IY) is defined as the ratio between the mass of immobilized enzyme over the total free enzyme added to the reaction mixture for the immobilization. The activity of GDH (UGDH) is determined by measuring the change in absorbance values of NADH at 340 nm by UV spectrophotometry. Conditions: 10 µL GDH (crude extracts), 10 mM NAD+, 100 mM glucose and 50 mM Tris-HCl (including 1 M NH4Cl) buffer (pH 9.5), total volume: 200 µL, 30 ℃. One unit (U) of GDH activity is defined as the amount of enzyme required to produce 1 µmol of NADH per minute under the standard assay conditions. The definitions can also be interpreted by the following equations:
Where Ai is the immobilized AmDH activity, U; A0 is the total free AmDH activity added to the reaction mixture for the immobilization, U; mresin is the mass of resin, g; m0 is the mass of the total free enzyme, mg; ms is the mass of enzyme in the supernatant after immobilization, mg; EW is the change in absorbance at 340 nm within 1 min; V is the volume of the reaction solution, mL; M is the molar absorption coefficient of the NADH, L mol-1 cm-1; L is the optical distance, cm.
Enzyme stability
To determine the stability of immobilized enzymes, they were incubated for 2 h under various pH values (3.0–13.0), temperatures (℃), and organic solvents such as methanol, acetonitrile, n-hexane, N, N-dimethylformamide (DMF), dimethyl sulfoxide (DMSO), methyl tert-butyl ether (MTBE), ethyl acetate to evaluate the pH stability, thermo-stability, and organic solvent tolerance of immobilized and free enzymes. The enzyme activity measured at pH 9.5 and 30 ℃ is defined as 100% to determine the relative activity.
Batch reactions of immobilized enzymes
200 mg immobilized enzymes were added to 1 ml Tris-HCl (including 1 M NH4Cl) buffer (50 mM, pH 9.5) containing 10 mM 1a, 1 mM NAD+ and 100 mM glucose. Buffer pH was adjusted by KOH or HCl. The mixture was then incubated with agitation at 30 ℃ and 220 rpm for 0.5 to 2 h. The generated products were quantified by HPLC.
AmDH/GDH binding ratio optimization
Six different ratios of AmDH and GDH enzymes were immobilized using the LXTE-706 carrier. For each ratio, 6.0 g of LXTE-706 carrier were mixed with 24 mL of crude protein extracts of AmDH and GDH for the immobilization reaction using the epoxy resin immobilized enzyme method described above. Protein loading (PL) and immobilization yield (IY) were determined by measuring initial protein concentrations and the concentrations in the supernatant after completion of the immobilization reaction. To test the immobilized enzymes, 200 mg of each were added to 1 mL Tris-HCl (including 1 M NH4Cl) buffer (50 mM, pH 9.5) containing 10 mM 1a, 1 mM NAD+, and 100 mM glucose. The mixture was incubated with agitation at 30 ℃ and 220 rpm for 0.5 h, and conversions were determined by HPLC.
Continuous reactions with a fixed-bed reactor
Immobilized enzyme was filled in a fix-bed reactor (Column Y2, 7.85 mL volume). A peristaltic pump was used to pump Tris-HCl (including 1 M NH4Cl) buffer (50 mM, pH 9.5) containing 10 mM 1a, 1 mM NAD+ and 100 mM glucose into the packed bed bioreactor. Buffer pH was adjusted by KOH or HCl. 2 column volumes (CV) of the solution mixture were allowed to flow through the column before the reactions reached steady state and conversions reached plateau. Subsequently, the samples were collected in the fraction collector and analyzed using HPLC.
Results and discussion
Tailored co-immobilization system for AmDH and GDH
AmDHs are NADH dependent enzymes, which require co-factor recycling systems (e.g. GDH and glucose) to regenerate the co-factors. Therefore, to reduce the overall cost for enzymes and enable the reuse of both AmDH and GDH on PBRs, it is only economically viable if both enzymes are immobilized. Previously, we successfully identified, characterized and engineered an amine dehydrogenase from Sporosarcina psychrophila (SpAmDH) derived from leucine dehydrogenase. (Tong et al. 2021) Upon three rounds of CAST/ISM-guided mutagenesis, the mutant wh84 was constructed with 3.2-fold improvement in TTN to the WT enzyme. In this work, we cultured and expressed the variant AmDH wh84 and the crude extract was used for the immobilization directly without enzyme purification. Additionally, glucose dehydrogenase (GDH) from Bacillus subtilis was also expressed and immobilized as a crude extract.
A number of immobilization strategies were investigated on the purpose of selecting the best-performing carriers for co-immobilization. The commercially available ion-exchange, amino and epoxy resins as well as magnetic nanoparticles with carboxyl groups modified surfaces were utilized. We characterized the properties of co-immobilized enzymes on various carriers in terms of immobilization activity (IA), activity recovery (AR), Protein loading (PL), Immobilization yield (IY) of AmDH wh84, pore sizes and particle sizes (Table 1). Among the carriers, the epoxy resin LXTE-706, ion-exchange resin ESQ-3and LXTE-902, and the amino resin LXTE-700s exhibited highest immobilization activity (IA up to 1.35 U g-1) and activity recovery (AR up to 55.30%). The magnetic nanoparticles offer advantages such as ease for separation and strong covalent bonding with surface modifications, however, the activity was significantly lower than that of the resins and not pursued further (Table S1). In the end, the resins LXTE-700s, LXTE-706, ESQ-3, LXTE-902 were selected as the carriers for the subsequent process development and optimizations.
The enzyme activities for GDH and AmDH are highly different, as a result, the optimum ratios of AmDHs to GDH were investigated using LXTE-706 on the purpose of lowering enzyme usage and balancing enzymatic activities for the co-factor recycling. The specific enzyme activity of the GDH crude extract were determined to be 5.50 U mL-1, which was significantly higher than that of AmDH (0.61 U mL-1). Indeed, with an AmDH/GDH ratio 5:1, the conversion reached a maximum of 80.5% (Table 2). Further increasing the ratio did not lead to higher conversions. Therefore, 5:1 ratio was employed in the following studies.
There are two strategies for the immobilization of the enzymes: separate immobilization or co-immobilization. For the separate immobilization strategy, the enzymes were immobilized on carriers separately and the resins carrying each of the enzyme were mixed and added to the reactions. On the other hand, the crude enzymes of AmDH wh84 and GDH were co-immobilized on the carriers in one-step. The resulting immobilization activity (IA) of AmDH wh84 achieved for the co-immobilization strategy was 0.69 U g-1, which was much higher than that of the separate immobilization (0.43 U g-1, Fig. S4a). Additionally, the co-immobilization reduced the steps for immobilization and operational costs, therefore, co-immobilized AmDH wh84 and GDH were employed for further investigations.
The SDS-PAGE gel analysis was performed on the mixture of crude extract of AmDH wh84 and GDH and the supernatant after the immobilization process was performed for 3–18 h (Fig. S4b). There were significantly less enzymes compared to the crude enzyme mixture, which was in accordance with the immobilization yields (IY up to 52.2%). The crude enzymes were used for immobilization directly without further purification for the ease of operation and cost saving. The surface Lysine distribution was visualized (Fig. S3), which consists of 4.8% and 6.1% of total amino acids of AmDH and GDH (Table S2).
The co-immobilized enzymes were employed in the batch reactions to convert 1a to (S)-1b. The optimum pH was determined to be 9.5 after performing the reactions in various pH (Fig. 2a). Various reaction temperatures were also attempted to determine the optimum conditions, and 30–40 °C were shown to be the best range (Fig. 2b) It is worth noting that the optimal reaction conditions for free AmDH wh84 are pH 8.5 and 30 °C. In the end, the optimum pH 9.5 and 30 °C temperature was employed in further investigations.

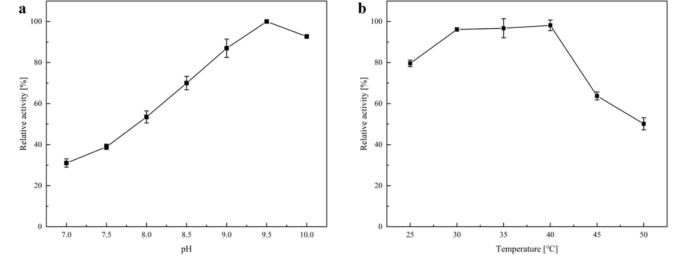

Optimization of the batch reactions with co-immobilized enzymes. (a), Optimization of pH for the batch reactions using co-immobilized AmDH wh84 and GDH. Buffer pH was adjusted by KOH or HCl. Reaction conditions: NAD+ (1 mM), glucose (100 mM), Tris-HCl (50 mM, pH 7.0–10.0) buffer (including 1 M NH4Cl), immobilized enzymes (200 mg), 1a (10 mM), 30 °C, total volume: 1 mL, carrier: LXTE-706; (b), Optimization of reaction temperatures for the batch reactions using co-immobilized AmDH wh84 and GDH. Reaction conditions: NAD+ (1 mM), glucose (100 mM), Tris-HCl (50 mM, pH 9.5) buffer (including 1 M NH4Cl), immobilized enzymes (200 mg), 1a (10 mM), 25–50 °C, total volume: 1 mL, carrier: LXTE-706
Batch reactions with co-immobilized AmDH and GDH
Thermostability and pH stability of the co-immobilized enzymes and free enzymes were investigated by incubation at various temperatures (30–55 °C) (Fig. 3a) and pH (3.0–12.0) (Fig. 3b) for two hours and the residual activities were tested. For temperatures at 30–40 °C, the relative activity for the free enzymes were higher than that of the immobilized enzymes, however, at an elevated temperature of 45–55 °C, the free enzymes lost a majority of the activity, whereas the co-immobilized enzymes were able to retain 30-40% activity (LXTE-706) and 40-70% activity (LXTE-700s), respectively. Furthermore, the immobilized enzymes displayed considerably higher pH stability than free enzymes at extreme pH values such as pH 3.0–8.0 and 11.0–13.0, indicating higher stability of the immobilized enzymes in acidic or basic conditions. At pH 9.0–11.0, the immobilized enzymes on LXTE-706 were more active than LXTE-700s and the free enzymes, showing the distinct advantages of the immobilization processes in improving the pH stability of the enzymes.
Organic solvents are frequently used in biocatalytic processes to aid the solvation of substrates and products; however, enzymes were shown to be unstable in presence of solvents possibly due to unfolding, denaturation or aggregation. Immobilization technologies may offer elegant solutions to solve the solvent intolerance problems. Therefore, even though the current strategy does not involve the use of organic solvents, for potential future applications with substrate with poor water solubility, we investigated the stability of the co-immobilized enzymes on carriers including LXTE-706 with the highest immobilization AmDH activity (1.33 U g-1), and LXTE-700s with higher thermo- and pH stability. Upon incubation in various solvents for two hours with different log P values, their residual activities were compared (Fig. 3c). The co-immobilized enzymes on LXTE-700s retained > 90% activity in solvents including ethyl acetate, n-hexane and MTBE. On the other hand, LXTE-706 as the carrier exhibited lower activities in most of the solvents, except that in acetonitrile, where the activity was 48% higher than that of the LXTE-700s.
The co-immobilized enzymes in batch reactions can be recycled and reused for various batches. Filtration followed by buffer wash were performed on the immobilized enzymes prior to each batch reactions. Highest activities were obtained for enzymes immobilized on LXTE-700s and LXTE-706. 63.6% and 57.5% activity were retained after 8 batches of reuse, respectively (Fig. 3d). In comparison, ESQ-3 as the carrier offered one of the highest activity recoveries (AR up to 54.3%), but the activity declined rapidly and completely lost after 6 batches of reuse. Poor reusability was also observed for enzymes immobilized on LXTE-902. The enzymes were immobilized with stable covalent bindings on LXTE-700s and LXTE-706, which are possibly the reason why the recyclability exceeds that of the ion exchange resins LXTE-902 and ESQ-3. In addition, the LXTE-700s carrier is functionalized with amino groups on the surface, and LXTE-706 is functionalized with both epoxy and amino groups. Since epoxy groups are prone to ring-opening and losing functionality upon extended exposure to air, we speculate that immobilized enzymes on LXTE-700s are more stable due to more stable linkage established with amino surface groups.

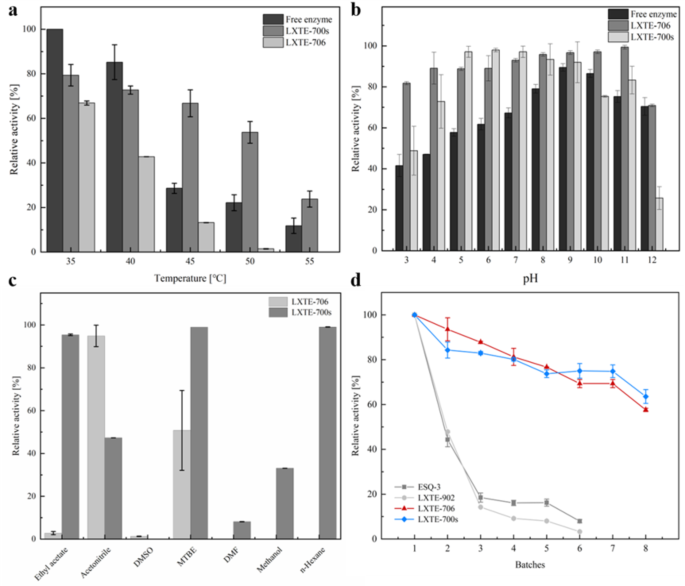

Characterizations of the co-immobilized enzymes. (a), Thermo-stability of the free and co-immobilized enzymes; (b), pH stability of the free and co-immobilized enzymes; (c), Solvent tolerance of co-immobilized enzymes; (d), Reusability of the enzymes co-immobilized on various carriers. Reaction conditions: NAD+ (1 mM), glucose (100 mM), Tris-HCl (including 1 M NH4Cl) buffer (50 mM, pH 9.0 for LXTE-700s, or pH 9.5 for LXTE-706), immobilized enzymes (200 mg), 1a (10 mM), 30 °C, total volume 1 mL, incubation time: 2 h
Continuous flow biocatalysis with co-immobilized enzymes
Enzymatic ARA of 1a was carried out in PBRs filled with co-immobilized AmDHs wh84 and GDH, and the carrier LXTE-706 was selected considering both the immobilization activity and stability. Subsequently, we performed the continuous flow studies under various flow rates (0.2 mL min-1 to 1.6 mL min-1). A fraction collector and subsequent HPLC analysis enabled the monitoring of the results (Fig. S1-S2, S5-S8). Owing to excellent enantioselectivity of AmDHs, ee of (S)-1b maintained > 99% throughout the studies. Three columns with the same cross-sectional area and different lengths (Y1: 10*50 mm, Y2: 10*100 mm, Y3: 10*150 mm) were utilized to compare the space-time-yields (STY) and conversions under various flow rates. The residence times at different flow rates are labeled in Fig. 4 and listed in Table S3. The STY for whole-cell biotransformation in batch preparative scale (200 mM, 91% conversions in 24 h, 0.1 g mL-1 wet cell) was also compared with the continuous flow reactions. (Tong et al. 2021) Subsequently, we performed the continuous flow studies under various flow rates (0.2 mL min-1 to 1.6 mL min-1). With samples taken after the reaction reached steady state at various flow rates, the maximum STY for the continuous reactions reached 124.5, 122.4, and 111.4 g L-1 d-1 for columns Y1, Y2 and Y3, respectively (Fig. 4a-c). As a result, at 99% conversion, the maximum STY for the continuous flow reaction (64.6 g L-1 d-1) is up to 4-fold to that of the whole-cell batch reaction (16.2 g L-1 d-1) and the immobilized enzyme in batch reaction (16.0 g L-1 d-1). Up to 99% conversions and 99% ee were achieved with Column Y2 and Y3 at low flow rates (0.2–0.4 mL min-1). The STY exhibits a gradual increase at relatively low flow rates, and eventually reaches plateau at higher flow rates for all three columns. In addition, at approximately 6.5 min residence time, the STY for Y1 and Y2 are close to 120.0 g L-1 d-1. The results indicate that the reactions were influenced by external diffusion at low flow rates, and this effect were minimized at higher flow rates. The STYs achieved in this study is relatively high at this scale comparing to previous studies (Table S4), which were mostly performed at small scales.
The continuous flow reaction was extended to 48 h to achieve an upscaled production of (S)-1b and examine the stability of the co-immobilized enzymes (Fig. 4d). The column Y2 and 0.2 ml min-1 flow rate were selected, and the conversions maintained in the range of 83.8–99.0% throughout 48 h. The average conversions reached 91.8%, producing 470.5 mg of the product (S)-1b. The residual activity for the immobilized AmDH was determined to be 1.01 U g-1, which is 75.9% of the immobilization activity of the fresh enzyme (1.33 U g-1). The STY of the continuous system exceeds that of the whole-cell biotransformation and batch reactions, and the immobilized enzymes were not directly agitated to avoid the physical destruction. In particular, the recyclability is enhanced as shown from the results of the 48 h continuous production. Therefore, from economic perspective, the continuous flow system affords reduced cost and improved recyclability. The current system is also easy to scale-up, as demonstrated by a similar final STY achieved with varied lengths and filling capacity of columns. We envisioned that the current system may offer a useful platform for preparative scales for sustainable production of chiral amino alcohols.
Comparisons of the continuous flow processes under various flow rates with (a), Column Y1; (b), Column Y2; (c), Column Y3; (d), Conversions for the continuous flow reactions in 48 h (Column Y2, 0.2 ml min-1 flow rate). Reaction conditions: NAD+ (1 mM), glucose (100 mM), Tris-HCl (including 1 M NH4Cl) buffer (50 mM, pH 9.5), 1a (10 mM), 30 °C, carrier: LXTE-706
Conclusions
In this work, the enzymes AmDH wh84 and GDH were co-immobilized on various carriers and characterized by thermo-, pH, solvent stability and reusability. Continuous flow biocatalysis were investigated utilizing three different columns and the maximum STY was up to 124.5 g L-1 d-1. At 99.0% conversion, the maximum STY for the continuous flow reaction is up to 4-fold to that of the whole-cell batch reactions and batch reactions with immobilized enzymes. The average conversions for the 48 h continuous flow process reached 91.8%, producing 470.5 mg product in excellent enantioselectivity. The reactions proceed in aqueous buffers without the use of organic solvents and only produce water as the main by-product. Therefore, the current study represents an encouraging contribution to the sustainable industrialization for enzymatic production of chiral amino alcohols by continuous flow processes.
Data availability
All data generated or analyzed during this study are included in this published article (and its supplementary information files).
