- Open Access
Mitochondrial fusion and fission are involved in stress tolerance of Candida glabrata
© Li et al.; licensee Springer. 2015
- Received: 26 October 2014
- Accepted: 17 February 2015
- Published: 12 March 2015
Recently, cell tolerance toward environmental stresses has become the major problem in the development of industrial microbial fermentation. Acetoin is an important chemical that can be synthesized by microbes. Its toxicity was investigated using Candida glabrata as the model in this study.
A series of physiological and biochemical experiments demonstrated that the organic solvent acetoin can inhibit cell growth by increasing intracellular reactive oxygen species (ROS) production and inducing damage to mitochondria and cell apoptosis. Integrating RT-PCR experiments, the genes fzo1 and dnm1 were overexpressed to regulate the balance between mitochondrial fusion and fission. Enhancement of mitochondrial fusion was shown to significantly increase cell tolerance toward acetoin stress by inhibiting ROS production and increasing the intracellular adenosine triphosphate (ATP) supply, which was also demonstrated by the addition of citrate.
Regulating mitochondrial fusion-fission may be an alternative strategy for rationally improving the growth performance of eukaryotes under high environmental stress conditions, and also expands our knowledge of the mechanisms of cell tolerance through the processes of energy-related metabolic pathways.
- ATP supply
- Candida glabrata
- Cell tolerance
- Environmental stress
- Mitochondrial fusion-fission
With the development of metabolic engineering, microorganisms have been engineered to produce many important bulk chemicals, such as ethanol, acetone, and butanol. However, most of these are toxic to cells as they can damage cell membranes and walls and interfere with essential physiological processes . Thus, improving cell tolerance has become a major challenge for microbial fermentation. To this end, genomic tools (transcriptomics, proteomics, and metabolomics) have been applied to investigate microbial responses to various solvents, and a number of strategies have been exploited to avoid solvent toxicity. Recently, a visual summary of cellular responses directed toward overcoming solvent stress and enhancing survivability was compiled [2-4], as follows: (i) metabolic detoxification, converting toxic compounds into less harmful chemicals; (ii) expression of heat shock proteins (HSP), assisting in protein folding and preventing aggregation; (iii) use of proton motive force and associated energy production; (iv) molecular efflux pumps, exporting solvents to the extracellular space; and (v) changes in cell membrane composition and biophysics, combating the fluidizing effects of solvents. But, interestingly, most of these involve energy-dependent processes, indicating that energy and energetic processes play crucial roles in protecting cells against environmental stress. For example, enhancing glucose transport and catabolism favors increased energy production and compensates for the energy expended in relieving stress in prokaryotes and eukaryotes [5-7]. Therefore, engineering the energy-generation machinery could be an alternative approach to improving cell tolerance toward environmental stress.
Mitochondria, as the power plants of the cell, can supply most of its energy through oxidative phosphorylation, and play an important role in maintaining cellular functions, such as the citric acid cycle and cell apoptosis [8,9]. As highly dynamic organelles, mitochondria maintain a balance between frequent cycles of fusion and fission, which tightly regulate mitochondrial number, morphology, and functions under ever-changing physiological conditions [10-12]. The mitochondrial fusion process can be divided into three events: docking, fusion of the outer membrane, and fusion of the inner membrane. An increase in fusion events can result in mitochondrial inner connected networks, which are protective against apoptotic sensitivity and promote survival under conditions of stress . In yeast, the mechanisms of mitochondrial fusion and fission have been identified and characterized. The fusion apparatus requires the activity of the large mitochondrial GTPase mitofusin (MFN), consisting of three core components, Fzo1, Ugo1, and Mgm1, of which Fzo1 is the key component regulating lipid bilayer fusion of mitochondrial outer membranes . However, for mitochondrial fission, the core apparatus needs another large GTPase, a dynamin-related protein that includes three components, Dnm1, Fis1, and Mdv1, of which Dnm1 is required for mitochondrial fission and apoptosis [12,14]. Therefore, mitochondria have the ability to coordinate a balance between fusion and fission to handle cellular and environmental stressors [15,16].
Candida glabrata, a haploid multivitamin auxotrophic yeast, is an important strain used for industrial production of pyruvate  and α-ketoglutaric acid . Additionally, C. glabrata was also used to produce malate  and acetoin , which can serve as a high value-added platform for the food, pharmaceutical, and chemical industries as a member of the C4-dicarboxylic acid family. However, high concentrations of acetoin were found to inhibit cell growth , and increasing the tolerance of cells may be favorable to improving the fermentative performance of a strain. To this aim, C. glabrata was used to study the effects of acetoin stress on cellular physiological characteristics (such as reactive oxygen species (ROS) and cell viability), and the balance between mitochondrial fusion and fission was also regulated to improve cellular physiological characteristics, thus enhancing cell robustness. These results demonstrated that enhancing mitochondrial fusion to increase the adenosine triphosphate (ATP) supply may be a novel approach to improving cell tolerance toward environmental stress.
Strains and plasmids
Plasmids and strains used in this study
2 μm, AmpR, URA3, P TPI
Harboring the gene of fzo1 from Saccharomyces cerevisiae CEN.PK2-1C
Harboring the gene of dnm1 from S. cerevisiae CEN.PK2-1C
C. glabrata CCTCC M202019
Multivitamin (thiamine, biotin, nicotinic acid and pyridoxine) auxotroph
C. glabrata Δura3
The mutant derived from C. glabrata CCTCC M202019
C. glabrata Δura3 (pYX212)
C. glabrata Δura3 (pYX212- fzo1)
C. glabrata Δura3 (pYX212- dnm1)
Plasmid construction and transformation
The primers used in this work are listed in Additional file 1: Table S1, and standard cloning and bacterial transformations were performed according to Sambrook and Russell . The genes fzo1 and dnm1 were amplified by polymerase chain reaction (PCR) from genomic DNA of S. cerevisiae (CEN.PK2-1C), and then inserted into the desired plasmid multi-cloning sites. In all cases, PCR was performed using TaKaRa Pyrobest DNA Polymerase (Takara Bio Inc, Shiga, Japan). All genes were sequenced to ensure correct identify of the insert prior to transformations. Yeast strains were transformed using the lithium acetate method .
Culture medium and conditions
During construction, strains were grown in complex (YPD) medium consisting of 10 g/L yeast extract, 20 g/L peptone, and 20 g/L glucose. All engineered strains were screened on synthetic complete (SC) medium consisting of 20 g/L glucose, 7 g/L urea, 5 g/L KH2PO4, 0.8 g/L MgSO4 · 7H2O, 3 g/L sodium acetate, and 15 g/L agar, at pH 6.0. They were fermented in a medium (medium A) consisting of 100 g/L glucose, 3 g/L urea, 7 g/L KH2PO4, 0.8 g/L MgSO4 · 7H2O, and 5 g/L sodium acetate in shake-flask culture (200 rpm, 30°C) using CaCO3 as the buffering agent. The inoculum size and the vitamin solution (0.04 mg/L thiamine-HCl, 0.16 mg/L biotin, 0.4 mg/L pyridoxine-HCl, and 8 mg/L nicotinic acid) were added to all media to constitute 15% v/v and 1% v/v, respectively. When necessary, different acetoin concentrations were added to the culture. Transformed E. coli JM109 cells were grown at 37°C in Luria-Bertani (LB) medium containing 100 μg/mL ampicillin.
Spotting assay for evaluation of acetoin tolerance
To evaluate microbial tolerance, a spotting assay was applied in the presence of acetoin . First, the cells were incubated overnight in SC medium with shaking (200 rpm, 30°C), and then they were collected and re-suspended by centrifugation (10,000×g, 20 s) in sterilized water. Second, the suspensions were serially diluted to an OD660 of 1 × 100, 1 × 10−1, 1 × 10−2, 1 × 10−3, 1 × 10−4, 1 × 10−5, 1 × 10−6, 1 × 10−7, and 1 × 10−8, and then spotted (5 μL each) onto agar plates containing different acetoin concentrations. The plates were sealed with vinyl plastic tape to prevent evaporation of acetoin and incubated at 30°C.
The optical absorbance at 660 nm (A660) was converted to dry cell weight (DCW) according to the following formula : A660 DCW = 1: 0.23 (g/L).
Mitochondrial membrane potential (∆Ψm): ΔΨm was measured using Rh123 (Sigma, Shanghai, China) as described previously . Cells were collected and washed twice with phosphate buffer saline (PBS), and the pellets were incubated with 500 μM Rh123 in the dark for 10 min at room temperature. Then cells were washed with PBS three times, and the suspensions were measured using flow cytometry (FCM, BD Biosciences, Shanghai, China).
ROS level: cells were collected and prepared using the ROS Assay Kit (Beyotime Institute of Biotechnology, Jiangsu, China), and ROS production was detected via flow cytometry.
ATP production: cells were collected and prepared according to the protocol of the ATP Assay Kit (Beyotime Institute of Biotechnology, Jiangsu, China), and ATP levels were measured with a luminometer. Protein concentrations were determined using a BCA Protein Assay Kit (Beyotime Institute of Biotechnology, Jiangsu, China).
Cell apoptosis: cell apoptosis was measured by flow cytometric analysis using the FACS Calibur (BD Biosciences, Shanghai, China). Fluorescence emission was measured through a 500/50-nm bandpass filter for Rh123-labeled cells, and through a 660/16-nm bandpass filter for PI-labeled cells. Propidium iodine (PI, Sigma, Shanghai, China) staining was used to monitor cell membrane integrity. Samples (500 μL) were incubated with 3 μL PI stock solution (1 mg/mL) for 5 min at room temperature in the dark, followed by microscopy and flow cytometry, and cell viability was calculated by measuring PI fluorescence on a log scale. Before measuring cell apoptosis and viability using staining with flow cytometry, Rh123/PI dual staining was quantified using samples from fresh cultures with or without acetoin treatment. A minimum of 10,000 events were analyzed per sample at a low flow rate. CELL QUEST software was used for data acquisition and analysis .
Total RNA isolation was carried out using an RNAprep pure Plant Kit, and reverse transcription (cDNA synthesis) was performed according to the protocol of the PrimeScript®RT reagent kit Perfect Real Time (Takara Bio Inc, Shiga, Japan). Quantitative real-time PCR (RT-PCR) was done using the β-ACTIN gene as the internal control, and the primers used in RT-PCR are given in Additional file 1: Table S1. Each sample was tested in triplicate in a 96-well plate (Bio-Rad Corp, Hercules, CA, USA).
All experiments were carried out in triplicate, and the results are expressed as mean ± standard deviation. SPSS 18 (SPSS Statistics 18.0, SPSS Institute, Inc., Chicago, IL, 2010, USA) was used for one-way analysis of variance and canonical correlation analysis (CCA), and significant differences (P < 0.05) among means were determined by the least significant difference test.
Tolerance of C. glabrata toward acetoin stress
Effects of acetoin stress on cellular physiological characteristics

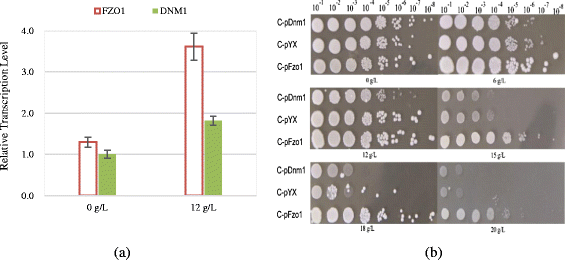

Roles of mitochondrial fusion and fission in tolerance toward acetoin stress
Effects of mitochondrial fusion-fission on physiological characteristics
Effect of citrate on C. glabrata adaptation to acetoin stress
In cells, mitochondria continually generate ROS as the byproduct of electron transport during oxidative phosphorylation. If ROS production increases it can damage mitochondrial components (such as proteins, lipids, and DNA) and then weaken metabolism and further increase ROS generation, causing a ‘vicious downward spiral’ of ROS generation and damage accumulation [28,29]. Additionally, intracellular ROS can participate in signaling effects to control the activity of protein kinases and phosphates and regulate gene expression, and thus induce cell apoptosis and cell death [30,31]. Here, the results indicated that acetoin stress could significantly increase intracellular ROS formation, and then decrease cell viability and induce cell apoptosis (Figures 2 and 3). Therefore, we hypothesized that reducing intracellular ROS production may be an alternative route for enhancing cell tolerance toward acetoin stress.
In eukaryotes, mitochondrial fusion-fission is important for maintaining mitochondrial numbers and morphology, and plays a critical role in sustaining functional mitochondria [32,33]. To date, the processes of mitochondrial fusion-fission have been used to investigate and explain cell death induced by different environmental stresses, such as ethanol , hyperosmotic , and acetic acid stress . In such cases mitochondrial fission could facilitate apoptosis by inducing mitochondrial fragmentation and ROS production, but fusion could compensate the contents of partially damaged mitochondria and maintain energy output to mitigate various stresses. In this study, the processes of mitochondrial fusion-fission were regulated and used to enhance cellular properties to combat acetoin stress. As a result, the engineered strain C-Fzo1 overexpressing mitofusin fzo1, which regulates mitochondrial fusion and maintains mitochondrial morphology, could effectively inhibit intracellular ROS formation and increase cell viability, and thus enhance cell tolerance during high levels of acetoin stress.
But, interestingly, enhancement of mitochondrial fusion could also effectively improve ATP production and help maintain the mitochondrial membrane potential (∆Ψm), which may be another reason for the high tolerance of strain C-Fzo1. Apoptosis was apparent through measurement of characteristic apoptotic indicators, such as decreased ∆Ψm, production of ROS, and caspase involvement, in which ∆Ψm became transiently increased upon apoptotic stimulation in yeast cells, resulting in mitochondrial fragmentation, the release of apoptogenic factors including cytochrome c and apoptosis-inducing-factor (AIF) [37,38], and a permanent decrease in ∆Ψm during subsequent apoptotic processes [39,40]. Therefore, maintaining the mitochondrial membrane potential may be favorable for enhancing the tolerance of cells toward environmental stress. Additionally, citrate was added and this demonstrated that improving the ATP supply had a positive effect on cell growth in the presence of acetoin stress. Actually, mitochondrial fission-fusion has been shown to alter energy requirements to regulate cell components, so that hyperfused mitochondria led to an increase in mitochondrial oxygen consumption and ATP formation that enhanced cell growth [41,42]. Therefore, the results reported here provide an alternative strategy for rationally improving the growth performance of eukaryotes, especially those that are organic solvent producers, under high organic solvent conditions, and also expand our knowledge of the mechanism of organic solvent tolerance through the processes of energy-related metabolic pathways.
In this study, the processes of mitochondrial fusion-fission were regulated and used to inhibit intracellular ROS production, raise the intracellular ATP supply, and maintain the mitochondrial membrane potential, and therefore increase cell tolerance toward acetoin stress. However, mitochondrial fission-fusion can also regulate many other physiological functions, such as Ca2+ homeostasis , metabolite transportation, and signaling exchange , to maintain the metabolic stability of mitochondria. Hence, the roles of mitochondrial fission-fusion in influencing the intracellular environment and physiological characteristics require further comprehensive investigation, exploiting some novel strategies to improve the performance of industrial microorganisms in a future study.
This research was financially supported by the Major State Basic Research Development Program of China (973 Program, No. 2013CB733602), the Program for Young Talents in China, the Provincial Outstanding Youth Foundation of Jiangsu Province (BK2012002), the Priority Academic Program Development of Jiangsu Higher Education Institutions, the National Natural Science Foundation of China (31270079) and the Fund from Wuxi City (CLE01N1111).
