Microbial mutagenesis by atmospheric and room-temperature plasma (ARTP): the latest development

Experimental workflow

The ARTP system was designed to allow easy adaptation to different microorganisms. Therefore, a large range of parameter combinations are possible. However, not all possible parameter combinations lead to biologically compatible plasma treatment conditions. The typical workflow (Fig. 1b) starts with the preparation of a defined suspension of microorganisms followed by the ARTP treatment. Subsequently, the treated microorganisms are re-suspended, adequately diluted, and streaked out on agar plates to yield single colonies. The colonies are then screened according to the targeted phenotypes (e.g., photometric test). However, due to the multitude of parameter combinations, it can be challenging to identify optimal plasma mutation conditions leading to single, isolated colonies under maximal usage of the agar surface. Overall, the following three categories are of importance. First, there are the intrinsic but variable parameters of the ARTP system such as the helium gas flow rate (standard liter per minute, SLPM), the gap space between nozzle and sample plate (millimeter, mm), the energy input (Watt, W), and the treatment time (seconds, s). Second, the sample itself causes variations through the kind of microorganism to be manipulated, the cell/spore concentration, the used suspension liquid, and its volume. Third, the subsequent post-treatment of the sample after plasma treatment including the resuspension liquid and time, the subsequent dilution, and the volume used for spreading on agar.

ARTP system variables

For the mutagenesis of biological samples, the ARTP manufacturer suggests standard values for each adjustable parameter to achieve biologically compatible conditions and the generation of reactive chemical species. In compliance with the suggested conditions, a high density of electrons and metastable helium (He*, He₂*), He⁺, He₂⁺ and N₂⁺ are generated (Zhang et al. 2014). A helium gas flow rate of 10 SLPM or higher is suggested to avoid interference between the plasma jet and surrounding air as this leads to the formation of germicidal ozone. However, in a prior study, a positive correlation between gas flow rate and the reactive chemical species concentration was shown by the increased damage after treatment of isolated plasmid DNA with plasma generated at flow rates between 5 and 30 SLPM. A 2 mm distance between sample and nozzle is recommended. Larger distances were shown to decrease the concentration of reactive chemical species as shown by the decreased damage severity with distances between 2 and 10 mm. An energy input of around 120 W is suggested to be used. The energy input was found to be positively correlated with the generation of reactive chemical species as proven earlier by damage severity of plasmid DNA treated with plasma between 10 and 120 W (Li et al. 2008). However, increased energy input leads also to a rise in temperature which is especially of significance for the survival of the whole cells. Within an energy input of 40–200 W, temperature was found to be within a biologically compatible range between 36 and 57 °C (Zhang et al. 2014). The last intrinsic parameter of the ARTP system and the most important parameter for each experimental setup is the treatment time. It is primarily used to determine the dose of the reactive chemical species to the microorganism under selected conditions. Direct treatment of isolated DNA under identical plasma-generating conditions with time variations between 0.5 to 10 min was shown to increase DNA damages (Li et al. 2008). However, it can be assumed that due to the high complexity and the presence of more sensitive molecules, the effective treatment time for whole cells is situated at a shorter exposure time. Summarizing the applied values of the operational parameters in the literature, a high variety from the suggested standard values is present. However, as some studies do not report their parameter values, a representative distribution cannot be derived. A wide variation of the helium gas flow rate can be found. While many studies selected the suggested helium gas flow rate of 10 SLPM, an equal number of studies reported a helium gas flow rate of 15 SLPM. Single studies went as low as 2 SLPM (Zong et al. 2012; Ren et al. 2017). The suggested distance between sample and nozzle of 2 mm was used in almost all reports. Single cases reported a further distance of 1 cm (Zong et al. 2012; Li et al. 2014). The energy input is a critical parameter due to its ability of heating the sample to undesirable temperatures. In the reviewed studies, the energy input was, as suggested, typically at 100 or 120 W. One single study chose a low-energy input of 40 W which might explain the extended required treatment time (Li et al. 2014). Three studies applied 180 W either for spores or filamentous fungi which are expectably less affected by higher temperatures due to their higher resistance (Xu et al. 2011, 2012; Wang et al. 2016a). Treatment time is used as the main parameter to adjust the exposure of the sample to plasma while keeping all other parameters constant. Therefore, the treatment time in the reviewed studies is mainly dependent on the other parameters preset. When other parameters were chosen to generate less reactive chemical species, this resulted in the requirement to select a longer treatment time. However, the exact impact of a single parameter cannot be estimated as in most studies multiple parameters were significantly changed and no systematic approaches were applied.

Sample-related variables

The kind of microorganism (e.g., species, Gram-positive/Gram-negative) and its current developmental stage (e.g., viable cell or spore) were shown to be of significance in case of plasma sterilization. For the ARTP, the treatment time under otherwise constant operation parameters should be evaluated for each strain by establishing a death rate curve. The suggested range for the death rate curve for bacteria is in general estimated to be effective in a range between 15 and 120 s, for Actinomycetes between 30 and 180 s, for fungi between 60 and 360 s, for yeasts between 30 and 240 s, and for microalgae between 5 and 150 s. However, as no research involving the systematic sub-lethal, helium-based plasma treatment of microorganisms via ARTP has been conducted yet, only the current findings regarding plasma sterilization combined with the time suggestions mentioned above can give a general indication for ARTP mutagenesis. Sterilization studies for different species involving Gram-positive and Gram-negative microorganisms either concluded a greater resistance of Gram-positive microorganisms or no difference at all. A study investigated the survival after plasma treatment of the Gram-negative Escherichia coli, the Gram-positive Staphylococcus aureus, the yeast Saccharomyces cerevisiae, and Bacillus subtilis spores using helium/oxygen as a working gas. While D values for E. coli and S. aureus were similar to 18 and 19 s, respectively, S. cerevisiae showed with 115 s and B. subtilis spores with 840 s, a much higher resistance to the plasma treatment (Lee et al. 2006). In another sterilization study with argon plasma involving 11 different bacterial strains, susceptibility of Gram-negative species was demonstrated to be generally greater than that of Gram-positive species. However, the susceptibility of Gram-positive species was determined to be strain specific (Ermolaeva et al. 2011). On contrary, two E. coli strains and one Listeria monocytogenes strain were exposed to dielectric barrier discharge atmospheric cold plasma with a variety of working gas mixtures containing O₂, N_2, and CO₂. The Gram-positive L. monocytogenes was inactivated more rapidly than the Gram-negative E. coli strains and a difference in inactivation time between the E. coli strains was found (Lu et al. 2014). These inconclusive findings can be reasoned by variations in plasma generation, but might also elaborate a strain specificity rather than the Gram classification. However, while fungi exhibited a greater resistance than bacteria, spores have clearly the greatest resistance against plasma treatment. For the preparation of appropriate cell concentrations for the ARTP treatment, it is suggested to harvest cells or spores from a culture during the logarithmic phase and wash 2–3 times with sterile solution. Subsequently, the resulting OD₆₀₀ should be adjusted to 0.6–0.8 or to 10⁶–10⁸ cells × ml⁻¹. It must be emphasized that the optical density can only give a rough indication of the cell concentration and is heavily dependent on strain, cell type, and growth media. A cell count would be only possible in case of non-motile cells. Therefore, it would be instead advisable to use a constant, appropriate, and high optical density under consideration of the subsequent dilution steps with the aim to obtain single colonies on the final agar plate. The suspension liquid itself is only recommended to be sterile while the volume transferred to the sample plate should be in the range of 10–20 µl. In case of extended treatment times or small volumes, an addition of 5% glycerol to the suspension liquid is suggested to minimize sample evaporation. One study investigated the impact of suspension composition on the severity of the plasma treatment. DNA samples were suspended after plasma treatment in water, phosphate-buffered saline (PBS), and media which consisted of carbonate buffer, salts, amino acids, phenol indicator, and vitamins. While water did not protect the sample, a minimal protection through PBS was observed. In contrast, the media protected the DNA sample to a large extent (Leduc et al. 2009). A later study detected a similar degree of DNA damage in PBS and aqueous solution; however, the formation of strand breaks in supercoiled DNA was slower in PBS than in water. In contrast, a tris–EDTA buffer prevented DNA damages greatly (O’Connell et al. 2011). These findings can be attributed to the buffer itself and to additional compounds within the buffer acting as radical scavengers. Furthermore, the effects of certain parameters interacting with each other should not be neglected. Besides the already mentioned energy input which leads to a temperature rise and subsequently to reduced cell viability, especially the energy input and the helium gas flow rate but also the chosen suspension liquid leads to an increased evaporation. This results in a change of the initial conditions like buffer and cell concentration and changes the overall experimental setup. For sample-related variables, only limited conclusions from the available studies can be drawn as most factors are estimated to exhibit weaker effects than the earlier mentioned ARTP system variables. The microorganism and its current state of development were found to have a strong impact. Fungal species tend to be more resilient than bacterial species and dormant bodies such as spores exhibited the highest resistance to ARTP plasma treatment. However, no conclusions about differences between Gram-positive and Gram-negative species or even amongst strains of the same species can be drawn. For most studies, cell concentration was adjusted to the suggested OD₆₀₀ of 1 and 1.5 (Sun et al. 2015) or even 2 (Lu et al. 2011). As suspension liquid, a physiological saline was mainly employed followed by 50 mM PBS buffer at pH 6 or 7. In a single study 10%, glycerol was used (Wang et al. 2016c). Mostly, the suggestion of applying a volume of 10 or 20 µl suspension liquid was implemented, while very few employed volumes as high as 50 µl (Hua et al. 2010; Lu et al. 2011) and even up to 100 µl (Zhang et al. 2016). High volumes seemed to have been used especially to counteract evaporation processed as they were used mostly together with long treatment times above 1 min and at high gas flow rates. In contrast, some cases reported the pre-drying of the sample on the sample plate prior to plasma treatment (Liu et al. 2013; Li et al. 2014; Wang et al. 2014a, b).

Post-treatment variables

After the ARTP treatment, the sample plates are submerged in resuspension liquid. A resuspension volume of 1 ml and a vortexing time of at least 1 min are recommended to ensure complete resuspension. The resuspension liquid acts as a radical scavenger equally to the suspension liquid during the ARTP treatment. Furthermore, the ratio between the treated volume and the re-suspending media was found to be of importance. Cell samples treated with a dielectric barrier discharge plasma were affected more at lower than at higher dilutions indicating that the concentration of reactive chemical species and the length of the exposure are relevant (Kalghatgi et al. 2011). However, there are no reports on the influence of the vortexing time or intensity on the survival of plasma-treated cells. The subsequent dilution range before spreading the sample on agar is dependent on the plasma treatment severity and the initial cell concentration. In general, a consistent post-treatment procedure and especially homogeneous cell dilutions needs to be ensured to obtain isolated colonies in high reliability. Data describing the post-treatment are limited. Overall, the used resuspension liquids were the same as the suspension liquid used for the plasma treatment. The volume was set between 0.8 and 2 ml, while in one case, even 5 ml was used (Li et al. 2014). This determines the ratio, as discussed earlier, which is possibly important to stop further exposure of the sample to reactive chemical species. More information about post-treatment details such as vortex intensity, dilution range, or spread volume were rarely given.

Combined usage of the ARTP system with other methods

Most studies reported a single ARTP treatment to yield the desired target. However, some studies reported an iterative ARTP treatment. While an iterative treatment for eight times (Jiang et al. 2017) led to a steady increase of the desired phenotype, 30 repetitions were only used to produce a larger pool of possible mutants (Luo et al. 2017b). ARTP treatment was also combined together with other treatments such as chemical mutagenesis with diethyl sulfate (Li et al. 2015), nitrosoguanidine (Zhang et al. 2016) or radiation mutagenesis with UV and UV-NaNO₂ (Wang et al. 2017). However, due to the lack of comparative studies, it cannot be concluded if an iterative ARTP treatment or a combination of ARTP with traditional mutagenesis tools is superior over a single ARTP treatment. Apart from applying ARTP in straight-forward mutagenesis approaches, ARTP was also successfully used as a tool for the construction of libraries for genome shuffling (Xu et al. 2012; Zhang et al. 2015b; Gu et al. 2017).

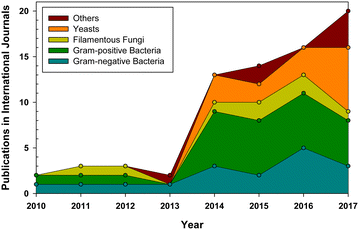

Microorganisms

Mutagenesis targets

Overall, mutagenesis targets can be classified into six groups, namely, (i) increase of microbial tolerance to certain growth conditions and media compounds, (ii) growth increase and optimization of biomass-related parameters, (iii) enzyme activity increase, (iv) butanol production increase, (v) production increase of organic acids and their derivates, and (vi) production increase of specialty chemicals mainly used in pharmaceutical products. As there are numerous positive achievements reported, only selected outstanding examples can be outlined in detail. In a study comprising three publications involving the yeast Rhodosporidium toruloides, three mutants were isolated which were resistant to the growth inhibitors vanillin, furfural, and acetic acid and, therefore, could grow in sugar cane bagasse hydrolysate (Kitahara et al. 2014). Subsequently, the mutant with the highest tolerance towards inhibitors was identified (Qi et al. 2014) and further investigated using a mixed transcriptome/proteome approach. Thirty-nine genes were identified with a larger than fivefold increased transcription level belonging to the cluster of nucleotide excision repair, glycolysis, spliceosome assembly, and MAPK signalling (Qi et al. 2017). In another study, a B. subtilis mutant showed a 37.9% increase in extracellular protein concentration which resulted in an overall higher recombinant protein secretion (Ma et al. 2015). The increase in butanol production by ARTP was shown several times such as in a mutant which exhibited a 33% higher ABE solvents production and a 25% higher butanol production (12.53 g l⁻¹ total ABE solvents, 4.9 g l⁻¹ acetone, 13.71 g l⁻¹ butanol, and 0.19 g l⁻¹ ethanol) when compared to its wild type (Kong et al. 2016). The enzymes of the cellulase complex in Trichoderma viridae were investigated individually after ARTP treatment. A 2.38-fold increase of filter paper activity, 2.61-fold increase of carboxymethyl cellulase activity, 2.18-fold increase in β-glucosidase activity (EC 3.1.2.21), and a 2.27-fold increase in cellobiohydrolase (EC 3.2.1.91) activity was reported (Xu et al. 2011). The organic acid l-lactic acid produced by an ARTP mutant of Bacillus coagulans reached a titer of 90.2 g l⁻¹ from 100 g l⁻¹ xylose, while 23.49 g  l⁻¹ from corn stover with a yield of 83.09% was achieved (Zheng et al. 2014). The carotenoid lycopene, a specialty chemical used as a pigment and antioxidant, showed a 55% concentration increase to 19.3 g l⁻¹ in Blakeslea trispora mutants (Qiang et al. 2014).
