Enhanced phosphate adsorption and desorption characteristics of MgO-modified biochars prepared via direct co-pyrolysis of MgO and raw materials

Abstract

Biochar modified by metal ions—particularly Mg—is typically used for the effective recovery of phosphorous. In this study, MgO-modified biochars were synthesized via the direct co-pyrolysis of MgO and raw materials such as rice straw, corn straw, Camellia oleifera shells, and branches from garden waste, which were labeled as MRS, MCS, MOT, and MGW, respectively. The resulting phosphate (PO) adsorption capacities and potential adsorption mechanisms were analyzed. The PO adsorption capacities of the biochars were significantly improved after the modification with MgO: MRS (24.71 ± 0.32 mg/g) > MGW (23.55 ± 0.46 mg/g) > MOT (15.23 ± 0.19 mg/g) > MCS (14.12 ± 0.21 mg/g). PO adsorption on the modified biochars was controlled by physical adsorption, precipitation, and surface inner-sphere complexation processes, although no electrostatic attraction was observed. Furthermore, PO adsorbed on modified biochars could be released under acidic, alkaline, and neutral conditions. The desorption efficiency of MRS was modest, indicating its suitability as a slow-release fertilizer.

Graphical Abstract

Introduction

Phosphorus is a non-renewable resource widely used as a fertilizer in agriculture. In this context, it is primarily derived from phosphate (PO) ore, which is currently overexploited (Reitzel et al. 2019; Schroder et al. 2011). Additionally, large amounts of PO-containing sewage are being discharged directly into rivers and oceans without treatment, which results in the eutrophication of water bodies and large-scale deterioration of the water quality, harming aquatic life and human health (Peyman et al. 2017). To simultaneously address the problems of water eutrophication and the shortage of PO ore resources, strategies should be developed to recover phosphorous from high-PO-content wastewater for subsequent use in agriculture (Ribeiro et al. 2020).

The standard methods for recovering phosphorous from wastewater include chemical precipitation, biological treatment, adsorption, ion exchange, and electric flocculation (Gao et al. 2019; Yeoman et al. 1988; Zhou et al. 2022). Among these, chemical precipitation has the advantages of simple operation and excellent stability; however, it can cause secondary pollution (Huang et al. 2017). Similarly, biological treatment is low-cost but is characterized by poor stability and reliance on the treatment environment (Bunce et al. 2018). Alternatively, adsorption has attracted attention because it has advantages such as simple operation, low cost, and reusability—particularly when biochar is used as the carrier to adsorb PO from wastewater, which can then be reused in agricultural applications (Bryant et al. 2012). Biochar is a C-rich solid obtained via biomass pyrolysis under anaerobic or hypoxic conditions (Gong et al. 2020; Lehmann et al. 2006). Owing to its abundant functional groups, developed pore structure, and large specific surface area (Liu et al. 2019), biochar is often used as an adsorbent for various pollutants. However, it is a large anion with a negative charge. Thus, it can adsorb positively charged materials, such as heavy-metal ions, but exhibits a poor adsorption ability for anions (Cha et al. 2016; Chun et al. 2021). It has even been reported to it has even been reported to exert a repulsion effect during phosphate and nitrate salt adsorption during PO and nitrate salt adsorption (Pinto et al. 2019). Therefore, physical and chemical modifications are needed to improve the adsorption effect of biochar on anions.

Previous studies have indicated that the PO removal efficiency of biochar can be significantly increased via modification with metal ions. For example, Xu et al. (2019) prepared lignocellulose biochar via LaCl3 modification, which exhibited an adsorption capacity of up to 36.06 mg/g for PO adsorption. Furthermore, Wu et al. (2020) modified rice straw-derived biochar with ferrous chloride (Fe(II)) and ferric chloride (Fe(III)), reporting an adsorption capacity of 39.20 mg/g for the Fe(II) biochar. Iron oxide particles were found to enhance the PO adsorption ability while reducing the phosphorous loss. Thus, iron-modified biochar had enhanced availability for PO. Zhang et al. (2022) fabricated a low-cost biochar via co-precipitation modification using seawater as a modifying agent. The as-prepared seawater-modified biochar exhibited a maximum adsorption capacity of 181.07 mg/g for PO owing to the loading of Mg. These findings indicate that the PO adsorption capacity of biochar can be significantly improved via modification with metals—particularly Mg. Notably, Mg is a medium trace element required by plants and has beneficial environmental effects (Hoo et al. 2004). Therefore, the application of Mg-modified biochar in PO adsorption has attracted the attention of researchers.

Modifying biochar by Mg typically involves two steps: (i) soaking in MgCl2 and (ii) pyrolysis. Wu et al. (2019) synthesized MgO-modified biochar by combining 50 g of biochar with 1 M MgCl2, followed by heating in a muffle furnace at 600 °C, which resulted in a maximum PO adsorption capacity of 18.94 mg/g. Similarly, Fang et al. (2020) prepared Mg/Ca-modified biochars by soaking sugarcane bagasse in MgCl2·6H2O and CaCl2·2H2O solutions for 1 h, followed by oven-drying and pyrolysis at 700 °C, achieving an adsorption capacity of up to 129.79 mg/g. These findings indicate that biochar modified via impregnation with MgCl2 exhibits a markedly improved PO adsorption capacity; however, this method requires complex technological processes and high costs. Moreover, previous studies have indicated that MgO is the main active functional group during PO adsorption in MgCl2-modified biochars (Fang et al. 2022; Li et al. 2022).

The present study addresses the need for a one-step preparation process for MgO-modified biochar for PO adsorption. Four types of agricultural and forestry waste (rice straw, corn straw, Camellia oleifera shells, and branches from garden waste) were used as raw materials, which were subjected to co-pyrolysis with MgO to prepare MgO-modified biochars. The PO adsorption capacities and efficiencies of the as-prepared MgO-modified biochars were examined to provide a scientific basis for utilizing agricultural and forestry waste.

Materials and methods

Preparation of biochar and Mg-modified biochar

Rice straw, corn straw, Camellia oleifera shells, and branches from garden waste were obtained from Guangzhou city in Guangdong province and used as raw materials. They were pre-treated by flushing with tap water to remove dust, followed by washing with distilled water for deionization, and oven-dried for 24 h at 80 °C. The resulting dried raw materials were shredded to 0.5–1.0 cm before use. Next, the pre-treated raw materials were pyrolyzed in a tube furnace at 700 °C for 2 h with a shielding gas of N2 and a heating rate of 10 °C/min. After cooling naturally, the samples were washed with deionized water and ethanol three times each. The resulting as-prepared biochars were labeled RS, CS, OT, and GW. MgO-modified biochar was prepared using the same process, except the pre-treated raw material was mixed with MgO at a mass ratio of 3:1 before pyrolysis. The resulting as-prepared biochars were labeled MRS, MCS, MOT, and MGW.

PO adsorption experiment

PO adsorption

Next, the PO adsorption capacities of the as-prepared biochars were determined. Briefly, 0.10 g of as-prepared biochar was mixed with a 100-mg/L KH2PO4 solution (25 mL, pH = 5.22) in 50-mL centrifuge tubes, followed by mixing in a shaker at 25 °C for 24 h. The samples were then centrifuged, and the resulting supernatants were filtered (0.45 mm) and tested using the ammonium molybdate spectrophotometric method (GB11893-1989). Lastly, the PO adsorption capacity of the samples was calculated according to the difference between the PO contents in the supernatant before and after adsorption using the following equation (Chen et al. 2018):

$$ {\text{Q}}_{{\text{e}}}=\left( {{\text{C}}_{{0}} -{\text{C}}_{{\text{e}}} } \right){\text{ V/M}} $$
(1)

where Qe represents the PO adsorption capacity (mg/g); C0 and Ce represent the initial and equilibrium PO concentrations in the aqueous solution, respectively (mg/ L); V represents the volume of PO solution (L); and M represents the mass of the as-prepared biochar sample (g).

Kinetic studies

The kinetics of PO adsorption for MRS, MCS, MOT, and MGW were evaluated by diffusing 0.10 g of as-prepared biochar in 50-mL centrifuge tubes containing 25 mL of KH2PO4 solution (100 mg/L, pH = 5.22). The centrifuge tubes were shaken in a shaker at a constant temperature of 25 °C for 30, 90, 120, 150, 360, 1200, and 1440 min, followed by centrifugation. The resulting supernatants were filtered using a 0.45-μm filter membrane and evaluated using a spectrophotometer (UV-1280; Shimadzu, Japan) at 700 nm.

To quantitatively depict the kinetics of PO adsorption, pseudo-first-order, pseudo-second-order, and intra-particle diffusion models were used (Liu et al. 2022):

$$ {\text{pseudo-first-order}{:}\, \text{ln} (\text{q}_\text{e}}-\text{q}_\text{t})=\text{ln}\, \text{q}_\text{e}-\text{k}_{1\text{t}} $$
(2)
$$ \text{pseudo-second-order}{:}\,\text{t/q}_{{\text{t}}} = 1/\left( {{\text{k}}_{{2}} {\text{q}}_{{\text{e}}}^{{2}} } \right){\text{ + t/q}}_{{\text{e}}} $$
(3)
$$ \text{intra-particle diffusion equation}{:}\, \text{q}_{{\text{t}}} = \text{k}_{{\text{p}}} {\text{t}}^{{1/2}} +{\text{C}} $$
(4)

where qt and qe (mg/g) represent the amounts of PO adsorbed at time t and equilibrium, respectively, and k1 (min−1), k2 (g/ (mg min)), and kp (g/(mg min)) are the first-order kinetic rate constant, second-order kinetic rate constant, and apparent diffusion rate constant, respectively. C is a constant (mg/g) that denotes the boundary layer thickness.

PO adsorption isotherm analysis

Isotherm analysis was conducted for the kinetic study procedures. Briefly, 0.10 g of MRS, MCS, MOT, and MGW was diffused in 50-mL centrifuge tubes containing 25 mL of KH2PO4 solution (pH = 5.22) at concentrations of 0, 10, 50, 100, 200, 300, 500, and 1000 mg/L, followed by shaking in a shaker at a constant temperature of 25 °C for 24 h. The Langmuir and Freundlich models were used to quantitatively expound the adsorption isotherms (Li et al. 2016a, b):

$$ {\text{Langmuir model: q}}_{{\text{e}}} {\text{ = K}}_{{\text{L}}} {\text{Q}}_{{\text{m}}} {\text{C}}_{{\text{e}}} {/ }\left( {{\text{1 + K}}_{{\text{L}}} {\text{C}}_{{\text{e}}} } \right) $$
(5)
$$ {\text{Freundlich model: q}}_{{\text{e}}} {\text{ = K}}_{{\text{F}}} {\text{C}}_{{\text{e}}}^{{\text{1/n}}} $$
(6)

where Ce represents the equilibrium adsorption concentration (mg/L); Qm represents the maximum adsorption capacity (mg/g); KL is the Langmuir constant, which is related to the interaction energies; KF is the Freundlich affinity coefficient, which is related to the adsorption capacity; and n is the Freundlich constant, which is related to the adsorption intensity.

PO desorption experiment

To evaluate the PO desorption performance of the samples, MRS, MCS, MOT, and MGW were soaked in KH2PO4 solution to produce PO-saturated biochar, and the resulting samples were labeled as MRS–PO, MCS–PO, MOT–PO, and MGW–PO, respectively. Then, 0.10 g of MRS–PO, MCS–PO, MOT–PO, and MGW–PO was suspended in 25 mL of NaOH solution (0.05 mol/L), citric acid solution (2%), or distilled water and oscillated for 24 h before the released PO was measured, as follows:

$$ {\text{D}}\,\left( \%\right)=\left( {\text{C*V}} \right){/}\left( {\text{Q*m}} \right) $$
(7)

Here, D (%) represents the desorption rate, C represents the PO concentration in the aqueous solution after desorption, V represents the volume of the PO-containing solution (L), Q represents the equilibrium adsorption capacity (mg/g), and m represents the mass of PO-saturated biochar (g).

Characterization of biochar and Mg-modified biochar

Fourier transform infrared spectroscopy (FTIR) (TENSOR27; Germany) was used to identify the surface functional groups and chemical bonds of the biochar samples before and after PO absorption. Before testing, 0.5 mg of biochar was thoroughly mixed with 100 mg of KBr via grinding in a mortar and then subjected to a pressure of 20 MPa using a tablet press. The spectra were obtained via 60 scans, with wavenumbers ranging from 4000 to 500 cm−1. X-photoelectron spectroscopy (XPS) (ESCA Lab 250Xi; USA) was conducted to examine the compositions, chemical states, and electronic states of the elements on the surfaces of the biochar samples. Scanning electron microscopy (SEM) (S-4800; Japan) was conducted to examine the surface morphologies of the as-prepared biochars. The zeta potential of the as-prepared biochar was investigated by dispersing 0.01 g of biochar in 50 mL of deionized water (the solution pH varied from 2.0 to 9.0), followed by 12 h of ultrasonic treatment. The surface charge of the sample was measured using a laser particle size analyzer.

Statistical method

Origin 2021 was used to calculate the coefficient of determination (R2), standard deviation, and other statistical parameters.

Results and discussion

The PO adsorption capacities of the RS, CS, OT, GW, MRS, MCS, MOT, and MGW biochar samples are presented in Additional file 1: Fig. S1 and Table 1. As unmodified biochar is typically negatively charged and tends to hinder PO adsorption (Yao et al. 2012), far lower adsorption capacities were observed in the four unmodified biochars (RS, CS, OT, and GW). GW exhibited a larger specific surface area, more adsorption sites (Zhang et al. 2020), and a slightly higher PO adsorption capacity (1.87 ± 0.21 mg/g) than the other samples, although the differences were insignificant. In comparison, the PO adsorption capacity of the biochar samples was increased multi-fold after modification with MgO. Among the MgO-modified biochars, MRS exhibited the highest adsorption capacity (24.71 ± 0.32 mg/g), followed by MGW (23.55 ± 0.46 mg/g), MOT (15.23 ± 0.19 mg/g), and MCS (14.12 ± 0.21 mg/g). This result is attributed to the larger specific surface area and the loading of MgO during modification. Although MCS had the largest specific surface area, it also exhibited the lowest PO adsorption capacity. This observation suggests that the relationship between the PO adsorption capacity and specific surface area is not proportional in biochars. Taking into account the adsorption-capacity results, the MgO-modified biochars (MRS, MCS, MOT, and MGW) were selected for further study.

Table 1 Special surface areas and adsorption capacities of biochars from rice straw, corn straw, Camellia oleifera shells, and branches from garden waste before and after MgO modification

Characteristics of as-prepared biochars

FTIR analysis

FTIR is commonly used to characterize the functional groups of samples (Bekiaris et al. 2016). In this study, FTIR was used to evaluate the PO adsorption and the transformation process in biochar. As shown in Fig. 1, clear absorption bands appeared at approximately 1064 ± 5 cm−1 and 591 ± 3 cm−1 for MRS, MCS, MOT, and MGW after PO desorption, which were assigned to the P–O asymmetric stretching vibration of the PO43− group and the bending vibration of O–P–O, respectively (Li et al. 2020; Wang, et al. 2018). Additionally, weak peaks appeared at approximately 591 ± 3 cm−1 before PO adsorption, and the peaks at approximately 1064 ± 5 cm−1 for MRS, MCS, MOT, and MGW are attributed to the stretching and bending vibrations of Mg–O and Mg–OH (Tongamp et al. 2007). The peak intensity at 1064 ± 5 cm−1 for MRS, MCS, MOT, and MGW increased after PO desorption, indicating that these biochars successfully adsorbed additional PO ions. The peaks at approximately 1553 ± 3 cm−1 may correspond to C=C vibrations (Liao et al. 2018). Additionally, the weak peaks observed at approximately 3372–3525 cm−1 and 1381 ± 8 cm−1, which are attributed to –OH bending vibrations, nearly disappeared after PO adsorption, indicating the interaction between PO and the –OH group (Liao et al. 2018).

Fig. 1
figure 1

FTIR spectra of a MRS, b MCS, c MOT, and d MGW before and after PO adsorption

XPS analysis

XPS—an effective method for analyzing the types and forms of elements present on the surfaces of materials—was used to evaluate the different biochar samples (Yang et al. 2009). The obtained XPS spectra of the unmodified biochars (RS, CS, OT, and GW) and the MgO-modified biochars (MRS, MCS, MOT, and MGW) before and after the PO adsorption are presented in Additional file 1: Fig. S2. As shown in Additional file 1: Fig. S2 and Table S1, all the biochars were found to be rich in C and O. Furthermore, higher levels of Mg were detected in MRS, MCS, MOT, and MGW compared with the unmodified biochars (RS, CS, OT, and GW), indicating the successful loading of Mg in biochars via the co-pyrolysis of MgO with biomass. Notably, MRS exhibited the highest Mg loading capacity (11.90 at.%), which explains why it had the highest adsorption capacity. Moreover, the peak intensities of PO (136.36 ± 0.19 eV) were increased after PO adsorption, which confirmed the successful adsorption of PO in MRS, MCS, MOT, and MGW and was consistent with previous results.

The XPS spectra of P2p were evaluated in MRS, MCS, MOT, and MGW before and after PO adsorption. As shown in Fig. 2, although the P2p peaks for MRS, MCS, MOT, and MGW before PO adsorption were negligible, clear peaks appeared after PO adsorption (range 125 to 145 eV) at binding energies of 134.96 ± 0.23, 136.36 ± 0.19, and 138.08 ± 0.21 eV, which were assigned to PO43−, HPO42−, and PO analogs, respectively (Yao et al. 2013; Zhu, et al. 2020). These results indicate that PO adsorption is due to the reaction of PO anions and MgO, as well as surface deposition (Yao et al. 2013). To confirm these findings, the Mg1s spectra for MRS, MCS, MOT, and MGW after PO desorption were evaluated. As shown in Additional file 1: Fig. S2, peaks were observed at binding energies of 1308.38 ± 0.30, 1306.00 ± 0.34, and 304.28 ± 0.32 eV, which were assigned to MgHPO4, Mg(H2PO4)2, and MgO (Zhu et al. 2020), respectively, confirming the above results.

Fig. 2
figure 2

High-resolution XPS spectra of P2p for a MRS, b MCS, c MOT, and d MGW before and after PO adsorption

SEM

SEM images of the unmodified biochars (RS, CS, OT, and GW), modified biochars (MRS, MCS, MOT, and MGW), and PO-loaded biochars (MRS–PO, MCS–PO, MOT–PO, and MGW–PO) are presented in Fig. 3. As shown, the unmodified biochars had smooth surfaces, indicating small specific surface areas (Table 1). The modified biochars exhibited rougher and more porous morphologies, which is attributed to the pyrolysis and the deposition of MgO nanoparticles during co-pyrolysis (Zhu et al. 2020). Moreover, clusters of flakes were observed on the PO-loaded biochars (MRS–PO, MCS–PO, MOT–PO, and MGW–PO). Energy-dispersive X-ray spectroscopy (EDX) mapping of MRS–PO confirmed the homogenous distribution of C, O, Mg, and P. Together with the XPS results, these findings confirm the formation of MgHPO4 and Mg(H2PO4)2 on the surfaces of the MgO-modified biochars.

Fig. 3
figure 3

SEM images of unmodified biochars (RS, CS, OT, and GW), modified biochars (MRS, MCS, MOT, and MGW), and PO-loaded biochars (MRS–PO, MCS–PO, MOT–PO, and MGW–PO) and EDX mapping of MRS–PO

Point of zero charge (pHpzc)

Previous studies have indicated that both the PO species and the adsorption reactions vary with respect to the pH (Li et al. 2016a, b; Wu et al. 2020). In this context, negatively charged H2PO4 was predominant at pH values of 2.10–7.20, whereas HPO42− was the dominant species at pH values of 7.20–12.30. PO4 may exist in large quantities at pH values of 10.67–12. Moreover, inner-sphere PO complex formation and ligand exchange are more likely to occur in H2PO4 compared with HPO42−. This is attributed to the far higher adsorption-free energy of HPO42− (Li et al. 2019; Lin et al. 2019). Hence, the pH of solutions significantly affects the PO adsorption. According to Liu et al. (2016), when pH < pHpzc, Mg oxides on the surfaces of the biochars become protonated and synthesise MgOH+, increasing the pH of the solution. Biochars with MgOH+ on their surfaces are inclined to bond with PO ions via electrostatic attraction. As the pH increases, the protonation effect of Mg oxides gradually becomes weaker, and the biochar surface becomes negatively charged, leading to an electrostatic interaction that is repulsive toward PO anions and a reduced PO adsorption capacity, which results in chemical precipitation and complexation reactions (Li et al. 2019; Li, et al. 2016a, b). The zeta potentials of MRS, MCS, MOT, and MGW at different pH values are presented in Additional file 1: Fig. S3. The corresponding points of zero charge (pHpzc) were 4.19, 2.01, 3.07, and 2.23, respectively. MRS exhibited the highest pHpzc among the samples, confirming its highest PO adsorption capacity. The pH of the KH2PO4 solution (pH = 5.22) was higher than the pHpzc values of MRS, MCS, MOT, and MGW, indicating poor (or a lack of) electrostatic interactions in the MgO-modified biochars. The previously observed PO desorption may have been due to chemical precipitation and complexation reactions.

PO adsorption mechanism

Kinetics of PO adsorption

Adsorption kinetics describe the retention rate of a solute under given conditions and reflect the retention time of an adsorption unit to achieve a required solute concentration, which indicates the adsorption speed of a material. The PO adsorption kinetics of the unmodified biochar (RS) and modified biochars (MRS, MCS, MOT, and MGW) at an initial concentration of 100 mg/L were analyzed, and the results are presented in Fig. 4 and Additional file 1: Fig. S5. MRS, MCS, MOT, and MGW exhibited a two-stage absorption process. After PO adsorption in the first stage (0–150 min), the adsorption rate increased significantly and reached saturation in the second stage (360–1440 min). The adsorption rate of the modified biochars in this paper was far more rapid than that of MgCl2-modified biochars derived from ground coffee waste and corn stalks (Shin et al. 2020; Zhu et al. 2020). The rapid adsorption observed in the first stage is attributed to electrostatic forces and the rapid precipitation reaction on the surfaces of the biochar samples. In contrast, the slow adsorption in the second stage indicated the occurrence of the physical adsorption and intra-particle diffusion of the PO dissolved into the biochar (Fang et al. 2020; Yang et al. 2021a, b). However, RS was found to absorb little PO and only exhibited a slow one-stage absorption process, which is attributed to the physical adsorption (Additional file 1: Fig. S4).

Fig. 4
figure 4

PO adsorption kinetics for MRS, MCS, MOT, and MGW. Symbols indicate the experimental data, and the lines indicate the results of the simulations based on the pseudo-first-order and pseudo-second-order models

Next, the absorption data for RS, MRS, MCS, MOT, and MGW were further analyzed via fitting with pseudo-first-order and pseudo-second-order models. These models agreed with the experimental data. They exhibited significant correlation coefficients, indicating that both physical and chemical adsorption occurred (Wu et al. 2020). Moreover, the correlation coefficients of the pseudo-second-order model for MRS (R2 = 0.998), MCS (R2 = 0.990), MOT (R2 = 0.971), and MGW (R2 = 0.994) exceeded those of the pseudo-first-order model (Table 2). The pseudo-second-order model may be better suited to describe PO adsorption by MRS, MCS, MOT, and MGW, as the Qe values were closer to the experimental values. Thus, PO adsorption mainly occurred via chemisorption in MRS, MCS, MOT, and MGW (Buates and Imai 2020). MRS exhibited the highest adsorption capacity and smallest specific surface area, and MCS exhibited the lowest adsorption capacity and largest specific surface area, confirming the dominance of chemisorption in MRS, MCS, MOT, and MGW. However, RS appeared to fit the pseudo-first-order model more closely, indicating the occurrence of intra-particle diffusion and physical processes (Additional file 1: Table S2) (Jung et al. 2015).

Table 2 Kinetic parameters of PO adsorption in MRS, MCS, MOT, and MGW based on pseudo-first-order and pseudo-second-order models

Isotherm of PO adsorption

Adsorption isotherms reflect the interactions between adsorbates and adsorbents and are thus crucial for characterizing the capacity of adsorbents from which the corresponding adsorption systems can be derived. Adsorption isotherm analysis was performed to gain insights into the PO adsorption properties of MRS, MCS, MOT, and MGW. The data corresponding to this analysis are presented in Fig. 5. The intensity of PO adsorption increased with an increasing concentration of PO in the solution. Furthermore, although the adsorption isotherms of PO were nonlinear, they exhibited a concave downward shape, and the PO adsorption capacities of MRS, MCS, MOT, and MGW increased with the equilibrium concentration.

Fig. 5
figure 5

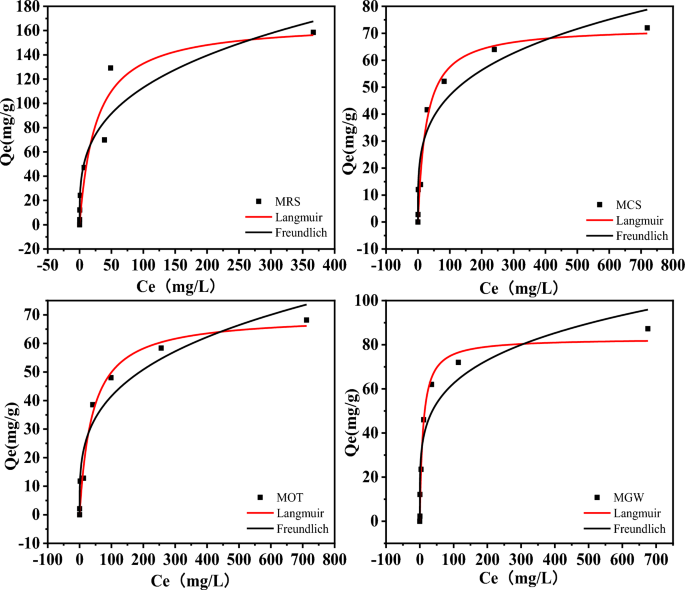

PO adsorption isotherms for MRS, MCS, MOT, and MGW. Symbols indicate the experimental data, and the lines indicate the results of the simulations based on the Freundlich and Langmuir models

To examine the differences in PO adsorption capacity between the different biochar samples, two-parameter equations, i.e., the Langmuir and Freundlich models, corresponding to the homogenous and heterogeneous sorbent surfaces, respectively, were used to fit the experimental data (Ifthikar et al. 2017). Figure 5 and Table 3 show that both models adequately reproduced the adsorption data, indicating a strong interaction between PO and the biochar samples. The Langmuir model exhibited a correlation coefficient (R2) of 0.91–0.99, which exceeded that of the Freundlich model (0.86–0.94), indicating that the Langmuir model was a better fit for the experimental data. The model assumed monolayer PO adsorption in MRS, MCS, MOT, and MGW, with MgO reacting with PO on the homogeneous surfaces of the four modified biochars. MRS exhibited the highest theoretical PO adsorption capacity (167.29 mg/g), which was approximately 2.02, 2.31, and 2.39 times higher than those of MGW (82.90 mg/g), MCS (72.49 mg/g), and MOT (69.86 mg/g), respectively, and significantly higher than those of most previously reported biochars (Additional file 1: Table S3). These results indicate that MgO co-pyrolysis can efficiently provide a high PO adsorption capacity during biochar modification. Additionally, the correlation coefficients in the Langmuir model were < 0.95, whereas the n values were > 3. This suggests that all four modified biochars (MRS, MCS, MOT, and MGW) had high capacities for PO adsorption, which was dominated by monolayer adsorption (Zhang et al. 2015).

Table 3 Isotherm parameters of PO adsorption in MRS, MCS, MOT, and MGW based on Freundlich and Langmuir models

Adsorption mechanism analysis

Previous studies have indicated that the processes of physical adsorption, precipitation, electrostatic attraction, and inner-sphere complexation contribute to PO adsorption in Mg-modified biochars (Li et al. 2016a, b; Wu et al. 2019; Yao et al. 2013). According to the results of the PO adsorption capacity and adsorption kinetics analysis, RS with a larger specific surface area had a higher PO adsorption capacity, indicating that physical adsorption may occur in biochars with large specific surface areas and rich pore structures. The XPS results indicated the existence of Mg(H2PO4)2 and MgHPO4 on the surfaces of the biochar samples after PO adsorption, which was attributed to the precipitation of Mg oxyhydroxides upon their reaction with HPO42− and H2PO4. Furthermore, the clusters of flakes observed on the surfaces of the PO-loaded biochars confirmed the precipitation of Mg–PO. In addition, the FTIR results highlighted the asymmetric vibration of P–O bonds at 1064 ± 5 cm−1, indicating the interaction between the Mg–OH group and PO ions and the occurrence of surface inner-sphere complexation processes. However, as the surfaces of the biochar samples were negatively charged when pH > pHPZC (KH2PO4 solution, pH = 5.52), electrostatic attraction was unlikely.

These results suggest that PO adsorption on the MgO-modified biochars (prepared via the co-pyrolysis of MgO with biomass) was controlled by a combination of physical adsorption, precipitation, and surface inner-sphere complexation processes. Additionally, no electrostatic attraction was observed (Fig. 6).

Fig. 6
figure 6

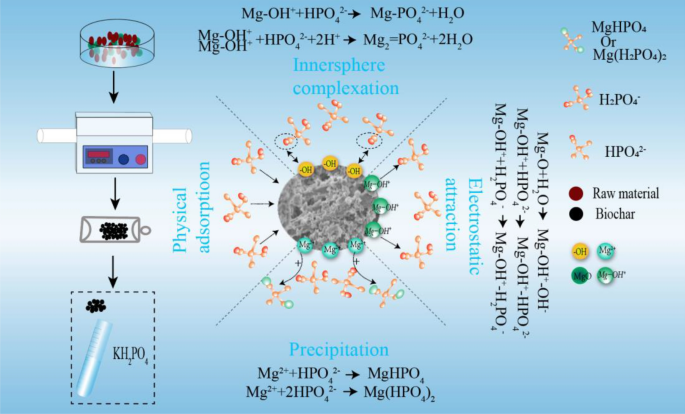

Mechanisms of PO adsorption in MRS

PO desorption efficiency

PO desorbability is crucial for the practical application of MgO-modified biochars as PO-loading carriers and the subsequent use of recovered PO as fertilizer in agriculture. In this study, to determine the PO desorbability of the MgO-modified biochars, the PO desorption efficiencies of MRS–PO, MCS–PO, MOT–PO, and MGW–PO were evaluated in 2% citric acid, 0.05% NaOH, and water (Fig. 7). Phosphate was found to be effectively released by MRS, MCS, MOT, and MGW in all the solutions. Regarding the high solubility of Mg(H2PO4)2 and MgHPO4 under acidic conditions (Shin et al. 2020; Yang et al. 2021a, b) and the dissolvability of the magnesium PO compounds in citric acid (Nardis et al. 2022), a PO desorption efficiency of up to 90.53–95.71% was observed in 2% citric acid, which was higher than those in 0.05% NaOH (57.83–73.44%) and water (4.52–14.54%). These results indicate that acidic and alkaline conditions were adequate for PO desorption, and that the PO desorption efficiencies of MRS, MCS, MOT, and MGW differed among the solutions tested, suggesting that the interplay between PO and the biochars differed. Moreover, MCS exhibited the highest PO desorption efficiency at 2% citric acid. In contrast, most PO was released by MOT in 0.05% NaOH, and MRS exhibited the highest desorption in water. In the context of a slow-release fertilizer, if PO is released too slowly or too quickly, its value with regard to agricultural usage is reduced. Thus, owing to its PO adsorption capacity, MRS is deemed the most suitable material for this application.

Fig. 7
figure 7

PO desorption efficiencies of MRS–PO, MCS–PO, MOT–PO, and MGW–PO in 2% citric acid, 0.05% NaOH, and water

Conclusion

Biomass in the form of rice straw, corn straw, Camellia oleifera shells, and branches from garden waste was used as feedstock to prepare MgO-modified biochars (MRS, MCS, MOT, and MGW) via one-step co-pyrolysis. Because of the large corresponding specific surface areas and MgO loads, the resulting MgO-modified biochars exhibited significantly higher PO adsorption capacities than unmodified biochars: MRS (24.71 ± 0.32 mg/g) > MGW(23.55 ± 0.46 mg/g) > MOT (15.23 ± 0.19 mg/g) > MCS (14.12 ± 0.21 mg/g). The phosphate adsorption in these MgO-modified biochars followed pseudo-second-order kinetics, suggesting that PO adsorption mainly occurred via chemisorption. Furthermore, the isotherm data fit well with the Langmuir and Freundlich models, indicating an effective interaction between PO and the biochar samples evaluated. XPS results indicated the existence of Mg(H2PO4)2 and MgHPO4 on the surfaces of the biochar samples after PO adsorption, which was attributed to the precipitation of Mg oxyhydroxides that reacted with HPO42− and H2PO4. Moreover, clusters of flakes observed on the surfaces of the PO-loaded biochars indicated the precipitation of Mg–PO. FTIR spectra indicated that the interactions between the Mg–OH group and PO ions occurred via surface inner-sphere complexation processes. Additionally, PO adsorbed by the MgO-modified biochars could be released under acidic, alkaline, or neutral conditions. As the desorption efficiency of MRS was modest, MgO-modified biochars obtained from rice straw are likely to be suitable for use as a slow-release fertilizer.

Availability of data and materials

All data supporting this article’s conclusion are available.

References

  • Bekiaris G, Peltre C, Jensen LS, Bruun S (2016) Using FTIR-photoacoustic spectroscopy for phosphorus speciation analysis of biochars. Spectrochim Acta a 168:29–36

    Article  CAS  Google Scholar

  • Bryant RB, Buda AR, Kleinman PJA, Church CD, Saporito LS, Folmar GJ (2012) Using flue gas desulfurization gypsum to remove dissolved phosphorus from agricultural drainage waters. J Environ Qual 413:664–671

    Article  Google Scholar

  • Buates J, Imai T (2020) Biochar functionalization with layered double hydroxides composites: preparation, characterization, and application for effective phosphate removal. J Water Process Eng 37:101508

    Article  Google Scholar

  • Bunce JT, Ndam E, Ofiteru ID, Moore A, Graham DW (2018) A review of phosphorus removal technologies and their applicability to small-scale domestic wastewater treatment systems. Front Env Sci-Switz 6:8

    Article  Google Scholar

  • Cha JS, Park SH, Jung SC, Ryu C, Jeon JK, Shin MC, Park YK (2016) Production and utilization of biochar: a review. J Ind Eng Chem 40:1–15

    Article  CAS  Google Scholar

  • Chen QC, Qin JL, Sun P, Cheng ZW, Shen GQ (2018) Cow dung-derived engineered biochar for reclaiming phosphate from aqueous solution and its validation as slow-release fertilizer in soil crop system. J Clean Prod 172:2009–2018

    Article  CAS  Google Scholar

  • Chun Y, Lee SK, Yoo HY, Kim SW (2021) Recent advancements in biochar production according to feedstock classification, pyrolysis conditions, and applications: a review. BioResources 163:6512–6547

    Article  Google Scholar

  • Fang L, Li JS, Donatello S, Cheeseman CR, Poon CS, Tsang DCW (2020) Use of Mg/Ca modified biochars to take up phosphorus from acid-extract of incinerated sewage sludge ash (ISSA) for fertilizer application. J Clean Prod 244:118853

    Article  CAS  Google Scholar

  • Fang Y, Ali A, Gao Y, Zhao P, Li R, Li X (2022) Preparation and characterization of MgO hybrid biochar and its mechanism for high efficient recovery of phosphorus from aqueous media. Biochar 41:40

    Article  Google Scholar

  • Gao Q, Wang CZ, Liu S, Hanigan D, Liu ST, Zhao HZ (2019) Ultrafiltration membrane microreactor (MMR) for simultaneous removal of nitrate and phosphate from water. Chem Eng J 355:238–246

    Article  CAS  Google Scholar

  • Gong HF, Chi J, Ding Z, Zhang F, Huang JJ (2020) Removal of lead from two polluted soils by magnetic wheat straw biochars. Ecotox Environ Safe 205:111132

    Article  CAS  Google Scholar

  • Hoo H, Hashidoko Y, Islam MT, Tahara S (2004) Requirement of a relatively high threshold level of Mg2+ for cell growth of a rhizoplane bacterium, Sphingomonas yanoikuyae EC-S001. Appl Environ Microb 709:5214–5221

    Article  Google Scholar

  • Huang WY, Zhang YM, Li D (2017) Adsorptive removal of phosphate from water using mesoporous materials: a review. J Environ Manage 193:470–482

    Article  CAS  PubMed  Google Scholar

  • Ifthikar J, Wang J, Wang QL, Wang T, Wang HB, Khan A (2017) Highly efficient lead distribution by magnetic sewage sludge biochar: sorption mechanisms and bench applications. Bioresource Technol 238:399–406

    Article  CAS  Google Scholar

  • Jung KW, Jeong TU, Hwang MJ, Kim K, Ahn KH (2015) Phosphate adsorption ability of biochar/Mg-Al assembled nanocomposites prepared by aluminum-electrode based electro-assisted modification method with MgCl2 as electrolyte. Bioresource Technol 198:603–610

    Article  CAS  Google Scholar

  • Lehmann J, Gaunt J, Rondon M (2006) Bio-char sequestration in terrestrial ecosystems–a review. Mitig Adapt Strat Glob Change 112:403–427

    Article  Google Scholar

  • Li RH, Wang JJ, Zhou BY, Awasthi MK, Ali A, Zhang ZQ (2016a) Enhancing phosphate adsorption by Mg/Al layered double hydroxide functionalized biochar with different Mg/Al ratios. Sci Total Environ 559:121–129

    Article  CAS  PubMed  Google Scholar

  • Li RH, Wang JJ, Zhou BY, Awasthi MK, Ali A, Zhang ZQ (2016b) Recovery of phosphate from aqueous solution by magnesium oxide decorated magnetic biochar and its potential as phosphate-based fertilizer substitute. Bioresource Technol 215:209–214

    Article  CAS  Google Scholar

  • Li J, Li B, Huang HM, Lv XM, Zhao N, Guo GJ, Zhang DD (2019) Removal of phosphate from aqueous solution by dolomite-modified biochar derived from urban dewatered sewage sludge. Sci Total Environ 687:460–469

    Article  CAS  PubMed  Google Scholar

  • Li J, Li B, Huang HM, Zhao N, Zhang MG, Cao L (2020) Investigation into lanthanum-coated biochar obtained from urban dewatered sewage sludge for enhanced phosphate adsorption. Sci Total Environ 714:136839

    Article  CAS  PubMed  Google Scholar

  • Li AY, Ge WZ, Liu LH, Qiu GH (2022) Preparation, adsorption performance and mechanism of MgO-loaded biochar in wastewater treatment: a review. Environ Res 212:113341

    Article  CAS  PubMed  Google Scholar

  • Liao TW, Li T, Su XD, Yu X, Song HY, Zhu Y, Zhang YM (2018) La(OH)(3)-modified magnetic pineapple biochar as novel adsorbents for efficient phosphate removal. Bioresource Technol 263:207–213

    Article  CAS  Google Scholar

  • Lin JW, He SQ, Wang XX, Zhang HH, Zhan YH (2019) Removal of phosphate from aqueous solution by a novel Mg(OH)(2)/ZrO2 composite: adsorption behavior and mechanism. Colloid Surface a 561:301–314

    Article  CAS  Google Scholar

  • Liu SB, Tan XF, Liu YG, Gu YL, Zeng GM, Hu XJ (2016) Production of biochars from Ca impregnated ramie biomass (Boehmeria nivea (L.) Gaud.) and their phosphate removal potential. RSC Adv 67:5871–5880

    Article  Google Scholar

  • Liu MH, Che YY, Wang LQ, Zhao ZJ, Zhang YC, Wei LL, Xiao Y (2019) Rice straw biochar and phosphorus inputs have more positive effects on the yield and nutrient uptake of Lolium multiflorum than arbuscular mycorrhizal fungi in acidic Cd-contaminated soils. Chemosphere 235:32–39

    Article  CAS  PubMed  Google Scholar

  • Liu MJ, Li RH, Wang JW, Liu X, Li SL, Shen WB (2022) Recovery of phosphate from aqueous solution by dewatered dry sludge biochar and its feasibility in fertilizer use. Sci Total Environ 814:152752

    Article  CAS  PubMed  Google Scholar

  • Nardis BO, Franca JR, Carneiro JSD, Soares JR, Guilherme LRG, Silva CA, Melo LCA (2022) Production of engineered-biochar under different pyrolysis conditions for phosphorus removal from aqueous solution. Sci Total Environ 816:151559

    Article  CAS  PubMed  Google Scholar

  • Peyman N, Sany SBT, Tajfard M, Hashim R, Rezayi M, Karlen DJ (2017) The status and characteristics of eutrophication in tropical coastal water. Environ Sci-Proc Imp 198:1086–1103

    Google Scholar

  • Pinto M, David da Silva D, Amorim Gomes AL, Menezes dos Santos RM, Alves de Couto RA, Ferreira de Novais R (2019) Biochar from carrot residues chemically modified with magnesium for removing phosphorus from aqueous solution. J Clean Prod 222:36–46

    Article  Google Scholar

  • Reitzel K, Bennett WW, Berger N, Brownlie WJ, Bruun S, Christensen ML (2019) New training to meet the global phosphorus challenge. Environ Sci Technol 5315:8479–8481

    Article  Google Scholar

  • Ribeiro ICA, Teodoro JC, Guilherme LRG, Melo LCA (2020) Hydroxyl-eggshell: a novel eggshell byproduct highly effective to recover phosphorus from aqueous solutions. J Clean Prod 274:123042

    Article  CAS  Google Scholar

  • Schroder JJ, Smit AL, Cordell D, Rosemarin A (2011) Improved phosphorus use efficiency in agriculture: a key requirement for its sustainable use. Chemosphere 846:822–831

    Article  Google Scholar

  • Shin H, Tiwari D, Kim DJ (2020) Phosphate adsorption/desorption kinetics and P bioavailability of Mg-biochar from ground coffee waste. J Water Process Eng 37:101484

    Article  Google Scholar

  • Tongamp W, Zhang Q, Saito F (2007) Preparation of meixnerite (Mg–Al–OH) type layered double hydroxide by a mechanochemical route. J Mater Sci 4222:9210–9215

    Article  Google Scholar

  • Wang SD, Kong LJ, Long JY, Su MH, Diao ZH, Chang XY (2018) Adsorption of phosphorus by calcium-flour biochar: isotherm, kinetic and transformation studies. Chemosphere 195:666–672

    Article  CAS  PubMed  Google Scholar

  • Wu LP, Wei CB, Zhang SR, Wang YD, Kuzyakov Y, Ding XD (2019) MgO-modified biochar increases phosphate retention and rice yields in saline-alkaline soil. J Clean Prod 235:901–909

    Article  CAS  Google Scholar

  • Wu LP, Zhang SR, Wang J, Ding XD (2020) Phosphorus retention using iron (II/III) modified biochar in saline-alkaline soils: adsorption, column and field tests. Environ Pollut 261:114223

    Article  CAS  PubMed  Google Scholar

  • Xu QY, Chen ZB, Wu ZS, Xu F, Yang DX, He Q (2019) Novel lanthanum doped biochars derived from lignocellulosic wastes for efficient phosphate removal and regeneration. Bioresource Technol 289:121600

    Article  CAS  Google Scholar

  • Yang D, Velamakanni A, Bozoklu G, Park S, Stoller M, Piner RD (2009) Chemical analysis of graphene oxide films after heat and chemical treatments by X-ray photoelectron and Micro-Raman spectroscopy. Carbon 471:145–152

    Article  Google Scholar

  • Yang F, Chen YC, Nan HY, Pei L, Huang YD, Cao XD (2021a) Metal chloride-loaded biochar for phosphorus recovery: noteworthy roles of inherent minerals in precursor. Chemosphere 266:121600

    Article  Google Scholar

  • Yang SM, Katuwal S, Zheng W, Sharma B, Cooke R (2021b) Capture and recover dissolved phosphorous from aqueous solutions by a designer biochar: mechanism and performance insights. Chemosphere 274:129717

    Article  CAS  PubMed  Google Scholar

  • Yao Y, Gao B, Zhang M, Inyang M, Zimmerman AR (2012) Effect of biochar amendment on sorption and leaching of nitrate, ammonium, and phosphate in a sandy soil. Chemosphere 8911:1467–1471

    Article  Google Scholar

  • Yao Y, Gao B, Chen JJ, Yang LY (2013) Engineered biochar reclaiming phosphate from aqueous solutions: mechanisms and potential application as a slow-release fertilizer. Environ Sci Technol 4715:8700–8708

    Article  Google Scholar

  • Yeoman S, Stephenson T, Lester JN, Perry R (1988) The removal of phosphorus during wastewater treatment: a review. Environ Pollut 493:183–233

    Article  Google Scholar

  • Zhang MM, Liu YG, Li TT, Xu WH, Zheng BH, Tan XF (2015) Chitosan modification of magnetic biochar produced from Eichhornia crassipes for enhanced sorption of Cr(VI) from aqueous solution. RSC Adv 558:46955–46964

    Article  Google Scholar

  • Zhang ZR, Yu HQ, Zhu RX, Zhan X, Yan LG (2020) Phosphate adsorption performance and mechanisms by nanoporous biochar-iron oxides from aqueous solutions. Environ Sci Pollut R 2722:28132–28145

    Article  Google Scholar

  • Zhang MD, He MZ, Chen QP, Huang YL, Zhang CY, Yue C (2022) Feasible synthesis of a novel and low-cost seawater-modified biochar and its potential application in phosphate removal/recovery from wastewater. Sci Total Environ 824:153833

    Article  CAS  PubMed  Google Scholar

  • Zhou Q, Sun H, Jia L, Wu W, Wang J (2022) Simultaneous biological removal of nitrogen and phosphorus from secondary effluent of wastewater treatment plants by advanced treatment: a review. Chemosphere 296:134054

    Article  CAS  PubMed  Google Scholar

  • Zhu DC, Chen YQ, Yang HP, Wang SH, Wang XH, Zhang SH, Chen HP (2020) Synthesis and characterization of magnesium oxide nanoparticle-containing biochar composites for efficient phosphorus removal from aqueous solution. Chemosphere 247:125847

    Article  CAS  PubMed  Google Scholar

Download references

Acknowledgements

The authors are thankful to Dr. Faisal Hayat for carefully modification the language of this manuscript.

Funding

This work was financially supported by Basic and Applied Basic Research Foundation of Guangdong Province (2022A1515010941), Science and technology plan projects of Guangzhou (202206010069), Meizhou Science and Technology Project (2021A0304001), Key-Area Research and Development Program of Guangdong Province (2020B020215003).

Author information

Authors and Affiliations

Authors

Contributions

PT and GZ: Formal analysis, data curation, writing original draft, writing—review and editing. LD and HY: Conceptualization, methodology, resources, supervision. GW, YC and BH: Investigation, visualization. YL and JL: Investigation, data curation.

Corresponding author

Correspondence to Lifang Deng.

Ethics declarations

Ethics approval and consent to participate

Not applicable.

Consent for publication

All authors approved the consent for publishing the manuscript to Bioresources and Bioprocessing.

Competing interests

The authors declare no competing interests.

Additional information

Publisher's Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Supplementary Information

Additional file 1: Table S1.

Percentage of the surface elements calculated based on the XPS results (at. %) Table S2. Parameters of adsorption kinetic models. Table S3. Comparison of adsorption properties of different adsorbents for phosphate adsorption. Figure S1. P adsorption capacity of the as-prepared biochars. Figure S2. XPS spectras of unmodified biochars (RS, CS, OT and GW), MgO modified biochars (MRS, MCS, MOT and MGW) before and after the P adsorption. Figure S3. High-resolution XPS spectra of Mg1s after P desorption: (a) MRS, (b) MCS, (c) MOT, and (d) MGW. Figure S4. Zeta potentials of MRS, MCS, MOT and MGW at different pH. Figure S5. P adsorption kinetics and models for unmodified biochar (RS) and MgO modified biochar (MRS).
