Ce–Zr-based mixed oxide catalyst for oxidative depolymerization of kenaf stalk (biomass) into vanillin


Since petroleum became depleted, rapid attention has been devoted to renewable energy sources such as lignocellulosic biomass to produce useful chemicals for industry (for instance vanillin). Three primary components of lignocellulose are lignin, cellulose, and hemicellulose. This paper uses microwave-assisted technology to oxidize the kenaf stalk (lignocellulosic biomass) and extract lignin to produce vanillin. Catalysts with variable acid–base and redox properties are essential for the mentioned effective conversion, for this reason, CeO2–CA, ZrO2–CA, and CeZrO2–CA catalysts were synthesized. The citrate complexation method was used for the catalyst synthesis and the physicochemical characteristics were analyzed by XRD, FTIR, FE–SEM, TEM, BET, and TPO. The characterization results demonstrated that CeZrO2–CA shows the smallest sized crystallites with a large specific surface area among the other chosen catalysts. For vanillin production, the effect of reaction temperature, reaction time, and catalyst loading was studied. It was observed that compared to other catalysts, CeZrO2–CA produced the highest vanillin yield of 9.90% for kenaf stalk for 5 wt% of CeZrO2–CA at 160 °C for 30 min. Furthermore, vanillin production using extracted lignin is studied keeping CeZrO2–CA as a catalyst and with the same operating parameters, which yielded 14.3% of vanillin. Afterward, the change in yield with respect to pH is also presented. Finally, the recyclability of catalyst is also studied, which showed that it has a strong metal support and greater stability which may give industrial applications a significant boost.

Graphical Abstract


Vanillin is a molecule of interest because it can be utilized in various beneficial goods. As a result, the market demand for it has been increasing daily. Due to the number of challenges, such as small cultivation areas with a suitable environment and lengthy and laborious methods, the production of natural vanillin from vanilla orchid pods is minimal. Roughly 20,000 tons of vanillin is produced each year (Bomgardner 2014), with lignin accounting for 15% of the total (around 3000 tons per year) (Silva et al. 2009). As a result, vanillin has the potential to become an essential renewable aromatic building component.

To reduce the dependency on petroleum refineries for the production of useful chemicals and fuels, the world is transitioning toward renewable resources, notably biomass conversion (Dessbesell et al. 2020; Haruna et al. 2022, 2023). Researchers widely study the depolymerization of lignocellulosic biomass into useful products (Lee et al. 2021; Baksi et al. 2023; Kong et al. 2023; Yang et al. 2023). Lignocellulose is mainly composed of cellulose, hemicellulose, and lignin. Lignin, a significant biopolymer derived from lignocellulosic biomass (accounts for 30% by weight), is a potential feedstock to produce green aromatic chemicals (Kong et al. 2023). Lignin possesses a heterogeneous structure containing aryl ether (i.e., composed of β-o-4 linkage) as the most abundant structural unit (up to 60% of all linkages), followed by β-5, β–β, and other minor units (Li et al. 2015; Vega-aguilar et al. 2021).

Because lignin's carbon–carbon bonds are so strong, breaking them during depolymerization can be difficult, which affects the lignin's reactivity and causes the product to vary depending on the depolymerization technique, lignin isolation procedure, and lignin source (Li et al. 2015; Li and Takkellapati 2018; Pérez et al. 2022). In previous reports, various chemical and thermal-based lignin depolymerization techniques have been developed and used (Liu et al. 2020; Schutyser et al. 2018) which offers several drawbacks, such as poor selectivity and more energy usage. While microwave-assisted depolymerization increases the selectivity of the reaction by breaking the lignin's compact bound with the help of a catalyst. Using microwave radiation and a ferric sulfate catalyst, Zhu et al. (2017) selectively depolymerized lignin into phenolic monomers, with phenolic dimers cleaving at a faster rate than non-phenolic dimers. Similarly, Anuar et al. (2021) used microwave heating to produce aromatic monomer (vanillin) and concluded that microwave heating is quick, extremely effective, homogeneous, selective, and environmentally friendly.

For lignin depolymerization, several recent types of research have used homogeneous catalytic systems, and while excellent results have been obtained for lignin model systems, many systems, meanwhile, are limited by the lack of selectivity (Behling et al. 2016; Schutyser et al. 2018) breakdown of the catalyst (Lange et al. 2013), as well as the need for harsh reaction conditions (Li et al. 2015). Furthermore, problems associated with the recycling of homogenous catalysts make their limited use on an industrial scale. Research has proven that heterogeneous catalysts are successful in attaining medium to high yields in the catalyzed oxidation of lignin compounds and monoaromatic chemicals, making them well-suited for commercial applications (Deng et al. 2010; Mottweiler et al. 2015; Sturgeon et al. 2014; Zhang et al. 2009).

Due to the high oxygen storage/release capacities, CeO2 has been widely used as a catalyst or catalytic support for various redox processes (Ahniyaz et al. 2004). According to Anuar et al. (2021), the high base characteristics of Ce/MgO catalysts improved the cleavage of β-o-4 in the lignin structure, enhancing the reaction's selectivity.

It has been widely reported that adding Zr, La, or W with CeO2 can increase its ability to store oxygen and its reducibility (Basile et al. 2019; Zhang et al. 2020). ZrO2 has an amphoteric nature because it possesses both acidic and basic properties. It is more chemically inert and more stable support under reducing conditions (Jaenicke et al. 2008). Ce–Zr mixed oxides have received extensive research as potential catalysts for a variety of lignocellulosic biomass transformations, such as lignin model compounds (Schimming et al. 2015), lignin itself (Yoshikawa et al. 2014) and cellulose conversion (Dar et al. 2015; Grams et al. 2016). Smaller particle sizes were formed more frequently when Zr4+ was added to the ceria lattice. The process of vacancy formation and oxygen mobility in the ceria lattice are both accelerated by the addition of Zr, which also boosts the material's reducibility (Nahar and Dupont 2014).

In the current work, we describe the synthesis of CeO2–CA, ZrO2–CA, and CeZrO2–CA, using the citrate complexation method. The characterization and preparation of the catalysts will be examined to identify any possible linkages between their physio-chemical characteristics, synthesis process, and catalytic activity in the oxidative depolymerization procedure. To further increase the lignin depolymerization efficiency in terms of lignin conversion, product yield, and product distribution, the impacts of depolymerization settings such as reaction temperature, reaction duration, catalyst loading, and pH are further explored. In addition, the variation in product yield brought on by the kenaf stalk and extracted lignin under the same operating conditions was also investigated. Moreover, the newly designed catalyst will help us to meet the Global demand for vanillin.

Materials and methods

Preparation of catalysts

The metal cations were complexed with the citrate ion to produce a citrate complex using nitrate precursors (Fuentes and Baker 2009). The cerium oxide citrate complex (CeO2–CA), zirconium dinitrate oxide citrate complex (ZrO2–CA) and mixed metal oxide citrate complex (CeZrO2–CA) were synthesized. Zirconium dinitrate oxide (99.9%, Alfa Aesar) and cerium nitrate hexahydrate (99.99%, Aldrich) were used as precursors. Each nitrate was separately dissolved in distilled water before the solutions were combined. The citric acid was added to the cation solution after being diluted in distilled water.

All formulations had a metal oxide to a citric acid molar ratio of 1:2, as shown in Table 1. The solution was mixed at room temperature to make a homogeneous solution. To eliminate extra water and transform the solution into a translucent gel, the mixture was heated to 80 °C and kept there while stirring. The solution thickened as the temperature rose, causing foam to develop; eventually, the combination gelled, leaving no turbidity or precipitation in its wake. The viscosity of the solution increased as the temperature was held at 80 °C, and both water and NO2 were evaporated. The precursor underwent initial thermal disintegration in the air for 1 h at 200 °C. The resulting ash-like substance was calcined at 500 °C for 1 h in a muffle furnace at a 5 °C/min heating rate.

Table 1 Composition of the synthesized catalysts

Catalyst characterization

Panalytical XPert3 Powder X-ray diffraction (XRD) was used with monochromatic Cu Kα radiation to investigate calcined powders. In step-scanning mode, data were collected for the angular range (20° to 80°) in steps of 0.02° with a step-counting time of 10 s. The FTIR spectrometer (Perkin Elmer; model Frontier 01) was used to record the outcomes in their as synthesized and annealed states from 4000 to 400 cm1. SSA measurements were obtained using Brunauer Emmett and Teller (BET) analysis by nitrogen adsorption (ASAP 2020, Micromeritics). The equation d = 6/ρσ was used to calculate the mean particle diameter (d), where ρ gives the solid density, and σ defines the BET-specific area of the solid solutions, respectively (Ahniyaz et al. 2004). Using field emission scanning electron microscopy (FESEM, Zeiss Supra 55VP), the resultant product's morphology was examined. Transmission electron microscopy (TEM, Hitachi, Model: HT7830 TEM) and an energy dispersive X-ray spectroscopy (EDS) analysis was used to obtain the pictures and elemental analyses of the materials. A 3 mm copper grid coated with a holey carbon sheet and a sample powder dispersed using ultrasound in hexane was used to produce samples for TEM analysis. These samples were then allowed to dry overnight before use. Temperature program oxidation (TPO, Brand: Thermo, Model: TPDRO 1100) of the samples were carried out to investigate the oxidation states. Furthermore, the used catalyst undergoes SEM and XPS analysis to evaluate the structural changes before and after the depolymerization reaction.

Extraction of lignin from kenaf stalk

The lignin was extracted from kenaf fiber using the Soxhlet extraction method (Anuar et al. 2021; Orsi et al. 2022). The Soxhlet extraction process was used to grind and get the extract out of the kenaf stalks. The product was treated with NaOH to dissolve the lignin and hemicellulose linkages. The mixture that resulted from this process was heated in a hydrothermal vessel, cooled, and filtered to remove the solid residue. H3PO4 was used to acidify the filtered black liquid, and NaOH was used to precipitate the lignin. The precipitated lignin was filtered, washed, and dried. The lignin yield extracted from the kenaf stalk in this study is 25.7% using the mentioned equation (Eq. 1):

$$\mathrm{\%age\,yield\,of\,lignin}=\frac{\mathrm{Weight\,of\,lignin }\left(\mathrm{g}\right)}{\mathrm{ Weight\,of\,dreid\,Kenaf\,stalks }\left({g}\right)}\,\times\,100$$

Catalytic oxidation of kenaf lignin by newly synthesized catalyst

The dried kenaf stalk (1 g) and the extracted lignin (0.53 g) were soaked in a 0.01N NaOH solution (10 mL) overnight in an airtight container. A Teflon vessel was filled with 0.5 mL of H2O2, 0.05–0.15 g of catalyst (5–15 wt%), and a solution that had been soaked overnight. The mixture was vigorously stirred with a magnetic stirrer to produce a homogeneous solution. The Teflon container was heated at 160–180 °C for 10–30 min in a microwave reactor (Milestone Srl, Milan, Italy, MicroSYNTH MA143). The mixture was then allowed to cool to ambient temperature before being filtered using filter paper to remove the insoluble components. The residues were washed with 0.01N NaOH solution. The filtrate was placed into a sealed test tube. Concentrated hydroxide chloride (37%) acidified the filtrates, lowering the pH below 2.0. The mixture was then stirred for 15 s with a vortex agitator at 5000 rpm and then centrifuged for 15 min at 1000 rpm. The supernatant was then diluted with ethyl acetate (1:1). Vanillin was one of the low molecular weight molecules isolated into the organic phase. After being stirred for 60 s at 5000 rpm and then centrifuged for 5 min at 1000 rpm, the mixture split into two phases. The higher phase was put into a vial. A rotary evaporator extracted extra solvent at 50 °C and 400 mbar (Anuar et al. 2021; Qu et al. 2017). Figure 1 illustrates an experimental design schematic diagram. To further test the reusability of the catalyst under optimal reaction conditions, the catalyst residue was washed many times with ethanol at the same time. This was followed by a drying procedure in an oven at 100 °C for 2 h.

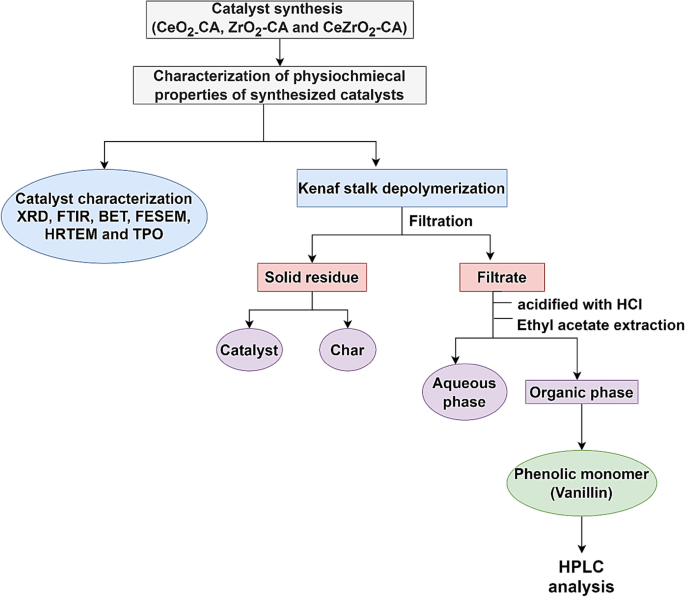

Fig. 1
figure 1

Experimental design schematic diagram

High-performance liquid chromatography (HPLC) analysis

Agilent high-performance liquid chromatography (HPLC) with a UV–Vis detector operating at a wavelength of 280 nm was used to evaluate the brownish solution containing vanillin. The Santa Clara, California, United States-based HPLC (Agilent 1200 series) was fitted with a Hypersil C18 column (size distribution: 5 m, 150 4.6 mm inner diameter). The mobile phase was acetonitrile: water (1:8 v/v) with 1% acetic acid at a flow rate of 2 mL min−1, and the column temperature was fixed at 35 °C. Vanillin (Sigma-Aldrich, purity 99.7%, Darmstadt, Germany) was employed as the standard.

Gas chromatography–mass spectrometry (GC–MS) analysis

The precise composition of the product was examined using qualitative gas chromatography–mass spectrometry (Agilent 7890 A) on a DB-5MS column (30 m 0.25 mm i.d.; 0.25 m film thickness) at an ionization voltage of 70 eV. The oven was set to heat to 50 °C for 3 min, then to 300 °C at 8°C min-1 and hold that temperature for 20 min. The detector was set to 300 °C, whereas the injection component's temperature was 250 °C. The carrier gas was helium (He), which was employed at 1.6 mL min-1 with a 1 L injection volume. According to Qu et al. (2017), the split ratio was 1:10 and the mass range (m/z) ranged between 40 and 600 m/z.

Results and discussion

Catalyst characterization

The XRD model of CeO2–CA, ZrO2–CA, and CeZrO2–CA produced using the citrate complexation approach is illustrated in Fig. 2 after being calcined at 500 °C for 1 h. The calcined CeO2–CA, ZrO2–CA and CeZrO2–CA nanocomposites are indexed using reference pattern: Cerianite, 98-007-2155 for cerium oxide (crystal framework: cubic, a/b/c = 5.412 A° and α/β/γ = 90°) and reference pattern: Baddeleyite, 01-079-1796 for zirconium oxide (crystal framework: Orthorhombic; a = 5.068A°, b = 5.2600A°, c = 5.077A° and α/β/γ = 90°). The cubic phases of CeO2 with fluorite structure were detected by the diffraction peaks at 28.74°, 47°, and 56.2° (ref. JCPDS card 98-007-2155) (Ghosh et al. 2020). At 34°, 50.3°, and 60.1°, respectively, the distinctive peaks of ZrO2's orthorhombic phases were found (ref. JCPDS card 01-079-1796)(Yaacob et al. 2019).

Fig. 2
figure 2

XRD pattern of synthesized catalysts

Despite this, the mixed oxide sample's lattice parameter differs from CeO2's bulk oxide parameter. Lattice parameters for CeZrO2–CA sample are a = 5.27A° and c = 5.29A°, suggesting alteration and flaws in the crystallite structure that can be attributed to oxygen vacancies since the enthalpy of the creation of oxygen vacancies reduces with the shrinkage of crystallite sizes. Due to the loss of one oxygen atom, two Ce4+ atoms must be replaced by Ce3+ atoms to maintain the lattice's neutrality. However, because the Ce3+ ionic radius (0.114 nm) is larger than the Ce4+ ionic radius (0.097 nm), the distances between the bonding atoms must be modified, which changes the lattice characteristics.

The broadening of (111) and less intense peaks are shown by the processing of the ceria–zirconia samples. The primary peak's breadth reveals the size of the crystallites, both large and small. The wide peaks are linked to enormous crystallite size, and vice versa (Hadi et al. 2015; Jani et al. 2013). In addition, the mixed oxide composite's XRD pattern shows that CeO2 and ZrO2 coexisted in their distinctive peak locations, indicating that both ZrO2 and CeO2 were present in the composite (homogenous composite). The XRD lines of the mixed oxides are comparable to CeO2 and ZrO2, showing that zirconia substitution has stabilized the fluorite structure. The XRD pattern of calcined samples becomes more concentrated with cerium oxide and zirconium oxide formation. Furthermore, the XRD results show no undesirable peaks, which excludes the presence of contaminants in the processed samples. Numerous research also reported on the impact of the metal oxide calcination process on the growth of crystal size and improved cluster building (Chen et al. 2010; Gaber et al. 2014).

The Debye–Sherrer method (S = 0.9λ/β cos θ) was employed to determine the crystallite size (S, nm) of CeO2–CA, ZrO2–CA and CeZrO2–CA after being calcined at 500 °C, (Ali et al. 2021a; Holzwarth and Gibson 2011). The crystalline size of nanocomposites was determined to be 1.63 nm, 0.60 nm, and 0.874 nm for CeO2–CA, ZrO2–CA, and CeZrO2–CA, respectively (Table 2). It clarifies how the small crystalline size of nanocomposites has a significant surface area which ultimately helps to break down lignin bonds to produce aromatic compounds.

Table 2 Catalyst crystallite size after a 1-h calcination at 500 °C

After calcination at 500 °C, the FTIR spectra of nanocomposites made of CeO2–CA, ZrO2–CA, and CeZrO2–CA are shown in Fig. 3. The resultant nanocomposites have moderate absorption bands at 3400–3425 cm−1, 1625–1680 cm−1, 1020–1140 cm−1, and 1520–1550 cm−1 that are synchronized to the stretching and bending vibrations of hydroxyl groups, Ce–O–Ce, C–O, and C–H aliphatic, respectively (Ali et al. 2021b). The stretching and bending vibration modes of Zr–O and Ce–O within the nanocomposites correlate to the strong absorption bands in the 400–800 cm−1 range (Ali et al. 2021a; Pouretedal et al. 2012). The stable CeO2–CA, ZrO2–CA, and CeZrO2–CA nanocomposites are produced because of the data extracted from FTIR spectra (500–4000 cm–1). The bonding of the hydroxide groups on the surface of the nanocomposites provides a reasonable explanation for the surface activity of the produced nanocomposite.

Fig. 3
figure 3

FTIR analysis of catalysts

The synthesized catalysts' nitrogen gas adsorption isotherm distribution is shown in Fig. 4, which represents the type IV (mesoporous) isotherm according to the IUPAC classifications. The marginally increased absorption of N2 at P/Po in the range of 0.1–0.9 indicated it also possessed mesopores, and higher uptakes of N2 existed in a tiny quantity of macropores. This finding showed that the calcination ceria–zirconia sample had a higher likelihood of exhibiting mesopores due to the phenomena of micropore collapse throughout the calcination process, which led to an increase in pore size. The layouts of the isotherms and hysteresis loops were used to identify the porous features in the manufactured samples. The presence of a pore outlet or the size of the pores is what causes the hysteresis to emerge from the isotherm profile. As a result, the samples' isotherms had a sizable amount of hysteresis, which was explained by the existence of mesoporous structures.

Fig. 4
figure 4

Adsorption isotherms of catalysts

Table 3 summarizes all synthesized catalysts' surface area, pore volume, and pore size. The CeZrO2–CA catalyst shows a higher surface area than the other synthesized catalyst. Zirconia doping of ceria decreases the temperature of the surface and aggregate reduction by increasing the number of oxygen vacancies (Ali et al. 2021a; Schimming et al. 2015). While compared to CeO2–CA, ZrO2–CA and CeZrO2–CA catalysts had reduced average pore sizes and pore volumes. It also demonstrates that the high-temperature calcination process decreased the specific surface area and increased pore size. These findings support the already published research on the connection between calcination and the size of pores (Hadi and Yaacob 2007; Jani et al. 2013). The synthesis of catalyst with its promising properties of greater surface area, excellent adsorption, and narrow pore size distribution results in an increase in catalytic activity.

Table 3 Textural properties of ZrO2–CA, CeO2–CA, and CeZrO2–CA

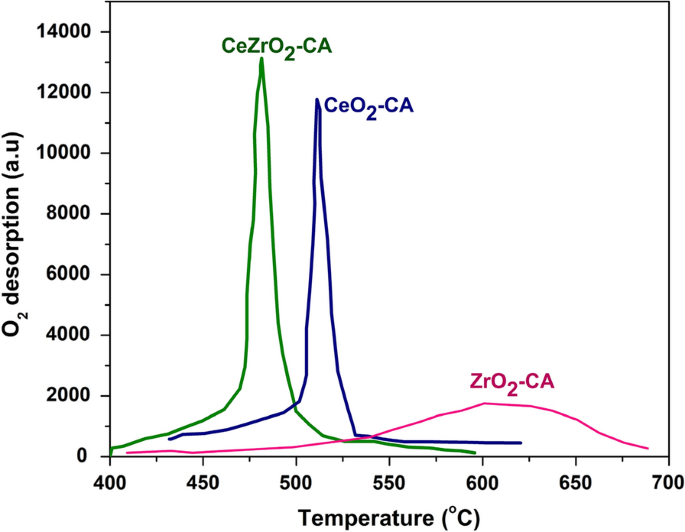

In contrast, O2-TPO studies were carried out to demonstrate the oxygen intake and storage capability in relation to temperature, as shown in Fig. 5 (Bueno-López et al. 2005). Since CeO2 is known for its ability to store oxygen so it is believed that the O2 reaction involves the lattice oxygen of CeO2–CA at the temperature range of 400–700 °C (Ramli 2023). The results clearly show that the intensity of oxygen intake increased in the following order: CeO2–CA < ZrO2–CA < CeZrO2–CA. The CeZrO2–CA has a higher specific surface area (50 m2/g), which ensures good interaction between the oxygen particles and the catalyst (Devaiah et al. 2018). The surface areas of CeO2–CA and ZrO2–CA are 28 m2/g and 26 m2/g, respectively, showing less interaction. CeZrO2–CA has the greatest number of poorly bound oxygenated species because of its highly oxidized surface, according to research published by Torrente-Murciano et al. 2016.

Fig. 5
figure 5

TPO curves of catalysts

The morphology studies of CeO2–CA, ZrO2–CA and CeZrO2–CA are examined through FESEM and TEM, shown in Figs. 6 and 7, respectively. Figure 6 presents FESEM pictures of a calcined powder at 500 °C. These images demonstrate the characteristic shape of Ce, Zr, and Ce–Zr mixed oxides synthesized through the citrate complexation process. The morphologies of CeO2–CA (Fig. 6a) and ZrO2–CA (Fig. 6c) are very different from one another. Compared to CeO2–CA (Fig. 6a), which has spherical aggregates (Ali et al. 2021b), ZrO2–CA (Fig. 6c) are distinguished by their angular shape (Fuentes and Baker 2009). There is a significant amount of agglomeration in both situations. The morphology of CeZrO2–CA (Fig. 6e) is spongy, having pores ranging from 12 to 13 nm in diameter. All three samples are made up of bubbles or holes with walls of materials separating them, as can be seen in the images at increased magnification.

Fig. 6
figure 6

FE–SEM images of the calcined nanocomposite: CeO2–CA (a), ZrO2–CA (c), and CeZrO2–CA (e) samples, EDX pattern of CeO2–CA (b), ZrO2–CA (d), and CeZrO2–CA (f) samples and the EDXS mapping of CeO2–CA (g), ZrO2–CA (h), and CeZrO2–CA (i)

Fig. 7
figure 7

HR–TEM images of the calcined nanocomposite: CeO2–CA (a), ZrO2–CA (c), and CeZrO2–CA (e) samples, histograms of CeO2–CA (b), ZrO2–CA (d), and CeZrO2–CA (f) samples and the EDXS mapping and pattern of CeZrO2–CA (g, h), respectively

CeO2–CA, ZrO2–CA and CeZrO2–CA samples' elemental analyses were examined using the EDX approach, as shown in Fig. 6b, d, e, respectively. The four lines were illustrated due to the presence of elements, such as Zr, Ce, C, and O. Furthermore, it shows that pure CeO2–CA (Fig. 6b), ZrO2–CA (Fig. 6d) and CeZrO2–CA (Fig. 6f) nanocomposites were successfully synthesized. Carbon was visible due to using the carbon grid during the FESEM/EDX technique. The EDXS mapping of the samples is shown in Fig. 6g, h, i. The distribution of the cerium, zirconium, oxygen, and carbon (due to grid) components in the synthesized nanocomposite appears satisfactory. In the CeZrO2–CA sample (Fig. 6i), the zirconium oxide was uniformly distributed inside the cerium oxide, according to EDS layered mapping. In addition, it agreed with the data gathered from the EDX pattern of the CeZrO2–CA sample (Fig. 6f), which indicated that the nanocomposite contained a mixture of zirconium and cerium oxides.

Figure 7 shows the results of HR–TEM analysis for CeO2–CA, ZrO2–CA, and CeZrO2–CA nanocomposites. According to Fig. 7, the sample's CeO2–CA and CeZrO2–CA HR–TEM images revealed hard, dense agglomerations with regular and uneven spherical forms (a, e). Figure 7 displays the data that was gathered and used to generate the histogram graph for CeO2–CA, ZrO2–CA, and CeZrO2–CA [(b), (d), (f)], respectively. The average particle size of the CeO2–CA sample is calculated to be 1.88 nm based on the TEM picture and histogram graph (Fig. 7a, b). While the average particle size of the sample ZrO2–CA is assessed to be 0.71 nm based on the TEM picture and histogram graph (Fig. 7c, d). The ZrO2–CA sample's predicted particle size differed from the measured crystallite size. The produced cerium oxide (CeO2–CA) and cerium–zirconium oxide composite (CeZrO2–CA) particles manifested as dense agglomerations. According to HR–TEM images (Fig. 7e), the calcined CeZrO2–CA sample was composed of a soft collection of spherical particles with an average particle size of about 5.14 nm. In addition, the collected data were used to create the histogram graph shown in Fig. 7f.

The CeZrO2–CA sample's estimated particle size diverged from its anticipated crystallite size due to dense agglomerations of the composite's cerium oxide and zirconium oxide particles (the CeZrO2–CA sample) developed.

Evaluation of catalytic performance

By considering the retention time of derived vanillin to the standard vanillin, vanillin yield was determined and characterized using high-performance liquid chromatography (HPLC). The HPLC chromatogram of the vanillin standard is shown in Fig. 8, revealing that the vanillin retention time is 5.184 min.

Fig. 8
figure 8

HPLC chromatogram of vanillin standard

This chromatogram served as the basis for preparing five different quantities of standard vanillin for the calibration curve, enabling the quantitative measurement of the vanillin generated through the catalytic depolymerization of the kenaf stalk. Figure 9 displays the calibration curve for the vanillin standard via HPLC at five different concentrations (1.25 10–4, 6.25 10–5, 3.125 10–5, 1.56 10–5 and 7.81 10–6). The peak area from the injected aliquot of standard vanillin solution with known concentration was measured by plotting the curve. The vanillin yield will be quantified using the calibrated curve. The best-fit line's correlation coefficient, or R2, indicates high accuracy, which is at 0.9963.

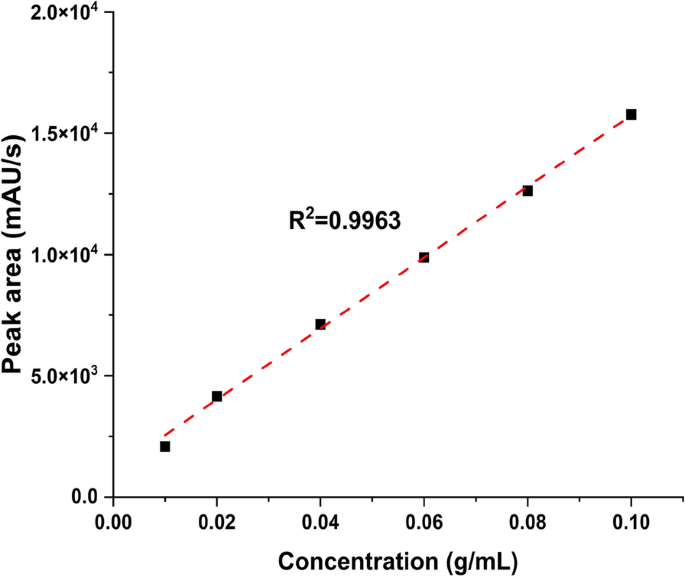

Fig. 9
figure 9

Calibration curve of the vanillin standard at five different concentrations

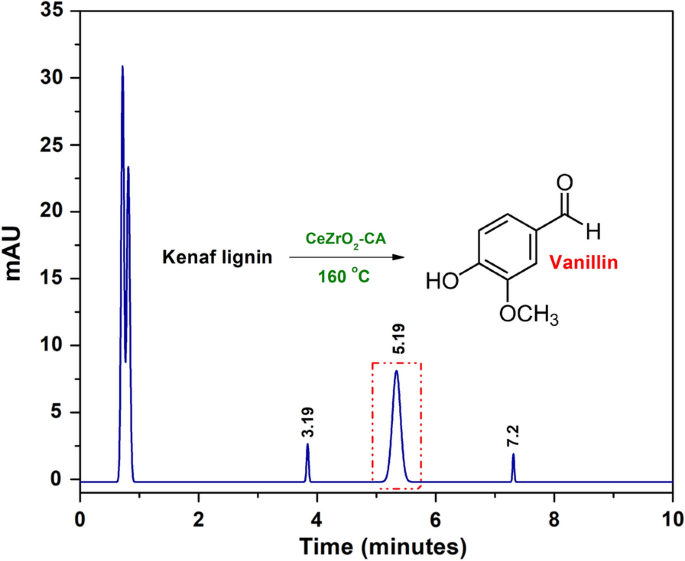

Vanillin was found with a retention time of 5.18 min in the liquid utilising CeZrO2–CA as a catalyst when employed to oxidatively depolymerize the kenaf stalk (Fig. 10). Three more compounds, with retention times of 0.7, 3.9, and 7.1 min, are also visible on the chromatogram. The other substances might be 4-vinyl guaiacol, syringol, and syringaldehyde. Table 4 presents the results of lignin depolymerization into vanillin under consistent conditions: 5% catalyst loading, 160 °C temperature, and 30 min of microwave treatment.

Fig. 10
figure 10

HPLC chromatogram of derived vanillin

Table 4 Evaluation of catalytic performance for vanillin production

Based on the evaluation findings, it can be verified that vanillin was found in every synthetic catalyst's liquid output. The maximum vanillin yield (9.9%) was obtained using CeZrO2–CA as a catalyst at 160 °C temperature and 30 min of reaction time. The results suggest that CeOZrO2–CA contributed to accelerating the oxidative depolymerization of the kenaf stalk. The capacity of Ce to selectively cleave the C–C bonds in the kenaf stalk may be responsible for the more excellent lignin conversion and boosted vanillin production. In addition, prior studies have used a Ce/MgO catalyst to directly oxidize kenaf stalks (Anuar et al. 2021), producing a high yield of vanillin (3.70%). Ce is a successful catalyst with the potential to break the chemical bonds in the lignin structure.

Compared with low surface area catalysts such as CeO2–CA and ZrO2–CA, high surface area catalysts CeZrO2–CA accelerated the reaction according to factors impacting the reaction rate. The effects of vanillin synthesis on many factors, including reaction temperature, reaction time, catalyst loading, lignin extraction, and reaction pH, were studied through optimization studies. To evaluate the effectiveness of the catalyst, the biomass mass (2 g), biomass-to-solvent ratio (1:10 g/mL), and peroxide volume (1 mL) were all fixed.

Effect of reaction temperature on vanillin production

The effect of reaction temperature on the depolymerization of kenaf stalk to produce vanillin was analyzed in a liquid using CeO2–CA, ZrO2–CA, and CeZrO2–CA as a catalyst with a constant reaction time of 30 min. The outcomes are displayed in Fig. 11. The findings demonstrate that temperature significantly influenced the distribution of vanillin yield. Based on the data, it was found that using CeZrO2–CA, the yield of vanillin increased from 9.5 wt% to 9.9 wt% when the reaction temperature was increased from 140 to 160 °C. However, the yield dramatically decreased from 9.9 wt% to 8.9 wt% when the temperature was further increased from 160 to 180 °C. A similar pattern was observed with CeO2–CA and ZrO2–CA, where the yield of vanillin increased from 8.9 wt% to 9.4 wt% at a temperature range of 140–160 °C and decreased from 9.4 wt% to 8.6 wt% at a temperature range of 160–180 °C for CeO2–CA. Similarly, for ZrO2–CA, the yield increased from 8.7 wt% to 9.2 wt% at temperature range of 140–160 °C and decreased from 9.2 wt% to 8.5 wt% at a temperature range of 160–180 °C. These findings suggest that the depolymerization of the kenaf stalk to produce vanillin is an exothermic process. Temperature management is crucial for the safe and effective conversion of biomass to vanillin (Aarabi et al. 2017). However, independent of the catalyst used, the vanillin yield dropped when the reaction temperature was raised to 180 °C. Higher temperatures may encourage side reactions, evaporation, and degradation and move the equilibrium back toward the source material, reducing the vanillin yield, as explained by (Anuar et al. 2021; Ito et al. 2020).

Fig. 11
figure 11

Effect of reaction temperature on vanillin production

Effect of reaction time on vanillin production

The effect of reaction duration on vanillin production is depicted in Fig. 12. The reaction was carried out using CeO2–CA, ZrO2–CA, and CeZrO2–CA as the catalyst with different reaction times (e.g., 10, 15, 20, 25, 30, and 35 min) at identical reaction temperatures (160 °C) which showed the highest yield in Fig. 11. The vanillin yield is increased gradually for all the catalysts when time increases from 10 to 30 min. When the reaction was carried out for 30 min at 160 °C, the CeZrO2–CA catalyst produced the maximum amount of vanillin (9.9%), while ZrO2–CA and CeO2–CA produced vanillin (9.1 wt% and 9.4 wt%, respectively). Bond cleavage had to take place to produce vanillin, which required enough heat without deteriorating the vanillin produced at the final phase of the oxidation cycle. Increasing the reaction time to 30 min leads to a significant decrease in vanillin yield. This could be due to over-oxidation. Longer reaction times can result in higher conversion but lower selectivity, according to Zhu et al., (2017), who explain simultaneous reactions. This leads us to the conclusion that the ideal reaction time for vanillin to reach its peak is 30 min.

Fig. 12
figure 12

Effect of reaction duration on vanillin production

Effect of catalyst loading on vanillin production

The yield of Vanillin produced using various amount (2.5 wt%, 5 wt%, 7.5 wt%, 10 wt%, 12.5 wt%, and 15 wt%) of CeO2–CA, ZrO2–CA and CeZrO2–CA catalyst loading is shown in Fig. 13. The catalyst was synthesized using 2 g of dried Kenaf stalks and heated in a microwave for 30 min at 160 °C. The results showed that increasing the catalyst loading led to lower yields of vanillin, with yields of 9.7% (2.5 wt%), 9.9% (5 wt%), 9.6% (7.5 wt%), 9.3% (10 wt%), 9.1% (12.5 wt%) and 8.8% (15 wt%) using CeZrO2–CA catalyst. The vanillin yield drops when the catalyst loading is increased to 5 wt%. This could be because vanillin was overoxidized after fully forming with the oxidizing species in the media. The highest vanillin yield is recorded with 5 wt% of catalyst loading. Comparatively, to other supported catalysts, CeZrO2–CA had a large surface area and offered many active surfaces for the oxidation process of lignin.

Fig. 13
figure 13

Effect of catalyst loading on vanillin production

Analysis of vanillin production using CeZrO2–CA with extracted lignin

This work observed a high vanillin yield of 9.9% for 5 wt% of CeZrO2–CA at 160 °C for 30 min. As a result, 5 wt% of CeZrO2–CA was selected as the ideal catalyst for the direct oxidative depolymerization of vanillin from Kenaf stalks as it shows the higher yield (Fig. 13). Moreover, due to its ability to store oxygen, high mobility, redox stability, and adaptable surface characteristics, CeZrO2–CA is employed to explore further the impact of pH, catalyst reusability and vanillin production from extracted lignin.

Effect on vanillin production with extracted lignin or without extracted lignin (kenaf stalk)

According to Fig. 14, vanillin can be produced from biomass and extracted lignin by utilizing a 5 wt% of CeZrO2–CA as a heterogeneous catalyst for 30 min at 160 °C. In the presence of CeZrO2–CA catalysts, the yields of vanillin for the direct oxidation of biomass and the oxidation of extracted lignin were 9.9% and 14.3%, respectively. Because lignin was isolated as an active ingredient for converting biomass into vanillin, extracted lignin produced a higher yield than direct biomass. Due to the oxidation process, aryl ether linkages between β-O-4 bonds and C–C cleavage between lignin structures are broken down, which results in the generation of Vanillin. Since the lignin structure is not isolated from cellulose as well as hemicellulose components, it is difficult to cleave (β-O-4) bonds in direct biomass oxidation, which results in lower vanillin yield compared to the extracted lignin (Jiang et al. 2019; Lu et al. 2016).

Fig. 14
figure 14

Vanillin production with extracted lignin or without extracted lignin (kenaf stalk)

Effect of pH on vanillin production

Considerable alkalinity is required to selectively oxidize lignin's into aromatic aldehydes (vanillin) (Evgenievich et al. 2016). However, vanillin's stability can be influenced by pH; higher pH values cause faster breakdown and a lower vanillin yield. To increase vanillin productivity and quality, it is crucial to maintain an ideal pH (Tarabanko and Tarabanko 2017). Increasing the yield of aromatic aldehydes is the primary goal of using catalysts to oxidize lignin's.

Figure 15 displays the vanillin production obtained following oxidative depolymerization of the kenaf stalk at various pH levels. Utilizing NaOH, an alkaline media for vanillin was created. The pH ranges used were 8.0, 8.5, 9.0, 9.5, while the other reaction parameters were retained at 5 wt% of CeZrO2–CA, 160 °C, and 30 min, respectively. The vanillin production dramatically increased from 9.1% to 9.9% as the pH moved from 8.0 to 9.0, but it significantly dropped to 9.4% when the pH moved from 9.0 to 9.5. The reaction was also carried out at pH 9.0, which itself is lower than the pH range of 11–14 documented by other studies (Anuar et al. 2021; Araújo et al. 2010; Fache et al. 2016).

Fig. 15
figure 15

Effect of pH on vanillin production

Recyclability of catalyst on vanillin production

A crucial factor in determining the performance of catalysts is their stability. Therefore, in the present research, the strength of the catalysts was examined in terms of their ability to be recycled. Following the vanillin production step, the utilized catalyst was filtered away from the unreacted biomass before being washed with ethanol and water. The isolated catalyst was dried at 100 °C for 12 h and used in the subsequent experimental oxidative depolymerization step. The CeZrO2–CA catalyst's recyclability test for oxidative depolymerizing of extracted lignin at 160 °C for 30 min is shown in Fig. 16. As can be seen, after four successive recycling processes, vanillin production was practically steady. After the first recycling run, the vanillin production of the catalysts that had been previously used somewhat decreased. After four cycles, the yield decreased from 14.3% to 13.56%.

Fig. 16
figure 16

Recyclability of catalyst on vanillin production

Characterization of used catalyst

The used CeZrO2–CA catalyst's surface properties were examined using X-ray photoelectron spectroscopy (XPS) to determine changes that occurred before and after the reaction. Figure 17 displays the XPS spectra of the Ce 3d and O 1 s areas. Both samples in Fig. 17a show a single peak that is divided into two overlapping sections. Surface-chemisorbed oxygen (Oα) is represented by the greater energy spectrum 528.81 and529.52 eV, whereas lattice oxygen (Oβ) is represented by the lesser energy spectrum 532.2 and 533.05 eV for fresh and used catalyst, respectively. A comparison of the fresh CeZrO2–CA and the used CeZrO2–CA shows a decrease in the resulting signal intensities of the peaks linked to surface-bound oxygen (commonly Oα), as shown in Fig. 17a. In addition, as shown in Table 4, the amounts of chemisorbed oxygen on the fresh CeZrO2–CA and the used CeZrO2–CA fell from 51.2% to 48.7%.

Fig. 17
figure 17

XPS spectra of (a) O 1 s and (b) Ce 3d of fresh and utilized CeZrO2–CA samples

As shown in Fig. 17b, the 3d104f0 state of Ce4+ was allocated to the peaks labeled v, v2, v3, u, u2, and u3, whereas the 3d104f1 state of Ce3+ was assigned to the peaks labeled v1 and u1. It showed that Ce4+ was the predominant state, and Ce3+ was also present on the outermost layer of the two samples. According to Fig. 17b, the peak intensities representing Ce4+ reduced the following reaction when compared to fresh samples of CeZrO2–CA and utilized CeZrO2–CA. As shown in Table 5, the ratio of Ce4+ fell from 68.9% to 63.7%, respectively. It was discovered that the fresh catalyst has a greater capacity for adsorption and more chemically adsorbed oxygen on its surface, which encourages the oxidative depolymerization of lignin and produces more vanillin (Wang et al. 2023; Zhang et al. 2016; Zou et al. 2019).

Table 5 XPS data of fresh CeZrO2–CA and used CeZrO2–CA samples

The CeZrO2–CA used catalyst morphology before and after the oxidative depolymerization of lignin remains unchanged, as shown in Fig. 18a, b. The catalyst maintained its initial spongy shape, with holes or bubbles separating it. The absence of agglomeration particles for the used catalyst in Fig. 18b indicates that the production of Zr, Ce, and O agglomerates was leached throughout the process. The used CeZrO2–CA catalyst has a diameter between 27 and 28 nm.

Fig. 18
figure 18

SEM analysis (a) fresh CeZrO2–CA, and (b) used CeZrO2–CA

The proton NMR spectra of the residue and lignin utilizing the 1,3,5-trioxane internal standard are shown in Fig. 19. Despite having quantitative differences, the NMR spectra of lignin and lignin residue show a lot of similarities. The residue has a substantially higher amount of methoxy group than lignin, as evidenced by the peak at 3.8 ppm representing protons of the methoxy groups (–OCH3). According to studies, the presence of more methoxy groups in the residue indicates that the β-O-4 links will be successfully broken during the depolymerization event (Holding et al. 2018; Roy et al. 2021). The lignin and residue lignin both show distinct peak at 2.8 and 5.40 ppm due to DMSO and internal standard (1,3,5-trioxane), respectively. Again, the connections of β-o-4 and β-o-5 are represented by two minor peaks at 4.90 and 5.35 ppm, respectively (Assemat et al. 2018). The absence of the peak β-o-4 and β-5 in the residue lignin indicates that β-o-5 was successfully depolymerized to produce aromatic compounds (vanillin).

Fig. 19
figure 19

Proton NMR spectra of lignin and residue lignin

In addition, the sample spectra show broad peak ranges from 6.5 to 7.35 ppm attributed to the aromatic protons. Three minor peaks at 6.8, 6.96, and 7.12 ppm in this broad peak correspond to the guaiacol propane units found in the samples (Roy et al. 2021). Figure 19 demonstrates that the lignin is more aromatic than the residue, which suggests that the guaiacol unit was successfully broken down during the reaction. The spectra show that compared to lignin; the residue contains much more aliphatic proton but less aromatic proton. The greater aliphatic/aromatic ratio of the residue demonstrated that a significant portion of the lignin's aromatic components were reacted, providing more aliphatic components in the residue.

Gas chromatography mass spectrometry (GCMS) analysis

Due to the presence of aromatic compounds in the aqueous phase, GC–MS analysis revealed that CeZrO2–CA catalytic oxidation under optimal conditions (5wt% catalyst loading, 160 °C temperature, and 30 min) is a potential method for lignin depolymerization, which will primarily produce vanillin. The composition of wood products that have degraded is given in Table 6, and the GC chromatogram that shows the existence of the various composition products is derived from the direct oxidation of kenaf stalks and depicted in Fig. 20. In addition to the acetadol, guaiacol, 4-hydroxybenzaldehyde, vanillin, acetovanillone, and syringaldehyde are the main aromatic monomers from wood degradation included syringaldehyde and vanillin. Fortunately, vanillin, an aldehydic compound, demonstrated the biggest peaks in the chromatogram's region (30.15%) (Manassa and Seesuriyachan 2021; NIST02 2008).

Table 6 Retention time (RT), structure, and lignin-derived monomeric products detected by GC–MS analysis (NIST02 2008)

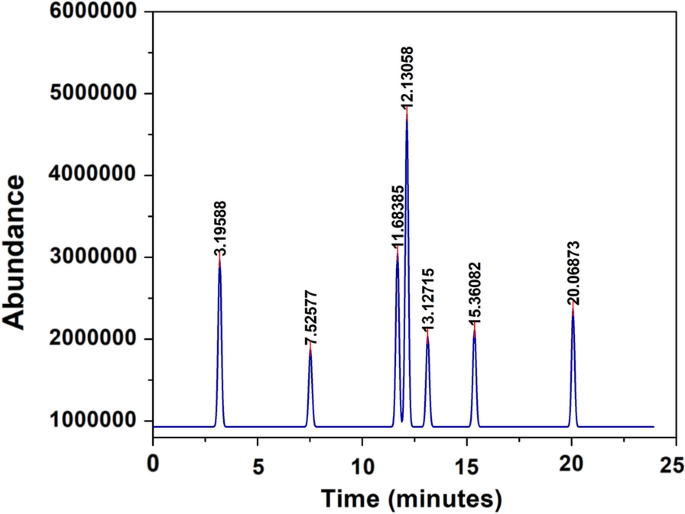

Fig. 20
figure 20

Typical GC/MS chromatogram of the kenaf stalk's degradation products


In summary, we have used the citrate-complexation approach to successfully synthesize three catalysts: CeO2–CA, ZrO2–CA, and CeZrO2–CA. All the prepared catalysts have been fully analyzed using FTIR, XRD, TPO, FESEM, TEM, and BET to confirm the origin of their structural properties. Ultimately, the catalysts have been utilized for the direct oxidative depolymerization of kenaf stalks to generate vanillin. The catalytic activity was investigated, and vanillin has been produced. The effect of various reaction parameters such as reaction time, temperature, and catalyst dosage were investigated. Noteworthy, the CeZrO2–CA catalyst produced the highest vanillin yield of 9.90% for kenaf stalk using 5 wt% of CeZrO2–CA at an optimized reaction condition of 160 °C within 30 min. Furthermore, vanillin production using extracted lignin was studied employing CeZrO2–CA as a catalyst which yielded 14.3% vanillin. Finally, the catalysts show recyclability up to four times and stability which may be a potential catalyst for industrial applications.
