Microalgae and co-culture for polishing pollutants of anaerobically treated agro-processing industry wastewater: the case of slaughterhouse


Anaerobically treated slaughterhouse effluent is rich in nutrients, organic matter, and cause eutrophication if discharged to the environment without proper further treatment. Moreover, phosphorus and nitrogen in agro-processing industry wastewaters are mainly removed in the tertiary treatment phase. The objective of this study is to evaluate the pollutant removal efficiency of Chlorella and Scenedesmus species as well as their co-culture treating two-phase anaerobic digester effluent through microalgae biomass production. The dimensions of the rectangular photobioreactor used to conduct the experiment are 15 cm in height, 20 cm in width, and 30 cm in length. Removal efficiencies between 86.74–93.11%, 96.74–97.47%, 91.49–92.91%, 97.94–99.46%, 89.22–94.28%, and 91.08–95.31% were attained for chemical oxygen demand, total nitrogen, nitrate, ammonium, total phosphorous, and orthophosphate by Chlorella species, Scenedesmus species, and their co-culture, respectively. The average biomass productivity and biomass yield of Chlorella species, Scenedesmus species, and their co-culture were 1.4 ± 0.1, 1.17 ± 0.12, 1.5 ± 0.13 g/L, and 0.18, 0.21, and 0.23 g/L*day, respectively. The final effluent quality in terms of chemical oxygen demand, total nitrogen, and total phosphorous attained by Chlorella species and the co-culture were below the permissible discharge limit for slaughterhouse effluent standards in the country (Ethiopia). The results of the study showed that the use of microalgae as well as their co-culture for polishing the nutrients and residual organic matter in the anaerobically treated agro-processing industry effluent offers a promising result for wastewater remediation and biomass production. In general, Chlorella and Scenedesmus species microalgae and their co-culture can be applied as an alternative for nutrient removal from anaerobically treated slaughterhouse wastewater as well as biomass production that can be used for bioenergy.

Graphical Abstract


  • Anaerobic reactor effluent supported microalgae biomass production

  • Microalgae potentially remove residual organic matter and nutrients to the required level

  • Biomass of the microalgae can be used for high valued products production

  • Integration of microalgae at polishing step demonstrate an exercise of circular bioeconomy


In developing countries, more than ninety percent of the agro-processing industries discharge partially treated or untreated effluents recklessly into the environment. The effluents from the agro-processing industries as well as anaerobic digestion (AD) effluents are known for their high organic matter, nutrients, and other pollutants that are unsafe to the receiving water bodies or environment (Zemene Worku and Seyom Leta 2017; Ashekuzzaman et al. 2019; Bustillo-Lecompte and Mehrvar 2015; Hailu et al. 2020; Yirgu et al. 2020; K. Praveen et al. 2018; Leta et al. 2003), directing post-treatment process requirement to minimize or remove organic matters as organic and inorganic forms of phosphorus and nitrogen of the effluents (De Nardi et al. 2011; Chevalier et al. 2000; Dawana and Kassa 2020; Tsegaye and Leta 2022). If directly released, it results in eutrophication of the receiving water bodies and other environmental risks associated with greenhouse gas emissions from ammonia volatilization, groundwater nitrogen contamination, or pollution, and also affects human health via the food chain (Akar and Tunali 2005; Carey and Migliaccio 2009; Fornarelli, Bahri, and Moheimani 2017). The continuous discharge causes nutrient accumulation in water bodies such as the sea, lake, and river, which in turn results in rapidly growing nutrients plants on the surface of the water (algal bloom). The algal bloom blocks sunlight from the waterbed plant life. Because of the dead algal blooms, oxygen is reduced in the water, and microorganisms, which use up any remaining oxygen within the water, break down the dead plant matter. Finally, all animal life dies due to the lack of oxygen in the water environment. Hence, the concern over deteriorating freshwater bodies quality has led to more tough regulations governing the quality of wastewater discharge from agro-processing industries (Figueroa-Torres et al. 2021; Cai et al. 2013; Arbib et al. 2014). Several types of conventional post-AD treatment based on both physico-chemical and biological approaches involving different combinations of aerobic and anoxic stages have been exploited for the treatment of the nutrients and organic matter in the anaerobically treated agro-processing industry effluent. Unfortunately, these techniques often do not allow regular nutrient recovery due to the high investment and operational costs the industry incurred (De la Varga et al. 2013; Ruiz-Martinez et al. 2012) and also produce a huge amount of sludge (Craggs et al. 2014). Recent studies have shown that different microalgae species are emerging not only as a cost-effective but also sustainable agro-processing industry wastewater treatment as they are capable of instantaneously removing total nitrogen (TN), total phosphorous (TP), and the chemical oxygen demand (COD) through mixotrophic assimilation, which is combined with microalgae phosphorus luxury uptake that results in high TN, TP, and COD removals at comparatively short hydraulic retention time (HRT) (Cai et al. 2013; Abdel-Raouf et al. 2012; Arbib et al. 2014; Salama et al. 2017). Moreover, studies have confirmed the potential of microalgae for TN, ammonium (NH4+–N), TP, and phosphate (PO4−3–P) removal from partially treated agro-processing industry wastewater by an anaerobic digester through biomass production. TN,TP, NH4+–N, and COD removal efficiency ranging between 74 and 92%, 74 and 100%, 96 and 99%, and 77% were reported in Sacristán de Alva et al. (2013), L. Zhu et al. (2014), and Gentili (2014), respectively, as well as less carbon dioxide (CO2) being released during the cultivation of microalgae biomass.

However, integration of two-phase AD with microalgae growing or cultivation using a photobioreactor for nutrient recovery and biomass production remains rare (Onay 2018), and most of the studies used synthetic wastewater or microalgae growing media such as Bold’s Basal Medium (BBM) in flasks (J. Miranda et al. 2012; Mamo and Mekonnen 2020). But little has been done using partially treated agro-processing industry effluent for nutrient and organic matter removal as well as bioethanol and biodiesel production using Scenedesmus sp. cultivated in anaerobic digester effluent (Yirgu et al. 2020) and Chlorella vulgaris, Scenedesmus dimorphus, and their co-culture for treating diluted municipal wastewater (Asmare et al. 2014). Furthermore, the microalgae-growing materials in most of the research were cylindrical or conical glass or flasks with a capacity of less than five liters (Yirgu et al. 2020; Asmare et al. 2014). The co-culturing of microalgae as photosynthetic organisms has been assumed to have both cooperative associations by exchanging metabolites, leading to the ultimate enrichment of biomass productivity and consequently increasing the nutrient removal efficiency, and competitive associations resulting in the secondary discharge of metabolites (known as allelochemicals) (Gururani et al. 2022; Goh et al. 2022; Bacellar Mendes and Vermelho 2013; Renuka et al. 2013; Gonçalves et al. 2017). Furthermore, these particular interactions among the microalgae in co-culture have numerous benefits for the treatment of agro-processing industry wastewater processes, including slaughterhouses, the promotion of the cell division process, the enhancement of the consumption or reduction of complete nutrients, the introduction of allelochemical production, the resistance to contaminants and predators, and the formation of a settleable system by the mixture of a single-cell organism with flocculating ones (Gururani et al. 2022; Renuka et al. 2013). Furthermore, the utilization of microalgae co-cultures or consortiums in wastewater treatment promises the achievability of the decontamination process as the loss of the first microalgae can be equilibrated by the second incorporated microalgae in the co-culture (Goh et al. 2022; Renuka et al. 2013). Though the application of Chlorella and Scenedesmus species for agro-processing industry wastewater remediation has been extensively reported with comparable or even better performance relative to this study, as far as our knowledge is concerned, the potential of coupling the two-phase anaerobic digestion system treating slaughterhouse wastewater with microalgae isolated from local freshwater bodies cultivated in a photobioreactor for COD, TN, NH4+–N, TP, and PO4−3–P removal as well as biomass production removal as well as biomass production is not studied so far. Therefore, the main objective of this study was to evaluate the COD, TN, NH4+–N, nitrate (NO3–N), TP, and PO4−3–P removal efficiencies as well as the biomass production potential of Chlorella and Scenedesmus species microalgae, and their co-culture cultivated in photobioreactor treating two-phase anaerobically treated slaughterhouse effluent.

Materials and methods

Microalgae sample collection, isolation and cultivation

Freshwater sample from which Chlorella and Scenedesmus species microalgae isolated were collected from a local freshwater body, Awassa Lake, Awassa, Ethiopia, and transported to the laboratory. The collected sample was relocated to the closed flasks on arrival in the laboratory to avoid contamination, enriched in BBM, and then incubated using petridishes for 5 days at 25 °C with a light intensity of about 40–50 μmolm−2 s−1, as described in (Chalivendra 2014). The two microalgae species identification or isolation was done as indicated in Andersen and Kawachi (2005), Dolganyuk et al. (2020), K. Lee et al. (2014), and Ogbonna (2015) using agar plating with pipetting and serial dilution combinations based on their morphology using a light microscope. The isolated Chlorella and Scenedesmus microalgae species were again cultured in BBM until the required amount was obtained and stored in the refrigerator at 4 °C until used for the treatment of two-phase anaerobic digester effluent. Then 800 cm3 of isolated microalgae inoculums cultured in BBM and 7200 cm3 were fed to the photobioreactors. The components of the microalgae co-culture are Chlorella and Scenedesmus species at 1:1 monoculture inoculums on volume basis. The per liter BBM was composed of KH2PO4 (175 mg), K2HPO4 (75 mg), MgSO4 ·7H2O (75 mg), CaCl2 ·2H2O (25 mg), NaNO3 (250 mg), NaCl (25 mg), and H3BO3 (11.42 mg), 1 mL of microelement stock solution ZnSO4·7H2O (8.82 g), MnCl2 ·4H2O (1.44 g), MoO3 (0.71 g), CuSO4 ·5H2O (1.57 g), and Co(NO3)2·6H2O (0.49 g) in one liter), 1 mL of solution-1 of Na2EDTA (50 g) and KOH (3.1 g) in one liter, and 1 mL of FeSO4 (4.98 g and concentrated H2SO4 per liter) and pH 6.8. The solution was always autoclaved for 15 min at 121 °C before use.

Inoculation and cultivation of the microalgae in AD effluent

Microalgae culturing conditions

The freshwater sample containing the microalgae was transferred and primarily grown in 250 mL Erlenmeyer flasks containing 100 mL of BBM medium at 22 ± 2 °C with cool white fluorescent lamps, giving a continuous light intencity of 40–50 μmolm−2 s−1. Air and CO2 were bubbled using an aeration pump at a flow rate of 250 mL/min and 100 mL/min, respectively, to produce adequate microalgae cultures for the wastewater treatment and biomass production experiments.

Photobioreactor setup and operation condition

A rectangular photobioreactor was used to cultivate microalgae for the post-AD effluent treatment. The dimensions of the photobioreactor were 15 cm in height, 20 cm in width, and 30 cm in length. The total volume of the photobioreactor was 9000 cm3, with a working volume of 8000 cm3. Figure 1 shows a microalgae photobioreactor experimental setup; (a) schematic and (b) photo. In order to avoid contamination, the bioreactors were covered with transparent plastic glass. Two fluorescent lamps (20 watts each, Philips) with a maximum light intensity of 150–300 μmolm−2 s−1 above the surface of the photobioreactor was used as a light source. An electric timer switch controlled the photoperiod at a 12:12 light/dark cycle at room temperature. An aerator was used to supply air and CO2 at a flow rate of 250 and 100 mL/minute, respectively. The microalgae cultivation was run in duplicate for 20 days. The effluent of the two-phase AD system was fed to the photobioreactor in semi-continuous (draw and feed) mode. After 20-day incubation period the microalgae biomass in the photobioreactor drawn and another batch was fed. The effluent was filtered using 21-mm Whatman filter paper prior to feeding. After the twenty-day incubation period or end of the experiment, the microalgae’s biomass was harvested by evaporation. The effluent was then analyzed for physico-chemical parameters.

Fig. 1
figure 1

Photobioreactor setup for microalgae-based bioremediation experiment: a schematic and b photo

Biomass, chemical oxygen demand, and nutrient removal analyses

Microalgae biomass and productivity

Microalgae biomass yield and productivity were determined according to (Lee et al. 2013) by measuring the optical density (OD) at 680 nm (OD680). The OD of microalgae was measured using JENWAY spectrophotometer.

$${\text{Microalgae biomass concentration }} = \, 0.{95} \times {\text{OD}}_{{{68}0}} - 0.0{4}$$

where Ct and Co represent the microalgae’s biomass at time (t) and initial time (t0), respectively.

Photobioreactor effluent quality analysis

The microalgae can utilize the main nutrients like carbon, phosphorus, and nitrogen that are required for growth from numerous wastewater sources, diluted and secondary to agro-processing industry effluent or municipal wastewater (Asmare et al. 2014; Yirgu et al. 2020; Passos et al. 2015; Cai et al. 2013). In this study, pollutant (COD, TN, NH4+–N, NO3–N, TP, and PO4−3–P) removal efficiency evaluation of two microalgae, namely Chlorella sp. and Scenedesmus sp., isolated from freshwater of a local lake, and their co-culture were used to identify and select robust and suitable microalgae capable of treating slaughterhouse wastewater treated partially using a bench-scale two-phase AD system.

Chemical oxygen demand, and nutrient removal efficiency analyses

The temperature of the surface above the photobioreactor and the wastewater microalgae’s mixture pH were measured using a pH meter (Jenway, Manchester, UK). During the final water quality analysis, the photobioreactor effluent was centrifuged at 4500 rpm for about 10 min to separate the microalgae from the water, and then the supernatant was filtered. The concentrations of COD, TP, TN, NH4+–N, and NO3–N were analyzed on 0, 4, 8, 12, 16, and 20 days of incubation time by taking a 50 mL sample according to the standard methods indicated by Dalrymple et al. (2013) using a Jenway spectrophotometer. Samples were filtered using Whatman GF/F filters before analysis. Nutrients or organic matter removal efficiencies were determined by:

$$\mathrm{Nutrient\, removal\, efficiency }\left(\mathrm{\%}\right)= \frac{\mathrm{Influent\, concentration}-\mathrm{effluent\, concentration}}{\mathrm{Intial\, concentration}}*100$$

The removal rate of the parameters (nutrients and organic matters) was calculated using the following equation.


where Rr is COD, TP, TN, NH4+–N, and NO3–N removal rate, Ct and Co represents the parameters concentration at time (t) and initial time (t0), respectively.

Data analysis

The raw data collected during this experiment was entered into Microsoft Excel for further analysis. The result was presented in tables as the mean, standard deviation, and figures. Origin 22 statistical software was used to draw figures and perform descriptive analysis. The data obtained were analyzed to determine the degree of significance and for the comparisons of mean concentration or results of the two microalgae and their co-culture using one-way analysis of variance (ANOVA) using Minitab statistical software followed by a post hoc test at p ≤ 0.05.

Results and discussions

Feedstock characteristics

Two-phase AD effluent COD, TN, NH4+–N, NO3–N, TP, and PO4−3–P concentrations subjected to treatment with Chlorella sp., Scenedesmus sp., and co-culture varied between 905–919, 359–376, 330–365, 89–102, 93–105, and 61–88 mg/L, respectively. Related study results showed that the COD, TN, NH4+–N, NO3–N, TP, and PO4−3–P concentrations were varying between 97–1100 mg/L, 163–410 mg/L, 21–237 mg/L, 22–265 mg/L, 12–221 mg/L, and 0.6–170 mg/L, respectively, and can be used as a nutrient and carbon source for microalgae growth (Bakraoui et al. 2023), revealing the two-phas AD effluent supports microagae growth. Scholars also reported that the residual TN, TP, COD, and several micronutrients in the anaerobically treated agro-processing industry effluent can potentially support microalgae cultivation (Elvira E. Ziganshina et al. 2022; Bauer et al. 2021; L. Zhu, Yan, and Li 2016; Tambone et al. 2017).

Operating environmental conditions during microalgae cultivation

Light intensity, temperature, and pH

The two microalgae species identification or isolation was done as indicated in Andersen and Kawachi (2005), Dolganyuk et al. (2020), K. Lee et al. (2014), and Ogbonna (2015) using agar plating with pipetting and serial dilution combinations based on their morphology using a light microscope.

For the photosynthetic organisms such as microalgae, the metabolic processes linked with nutrient assimilation for microalgal growth are determined by light. Microalgae species-specific light intensity needed for optimal growth was reported to be between 150 and 400 μmolem−2 s−1 for Scenedesmus species (Mostafa et al. 2012) and 200 to 500 μmolem−2 s−1 for Chlorella sp. (Maltsev et al. 2021), while optimum biomass production of both species of microalgae was at 150 μmolem−2 s−1 (Nzayisenga et al. 2020). Self-shading, increased transmittance pathways, and light attenuation can result in a reduction of biomass productivity at light intensity below a species threshold range while oxidative damage by photoinhibition occurs above the range (Whitton et al. 2015; Tan et al. 2022). Bench-scale photobioreactors overcome this by adjusting the light intensity in a limited range of 150–300 μmolem−2 s−1 (Gordon and Polle 2007; Singh and Singh 2015; Mostafa, Shalaby, and Mahmoud 2012). Therefore, the light intensity of the fluorescent lamp used for this study varied between 150 and 300 μmolem−2 s−1 which is in the range of previouse report.

The other factor that can affect microalgae nutrient removal efficiency and biomass production is temperature, and they are directly proportional to each other until the maximum threshold. In this study, the temperature of the surface above the reactor during the experimental period varied from 28.2 to 32.5 °C. A temperature range between 15 and 31.5 °C is assumed to be optimal for microalgae photobioreactors, with a critical maximum temperature that depends upon specific species, providing the nutrient concentration, and light supply not being limiting factors (Singh and Singh 2015; Andersen and Kawachi 2005).

Most microalgae have an optimum pH range for their photosynthesis and growth in between 7 and 11, but there are microalgae species that can grow in acid conditions as low as pH 1 (Whitton et al. 2015). In this study, the pH of the photobioreactor in which Chlorella, Scenedesmus, and co-culture were used to treat the two-phase AD effluent varied from 7.53 to 11, 7.31 to 10.6, and 6.7 to 11.5, respectively, which is consistent with the previous reported pH values for microalgae cultivation for pollutant reduction and biomass production (Bohutskyi et al. 2016; Asmare et al. 2014; Kusmayadi et al. 2022; Acevedo et al. 2017; Chevalier et al. 2000).

Photobioreactor effluent quality

Nitrogen, nitrate and ammonium removal

The TN concentration of the two-phase AD effluent fed to the photobioreactor in which Chlorella, Scenedesmus, and the co-culture grown was 367.33 ± 8.50 mg/L. The photobioreactor effluent TN concentration treated by Chlorella, Scenedesmus, and co-culture varied between 10 and 17, 12 and 15, and 9 and 14 mg/L, respectively. The lowest TN concentration levels of 10, 12, and 9 mg/L were observed for the photobioreactor effluent in which Chlorella, Scenedesmus, and co-cultures were grown, respectively. The changes in TN concentration and removal efficiencies during the experimental period are shown in Fig. 2. In all three treatments, the concentration of TN decreased sharply in the 1st eight days but steadily afterwards. The final concentrations of TN in all the treatments were below 15 mg/L. Furthermore, 60% TN removal efficiency was achieved on the 8th day of the incubation or experimental period, and about 95% TN removal efficiency was achieved at the end of the 20 days by all three treatments. Besides, the TN removal rate or uptake by Chlorella, Scenedesmus, and co-culture was 20.80, 20.82, and 20.95 mg/L*day, respectively (Table 1).

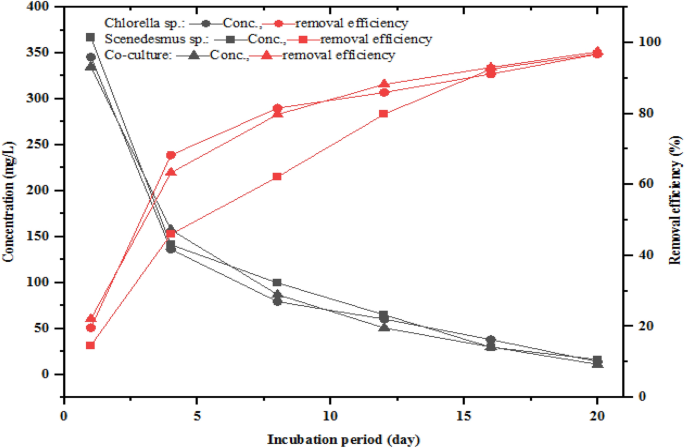

Fig. 2
figure 2

Variation of total nitrogen concentration and removal efficiency

Table 1 Removal rate of COD, TN, NO3-, NH4 + -N, TP, and PO4 − 3-P

As stated in the different literature, the TN removal efficiency of AD effluent treated by microalgae between 90 and 100% depends on operating conditions, microalgae used, reactor type, and other factors (Yirgu et al. 2020). A study conducted by Shayesteh et al. (2021) using Chlorella species for agro-processing wastewater treatment indicated that the TN nutrient assimilation by microalgae was 75.50% with a final effluent concentration of 84.24 mg/L, while 76–95% of the TN (Cho et al. 2011; S. Zhu et al. 2022; Kim et al. 2013) during the biomass cultivation of Chlorella species and Scenedesmus species cultivation for biomass production using tannery wastewater removed 88% of the TN (da Fontoura et al. 2017). Similarly, M. K. Ji et al. (2013) studied the nutrient removal efficiency of Chlorella and Scenedesmus species and achieved an almost complete removal of TN by both species. Other studies also reported that the microalgae consortium had a TN removal efficiency of 67% (X. Hu et al. 2019a, b). The TN removal efficiency obtained in this study is consistent with the previous research findings for the partially treated agro-processing industry wastewater feedstock using Chlorella species and Scenedesmus species (Darpito et al. 2015; Farooq et al. 2013; Cai et al. 2013).

Microalgae uses nitrogen build up the cells’ components, like energy transfer molecules, enzymes, vitamins, genetic material, proteins, amides, hormones, and alkaloids. Furthermore, based on dry weight, it is the 2nd most abundant element next to carbon, making up 6–10% of microalgae biomass. The microalgae usually uptake the inorganic nitrogen forms nitrate, nitrite, and ammonium in the AD effluent (Yirgu et al. 2020; Passos et al. 2015). Microalgae assimilate the nitrogen nutrients that are found in wastewater in the preference of organic-N < NO2 < NO3 < NH4+–N via translocation across the cell membrane (Cai et al. 2013; Whitton et al. 2015), indicating NH4+-N is highly favored by microalgae (Cai et al. 2013; Yecong Li et al. 2011).

The NO3–N concentrations of two-phase AD effluent treated by Chlorella, Scenedesmus, and mixture were between 6 and 10, 6–8, and 5–8 mg/L, respectively. The NO3–N concentrations in all treatments showed a steady and sharp decrease in the first 8 days and afterwards of treatment period, respectively (Fig. 3). Hence, low removal efficiency (RE) of NO3–N was observed in the first 8 days of the incubation period. A NO3–N RE of more than 60% was achieved after 12 days of the incubation or experimental period for all the microalgae and their mixture. Furthermore, the final effluent NO3–N concentrations treated with Chlorella, Scenedesmus, and co-culture were below 10 mg/L with 91.08, 92.91, and 93.28% RE, respectively. The moderate decrease followed by a sharp increase in NO3–N RE in the 1st week of the incubation periods and afterwards, respectively, was attributed to the less preference of NO3–N by microalgae when the NH4+–N concentration is enough to support the microalgae’s cell growth. The NO3–N removal efficiency result achieved in this study is consistent with the previous study findings, as depicted below. Nitrate is the second inorganic nitrogen that microalgae prefer for growth, next to ammonium (Whitton et al. 2015). Studies have shown low (53%), 90%, and 100% NO3–N removal efficiencies by Chlorella sp., from partially treated agro-processing industry wastewater and lecheate (D. Hu et al. 2021; Shi et al. 2007; Godos et al. 2009; Ajala and Alexander 2020).

Fig. 3
figure 3

Variation of nitrate concentration and removal efficiency

Figure 4 shows the change in NH4+–N concentrations and removal efficiency during the experimental period by Chlorella, Scenedesmus, and co-culture. As indicated in Fig. 4, NH4+–N concentrations progressively decreased while the RE increased with time in all treatments. The decrease and increase of the concentration and RE of NH4+–N were high during the first 8 days of the incubation period and slow afterwards, respectively. Furthermore, the NH4+–N RE is higher than other nitrogen forms, which may be attributed to its preference for microalgae over other forms. Accordingly, in all three treatments, more than 50, 75, and 61% removal efficiency of NH4+–N were achieved in the 1, 8, and 12 days of th incubation or experimental period, respectively. The final NH4+–N concentrations were 3.67 ± 1.53, 7.67 ± 1.53, and 2.00 ± 1 mg/L, with removal efficiencies of 97.94, 99.01, and 99.46% for Chlorella, Scenedesmus, and co-culture, respectively. After 20 days of incubation, the lowest NH4+–N concentrations of 2, 6, and 1 mg/L were recorded in the photobioreactor with Chlorella, Scenedesmus, and co-culture, respectively. Simultaneously, after 20 days of incubation, the NH4+–N removal rates by Chlorella, Scenedesmus, and co-culture were 18.42, 17.22, and 18.50 mg/L*day, respectively (Table 1). The higher removal efficiency of NH4+-N was achieved by the co-culture of microalgae than monocultures, which is supported by earlier findings by Cai, Park, and Li (2013), though it was reported that Chlorella species can effectively tolerate NH4+–N. Similarly, (Scarponi et al. 2021) reported NH4+-N removal efficiency of 99.2% and 98.146% from organic waste digestate by Chlorella and Scenedesmus cultures, respectively, which is consistent with this study finding.

Fig. 4
figure 4

Variation of ammonium concentration and removal efficiency

The higher removal efficiency and removal rates of NH4+-N than NO3–N in all treatments were due to their consumption, preferably by microalgae for the growth of cells. Furthermore, the higher removal efficiency of NH4+–N is attributed to a reduction in culture pH, which in turn shifts the equilibrium from NH3 toward NH4+–N, which the microalgae prefer for their growth as a source of nutrients. Furthermore, this may be due to the lower energy requirement for NH4+–N assimilation of glutamine and the release of the hydrogen ion than for nitrite and nitrate. These results (removal efficiency and final effluent concentration of NH4+–N) are consistent with the removal efficiency and final effluent concentration of NH4+–N reported by Ruiz-Martinez et al. (2012) for a culture of Scenedesmus sp. collected from freshwater bodies in a synthetic medium (removal rates of 13.5–4.2 mg/L*day). Studies also show NH4+–N removal efficiency of 85.63% (da Fontoura et al. 2017), 92–99% (Katırcıoğlu Sınmaz, Erden, and Şengil 2022; Gao et al. 2015; P. Praveen and Loh 2015; Su et al. 2016), and NH4+-N removal efficiency of 100% (Shayesteh et al. 2021; W. Zhou et al. 2012) by Chlorella sp. used for secondary wastewater treatment. Furthermore, almost complete NH4+–N removal efficiency was also achieved by Scenedesmus species (F. Ji et al. 2014). Scenedesmus species microalgae grown using effluent from partially treated breweries by the USAB system showed a progressive increase in removal efficiencies and reached 99% at the end of the experiment. It was also reported that microalgae usually prefer NH4+–N as a main source of inorganic nitrogen (Cai et al. 2013; Yirgu et al. 2020; S. Zhou et al. 2014).

Phosphorous and orthophosphate removal efficiency and uptake by microalgae

A high phosphorus or phosphate concentration that originates mainly from stomach contents causes eutrophication of the receiving water bodies when released without proper treatment (Abideen A. et al. 2020). The 3rd essential macronutrient microalgae require for their growth next to carbon and nitrogen is phosphorus, which nearly accounts for 0.5–4% of their biomass (Subramaniyam et al. 2016). The microalgae assimilate the TP in the form of PO4−3–P through the energy consumption process (Rasoul-Amini et al. 2014; Chaudhary et al. 2018).

The variation of TP and PO4−3-P concentrations and RE during the experimental period is shown in Fig. 5 a and b, respectively. The concentrations of TP decreased with time, while the RE increased for all the treatments. On the 4th day of the experimental period, about 50, 36, and 62% removal efficiency of TP was achieved for the two-phase AD effluent treated with Chlorella, Scenedesmus, and co-culture, respectively. The final effluent TP concentration and RE by Chlorella, Scenedesmus, and co-culture were found to be 5.67 ± 0.58, 10.67 ± 3.61, 6.67 ± 2.52 mg/L, and 94.28%, 89.22%, and 93.27%, respectively. The final microalgae photobioreactor effluent PO4−3–P concentrations were 4.67 ± 1.53, 6.33 ± 3.21, and 3.33 ± 1.53 mg/L, with a removal efficiency of 91.08, 93.43, and 95.31% for Chlorella, Scenedesmus, and their mixture, respectively (Fig. 6). The removal rate for both TP and PO4−3–P was high in the 1st eight days and gradually decreased, as revealed in Fig. 6, which is attributed to the uptake of the TP and PO4−3–P by microalgae for biomass formation.

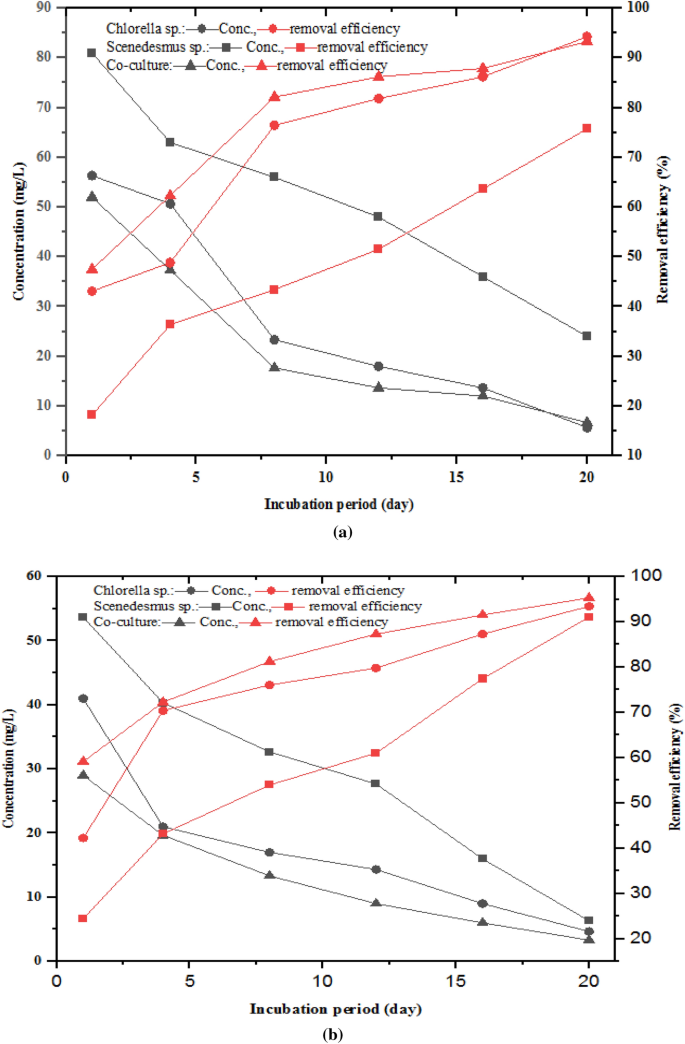

Fig. 5
figure 5

Trends of total phosphorous (a) and ortho-phosphate (b) concentration and removal efficiency during the incubation period

Fig. 6
figure 6

Nutrient and organic matter removal efficiency by microalgae photobioreactor

Furthermore, AD effluent phosphorous level reduction by microalgae is mainly due to the phosphates storage in cytoplasmic presence in the form of polysaccharides, polymers, fatty materials, reproducing biomass, biosorption to the cell wall (Valchev and Ribarova 2022), and luxury reserves as polyphosphate in suitable circumstances. Similarly, other previous studies also indicated the phosphorous removal by microalgae was through assimilation in growing and duplicating biomass, luxury reserve in aerobic conditions as a source of energy for anaerobic conditions, and biomass used as a bioenergy source (Cormier 2010; Solovchenko et al. 2016; Rybicki 1997). Studies have shown different TP removal efficiency ranges between 70 and 90% (Radin, Saphira, and Mohamed 2017; P. Praveen and Loh 2015; D. Hu et al. 2021) and 85 and 96.43% (Katırcıoğlu Sınmaz et al. 2022; Gao et al. 2015; Zheng et al. 2019; Kim et al. 2013) for PO4−3–P by Chlorella vulgaris. Lower (31 to 70%) TP removal efficiency by Scenedesmus species (AlMomani and Örmeci 2016; Yirgu et al. 2020) and 71.29% of PO4−3–P (Usha et al. 2016), while higher TP RE of 89–97% (S. Zhu et al. 2022; da Fontoura et al. 2017; W. Zhou et al. 2012; Shayesteh et al. 2021; Ajala and Alexander 2020) and 100% (M. K. Ji et al. 2013) were reported. Likewise, lower PO4−3–P removal efficiencies between 12–21%, 22–83%, and 57–85% (D. Hu et al. 2021) by Chlorella species, Scenedesmus species, and the co-culture of the two, respectively, while TP removal efficiencies of Chlorella species were 62.5–74.7%, 75% by Scenedesmus, and 86% by the co-culture (Asmare, Demessie, and Murthy 2014) were also previously indicated. TP removal efficiency of 100% by Chlorella and Scenedesmus species noted in M. K. Ji et al. (2013), is in line with the findings of this study. Another study by Qin et al. (2016) reported that microalgae co-cultures or consortia showed a better removal efficiency (91–96%) than monocultures of Chlorella species (87%). Similarly, in agro-industry processing effluent treated by the two microalgae sp., phosphorus removal efficiency of 20–100% was reported (Cai et al. 2013). Rasala and Mayfield (2015) noted that phosphorus uptake by microalgae from AD effluent is stored in the form of polyphosphate in the microalgae cell. Slaughterhouse wastewater treated by Chlorella and Scenedesmus showed a removal efficiency of 69% of PO4−3–P (Y. Hu et al. 2019a, b). Regarding the removal rates of TP and PO4−3–P, 0.326 and 0.290 mg/L*day were reported by microalgae used for treating anaerobic digester effluent, respectively. The findings of the study revealed that the TP concentrations attained at the end of the experimental or cultivation period fulfilled the permissible discharge limit for wastewater treatment plant effluent standard suggested by EEPA.

Organic matter removal efficiency

Microalgae such as Chlorella and Scenedesmus microalgae, as well as the co-culture, can grow on organic carbon sources via assimilation (Şirin and Sillanpää 2015). The COD level treated by microalgae photobioreactors is another essential parameter, as it is indicative of the strength of the effluent and the quantity of oxygen that can be consumed for its oxidation (Otondo et al. 2018; Nagarajan et al. 2019; Choi and Lee 2012). Accordingly, the COD concentration in the two-phase AD effluent was used as a carbon source for the microalgae’s growth. Effluent COD concentration variation during the experimental period in which Chlorella, Scenedesmus, and co-culture microalgae were used to treat the two-phase AD effluent is shown in Fig. 7. COD removal efficiency of more than 50 and 80% was achieved after the 4th and 8th days of the incubation or experimental period in all treatments. The COD level in all treatments showed a continuous decrease in the first 15 days of treatment. The final photobioreactor effluent COD concentrations were 73.67 ± 6.51, 120.67 ± 6.51, and 62.67 ± 4.73 mg/L, with removal efficiencies of 87, 92, and 93% for Chlorella, Scenedesmus, and co-culture, respectively. The variation of mean COD concentrations in the treatments was significant between Chlorella and Scenedesmus (p-value = 0.01), Chlorella and the co-culture (p-value = 0.02), but not significant (p-value = 0.05) between Scenedesmus and the co-culture. The final concentrations of COD are below the wastewater treatment plant or slaughterhouse effluent discharge limit of Ethiopia (250 mg/L) in all treatments. The decrease in COD concentrations with incubation period is attributed to the uptake and usage of COD by microalgae as a source of organic carbon for their cell growth and biomass production, in addition to CO2. The COD uptake for Chlorella, Scenedesmus, and co-culture was 41.82, 39.47, and 42.37 mg/L*day, respectively (Fig. 7). In general, the concentration of COD in two-phase AD effluent is typically reduced during the incubation of microalgae.

Fig. 7
figure 7

COD concentration and removal efficiency variation during the incubation period

Previous studies also showed that microalgae use the organic matter (COD) in partially treated (AD effluent) agro-processing industry effluent for their cell growth (Ding et al. 2015; B. Wang et al. 2012). The COD removal efficiency values of 87–93% noted in this study were consistent with the other study findings using Chlorella species and Scenedesmus species in wastewater treatment systems, indicating the microalgae and their co-culture used in this study were capable of effectively growing in partially treated slaughterhouse wastewater (Hernández et al. 2016; Choi and Lee 2012; Otondo et al. 2018). A COD removal efficiency of 89–99% using Chlorella sp. was reported in previous studies by S. Zhu et al. (2022); Zheng et al. (2019); Mehta and Chakraborty (2022), which is comparable to this study finding. A study conducted using Scenedesmus sp. for treating agro-processing industry wastewater reported COD and BOD removal efficiency of 75–80% and 82%, respectively (Usha et al. 2016; da Fontoura et al. 2017). COD removal efficiency of 64.9–76% (Abdel-Raouf et al. 2012; AlMomani and Örmeci 2016; Yang et al. 2015; Liu et al. 2022) and 80–85% (Cai et al. 2013; D. Hu et al. 2021) by Chlorella species from agro-processing industry wastewater, which is lower than this study result. The difference may be due to the reactor type and organic matter sources for microalgae-based wastewater treatment, which is slaughterhouse wastewater effluent treated by two-phase in this study and municipal wastewater in their study. Another study by Qin et al. (2016) reported that microalgae co-cultues or consortiums showed better COD removal efficiency (91–96%) than monocultures of Chlorella species, and Hena et al. (2015) reported better growth and stability by conglomerates of microalgae than single strains with 98% nutrients and COD removal efficiency from dairy wastewater.

Microalgae biomass production

The average microalgae biomass produced as well as productivity by each treatment are indicated in Fig. 8. As illustrated in Fig. 8, there was noticeable growth of Chlorella, Scenedesmus, and co-cultures in two-phase AD effluent. Chlorella, Scenedesmus, and co-culture biomass concentrations at the start (end) of the experiment were 0.11 (1.4 ± 0.1), 0.08 (1.17 ± 0.12), and 0.09 (1.5 ± 0.13) g/L, respectively. The minimum and maximum biomass productivity of Chlorella, Scenedesmus, and co-culture were 0.095 and 0.26, 0.26 and 0.34, 0.34 and 0.50 g/L*day, respectively. The average biomass yields were significantly higher for the co-culture compared to the individual microalgae (p ≤ 0.05). The final biomass attained for this study may be attributed to the high consumption of the dissolved inorganic and organic N and P in the two-phase AD effluent that are available in the form of PO4−3–P, NH4+–N, and NO3–N, as well as TN and TP.

Fig. 8
figure 8

Biomass production and productivity of microalgae

Associating this study’s results with the works of other researchers, the following were distinguished: For example, the microalgae’s biomass obtained in this study is lower than that reported by Elvira Ziganshina and Svetlana Bulynina (2022) for both Chlorella species (2.13–3.26 g/L) and Scenedesmus sp. (1.46–2.33 g/L). In the research work by Fernandes et al. (2022), 0.49 g/L and 0.23 g/L of Chlorella vulgaris and Scenedesmus biomass production, respectively, were reached in a digestate of pig manure cultivated in flasks, but a maximum ultimate concentration of 2.49 g/L biomass was reported by Kisielewska and Bordiean (2022) for Chlorella vulgaris cultivated in centrifuged agricultural digestate (media-based type) in tubular photobioreactors. Other scholars have shown that the highest microalgae biomass of up to 8.08 g/L of Chlorella sorokiniana can be found when cultivated in 50% diluted swine wastewater using glass-made vessels (photobioreactors) (Chen et al. 2020). A study by Hilares et al. (2021) that was conducted in batch mode for the cultivation of Chlorella vulgaris in acid-precipitated poultry slaughterhouse wastewater reported comparable biomass production of 1.2 g/L via 83% COD removal efficiency. Microalgae biomass productivity reported for microalgae grown on anaerobically treated agro-processing industry effluent varies between 0.1–0.6, 0.2–0.8, and 0.3–1.0 g/L for Chlorella sp., Scenedesmus sp., and their co-culture, respectively (Ziganshina, E.E.; Bulynina, S.S.; Yureva, K.A.; Ziganshin 2022), which is comparable to this study results. To this end, researchers also noted that Chlorella and Scenedesmus species can grow competently in anaerobically digested agro-processing industry effluent (Bohutskyi et al. 2015; Zuliani et al. 2016; Kobayashi et al. 2013). On the other hand, Chlorella vulgaris, Scenedesmus obliquus, as well as Spirulina platensis have been reported to possess the highest growth rates and nutrient removal rates, among other microalgae, when cultured in anaerobically digested swine wastewater (Ayre et al. 2017; L. Wang et al. 2010; Xu et al. 2015; Kuo et al. 2015). Nevertheless, the variation in the attained microalgae biomass yields and productivity with the result of other studies or works would be due to the difference in parameters such as CO2 supply, light intensity, temperature, type of bioreactor, experiment duration, origin, as well as anaerobic digester effluent characteristics during the experiment, which can directly affect the microalgae growth.

From the results, it is evident that the pollutant removal efficiencies of Chlorella, Scenedesmus species, and co-culture varied significantly (p ≤ 0.05) (co-culture is higher). Similarly, co-culture showed higher microalgae biomass production. Hence, co-culture can be used if the initiative of producing microalgae biomass is exclusively to extract crude lipids from microalgae biomass for biodiesel production, compared to monoculture of Chlorella species and Scenedesmus species. Likewise, in the two-phase effluent treatment process investigated in this study, Chlorella species and co-culture can be optional. Furthermore, the co-culture of Chlorella and Scenedesmus species has achieved higher removal efficiency compared to the monocultures, regardless of the factors (Table 1 and Fig. 6). The higher pollutant removal efficiency and biomass yield of co-culture were mainly due to the cooperative and competitive interaction of the individual microalgae’s as well as their resistance to predators. In this regard, many authors findings showed that Chlorella and Scenedesmus are the most effective species for pollutant removal purposes (Asmare et al. 2014; Hameed 2007), though co-culture outlay in both pollutant removal and microalgae biomass production.


The microalgae species Chlorella and Scenedesmus collected from the local lake, as well as the co-culture used to treat slaughterhouse effluent treated in two-phase AD, have shown an encouraging removal efficiency of the nutrients and organic matter. Removal efficiencies between 86.74–93.11%, 96.74–97.47%, 91.49–92.91%, 97.94–99.46%, 89.22–94.28%, and 91.08–95.31% were achieved for COD, TN, NO3–N, NH4+–N, TP, and PO4−3–P, by Chlorella species, Scenedesmus species, and their co-culture, respectively. Congruently, Chlorella species, Scenedesmus species, and co-culture biomass yield and productivity were 1.4 ± 0.1, 1.17 ± 0.12, 1.5 ± 0.13 g/L, and 0.18, 0.21, and 0.23 g/L*day, respectively. Henceforth, two-phase AD effluent supported microalgae biomass production through residual organic matter and nutrient removal to the required level. For all the parameters, the photobioreactor effluent concentration was below the slaughterhouse industry discharge limit of the country (Ethiopia). It can be concluded that the microalgae co-culture produces higher microalgae biomass and productivity via substantial removal efficiencies of pollutants than the monocultures. Furthermore, integration of microalgae photobioreactors into AD systems as a polishing step demonstrates sustainable agro-processing industry wastewater treatment and biomass production as well as an exercise of circular bioeconomy.

Availability data and materials

All the data and materials used in this manuscript are included in this document.



Anaerobic digestion


Analysis of variance


American Public Health Association


Bold’s Basal Medium


Biological oxygen demand


Chemical oxygen demand


Electrical conductivity


Hydraulic retention time


Nitrogen ammonium


Optical density


Organic loading rate


Oxidation reduction potential


Removal efficiency


Removal rate


Soluble chemical oxygen demand


Scanning electron microscope


Slaughterhouse wastewater


Total chemical oxygen demand


Total dissolved solid


Total nitrogen


Total suspended solids


Total phosphorous


Total volatile fatty acids


Upflow sludgebed


Volatile fatty acids


Download references


The authors wish to express their thanks to the Organic Export Abattoir PLC for allowing us to access the compound and take effluent sample. Dejene Tsegaye also thanks Center for Environmental Science of Addis Ababa University for the funding his PhD study.


No funding received for this study.
