Engineering of fast-growing Vibrio natriegens for biosynthesis of poly(3-hydroxybutyrate-co-lactate)

Abstract

Poly(3-hydroxybutyrate-co-lactate) [P(3HB-co-LA)] is a highly promising valuable biodegradable material with good biocompatibility and degradability. Vibrio natriegens, owing to its fast-growth, wide substrate spectrum characteristics, was selected to produce P(3HB-co-LA). Herein, the crucial role of acetyltransferase PN96-18060 for PHB synthesis in V. natriegens was identified. Heterologous pathway of P(3HB-co-LA) was introduced into V. natriegens successfully, in addition, overexpression of the dldh gene led to 1.84 fold enhancement of the lactate content in P(3HB-co-LA). Finally, the production of P(3HB-co-LA) was characterized under different carbon sources. The lactate fraction in P(3HB-co-LA) was increased to 28.3 mol% by the modification, about 1.84 times of that of the control. This is the first successful case of producing the P(3HB-co-LA) in V. natriegens. Collectively, this study showed that V. natriegens is an attractive host organism for producing P(3HB-co-LA) and has great potential to produce other co-polymers.

Introduction

Over the past few decades, the plastic manufacturing industry has experienced a rapid growth. From 2000 to 2020, global demand for plastics nearly doubled, and it is projected to continue increasing in the future due to the expanding market of plastics (Kwon et al. 2023). However, plastic pollution has become one of the most serious environmental problems due to its adverse impact on ecosystems (Langsdorf et al. 2021; Sirohi et al. 2020). Polyhydroxyalkanoates (PHA) are considered “bio-plastics” that can be produced through renewable resources and be biodegraded by microorganisms (Dan et al. 2023; Lu et al. 2020). It became one of the ideal materials for the plastic industry. Among various PHA bio-based plastics, P(3HB-co-LA) not only exhibits excellent transparency similar to polylactic acid (PLA) (Cao et al. 2024), but also possesses the impact resistance and heat resistance of Polyhydroxybutyrate (PHB). PLA has good mechanical strength and transparency, however, P(3HB) is a fragile and opaque polymer. The copolymer of P(3HB-co-LA) combines the two characteristics and the elongation rate can be improved, thus obtaining a wider range of applications (Ali et al. 2024). By combining the advantages of these two traditional materials, P(3HB-co-LA) has improved the properties of the material and shows broad prospects in various application fields (McAdam et al. 2020).

Currently, the de novo synthesis of P(3HB-co-LA) has been successfully achieved by modifying microorganisms. The biosynthesis of P(3HB-co-LA) has been developed through the polymerization of two precursors 3-hydroxybutyryl-CoA (3HB-CoA) and lactyl-CoA catalyzed by Pseudomonas fluorescens 2P24-derived PHA synthetase mutant (PhaC1STQK) (Taguchi et al. 2008). Among them, 3HB-CoA is catalyzed from acetyl-CoA via acetyl-CoA acetyltransferase and NADPH-dependent acetylacetyl-CoA reductase, while lactyl-CoA is synthesized by propionyl-CoA transferase mutant (Pct*) from lactate as a precursor (Ta et al. 2023). Many researchers have made efforts in metabolic engineering and fermentation optimization to regulate the LA fraction, thereby expanding its application range (Guo et al. 2021). Specifically, reducing or inhibiting the consumption of pyruvate, the LA fraction in the polymer can be elevated to 70.0 mol% (Jung et al. 2010). Furthermore, altering carbon sources and cultivation conditions during fermentation can also elevate the lactate (LA) fraction. When sucrose is used as a substrate, combined with the introduction of the exogenous sucrose utilization pathway, engineered Escherichia coli can produce 29.4 wt% P(3HB-co-LA), accompanied by a 42.3 mol% LA fraction. Moreover, under anaerobic conditions, the LA fraction can increase by up to 8-fold (Wu et al. 2021). Meanwhile, the synthesis of P(3HB-co-LA) was also achieved by engineering different microorganisms. By modifying Sinorhizobium meliloti, it was enabled to utilize Yeast Mannitol medium to produce 15.0 wt% of P(3HB-co-LA) and LA fraction was increased to 30.0 mol% (Tran and Charles 2016). When Corynebacterium glutamicum is used as the host, it is possible to obtain more than 90.0 mol% of LA fraction polymer, and less than 2.0 wt% P (3HB-co-LA) can be accumulated (Song et al. 2012). So far, P(3HB-co-LA) has not been commercially produced, and researchers are still working to reduce the cost of synthesis and improve the product performance. Advances in metabolic engineering, such as developing new chassis bacteria, specifically modifying relevant enzymes, optimizing fermentation conditions, and utilizing more affordable carbon sources, may facilitate the timely commercialization of P(3HB-co-LA) (Shi et al. 2022).

Selecting suitable chassis strains is the primary consideration in synthetic biology, and the ideal chassis strains should exhibit excellent characteristics, such as a high growth rate, a broad substrate spectrum, simple culture conditions, and complete genomics and gene regulation tools (Gao et al. 2022). Despite their widespread use, common chassis bacteria like E. coli and Saccharomyces cerevisiae also have limitations in various aspects. Consequently, developing new chassis bacteria has become a prominent research direction in recent years. Nowadays, V. natriegens, a novel chassis organism strain, hailed as the “next-generation chassis organism” in synthetic biology (Thompson et al. 2020; Zhang et al. 2021a). Meanwhile, V. natriegens is a non-pathogenic bacterium well-suited for synthesizing food and medical material substrates such as P(3HB-co-LA). Additionally, as a natural producer of PHB, V. natriegens benefits from its metabolic pathways and endogenous enzymes offering distinct advantages for the production of P(3HB-co-LA). V. natriegens possesses capabilities of broad substrate utilization, rapid growth, fast protein synthesis and biomass production (Weinstock et al. 2016; Zhou et al. 2024). Notably, V. natriegens has the shortest doubling time among known bacteria, with growth rates 1.4–3.9 times faster than E. coli (Lee et al. 2016). This rapid growth result in higher rates of protein synthesis and enzyme activity. Consequently, V. natriegens can significantly accelerate the laboratory processes in synthetic biology by reducing culture times (Hoff et al. 2020). Due to these properties, V. natriegens serves as an exceptional host for various valuable products, including melanin, PHB, lycopene, 1,3-propanediol, L-alanine, and citramalate (Lee et al. 2024; Zhang et al. 2021b). In this work, V. natriegens has been chosen to produce P(3HB-co-LA). Here, key enzymes involved in the synthesis pathway of 3HB-CoA were firstly screened and identified. Subsequently, exogenous genes of the PHB biosynthesis pathway were introduced in V. natriegens to construct its synthesis pathway. In order to improve the accumulation efficiency of P(3HB-co-LA), the synthesis pathway of PHB was blocked by disrupting the PN96-18060 gene. Then, de novo synthesis of P(3HB-co-LA) in V. natriegens was achieved for the first time by introducing an exogenous lactate component production module. A major influencing factor on the performance of P(3HB-co-LA) is the lactate content (Wu et al. 2021). In this study, by overexpressing lactate dehydrogenase, the intracellular accumulation of lactate was successfully increased, effectively increasing the proportion of lactate components in P(3HB-co-LA) produced by sodium dependent V. natriegens. Finally, considering that V. natriegens can utilize multiple sources, the production efficiency of P(3HB-co-LA) was tested under different carbon sources. It is the first time to synthesize P(3HB-co-LA) in engineered V. natriegens. This study demonstrates the enormous potential of utilizing engineered V. natriegens as a new platform for PHA biosynthesis, and providing strategies for the synthesis of other copolymers.

Materials and methods

Strains and plasmids

Wild-type V. natriegens (ATCC 14048) was used as the starting host for pathway engineering in this study. The plasmids pTargetF + Tfox, pTrc99a, and pBAD33 were used for gene knockout, and expression. E. coli DH5α was used for plasmid construction and proliferation. All of the strains and plasmids are summarized in Table S1.

DNA manipulations and strains construction

The exogenous genes pct^*(mutant pct) from Clostridium propionicum DSM 1682, phaA and phaB from Ralstonia eutropha, and (mutant phaC) phaC^* from Pseudomonas fluorescens strain 2P24 were codon optimized by GenScript (Nanjing, China). The overexpression of endogenous genes were amplified from the genome of V. natriegens. Afterward, the purified fragments were inserted into the target plasmid, followed by transformation according to the methods described in the previous study (Wu et al. 2021). The phaC gene from P. fluorescens strain 2P24 was subjected to mutagenesis (E130D, S325T, Q481K) and codon optimization to obtain phaC*. Subsequently, phaC* along with the phaA and phaB genes from Ralstonia eutropha, which had undergone codon optimization, were inserted into pTrc99a, resulting in pTrc99a-phaABC*. Combined with codon-optimized phaC*, PN96-18050 and PN96-18045 gene from V. natriegens, instead of phaA and phaB gene from R. eutropha, were inserted into pTrc99a to form pTrc99a-18050-18045-phaC*. Combined with codon-optimized phaC*, PN96-19050 and PN96-18045 gene from V. natriegens, instead of phaA and phaB gene, were inserted into pTrc99a to form pTrc99a-19050-18045-phaC*. Combined with codon-optimized phaC*, PN96-21465 and PN96-18045 gene from V. natriegens, instead of phaA and phaB gene from R. eutropha, were inserted into pTrc99a to form pTrc99a- 21465-18045-phaC*. The codon-optimized pct gene from C. propionicum DSM 1682 was inserted into pBAD33 to obtain pBAD33-pct*. On this basis, dldh was constructed in pBAD33-pct* to obtain pBAD33-pct*-dldh.

Culture Media and conditions

E. coli DH5α for plasmid construction were cultured as previously described (Wu et al. 2021). V. natriegens were cultivated in tubes containing LB3 medium (LB broth supplemented with an additional 20 g/L NaCl) for strain construction. For the fermentation experiments, V. natriegens were cultured in M9NA medium (M9 medium with an additional 1.5 g/L NaCl and 5 g/L yeast extract). The formula of M9 medium consisted of the following components (per liter): 15.12 g Na₂HPO₄·12H₂O, 0.5 g KH₂PO₄, 3.0 g, NaCl, 0.5 g MgSO₄·7H₂O, 0.011 g CaCl₂, 1.0 g NH₄Cl, 0.2 mL 1% (w/v) vitamin B1, and 0.1 mL trace elements solution. The concentration of different carbon sources, including glucose, mannitol, and sucrose, in different fermentation experiments was 10 g/L. During the cultivation process, 100 mg/L of ampicillin and/or 34 mg/L of chloramphenicol are added as needed. The seed culture for the fermentation was obtained by selecting a newly grown single colony from an agar plate and inoculating it into 5 mL of fresh LB3 medium. After overnight cultivation in a shaker (Shanghai Zhichu Instrument Co., Ltd) at 30℃ and 220 rpm, inoculate the seed culture into 50 mL (1% v/v) fermentation media in a 250 mL shake flask. Subsequently, fermentation was conducted for 36–48 h at 30 °C and 220 rpm. Additionally, add 0.1 mM IPTG to the culture medium at the beginning of fermentation to induce enzyme expression. And add appropriate antibiotics (100 mg/L ampicillin and/or 12.5 mg/L chloramphenicol) as needed to the culture medium. Samples of the fermentation were taken every 12 h for testing. During the process of fermentation, 3 M H₂SO₄ and 6 M NaOH were used to adjust the pH of the fermentation broth at 7-7.5. All experiments were conducted in triplicate to ensure reliable results.

Analytical methods

The analysis method for cell growth, substrate (glucose, mannitol) and metabolite (acetate, lactate) content during the fermentation process is as described in previous study (Wu et al. 2021). The monomer content of P(3HB-co-LA) was also determined using the previously described method (Wu et al. 2021). The detection conditions for sucrose employed a sucrose detection kit obtained from Nanjing Jiancheng Institute of Biotechnology.

Results and discussion

Identification of key enzymes in the synthesis pathway of the precursor 3-hydroxybutyryl-CoA

Currently, the synthesis of P(3HB-co-LA) has been achieved by modifying E. coli in our lab, which is a copolymer formed by the polymerization of two precursors lactyl-CoA and 3HB-CoA under the catalysis of a mutant PHA synthetase (phaC*) (Wu et al. 2021). 3HB-CoA is synthesized from acetyl-CoA via the enzymes phaA and NADPH-dependent acetoacetyl-CoA reductase phaB (Taguchi et al. 2008). Since V. natriegens naturally produces PHB, providing a complete pathway for PHB synthesis. Leveraging this pathway, the initial steps of PHB synthesis in V. natriegens can be utilized to produce the required precursor, 3HB-CoA (Dalia et al. 2017). Based on this, we identified the endogenous genes of PHB synthesis in V. natriegens firstly. According to the KEGG website (Ogata et al. 1999), there are three genes for acetyl-CoA acetyltransferase in V. natriegens, namely PN96-18050, PN96-19050, and PN96-21465 (Fig. 1A). Here, exogenous genes of PHB synthesis commonly used in E. coli were introduced for testing and comparison, aiming to identify the PHB production pathway with optimal efficiency in V. natriegens. To identify the key enzymes of the PHB biosynthesis in V. natriegens, the expression plasmids of pTrc99a-phaABC*, pTrc99a-18050-18045-phaC*, pTrc99a-19050-18045-phaC* and pTrc99a-21465-18045-phaC* were introduced into strain V. natriegens, and named as XY01, XY02, XY03 and XY04, respectively (Fig. 1A). Strains XY02 showed a significant increase in PHB production compared to the other strains (34.5 wt%), suggesting that PN96-18050 gene plays a critical role in precursor supplement of PHB production. The PHB content of XY01, XY03 and XY04 strains was 8.69 wt%, 8.96 wt% and 9.30 wt%, respectively (Fig. 1B). It seemed that overexpression of the other three acetyl-CoA acetyltransferases (phaA, PN96-19050, and PN96-21465) only led to a similar PHB accumulation. Meanwhile, it was observed that the titer of polymer components was also related to cell density, indicating that the increase of polymer titer was accompanied by the increase of OD₆₀₀ (Fig. 1C). Moreover, we also detected the accumulations of lactate and acetate in the fermentation broth. At 24 h, XY01 exhibited the highest accumulation of acetate, reaching 3.5 g/L, indicative of pronounced metabolic overflow (Fig. 1D) (Majewski and Domach 1990). The acetate accumulation varied among strains: 3.1 g/L (XY02), 2.4 g/L (WT), 1.6 g/L (XY04), and 1.0 g/L (XY03). This variation might be due to different performance of the overflow metabolism. The lactate accumulation in XY01 was 1.8 g/L, significantly higher than the lactate content (about 0.4 g/L) in the other three recombinant strains. The above results indicate that, compared to the introduction of exogenous expression modules, the overexpression of the endogenous gene PN96-18050 is a more suitable and effective approach to promote PHB production in V. natriegens.

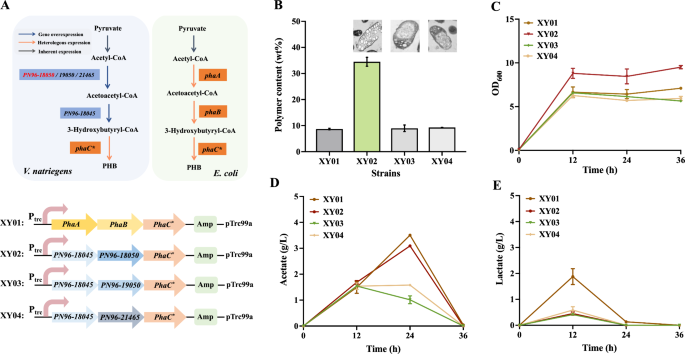

Fig. 1

Identification of phaA enzyme in V. natriegens. (A) Metabolic pathway diagram of PHB production in V. natriegens and E. coli. phaA, β-ketothiolase; phaB, NADPH-dependent acetoacetyl-CoA reductase; phaC*, polyhydroxyalkanoate synthase mutant from P. fluorescens. (B) The production of PHB by XY01, XY02, XY03, and XY04. (C) The OD₆₀₀ curves of mutant strains. (D) Profiles of acetate . (E) Profiles of lactate.

De novo synthesis of P(3HB-co-LA) in V. natriegens

Based on the determination of the key gene for 3HB-CoA synthesis in V. natriegens, further introduction of lactyl-CoA biosynthesis pathway enables de novo synthesis of P(3HB-co-LA) (Fig. 2A). Since V. natriegens is a natural producer of PHB, its endogenous PHB synthase (PN96-18060) can polymerize 3HB-CoA to generate PHB, which may compete for the precursor in the synthesis of P(3HB-co-LA). PHB accumulation in V. natriegens also affect the detection of LA fraction. Therefore, we first characterized V. natriegens strains with enhanced 3HB-CoA synthesis modules. Strain XY02-1 was obtained by overexpressing the endogenous genes PN96-18050 and PN96-18045 in the wild-type strain. As shown in Fig. 2B, the wild-type strain did not accumulate PHB, which may be due to the fact that PHB accumulates more easily under nutrient-limited conditions. Although PHB accumulation was not detected in wild-type V. natrigens, the accumulation of PHB was observed in V. natriegens after enhancing the supply of endogenous 3HB-CoA. Consequently, it is necessary to knock out the endogenous PHB synthase gene PN96-18060 in V. natriegens. PN96-18060 knockout did not affected the growth compared with the wild-type VNT (Fig. 2C). The PHB synthesis pathway in XY02 was blocked by knockout of PN96-18060 to obtain XY02-2, and mutant pct* gene isolated from C. propionicum was also introduced in XY02-2 to obtain strain XY05. As depicted in Fig. 2D, by addition of pct* gene, XY05 was able to synthesize P(3HB-co-LA) containing lactate components compared with strain XY02-2. The engineered strain XY05 achieved de novo synthesis of P(3HB-co-LA), with a copolymer content of 20.6 wt%, where the LA fraction was 15.4 mol%.

Fig. 2

De novo production of P(3HB-co-LA) in V. natriegens. (A) Schematic diagram of biosynthetic pathways of P(3HB-co-LA) production in V. natriegens. (B) The PHB accumulation curve of engineered strains. (C) The growth curve of engineering strains. (D) Accumulation of P(3HB-co-LA) in the engineering strains

Effect of dldh overexpression on the lactate fraction of P(3HB-co-LA)

The LA fraction in P(3HB-co-LA) significantly influences its properties, wherein higher LA fraction correlates with increased material transparency and improved mechanical performance. The transparency of the copolymer increases with the LA fraction, while the decreasing PHB content reduces brittleness, enhancing toughness and elongation. At an LA fraction of 33.0 mol%, the elongation rate improves 4-fold, approaching that of conventional polyethylene plastics (Daisuke et al., 2017). In previous studies, several strategies have been employed to regulate and enhance the LA fraction in P(3HB-co-LA) (Yamada et al. 2011). Notably, the dldh gene, encoding D-lactate dehydrogenase, facilitates the production of D-lactate from pyruvate, thereby supplying the requisite precursor for Lactyl-CoA synthesis. Hence, to investigate the effect of dldh overexpression on the LA fraction, XY06 was constructed based on the engineered strain XY05, which possesses the P(3HB-co-LA) biosynthesis pathway (Fig. 3A). Upon observing that the overexpression of dldh did not affect the growth and glucose consumption (Fig. 3B), however, the significant changes were noted in the lactate accumulation between strains XY05 and XY06 during fermentation. Specifically, the lactate content in the supernatant of XY06 medium was twice that of XY05 at 12 h (Fig. 3E). The LA fraction in the polymers of XY06 reached to 28.2 mol%, was almost twice that of XY05 (15.3 mol%) (Fig. 3F). Both of the strains reached their highest acetate content at 24 h, however, the consumption rate of XY06 was lower than that of XY05 due to the higher concentration of lactate (Fig. 3D and E). It seemed that the engineered strains prefer to use lactate than acetate. The above results indicate that overexpression of dldh in V. natriegens effectively catalyzes the production of lactate, providing more precursors for lactyl-CoA, thereby increasing the content of lactate in the polymer.

Fig. 3

Increase the lactate component in P(3HB-co-LA). (A) The genetic manipulation of engineered strains. (B) The OD₆₀₀, (C) glucose consumption, (D) lactate content, and (E) acetate content curves of mutant strains. (F) Accumulation of polymer content and lactate fraction levels by different strains

P(3HB-co-LA) production using different carbon sources

Considering the wide substrate adaptability of V. natriegens, we explored its potential to produce P(3HB-co-LA) in various substrates. Sucrose, as a cheap and readily available carbon source, has potential application prospects. V. natriegens can directly use sucrose as a carbon source (Lee et al. 2024). In addition, marine macroalgae have been identified as a promising renewable resource in the field of industrial fermentation. Mannitol, as one of the highest content sugars in brown algae, can be easily obtained (Gnaim et al. 2022). Therefore, we chose sucrose and mannitol as the sole carbon sources for testing. It was observed that the growth of V. natriegens on glucose was better than those of sucrose and mannitol (Fig. 4A), and the substrate uptake capacity of mannitol was lower than the other two carbon sources (Fig. 4B). When using sucrose as a carbon source, XY06 can produce 18.9 wt% polymer, the polymer yield is similar to glucose. However, when sucrose is used as the substrate, the lactate fraction is only about 35.0 mol% of that in glucose production. Compared the concentration of accumulated lactate with that of glucose, we speculated that this may be due to insufficient accumulation of the intracellular lactate when sucrose is used as a substrate. When using mannitol as the substrate, XY06 can produce 20.1 wt% P(3HB-co-LA), with a LA fraction of 17.1 mol%. Compared with glucose fermentation, the yield and performance of the LA fraction have decreased (Fig. 4C). As shown in Fig. 4E, glucose has been proven to be the best substrate with the highest LA fraction. When different substrates were used, the accumulation of in XY06 were different. The highest accumulation of acetate occurred when glucose was used as substrate, reaching 2.57 g/L in 24 h. When sucrose and mannitol were used as substrates, the highest content at 12 h was 1.77 g/L and 1.43 g/L, separately (Fig. 4D). The content of acetate was almost exhausted at 24 h, and the metabolic overflow was significantly lower than that of glucose. The possible reason is that glucose is a rapidly available carbon source, which is easy to produce obvious acetate overflow, so it is necessary to explore and use other carbon sources to produce P(3HB-co-LA). Therefore, the substrate utilization pathway can be further strengthened in the future to increase the accumulation of P(3HB-co-LA) and LA fraction.

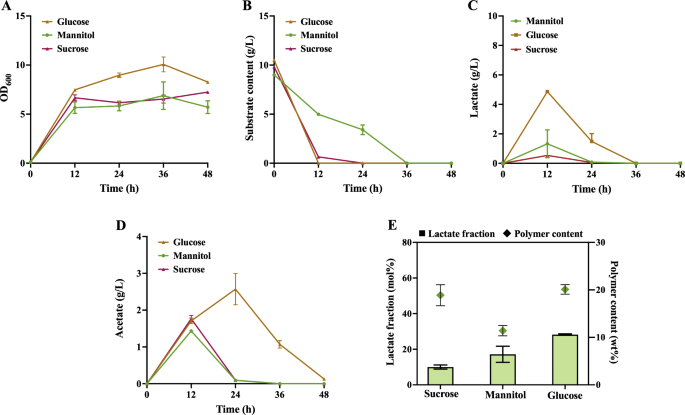

Fig. 4

Explore the substrate utilization capacity. Characterization curves of cell density (A), substrate content (B), lactate content (C), acetate content (D), polymer content (E), and lactate fraction under different carbon source culture conditions by XY06

Conclusion

P(3HB-co-LA) has a widespread application and substantial market demand due to outstanding toughness and transparency. Although the biosynthesis of P(3HB-co-LA) has been achieved and progress has been made in optimizing synthesis pathways and fermentation processes, developing microbial cell factories that meet industrial-scale production requirements remains challenging. This study explores the use of V. natriegens, considered a “next-generation synthetic biology chassis,” due to its broad substrate utilization and rapid growth. In this work, the biosynthesis of P(3HB-co-LA) in V. natriegens was successfully established for the first time. By identifying the endogenous rate-limiting gene, knockout the key enzyme of endogenous PHB biosynthesis and overexpression of the P(3HB-co-LA) biosynthesis pathway, about 20.6 wt% of P(3HB-co-LA) was successfully produced, and the LA fraction was increased to 28.3 mol%. Furthermore, mannitol and sucrose were used as substrates for P(3HB-co-LA) production. In summary, this work represents the first successful production of P(3HB-co-LA) in V. natriegens, offering the significant potential of engineered V. natriegens strains for PHAs production using various carbon sources.
