An efficient multi-stage fermentation strategy for the production of microbial oil rich in arachidonic acid in Mortierella alpina
© The Author(s) 2017
Received: 30 November 2016
Accepted: 10 January 2017
Published: 18 January 2017
Fungal morphology and aeration play a significant role in the growth process of Mortierella alpina. The production of microbial oil rich in arachidonic acid (ARA) in M. alpina was enhanced by using a multi-stage fermentation strategy which combined fed-batch culture with precise control of aeration and agitation rates at proper times.
The fermentation period was divided into four stages according to the cultivation characteristics of M. alpina. The dissolved oxygen concentration was well suited for ARA biosynthesis. Moreover, the ultimate dry cell weight (DCW), lipid, and ARA yields obtained using this strategy reached 41.4, 22.2, 13.5 g/L, respectively. The respective values represent 14.8, 25.8, and 7.8% improvements over traditional fed-batch fermentation processes.
This strategy provides promising control insights for the mass production of ARA-rich oil on an industrial scale. Pellet-like fungal morphology was transformed into rice-shaped particles which were beneficial for oxygen transfer and thus highly suitable for biomass accumulation.
KeywordsArachidonic acid Mortierella alpina Multi-stage fermentation Aeration Agitation Morphology
Arachidonic acid, (5, 8, 11, 14-cis-eicosatetraenoic acid, ARA), a representative of the omega-6 group of essential polyunsaturated fatty acids (PUFAs), acts as a precursor for eicosanoid hormones such as prostaglandins, leukotrienes, and thromboxanes (Ji et al. 2014a). The application of ARA as the active ingredient in drugs and food additives thus has great potential. Owing to its unique physiological functions, it has been widely applied in the food industry as well as cosmetics, medicine, and many other fields (Ward and Singh 2005). For a long time, egg yolk, animal liver, and adrenal glands were the main sources of ARA. However, their low intrinsic ARA content (Higashiyama et al. 2002) restricts their application, and it is not possible to source sufficient material for use of ARA in infant formula. On the other hand, ARA-rich oil derived from the oleaginous fungus Mortierella alpina has received GRAS status from the US FDA in 2001 (Ryan et al. 2010), and M. alpina is regarded as one of the most promising candidates for the mass production of ARA-rich oil (Ji et al. 2014a). The ARA biosynthesis pathway in M. alpina proceeds via the formation of C16 or C18 saturated fatty acids, which are further modified through a series of elongation and desaturation steps, culminating in the formation of ARA. It is known that these reactions require NADPH, an electron transport system, a terminal desaturase, and molecular oxygen (Ward and Singh 2005).
In general, fungal mycelia are brittle and physically weak. Therefore, the agitation rate in mechanically stirred bioreactors, which are normally used for the production of ARA-rich oil, has to be controlled within a very precise range. High agitation rates increase the shear forces, which can break mycelial integrity and influence the broth characteristics. Low agitation rates, on the other hand, lead to a low dissolved oxygen concentration insufficient for ARA biosynthesis. Overall, mycelial morphology has a strong effect on the physical properties of the broth and often leads to a number of different problems in large bioreactors with respect to gas dispersion, as well as mass and heat transfer (Higashiyama et al. 2002). There are many reports that discuss the size and shape of fungal mycelial pellets (Xu et al. 2010; Tai et al. 2010), but little is known about the true features of the internal pellet structure, including geometry and mycelial viability (Hamanaka et al. 2001). Interestingly, pellets with a moderate compactness are the more productive morphological form for the production of ARA-rich oil, compared to free filamentous mycelia. Therefore, controlling proper aeration and agitation rates in the whole process to balance the contradiction between these two factors is vitally important for the fermentation of fungal producers of ARA-rich oils. There have been some attempts to fulfill this objective by controlling the aeration (Higashiyama et al. 1999; Nie et al. 2014) and agitation rates (Higashiyama et al. 1999; Peng et al. 2010), respectively. ARA yields in these reports reached 4.7 g/L by strictly monitoring the mycelial morphology and employing a two-stage control strategy for the aeration rate, which represents an increase of 38.2% (Gao et al. 2016). However, until now, no efforts have been made to simultaneously evaluate the aeration and agitation rate in relation to the proper mycelial morphology for increasing the biomass yield of the filamentous fungus M. alpina.
In this study, an innovative multi-stage strategy was investigated to optimize ARA productivity in bioreactors. We thereby aimed at balancing the contradiction between the aeration and agitation controls required for optimal dissolved oxygen concentration and fungal morphology, respectively. The strategy was further assessed regarding its effectiveness in improving the biomass yield, which reached >40 g/L. This approach gives a detailed insight into the mycelial morphology control of oil-producing filamentous fungi and will provide guidance for the large-scale production of ARA and similar polyunsaturated fatty acids.
Mortierella alpina R807 (CCTCC M 2012118), preserved in the China Center for Type Culture Collection, was used in the present study. It was maintained on potato dextrose agar (PDA) slants by culturing for 10 days at 25 °C, and transferred every 3 months.
Slant medium: Potato dextrose agar (PDA). The PDA medium contained (g/L): potatoes 200; glucose 25; agar 20. Inoculation medium (g/L): yeast extract (Angel Yeast Co., Ltd, China) 6; glucose 30; KH2PO4 3; NaNO3 3; MgSO4·7H2O 3. Fermentation medium (g/L): yeast extract 10; glucose 80; KH2PO4 4; NaNO3 3; MgSO4·7H2O 0.6; initial pH 6.0.
Pellets of M. alpina were used to inoculate the PDA slants which were cultivated at 25 °C. After 12–15 days of incubation, a loop was used to transfer mycelial material into deep 250 mL baffled flasks containing 50 mL inoculation medium, and the cultures were subsequently incubated for 2 days at 25 °C under constant orbital shaking at 125 rpm. Fed-batch fermentations were carried out in a 7.5 L bioreactor (New Brunswick Scientific, USA) containing 5 L of fermentation medium.
The multi-stage process was carried out according to our proposed stepwise aeration and agitation control strategy. The aeration rate was set at 6 L/min to achieve an aeration rate of 1.2 volumes of air per volume of liquid per minute (vvm), without agitation in stage I (0–48 h). The agitation rate was increased stepwise from 50 to 150 revolutions per minute (rpm) in stage II and subsequently kept constant at 200 rpm until the end of the fermentation. The aeration rate was set at 1.0 vvm from step II to step IV. Glucose (500 g/L stock solution) was fed into the fermentation broth during the entire fermentation process to maintain the glucose concentration at 5–20 g/L. Samples comprising 100 mL of the fermentation broth were taken periodically for further examination.
Determination of dry cell weight (DCW) and glucose concentration
Aliquots comprising 100 mL of the fermentation broth were used to determine the DCW using the filtration method. The broth samples were transferred to a suction filter under 0.1 MPa negative pressure. The cell pellet was washed twice with distilled water and dried at 60 °C to constant weight (12 h). An aliquot comprising 1 mL of fermentation broth was transferred to a centrifuge tube, centrifuged at 3000×g for 3 min, and the resulting supernatant was used to measure the glucose concentration, which was determined enzymatically using a simultaneous Bioanalyzer (SBA-40C, Institute of Biology, Shandong Academy of Sciences, China).
Total lipids (TLs)
The dry cell material was ground into a fine powder for lipid extraction and fatty acid determination. A 2 g aliquot of the resulting powder was loaded onto a Soxhlet extractor with 150 mL chloroform/methanol (2:1, v/v) and extracted for 8 h at 75 °C. Finally, the solvent was removed on a rotary evaporator and recycled, with TLs remaining as evaporation residue (Ji et al. 2014b).
Fatty acid methyl esters (FAMEs) were prepared according to the established method (Ji et al. 2014b; Ren et al. 2009) as follows: 1.5 mL n-hexane and 0.2 mL 0.5 M KOH– methanol were added to a centrifuge tube containing 0.1 g of the powdered dry cells, and mixed thoroughly by vortexing for 3 min, followed by stewing for 15 min. A 0.3 mL aliquot of the resulting upper phase was combined with 0.5 mL distilled water in another centrifuge tube and the tube was centrifuged at 5000×g for 3 min. The upper phase containing FAMEs was applied to a Thermo Finnigan trace GC2000 DSQ gas chromatograph equipped with a 30 m × 0.25 mm × 0.25 µm DB-23MS capillary column (Agilent Technologies). The column temperature was increased from 80 to 200 °C at 40 °C/min, and subsequently to 300 °C at 10 °C/min. The temperature of both the injector and detector was set to 250 °C. Nitrogen was used as the carrier gas at 1 mL/min. Peaks were identified using authentic standards of the corresponding fatty acid methyl esters (Sigma-Aldrich). Fatty acids were quantified based on their corresponding peak areas relative to the peak areas of the standards.
Results and discussion
Fermentation disparities between batch and fed-batch protocols
Controlling the morphology of Mortierella alpina using a multi-stage fermentation strategy
In stage I (from 0 to 48 h), pellet-like mycelia of M. alpina were formed using baffled shake flasks and transferred into the nutrient-rich fermentation medium. Even though this pellet-like morphology allowed easier mixing and better mass transfer, pellet-like mycelia were highly sensitive to shear stress (Fig. 2b). No agitation combined with 1.2 vvm aeration was used to maintain this pellet-like morphology during the 2-day lag phase. During the fermentation period, the pellet-like particles became fragmented into both small pellets and filamentous mycelia. As the cultivation processed, the pellet-like cores became smaller, and more cell material displaying the pellet-like morphology was formed. After 132 h, the cells started to autolyse, and particles with a rice-shaped morphology were formed (Fig. 2c). This rice-shaped morphology proved to be optimal during the stage at which a high agitation rate was used to maintain the DO level.
Development of a multi-stage strategy for ARA fermentation
In this paper, the effects of aeration and agitation on cell morphology, lipid accumulation, and ARA production were investigated systemically, and a multi-stage strategy was developed aimed at achieving a high cell density, high accumulation rate, and high ARA yield. The final dry cell weight, total lipids, ARA contents, and ARA yield reached 41.41, 22.17 g/L, 61.05%, and 13.53 g/L, respectively. The highest ARA productivity obtained in this study, which stood at 1.81 g/L day−1, was achieved using the stepwise aeration and agitation control developed here. This was the same as the highest value published for M. alpina ME-1 (Jin et al. 2008) and was much higher than the 1.50 g/L day−1 reported for M. alpina DSA-12 using conventional protocols (Hwang et al. 2005).
Compared to the standard batch and fed-batch fermentation protocols, this multi-stage culture method prolongs the fermentation period by nearly 24 h, and while the total consumption glucose also increased sharply from 80 to 100 g/L, an obvious increase of dry cell weight was also noticed (41.4 g/L). ARA productivity consequently increased to 1.81 g/L day−1, which was 1.08-fold higher than in the fed-batch fermentation.
To optimally analyze the process of cell growth and ARA accumulation, as well as to understand the effects of aeration and agitation on mycelial morphology, the fermentation process was divided into four stages according to cell growth characteristics (Ren et al. 2010). Stage I represents the beginning of the process until the morphological adaptation period; stage II was the phase of high cell density fermentation; stage III encompasses the lipid biosynthesis period; and stage IV comprises the period of most efficient ARA accumulation.
Comparison of fermentation parameters at different stages of ARA fermentation via a multi-stage fermentation strategy
Glucose consumption rate (g/L h−1)
0.479 ± 0.28
1.104 ± 0.19
0.694 ± 0.29
ARA increase (%)
10.676 ± 0.81
2.492 ± 0.13
18.862 ± 0.23
0.614 ± 0.21
0.373 ± 0.32
0.419 ± 0.18
0.165 ± 0.33
0.208 ± 0.38
0.341 ± 0.21
0.048 ± 0.33
0.098 ± 0.33
0.159 ± 0.18
High ARA content in total fatty acids is the prerequisite for high-quality ARA-rich oil, and a high aeration rate was favorable for efficient ARA biosynthesis. It is reported that the pathway of ARA biosynthesis was most widespread in oleaginous yeasts, and fungi encompasses both desaturation and elongation steps (Ji et al. 2014a). Palmitic acid (C16:0) is the main saturated fatty acid formed by fatty acid synthase (FAS), and ARA is subsequently produced from it via desaturase and elongase reactions. Our study showed that adequate oxygen was needed to increase the levels of unsaturated fatty acids, especially C18:3 and C20:4 (ARA). In stage IV (from 132 to 216 h), an improved mycelium-aging protocol was used to enhance ARA production (Zhang et al. 2015). When cells were cultivated under high aeration and agitation rates (Fig. 3), glucose was exhausted at 132 h, with dry cell weight reaching 44.2 g/L. Overall, the cells consumed 100 g/L of glucose, which was 20 g/L more than in fed-batch fermentation. The main increase in ARA contents was observed during stage IV, at which point the ARA contents reached 61.1%, with total yield also increasing sharply.

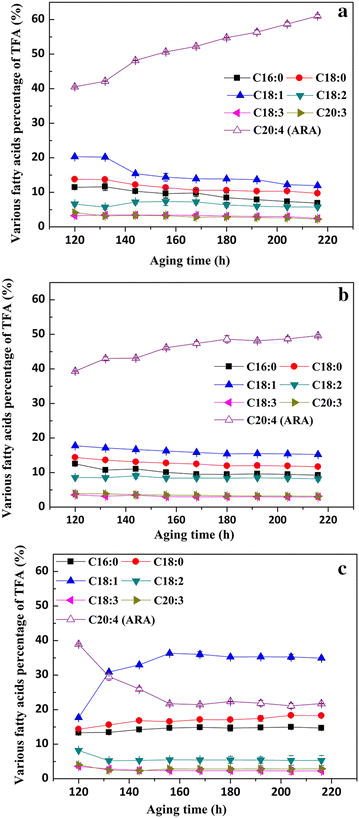

Changes in PUFA distribution in response to different dissolved oxygen conditions
Kinetic parameters of the multi-stage strategy
To analyze the kinetic characteristics of the multi-stage fermentation process, five parameters, including glucose consumption rate, ARA increase rate, Y x/s, Y l/s, and Y ARA/s, were compared at different stages. The corresponding data are summarized in Table 1. The values of these kinetic parameters all fluctuated with time and were especially influenced by glucose feeding. At the early fermentation stage (stage I), high aeration without mechanical (Table 1) agitation was able to ensure a higher Y x/s (conversion of glucose to biomass) than was observed at the other stages. This indicates that high aeration could not only improve cell growth and glucose consumption, but could also accelerate the conversion of glucose to biomass. What is more, omitting the mechanical agitation was beneficial for maintaining a pellet-like morphology. At stage II, the value of Y x/s showed a decrease, whereas the values of ARA and Y ARA/s (conversion of glucose to ARA) increased sharply, indicating that a high lipid accumulation rate could be maintained under the high aeration and low agitation conditions found in stage II. After 96 h, in stage III, the value of lipid had increased significantly, indicating that the ARA contents were slightly decreased, whereas the other fatty acids, especially C18:0 and C18:1, increased sharply. After 132 h, the increasing ARA concentration reached the value of 18.9%, while glucose was exhausted. Although the ARA increase at the end of the multi-stage process (18.9%) was higher than during stages I to III, beginning cell autolysis resulted in less glucose consumption, and led to a slight decrease of overall dry cell weight. This further confirmed the importance of the multi-stage strategy combined with an efficient control of mycelial morphology.
Comparison of parameters from different ARA fermentation strategies
Rate of increasea
Mycelial specific growth rate (g/L d−1)
Fermentation duration (d)
Total glucose (g/L)
Glucose consumption rate (g/L h−1)
ARA contents (%)
ARA yield (g/L)
ARA productivity (g/L d−1)
This paper compared the experimental results of fermentations using M. alpina to produce oils rich in ARA via different culture strategies. The morphology of the fungal mycelia could be maintained in an optimal state throughout the fermentation. It could be shown that the multi-stage strategy provides a favorable gas–liquid mixture, and consequently increase biomass accumulation significantly. This work offers insights into the control of aeration and agitation and provides a reference for the fermentation of filamentous fungi at a mass industrial scale.
WJW and AHZ carried out the main experiments. CP, LJR, PS, and YDY helped in the cultivation of the strain and fatty acids assay. WJW, HH, and XJJ are involved in the drafting and revision of the manuscript. XJJ has given final approval of the version to be published. All authors read and approved the final manuscript.
The authors wish to acknowledge the financial support from the National Science Foundation for Distinguished Young Scholars of China (No. 21225626), the National Natural Science Foundation of China (Nos. 21376002, and 21476111), the Natural Science Foundation of Jiangsu Province (No. BK20131405), the National High-Tech R&D Program of China (No. 2014AA021703), and the Priority Academic Program Development of Jiangsu Higher Education Institutions.
The authors declare that they have no competing interests.
Open AccessThis article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made.
- Gao MJ, Wang C, Zheng ZY, Zhu L, Zhan XB, Lin CC (2016) Improving arachidonic acid fermentation by Mortierella alpina through multistage temperature and aeration rate control in bioreactor. Prep Biochem Biotechnol 46:360–367View ArticleGoogle Scholar
- Hamanaka T, Higashiyama K, Fujikawa S, Park EY (2001) Mycelial pellet intrastructure and visualization of mycelia and intracellular lipid in a culture of Mortierella alpina. Appl Microbiol Biotechnol 56:233–238View ArticleGoogle Scholar
- Higashiyama K, Murakami K, Tsujimura H, Matsumoto N, Fujikawa S (1999) Effects of dissolved oxygen on the morphology of an arachidonic acid production by Mortierella alpina 1S-4. Biotechnol Bioeng 63:442–448View ArticleGoogle Scholar
- Higashiyama K, Fujikawa S, Park EY, Shimizu S (2002) Production of arachidonic acid by Mortierella fungi. Biotechnol Bioprocess Eng 7:252–262View ArticleGoogle Scholar
- Hwang BH, Kim JW, Park CY, Park CS, Kim YS, Ryu YW (2005) High-level production of arachidonic acid by fed-batch culture of Mortierella alpina using NH4OH as a nitrogen source and pH control. Biotechnol Lett 27:731–735View ArticleGoogle Scholar
- Ji XJ, Ren LJ, Nie ZK, Huang H, Ouyang PK (2014a) Fungal arachidonic acid-rich oil: research, development and industrialization. Crit Rev Biotechnol 34:197–214View ArticleGoogle Scholar
- Ji XJ, Zhang AH, Nie ZK, Wu WJ, Ren LJ, Huang H (2014b) Efficient arachidonic acid-rich oil production by Mortierella alpina through a repeated fed-batch fermentation strategy. Bioresour Technol 170:356–360View ArticleGoogle Scholar
- Jin MJ, Huang H, Xiao AH, Zhang K, Liu X, Li S, Peng C (2008) A novel two-step fermentation process for improved arachidonic acid production by Mortierella alpina. Biotechnol Lett 30:1087–1091View ArticleGoogle Scholar
- Koike Y, Cai HJ, Higashiyama K, Fujikawa S, Park EY (2001) Effect of consumed carbon to nitrogen ratio of mycelial morphology and arachidonic acid production in cultures of Mortierella alpina. J Biosci Bioeng 91:382–389View ArticleGoogle Scholar
- Ling XP, Zeng SY, Chen CX, Liu XT, Lu YH (2016) Enhanced arachidonic acid production using a bioreactor culture of Mortierella alpina with a combined organic nitrogen source. Bioresour Bioprocess 3:43View ArticleGoogle Scholar
- Lu JM, Peng C, Ji XJ, You JY, Cong LL, Ouyang PK, Huang H (2011) Fermentation characteristics of Mortierella alpina in response to different nitrogen sources. Appl Biochem Biotechnol 164:979–990View ArticleGoogle Scholar
- Nie ZK, Ji XJ, Shang JS, Zhang AH, Ren LJ, Huang H (2014) Arachidonic acid-rich oil production by Mortierella alpina with different gas distributors. Bioprocess Biosyst Eng 37:1127–1132View ArticleGoogle Scholar
- Park EY, Koike Y, Higashiyama K, Fujikawa S, Okabe M (1999) Effect of nitrogen source on mycelial morphology and arachidonic acid production in cultures of Mortierella alpina. J Biosci Bioeng 88:61–67View ArticleGoogle Scholar
- Park EY, Koike Y, Cai HJ, Higashiyama K, Fujikawa S (2001) Morphological diversity of Mortierella alpina: effect of consumed carbon to nitrogen ratio in flask culture. Bioprocess Biosyst Eng 6:161–166View ArticleGoogle Scholar
- Peng C, Huang H, Ji X, Liu X, Ren LJ, Yu W, You JY, Lu JM (2010) Effects of n-hexadecane concentration and a two-stage oxygen supply control strategy on arachidonic acid production by Mortierella alpina ME-1. Chem Eng Technol 33:692–697Google Scholar
- Ren LJ, Huang H, Xiao AH, Lian M, Jin LJ, Ji XJ (2009) Enhanced docosahexaenoic acid production by reinforcing acetyl-CoA and NADPH supply in Schizochytrium sp. HX-308. Bioprocess Biosyst Eng 32:837–843View ArticleGoogle Scholar
- Ren LJ, Ji XJ, Huang H, Qu L, Feng Y, Tong QQ, Ouyang PK (2010) Development of a stepwise aeration control strategy for efficient docosahexaenoic acid production by Schizochytrium sp. Appl Microbiol Biotechnol 87:1649–1656View ArticleGoogle Scholar
- Ryan AS, Zeller S, Nelson EB, Cohen Z, Ratledge C (2010) Safety evaluation of single cell oils and the regulatory requirements for use as food ingredients. In: Cohen Z, Ratledge C (eds) Single cell oils: microbial and algal oils, 2nd edn. AOCS Press, UrbanaGoogle Scholar
- Su GM, Jiao KL, Chang JY, Li Z, Guo XY, Sun Y, Zeng XH, Lu YH, Lin L (2016) Enhancing total fatty acids and arachidonic acid production by the red microalgae Porphyridium purpureum. Bioresour Bioprocess 3:33View ArticleGoogle Scholar
- Tai C, Li S, Xu Q, Ying H, Huang H, Ouyang PK (2010) Chitosan production from hemicellulose hydrolysate of corn straw: impact of degradation products on Rhizopus oryzae growth and chitosan fermentation. Lett Appl Microbiol 51:278–284View ArticleGoogle Scholar
- Totani N, Someya K, Oba K (1992) Industrial production of arachidonic acid by Mortierella. In: Kyle DJ, Ratledge C (eds) Industrial applications of single cell oils. AOCS Press, UrbanaGoogle Scholar
- Ward OP, Singh A (2005) Omega-3/6 fatty acids: alternative sources of production. Process Biochem 40:3627–3652View ArticleGoogle Scholar
- Wynn JP, Ratledge C (2005) Oils from microorganisms. In: Shahidi F (ed) Bailey’s industrial oil and fat products, 6th edn. Wiley, New York, pp 121–153Google Scholar
- Xu Q, Li S, Fu Y, Tai C, Huang H (2010) Two-stage utilization of corn straw by Rhizopus oryzae for fumaric acid production. Bioresour Technol 101:6262–6264View ArticleGoogle Scholar
- Zhang AH, Ji XJ, Wu WJ, Ren LJ, Yu YD, Huang H (2015) Lipid fraction and intracellular metabolite analysis reveal the mechanism of arachidonic acid-rich oil accumulation in the aging process of Mortierella alpina. J Agric Food Chem 63:9812–9819View ArticleGoogle Scholar
- Zhu M, Yu LJ, Li W, Zhou PP, Li CY (2006) Optimization of arachidonic acid production by fed-batch culture of Mortierella alpina based on dynamic analysis. Enzyme Microb Technol 38:735–740View ArticleGoogle Scholar
