α-Farnesene production from lipid by engineered Yarrowia lipolytica
Bioresources and Bioprocessing volume 8, Article number: 78 (2021)
Producing high value-added products from waste lipid feedstock by microbial cell factory has great advantages to minimize the pollution as well as improve the economic value of wasted oils and fats. Yarrowia lipolytica is a non-conventional oleaginous yeast and can grow on a variety of hydrophobic substrates. In this study, we explored its ability to synthesize α-farnesene, an important sesquiterpene, using lipid feedstock. Based on the α-farnesene production strain, we constructed previously, we identified that Erg12 was the key limiting factor to further increase the α-farnesene production. The α-farnesene production was improved by 35.8% through increasing the copy number of ERG12 and FSERG20 on oleic acid substrate. Expression of heterologous VHb further improved α-farnesene production by 12.7%. Combining metabolic engineering with the optimization of fermentation conditions, the α-farnesene titer and yield reached 10.2 g/L and 0.1 g/g oleic acid, respectively, in fed-batch cultivation. The α-farnesene synthesis ability on waste cooking oil and other edible oils were also explored. Compared with using glucose as carbon source, using lipid substrates obtained higher α-farnesene yield and titer, but lower by-products accumulation, demonstrating the advantage of Y. lipolytica to synthesize high value-added products using lipid feedstock.
Farnesene is a simple acyclic sesquiterpene of the terpenoids family, and it is an important component of plant essential oils in nature (Miyazawa and Tamura 2007). At present, farnesene plays an important role in industry, agriculture and daily life. For example, in agriculture, farnesene, as a pheromone, can interfere in the normal feeding behavior and physiological process of aphids to avoid aphid invasion to crops (Hatano et al. 2010; Su et al. 2006). In industrial production, farnesene is used in lubricants, surfactants and cosmetics due to its superior properties (Armelle et al. 2014). In addition, farnesene has been identified as an important substitute of jet fuel due to its high carbon density and storage safety (Leavell et al. 2016). Farnesene also can be used as precursor of vitamin E, which promotes the industrial synthesis of vitamin E (Ma et al. 2020). With the increasing demand of farnesene, extracting farnesene from plants can no longer meet the demand, which encouraged researchers to develop more sustainable processes to produce farnesene. The most attractive one is through engineering microbial cell factories. Through metabolic engineering strategies, farnesene has been synthesized in different microorganisms. For example, the titer of β-farnesene reached 8.74 g/L using glycerol as carbon source in E. coli (You et al. 2017). Using S. cerevisiae as host, the highest titer of 130 g/L was achieved in the industrial production level (Meadows et al. 2016). Using the photosynthesis of cyanobacteria, CO2, H2O and light energy were converted to α-farnesene, and the production reached 4.6 ± 0.4 mg/L in 7 days (Lee et al. 2017). Previously, we constructed a mevalonate overproduction strain in Yarrowia lipolytica, and based on this strain, the strain producing 25.55 g/L α-farnesene was achieved by overexpressing the downstream α-farnesene synthesis pathway (Liu et al. 2019b). Therefore, microbial production of farnesene or other terpenoids shows attractive potential and prospects.
Y. lipolytica is a non-conventional oleaginous yeast and can grow on a variety of substrates including alkanes, fatty acids and oils (Nicaud 2012). It has strong adaptability to environmental stresses and robustly grows at a wide range of pH and salinity (Bankar et al. 2009). These characteristics make Y. lipolytica widely used in metabolic engineering to produce high value-added products (Miller and Alper 2019). Importantly, Y. lipolytica is able to directly grow on lipid feedstock such as plant oils or animal fats. It can synthesize 16 lipases, which are used to decompose intracellular and extracellular lipids for metabolic activities (Syal and Gupta 2017). It has strong β-oxidation, which provides abundant acetyl-CoA precursors for chemicals synthesis. Compared with glucose substrate, Y. lipolytica can accumulate more biomass (Worland et al. 2020) and has higher theoretical conversion rate of products in lipid substrates. Taking α-farnesene as an example, the theoretical conversion rate is 0.723 g/g oleic acid and 0.252 g/g glucose, respectively. Based on these advantages, many studies have used lipid substrates in the production of compounds in Y. lipolytica. For example, Li et al. (2020) used safflower oil for astaxanthin production and attained 167 mg/L in Y. lipolytica. In the meanwhile, 48% of astaxanthin was extracted to the extracellular by safflower oil, which is helpful to alleviate the toxicity of astaxanthin to cells. The best β-carotene titer (121 ± 13 mg/L) was achieved on canola oil-containing yeast–peptone medium, which was twofold higher than the glucose based yeast–peptone medium (Worland et al. 2020). On the other hand, due to its strong lipid utilization ability, more and more attention has been paid to the use of Y. lipolytica to transform waste lipid produced in industry, agriculture and daily life, such as waste cooking oils (WCO), olive oil processing wastes, and industrial derivative of animal fat, into high value-added products (Kamzolova et al. 2005; Liu et al. 2015, 2019a; Papanikolaou et al. 2002; Sarris et al. 2017). This has great benefits in environmental protection and economic performance improvement.
In this study, we optimized the previously constructed strain, producing α-farnesene from glucose (Liu et al. 2019b). For further improving the ability of recombinant strain to produce α-farnesene from low-cost oleic acid, we identified the key limiting steps of α-farnesene synthesis, increased the copy number of genes in metabolic pathway and optimized the oxygenation utilization capacity for better use of oleic acid. Combined with the optimization of fermentation conditions, the α-farnesene synthesis potential of the recombinant strain has been explored. The potential of the engineered strain to synthesize α-farnesene on WCO and other common edible oil substrates was also explored. This work will provide strategic insights for the development of Y. lipolytica as a microbial cell factory for the sustainable and economic production of valuable chemicals from waste oil materials.
Results and discussion
Comparison of α-farnesene synthesis capability on glucose and oil carbon sources
In our previous study, we constructed the α-farnesene production of Y. lipolytica strain F5 by overexpression of all genes of the MVA pathway from acetyl-CoA to farnesyl pyrophosphate (FPP) and integration of FSERG20 into genome twice by NHEJ-mediated genome integration, which accumulated 25.55 g/L α-farnesene with glucose as carbon source. Although a relatively high titer was achieved, the α-farnesene yield was still low. We also detected considerable accumulation of by-products such as citric acid, mannitol and mevalonate (MVA) in the final fermentation broth. Y. lipolytica has a vigorous metabolic activity of β-oxidation, and can decompose lipid into acetyl-CoA, the precursor of MVA pathway for α-farnesene production (Du et al. 2016; Fig. 1). Using lipid as carbon source may be more beneficial to avoid by-product synthesis and provide abundant precursor for synthesis of α-farnesene.
We first compared the growth, α-farnesene synthesis ability and other products’ accumulation of F5 strain on glucose carbon source and lipid carbon source, including oleic acid and triglyceride. We found that the accumulation of α-farnesene increased with the extension of fermentation time in YP medium with different carbon sources, and the titer reached 1.29 g/L, 1.42 g/L and 1.39 g/L on glucose, oleic acid and triglyceride, respectively, at 96 h (Fig. 2A). The titer of α-farnesene on lipid substrates was slightly higher than that on glucose substrate. In addition, it can be clearly observed that the OD600 reached 125 and 137 on oleic acid and triglyceride, respectively, which was 1.1-fold and 1.3-fold higher than that of 59 on glucose. This is consistent with previous reports that the lipid substrate can promote biomass accumulation (Papanikolaou et al. 2007). The accumulation of MVA is lower on lipid substrates (Fig. 2B). Interestingly, when we compared the accumulation of by-products on different carbon sources, we found that the accumulation of citric acid and mannitol on lipid substrates was significantly lower than that on glucose (Fig. 2B). It was consistent with the previous study (Zhao et al. 2015). It is reported that when grown on oleic acid substrate, the metabolism mainly flows to lipogenesis and β-oxidation, while glycolysis, the main source of cytoplasmic NADH, is predominant when grown on glucose (Zhao et al. 2015). This metabolism change may reduce the synthesis of NADH, which may contribute to maintain redox balance and reduce the accumulation of mannitol (Diano et al. 2006; Workman et al. 2013). In addition, high concentration of oleic acid does not cause osmotic stress (Li et al. 2020), which is also a possible reason for reduced mannitol accumulation (Wang et al. 2020). Due to the higher biomass accumulation on lipid substrates, the titer of squalene was also higher on lipid than on glucose. The low accumulation of these by-products indicates that oleic acid is a better substrate for α-farnesene production. Therefore, we used oleic acid as the substrate of F5 strain to produce α-farnesene and optimized it to further improve its α-farnesene production.

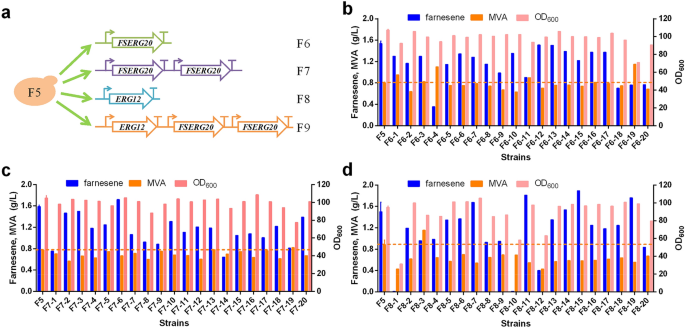

Solely increasing the copy number of FSERG20 did not enhance α-farnesene production obviously
In our previous study, the strain accumulated 4.5 g/L intermediate metabolite MVA in the late period of fermentation, indicating that there is abundant MVA available for the synthesis of α-farnesene, but it did not flow to the end product due to the restriction of the downstream MVA pathway. Therefore, we attempted to further enhance the strength of the downstream MVA pathway to increase the production of α-farnesene. We increased the copy number of FSERG20 fusion genes to pull the flux from MVA to α-farnesene. The plasmid containing an expression cassette of FSERG20 under the control of strong promoter hp4d was linearized and transformed into F5 (Fig. 3A). It was randomly integrated into the genome of F5. Because different genomic locations cause the variation of gene expression level (Cui et al. 2019), we randomly selected 20 transformants from the library and detected their titer of α-farnesene, MVA accumulation and the biomass production. Unfortunately, α-farnesene titer was not improved (Fig. 3B). We also constructed the strains containing two FSERG20 expression cassettes. Only one transformant (F7-6, increased by 7%) from the library showed higher α-farnesene production (Fig. 3C). In addition, the MVA accumulation of most selected transformants was not significantly lower than that of the control F5. We speculated that the pathway from MVA to α-farnesene may not be strong enough; therefore increasing the copy number of FSERG20 does not enhance α-farnesene production obviously in the F5 strain.
Overexpression of ERG12 and FSERG20 increased α-farnesene production
Erg12 is the enzyme that catalyzes MVA into phosphomevalonate. Previous studies suggest that Erg12 is also a potential rate limiting step in the MVA pathway (Cao et al. 2017; Marsafari and Xu 2020). Therefore, we detected if the overexpression of ERG12 could enhance MVA flow to downstream metabolic pathways. We integrated the fragment containing ERG12 expression cassette into the genome of F5 strain using NHEJ-mediated integration, named F8, and selected 20 transformants for product detection. The overall MVA titer of randomly selected transformants was significantly lower than that of F5 (Fig. 3D). The average titer was about 0.60 g/L, while it was 0.94 g/L in F5. There were four transformants whose α-farnesene titer was higher than that of the F5 strain. The best strain increased α-farnesene titer by 26.8% (F8–15). These results indicate that increasing the expression of ERG12 does play an important role in promoting MVA to the downstream pathway and Erg12 is the key limiting step to further increase α-farnesene production in the F5 strain. This is consistent with previous reports by Marsafari et al. that showed amorphadiene production was significantly improved through increasing the copy number of ERG12 in Y. lipolytica (Marsafari and Xu 2020), and overexpression of ERG12 could also increase linalool production in Y. lipolytica (Cao et al. 2017). We then inserted two copies of FSERG20 and one copy of ERG12 into the genome of F5 to construct F9. Through screening different transformants (Additional file 1: Figure S1), a strain (F9–11) with the α-farnesene titer 2.16 g/L was isolated and the production was 35.8% higher than that of F5 strain. Among 20 transformants, the α-farnesene titer of 6 transformants was higher than that of F5 strain, which reflected that increasing the copy number of FSERG20 and overexpression of ERG12 were conducive to increase α-farnesene production.
Overexpression of VHb to optimizing oxygen utilization enhanced α-farnesene production
Synthesizing one molecule of α-farnesene through the MVA pathway requires nine molecules of ATP, which indicates that α-farnesene synthesis is a high energy-consuming metabolic process. When oleic acid is used as substrate, NADH and FADH2 produced by β-oxidation can provide abundant ATP, but it needs oxidative phosphorylation to convert to ATP, which requires oxygen supply. In addition, Y. lipolytica is strictly an aerobic yeast, and the oxygen content in the culture environment affects its metabolic process (Akpinar et al. 2011). Vitreoscilla hemoglobin (VHb) is a membrane protein. It enhances respiration and energy metabolism by transporting oxygen to the terminal oxidase in cells. In previous studies, heterologous VHb was introduced into Y. lipolytica and improved erythritol (Mirończuk et al. 2019) and lipid (Zhang et al. 2019) production, and extracellular enzyme levels (Bhave and Chattoo 2003). Therefore, we introduced a codon-optimized VHb expression cassette with the control of UT8 promoter into the gene locus of CAN1 (encoding arginine permease) of F9-11 strain by homologous recombination, and obtained F10 strain. The α-farnesene titer of strain F10 reached 2.3 g/L at 96 h in shake flask fermentation, which was 12.7% higher than that of strain F9–11 (Fig. 4A). F10 also accumulated more biomass than F9–11, perhaps because VHb contributes to enhance respiration and makes cells grow more vigorously (Zhang et al. 2019). In addition, VHb expression also decreased citric acid accumulation in F10 than F9–11 (Fig. 4B). F10 accumulated slightly higher MVA, lower mannitol and squalene than F9–11.
Optimization of fermentation conditions
In metabolic engineering, fermentation parameters such as medium composition, pH, dissolved oxygen and stirring speed have a strong influence on the biosynthesis of the metabolites. Therefore, we optimized the fermentation conditions to maximize the production of α-farnesene synthesized from oleic acid.
We first compared the effects of different initial concentrations of oleic acid on α-farnesene production by adding 20, 35, 50, 65, 80, 95 g/L oleic acid to 50 mL YP medium with 1‰ Tween 80. The results showed that when 20 or 35 g/L of oleic acid was added, the α-farnesene titer and biomass were relatively low and increased with the increase of oleic acid (Additional file 1: Figure S2A). The highest α-farnesene production was achieved when 50 g/L oleic acid was added, and the titer decreased continuously when 65–95 g/L oleic acid was added. The accumulation of MVA increased with the increase of oleic acid, while the biomass kept the highest level when 50 g/L of oleic acid was added. Therefore, the suitable initial addition of oleic acid for strain F10 producing α-farnesene was 50 g/L.
When oleic acid is used as substrate, because of its hydrophobicity, the utilization rate of substrate is low and the mass transfer of air and nutrients in the medium is limited (Liu et al. 2019a). Therefore, non-ionic detergent is usually added to the medium to emulsify the oil matrix and change the properties of the medium. For example, oil degradation was improved by 10–15% after adding oleophilic fertilizer (Zinjarde and Pant 2002). However, the use of these surfactants results in cytotoxicity (Lechuga et al. 2016). Therefore, we optimized the dosage of Tween 80 in the medium. We set six gradients for concentration of Tween 80 as 0.5, 1.0, 1.5, 2.0, 2.5, and 3.0‰ in the final medium. There was no significant difference in α-farnesene production, MVA and biomass accumulation at 96 h of fermentation within the selected gradient range (Additional file 1: Figure S2B). It is possible that the surfactant secretion of Y. lipolytica, such as liposan, eliminated the effect of different Tween 80 dosage when growing on oil (Gonçalves et al. 2014). We chose the 1.0‰ working concentration of Tween 80.
Metal ions are involved in many biological processes, including signal transduction, regulation of enzyme activity, maintenance of cell stability, protection of cells, etc., which is an important factor affecting microbial growth and metabolite biosynthesis (Jernejc and Legisa 2002; Misra et al. 2019). In particular, farnesene synthetases, similar to other terpenoid synthetases, contain Mg2+ binding site in their domains, and their activities are also affected by the type and concentration of metal ions (Picaud et al. 2005). Therefore, we added 5 mM different divalent cations to the medium, including Ca2+, Cu2+, Fe2+, Mg2+, Mn2+ or Zn2+, to explore the effect on α-farnesene synthesis. The results showed that α-farnesene production of the experimental group adding Mg2+ was basically similar to that of the control group without adding ions (Additional file 1: Figure S2C). α-Farnesene titer was reduced at different degrees after adding other ions. Maybe the original content of metal ions in the medium was enough to meet the requirement to maintain the growth and metabolic activities of cells. Interestingly, the accumulation of MVA increased by 41.5% and 135.6%, respectively, when adding Fe2+ and Zn2+. Although this accumulation is unfavorable to the F10 strain, these two ions can be added to other strains that synthesize products by the MVA pathway to increase the supply of intermediate products.

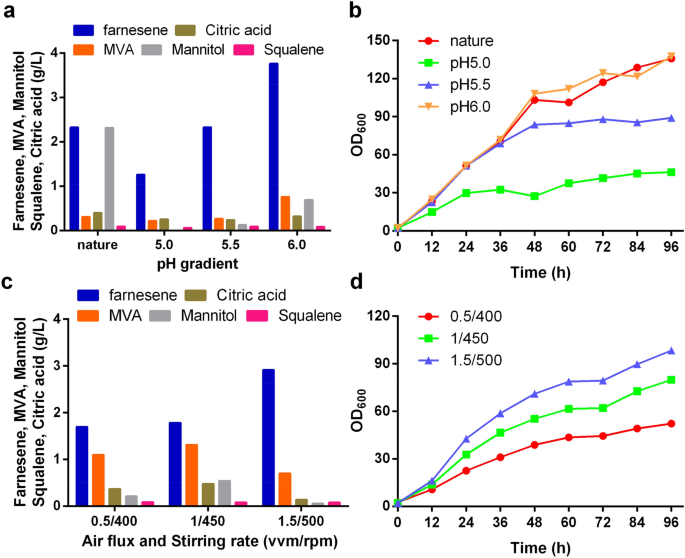

Then, we explored the effects of pH, dissolved oxygen and stirring speed on α-farnesene production in a 1 L fermenter. The pH of the fermentation broth was controlled at 5.0, 5.5, 6.0 or in a natural state without pH regulation. F10 had the highest α-farnesene titer of 3.76 g/L and OD600 of 135 at pH 6.0 with MVA accumulation at 0.76 g/L (Fig. 5A, B). However without adjusting pH, the initial pH of the medium was 5.8, close to 6.0, and changed to 6.2 after 96 h, and the biomass also reached to 135, but the α-farnesene titer was only 2.32 g/L. In the meanwhile, the mannitol accumulated to 2.3 g/L, which was 2.3-fold higher than the titer at pH 6.0. It is suggested that the metabolism of MVA pathway may be more vigorous or the activity of α-farnesene synthetase may be higher under constant optimal pH. In addition, the by-product accumulation of citric acid and squalene in all experimental groups was at a low level. We finally chose pH 6.0 as the optimal pH for α-farnesene synthesis of strain F10.
On the basis of pH 6.0, we optimized the air flux and stirring rate in 1 L fermentor under three combination conditions of 0.5/400, 1.0/450 and 1.5/500 (vvm/rpm). With the increase of air flux and stirring rate, more biomass was accumulated during fermentation (Fig. 5D). The highest α-farnesene titer was 2.9 g/L at 1.5 vvm air flux and 500 rpm stirring rate with lower MVA, citric acid, mannitol and squalene accumulation than that of other experimental groups (Fig. 5C). Because Y. lipolytica is strictly an aerobic yeast, a high dissolved oxygen medium is conducive to metabolic activities and product synthesis. Finally, we chose 1.5/500 (vvm/rpm) as the best condition for α-farnesene synthesis.
Under the optimal conditions for α-farnesene synthesis by strain F10, including 50 g/L initial oleic acid concentration, 1‰ Tween 80 dosage, no additional metal ion addition, pH 6.0, 1.5 vvm air flux and 500 rpm stirring rate, we carried out fed batch fermentation in 5 L bioreactor. During the fermentation process, the production of α-farnesene reached 10.2 g/L at 168 h and showed a trend of increasing (Fig. 6), which was higher than that of the F5 strain of 7.4 g/L at 168 h (Liu et al. 2019b). It is worth noting that the α-farnesene conversion rate of strain F10 is 0.1 g/g oleic acid, while that of strain F5 is only 0.038 g/g glucose, which shows that strain F10 has the great advantage of using oleic acid to produce α-farnesene. In the final fermentation broth, OD600 reached 167.3, MVA accumulation was 2.2 g/L, and by-products citric acid, mannitol and squalene accumulation were at a low level, reached 0.84 g/L, 0.31 g/L and 0.11 g/L respectively (Additional file 1: Figure S3), indicating that F10 had good performance of synthesizing α-farnesene from oleic acid.
Exploration of α-farnesene synthesis capability on waste cooking oils
Waste cooking oil (WCO) is an inevitable product in the catering industry. It is reported that the global annual output of WCO exceeds 29 million tons (Maddikeri et al. 2012). Improperly handling of WCO will cause environmental and ecological problems (Lopes et al. 2019). Traditionally, WCO has been used in soap making, as an additive in livestock ingredients or as a cheap detergent (Domínguez et al. 2010). However, it also has low economic benefits, and the harmful substances in WCO may also be transferred to the human body through the food chain (Lam et al. 2016). New applications have also been developed in recent years. For example, WCO was used as the substrate of biodiesel production. As a nutrient of fermentation medium, WCO provides carbon source for microorganisms to produce various products. For example, using WCO as substrate, the engineered Y. lipolytica strain produced limonene, bisabolene, citric acid and erythritol, which increased the economic benefits and realized green development (Liu et al. 2015, 2019a; Pang et al. 2019; Zhao et al. 2021). These researches demonstrated that Y. lipolytica has potential in the conversion of WCO to valuable products with economical and sustainable advantage.
We explored the α-farnesene synthesis ability of F10 strain on WCO carbon source. The WCO we used was from school canteen and was the frying waste of soybean oil. To investigate the optimized concentration of WCO (Aggelis et al. 2003), we added 35, 50, 65, 80 or 95 g/L WCO to 50 mL YP medium with 1‰ Tween 80. At 96 h of fermentation, MVA accumulation increased with the increase of WCO content, but α-farnesene production had no significant difference, about 1.6 g/L (Additional file 1: Figure S4A). It seems WCO was in excess for α-farnesene production. We also found that the titer of α-farnesene was lower when using WCO as carbon source. The impurities in WCO may be the reasons for the lower α-farnesene titer on WCO than that on oleic acid. Using WCO, OD600 can reach 93, slightly lower than that with oleic acid. Our results showed that the F10 strain has good tolerance to the harmful components of WCO and makes it a suitable host for use of waste oil to produce high value-added products (Moftah et al. 2013; Zinjarde et al. 2014). We also explored the α-farnesene synthesis ability of F10 strain on other major edible oils at 50 g/L final concentration. In shake flasks, the α-farnesene productions were 1.74, 1.52, 1.78 and 1.76 g/L on olive oil, soybean oil, palm oil and rapeseed oil, respectively, at 96 h (Additional file 1: Figure S4B). The results indicated that F10 was not only suitable for WCO from soybean oil, but also suitable for WCO from other kinds of oil or mixed oil.
In this study, we optimized the α-farnesene producing strain and found that Erg12 was the key limiting factor to further increase the production of the strain. The α-farnesene production of the recombinant strain was further improved by increasing the copy number of FSERG20. To make the recombinant strain more suitable for α-farnesene synthesis on cheap oleic acid substrate, we expressed heterologous VHb to improve its oxygen utilization and energy metabolism. Combined with the optimization of fermentation conditions, the α-farnesene synthesis ability of the recombinant strain was optimized. Finally, the α-farnesene titer and yield reached 10.2 g/L and 0.1 g/g oleic acid, respectively, in 5 L fermentor at 168 h. The accumulation of by-products or MVA was significantly lower than that on glucose. In addition, we also explored the α-farnesene synthesis ability on WCO and other edible oils, to realize the green production from waste utilization. Our results showed the potential of Y. lipolytica to synthesize high value-added products using cheap WCO or other waste oil substrate.
Materials and methods
Strains, media, and culture conditions
For plasmid construction and proliferation, Escherichia coli strain DH5α was employed and cultured in Luria–Bertani (LB) complete medium (5 g/L yeast extract, 10 g/L tryptone and 10 g/L NaCl) at 37 °C, 200 rpm. Agar (20 g/L) was used as solid medium, and ampicillin (50 mg/L) was added to LB when necessary. Y. lipolytica strains were cultured at 30 °C, 220 rpm in YPD medium (20 g/L glucose, 20 g/L tryptone, 10 g/L yeast extract). Minimal SD Base (TaKaRa, Beijing, China) with arginine dropout amino acid mixes was used for transformant selection. Canavanine (60 mg/L; Sigma, Shanghai, China) and nourseothricin (0.5 g/L; Sigma, Shanghai, China) were added to YPD or SD medium when necessary. Y. lipolytica strains used in this study are listed in Table 1.
Plasmids and strains construction
The primers used for plasmids construction were synthesized by TsingKe (Beijing, China). DNA fragments were obtained by polymerase chain reaction (PCR) using DNA polymerase (Vazyme, Nanjing, China). The restriction enzymes used for plasmids construction and linearization were purchased from ThermoFisher Scientific (Shanghai, China). Gibson assembly was used for plasmid construction (Gibson et al. 2009). All the primers and plasmids used in this study are shown in Additional file 1: Table S1 and Table 2, respectively.
For Y. lipolytica transformants selection, the selection marker URA3 and LEU2 in plasmids pki-2 and YLEP-Leu were replaced by nourseothricin acetyltransferase gene to construct pki-nat and YLEP-nat, respectively. FSERG20 was α-farnesene synthase gene (FS) from apple seeds and codon optimized according to the codon preference of Y. lipolytica (GenBank: MZ343331), fused with FPP synthase gene (ERG20, GenBank: YALI0_E05753g) via a GGGS amino acid linker. To construct one or two expression cassettes of FSERG20, we inserted FSERG20 under the control hp4d and TEF promoter in pki-nat plasmid to form pki-nat-FSERG20 and pki-nat-2FSERG20. Plasmids pki-nat-FSERG20 and pki-nat-2FSERG20 were linearized by SspI, transformed and integrated into the genome of F5 strain via non-homologous end-joining (NHEJ)-mediated integration. Transformants were selected on YPD plates with nourseothricin and were verified by clone PCR to generate strains named F6 and F7, respectively. Twenty transformants of each transformant plates were selected randomly and fermented in shake flasks to detect α-farnesene production. To overexpress mevalonate kinase gene (ERG12, GenBank: YALI0_B16038g), ERG12 gene with UT8 promoter and CYC1 terminator were inserted into plasmid YLEP-nat to construct YLEP-nat-ERG12. F8 strain library was obtained by transforming linearized YLEP-nat-ERG12 into F5 strain using the same method. To obtain strain F9, we constructed a plasmid containing ERG12 and two FSERG20 expression cassettes with nourseothricin acetyltransferase gene as selection marker and named it as pki-nat-2FSERG20-ERG12. The plasmid was linearized by SspI and integrated into the genome of F5 strain via NHEJ-mediated integration. Transformants were fermented in shake flasks. Hemoglobin coding base from Vitreoscilla stercoraria was optimized according to the codon preference of Y. lipolytica (VHb, GenBank: MZ343332). VHb was placed under the control of the UT8 promoter of YLEP-nat to form the YLEP-VHb plasmid. The UT8-VHb-CYC1 fragment was combined with upstream and downstream homologous arm of canavanine amino acid permease coding gene (can1, GenBank: YALI0_B19338g) by overlap PCR. The recombined fragment was transformed F9 strain and replaced can1 gene by homologous recombination. The right transformants were screened by SD-Arg plates with canavanine and checked by clone PCR, forming VHb overexpression strain named F10. The DNA fragments were transformed into Y. lipolytica using the lithium acetate method (Chen et al. 1997). FS and VHb were synthesized by GENERAL BIOSYSTEMS (Anhui, China).
Fermentation and optimization of fermentation conditions
For shake flask cultivations, the single colonies were inoculated in 24-well plate containing 1.5 mL YPD medium. Then 1–1.5 mL of the culture was inoculated in a 300-mL flask containing 50 mL medium and cultured for 96 h at 30 ℃ and 220 rpm. Dodecane (10%) was added to collect α-farnesene. YP (20 g/L tryptone, 10 g/L yeast extract) was used as basic components of fermentation medium, and different carbon sources including glucose, oleic acid, palm oil, soybean oil, rapeseed oil, olive oil and waste cooking oils were added to YP when necessary. Tween 80 was added to the medium as an emulsifier when lipid carbon sources were used. Different fermentation conditions were optimized at shake flask level, including the initial amount of oleic acid, the concentration of emulsifier and the addition of different kinds of divalent cations. The initial dosage of oleic acid was set as 20, 35, 50, 65, 80, and 95 g/L. The final concentration of emulsifier was set as 0.5, 1.0, 1.5, 2.0, 2.5 or 3.0‰. Cations were added to the medium in the form of sulfates and the species of cations include Ca2+, Cu2+, Fe2+, Mg2+, Mn2+ and Zn2+ with 5 mM final concentration.
At the bioreactor level, to activate the preserved α-farnesene synthesis ability of strain F10, it was inoculated in a test tube containing 5 mL YPD medium and then 1 mL culture was inoculated in a 300-mL flask containing 50 mL YPD medium. The second pre-culture (5 mL) was transferred in a 500-mL flask containing 100 mL YPD medium cultured for the final fermentation seeds. All the above culture conditions were 30 ℃ and 220 rpm for 24 h. The prepared culture was transferred in 1 L or 5 L bioreactor with 10% inoculum and 10% dodecane. The fermentation medium is YP with 50 g/L oleic acid. The working volumes of 1 L and 5 L bioreactor were 700 mL and 4 L, respectively. Different cultivation conditions were compared, including variation of pH and air flux combining with stirring rate in 1 L bioreactor. The pH was set at 5.0, 5.5, 6.0 or not adjusted. The combinations of air flux and stirring rate were set at 0.5/400, 1.0/450, or 1.5/550 (vvm/rpm). When the remaining oleic acid content in the medium was not enough to maintain for 12 h, 50% oleic acid was added during fermentation.
Analysis of OD 600 , mevalonate, citric acid and mannitol
Biomass in the fermentation broth was detected by a UV-1800 spectrophotometer (Shimadzu, Japan) at 600 nm after appropriate multiple diluting. To analyze the accumulation of mevalonate, citric acid and mannitol during fermentation, the fermentation broth (1 mL) was taken and centrifuged and the supernatant was filtered using a 0.22-μm filter subsequently. When using lipid substrates, the supernatant needs to be treated twice with 200 μL n-hexane before filtration to remove the remaining lipid. High-performance liquid chromatography system (HPLC) equipped with an Aminex HPX-87H column (BioRad, Inc., Hercules, CA) and a refractive index detector, H2SO4 (5 mM) mobile phase with flow rate 0.6 mL/min at 65 °C was used for qualitative detection of mevalonate, citric acid and mannitol.
Analysis of oleic acid in the fermentation broth
To detect the remaining oleic acid content in the fermentation broth, 1 mL of fermentation broth was taken and centrifuged to remove the cells. The oleic acid in the supernatant was extracted with n-hexane. Oleic acid was separated through evaporating n-hexane at 65 °C. The extracted oleic acid was methylated with 1% methanol sulfate (v:v) to obtain methyl oleate, and its content was determined by gas chromatography (GC; Agilent Technologies, Santa Clara, CA) with an Rtx-5 capillary column (30.0 m, 0.25 mm ID, 0.25 μm df; RESTEK, USA) and a flame ionization detector (FID). The detection conditions are as follows: the temperatures of the injector and the detector were set at 280 °C and 290 °C, respectively. The oven temperature was kept at 50 °C for 2 min and then ramped to 140 °C at 30 °C/min and continued to heat up to 280 °C at 10 °C/min and held for 5 min.
Analysis of α-farnesene
To analyze the concentration of α-farnesene during fermentation, the dodecane was collected from 2 mL fermentation broth by centrifuging for 2 min at 13,000 rpm. Then the dodecane was injected into GC with an Rtx-5 capillary column (30.0 m, 0.25 mm ID, 0.25 μm df; RESTEK, USA) and a flame ionization detector (FID). The detection conditions are as follows: the temperatures of the injector and the detector were set at 280 °C and 290 °C, respectively. The oven temperature was kept at 80 °C for 1 min, then ramped to 250 °C at 10 °C/min and held for 1 min, and then to 280 °C at 10 °C/min and held for 2 min.
Availability of data and materials
All data generated or analyzed during this study were included in this published article [and its Additional files].
Free fatty acid
Codon-optimized α-farnesene synthase
Hemoglobin from Vitreoscilla stercoraria
Aggelis G, Iconomou D, Christou M, Bokas D, Kotzailias S, Christou G, Tsagou V, Papanikolaou S (2003) Phenolic removal in a model olive oil mill wastewater using Pleurotus ostreatus in bioreactor cultures and biological evaluation of the process. Water Res 37(16):3897–3904. https://doi.org/10.1016/S0043-1354(03)00313-0
Akpinar O, Uçar F, Yalcın H (2011) Molecular characterization of Yarrowia lipolytica strains isolated from different environments and lipase profiling. Curr Opin Biotechnol. https://doi.org/10.1016/j.copbio.2011.05.197
Armelle P, Lance K, Derek M (2014) Deriving renewable squalane from sugarcane. Cosmet Toilet 129(6):22–26
Bankar AV, Kumar AR, Zinjarde SS (2009) Environmental and industrial applications of Yarrowia lipolytica. Appl Microbiol Biotechnol 84(5):847–865. https://doi.org/10.1007/s00253-009-2156-8
Bhave SL, Chattoo BB (2003) Expression of vitreoscilla hemoglobin improves growth and levels of extracellular enzyme in Yarrowia lipolytica. Biotechnol Bioeng 84(6):658–666. https://doi.org/10.1002/bit.10817
Cao X, Wei LJ, Lin JY, Hua Q (2017) Enhancing linalool production by engineering oleaginous yeast Yarrowia lipolytica. Bioresour Technol 245(Pt B):1641–1644. https://doi.org/10.1016/j.biortech.2017.06.105
Chen DC, Beckerich JM, Gaillardin C (1997) One-step transformation of the dimorphic yeast Yarrowia lipolytica. Appl Microbiol Biotechnol 48(2):232–235. https://doi.org/10.1007/s002530051043
Cui Z, Jiang X, Zheng H, Qi Q, Hou J (2019) Homology-independent genome integration enables rapid library construction for enzyme expression and pathway optimization in Yarrowia lipolytica. Biotechnol Bioeng 116(2):354–363. https://doi.org/10.1002/bit.26863
Diano A, Bekker-Jensen S, Dynesen J, Nielsen J (2006) Polyol synthesis in Aspergillus niger: influence of oxygen availability, carbon and nitrogen sources on the metabolism. Biotechnol Bioeng 94(5):899–908. https://doi.org/10.1002/bit.20915
Domínguez A, Deive FJ, Angeles Sanromán M, Longo MA (2010) Biodegradation and utilization of waste cooking oil by Yarrowia lipolytica CECT 1240. Eur J Lipid Sci Technol 112(11):1200–1208. https://doi.org/10.1002/ejlt.201000049
Du HX, Xiao WH, Wang Y, Zhou X, Zhang Y, Liu D, Yuan YJ (2016) Engineering Yarrowia lipolytica for campesterol overproduction. PLoS ONE 11(1):e0146773. https://doi.org/10.1371/journal.pone.0146773
Gibson DG, Young L, Chuang RY, Venter JC, Hutchison CA 3rd, Smith HO (2009) Enzymatic assembly of DNA molecules up to several hundred kilobases. Nat Methods 6(5):343–345. https://doi.org/10.1038/nmeth.1318
Gonçalves FA, Colen G, Takahashi JA (2014) Yarrowia lipolytica and its multiple applications in the biotechnological industry. Sci World J 2014:476207. https://doi.org/10.1155/2014/476207
Hatano E, Kunert G, Weisser WW (2010) Aphid wing induction and ecological costs of alarm pheromone emission under field conditions. PLoS ONE 5(6):e11188. https://doi.org/10.1371/journal.pone.0011188
Jernejc K, Legisa M (2002) The influence of metal ions on malic enzyme activity and lipid synthesis in Aspergillus niger. FEMS Microbiol Lett 217(2):185–190. https://doi.org/10.1111/j.1574-6968.2002.tb11473.x
Kamzolova SV, Morgunov IG, Aurich A, Perevoznikova OA, Finogenova TV (2005) Lipase secretion and citric acid production in Yarrowia lipolytica yeast grown on animal and vegetable fat. Food Technol Biotechnol 1524771(2):612–663. https://doi.org/10.1177/1082013205052621
Lam SS, Liew RK, Jusoh A, Chong CT, Ani FN, Chase HA (2016) Progress in waste oil to sustainable energy, with emphasis on pyrolysis techniques. Renew Sust Energ Rev 53:741–753. https://doi.org/10.1016/j.rser.2015.09.005
Leavell MD, McPhee DJ, Paddon CJ (2016) Developing fermentative terpenoid production for commercial usage. Curr Opin Biotechnol 37:114–119. https://doi.org/10.1016/j.copbio.2015.10.007
Lechuga M, Fernández-Serrano M, Jurado E, Núñez-Olea J, Ríos F (2016) Acute toxicity of anionic and non-ionic surfactants to aquatic organisms. Ecotox Environ Safe 125:1–8. https://doi.org/10.1016/j.ecoenv.2015.11.027
Lee HJ, Lee J, Lee SM, Um Y, Kim Y, Sim SJ, Choi JI, Woo HM (2017) Direct conversion of CO2 to α-farnesene using metabolically engineered Synechococcus elongatus PCC 7942. J Agric Food Chem 65(48):10424–10428. https://doi.org/10.1021/acs.jafc.7b03625
Li N, Han Z, O’Donnell TJ, Kurasaki R, Kajihara L, Williams PG, Tang Y, Su WW (2020) Production and excretion of astaxanthin by engineered Yarrowia lipolytica using plant oil as both the carbon source and the biocompatible extractant. Appl Microbiol Biotechnol 104(16):6977–6989. https://doi.org/10.1007/s00253-020-10753-2
Liu X, Lv J, Xu J, Zhang T, Deng Y, He J (2015) Citric acid production in Yarrowia lipolytica SWJ-1b yeast when grown on waste cooking oil. Appl Biochem Biotechnol 175(5):2347–2356. https://doi.org/10.1007/s12010-014-1430-0
Liu X, Yu X, Gao S, Dong X, Xia J, Xu J, He A, Hu L, Yan Y, Wang Z (2019a) Enhancing the erythritol production by Yarrowia lipolytica from waste oil using loofah sponge as oil-in-water dispersant. Biochem Eng J 151:107302. https://doi.org/10.1016/j.bej.2019.107302
Liu Y, Jiang X, Cui Z, Wang Z, Qi Q, Hou J (2019b) Engineering the oleaginous yeast Yarrowia lipolytica for production of α-farnesene. Biotechnol Biofuels 12:296. https://doi.org/10.1186/s13068-019-1636-z
Lopes M, Miranda SM, Alves JM, Pereira AS, Belo I (2019) Waste cooking oils as feedstock for lipase and lipid-rich biomass production. Eur J Lipid Sci Technol 121(1):1800188. https://doi.org/10.1002/ejlt.201800188
Ma T, Deng Z, Liu T (2020) The past and present of vitamin E. Synth Biol J 1:174–186
Maddikeri GL, Pandit AB, Gogate PR (2012) Intensification approaches for biodiesel synthesis from waste cooking oil: a review. Ind Eng Chem Res 51(45):14610–14628. https://doi.org/10.1021/ie301675j
Marsafari M, Xu P (2020) Debottlenecking mevalonate pathway for antimalarial drug precursor amorphadiene biosynthesis in Yarrowia lipolytica. Metab Eng Commun 10:e00121. https://doi.org/10.1016/j.mec.2019.e00121
Meadows AL, Hawkins KM, Tsegaye Y, Antipov E, Kim Y, Raetz L, Dahl RH, Tai A, Mahatdejkul-Meadows T, Xu L, Zhao L, Dasika MS, Murarka A, Lenihan J, Eng D, Leng JS, Liu CL, Wenger JW, Jiang H, Chao L, Westfall P, Lai J, Ganesan S, Jackson P, Mans R, Platt D, Reeves CD, Saija PR, Wichmann G, Holmes VF, Benjamin K, Hill PW, Gardner TS, Tsong AE (2016) Rewriting yeast central carbon metabolism for industrial isoprenoid production. Nature 537(7622):694–697. https://doi.org/10.1038/nature19769
Miller KK, Alper HS (2019) Yarrowia lipolytica: more than an oleaginous workhorse. Appl Microbiol Biotechnol 103(23–24):9251–9262. https://doi.org/10.1007/s00253-019-10200-x
Mirończuk AM, Kosiorowska KE, Biegalska A, Rakicka-Pustułka M, Szczepańczyk M, Dobrowolski A (2019) Heterologous overexpression of bacterial hemoglobin VHb improves erythritol biosynthesis by yeast Yarrowia lipolytica. Microb Cell Fact 18(1):176. https://doi.org/10.1186/s12934-019-1231-9
Misra BB, Reichman SM, Chen S (2019) The guard cell ionome: understanding the role of ions in guard cell functions. Prog Biophys Mol Biol 146:50–62. https://doi.org/10.1016/j.pbiomolbio.2018.11.007
Miyazawa M, Tamura N (2007) Components of the essential oil from sprouts of Polygonum hydropiper L. (‘Benitade’). Flavour Frag J 22(3):188–190. https://doi.org/10.1002/ffj.1779
Moftah O, Grbavčić S, Moftah WAS, Lukovic ND, Prodanović O, Jakovetic SM, Knežević-Jugović Z (2013) Lipase production by Yarrowia lipolytica using olive oil processing wastes as substrates. J Serb Chem Soc 78:781–794. https://doi.org/10.2298/JSC120905005M
Nicaud JM (2012) Yarrowia lipolytica. Yeast 29(10):409–418. https://doi.org/10.1002/yea.2921
Pang Y, Zhao Y, Li S, Zhao Y, Li J, Hu Z, Zhang C, Xiao D, Yu A (2019) Engineering the oleaginous yeast Yarrowia lipolytica to produce limonene from waste cooking oil. Biotechnol Biofuels 12:241. https://doi.org/10.1186/s13068-019-1580-y
Papanikolaou S, Chevalot I, Galiotou-Panayotou M, Komaitis M, Marc I, Aggelis G (2007) Industrial derivative of tallow: a promising renewable substrate for microbial lipid, single-cell protein and lipase production by Yarrowia lipolytica. Electron J Biotechnol 10(3):425–435. https://doi.org/10.2225/vol10-issue3-fulltext-8
Papanikolaou S, Chevalot I, Komaitis M, Marc I, Aggelis G (2002) Single cell oil production by Yarrowia lipolytica growing on an industrial derivative of animal fat in batch cultures. Appl Microbiol Biotechnol 58(3):308–312. https://doi.org/10.1007/s00253-001-0897-0
Picaud S, Brodelius M, Brodelius PE (2005) Expression, purification and characterization of recombinant (E)-beta-farnesene synthase from Artemisia annua. Phytochemistry 66(9):961–967. https://doi.org/10.1016/j.phytochem.2005.03.027
Sarris D, Stoforos NG, Mallouchos A, Kookos IK, Koutinas AA, Aggelis G, Papanikolaou S (2017) Production of added-value metabolites by Yarrowia lipolytica growing in olive mill wastewater-based media under aseptic and non-aseptic conditions. Eng Life Sci 17(6):695–709. https://doi.org/10.1002/elsc.201600225
Su J, Zhu S, Zhang Z, Ge F (2006) Effect of synthetic aphid alarm pheromone (E)-beta-farnesene on development and reproduction of Aphis gossypii (Homoptera: Aphididae). J Econ Entomol 99(5):1636–1640. https://doi.org/10.1093/jee/99.5.1636
Syal P, Gupta R (2017) Heterologous expression of lipases YLIP4, YLIP5, YLIP7, YLIP13, and YLIP15 from Yarrowia lipolytica MSR80 in Escherichia coli: substrate specificity, kinetic comparison, and enantioselectivity. Biotechnol Appl Biochem 64(6):851–861. https://doi.org/10.1002/bab.1542
Wang N, Chi P, Zou Y, Xu Y, Xu S, Bilal M, Fickers P, Cheng H (2020) Metabolic engineering of Yarrowia lipolytica for thermoresistance and enhanced erythritol productivity. Biotechnol Biofuels 13:176. https://doi.org/10.1186/s13068-020-01815-8
Workman M, Holt P, Thykaer J (2013) Comparing cellular performance of Yarrowia lipolytica during growth on glucose and glycerol in submerged cultivations. AMB Express 3(1):58. https://doi.org/10.1186/2191-0855-3-58
Worland AM, Czajka JJ, Xing Y, Harper WF, Moore A, Xiao Z, Han Z, Wang Y, Su WW, Tang YJ (2020) Analysis of Yarrowia lipolytica growth, catabolism, and terpenoid biosynthesis during utilization of lipid-derived feedstock. Metab Eng Commun 11:e00130. https://doi.org/10.1016/j.mec.2020.e00130
You S, Yin Q, Zhang J, Zhang C, Qi W, Gao L, Tao Z, Su R, He Z (2017) Utilization of biodiesel by-product as substrate for high-production of beta-farnesene via relatively balanced mevalonate pathway in Escherichia coli. Bioresour Technol 243:228–236. https://doi.org/10.1016/j.biortech.2017.06.058
Zhang H, Kang X, Xiao N, Gao M, Zhao Y, Zhang B, Song Y (2019) Intracellular expression of Vitreoscilla haemoglobin improves lipid production in Yarrowia lipolytica. Lett Appl Microbiol 68(3):248–257. https://doi.org/10.1111/lam.13111
Zhao C, Gu D, Nambou K, Wei L, Chen J, Imanaka T, Hua Q (2015) Metabolome analysis and pathway abundance profiling of Yarrowia lipolytica cultivated on different carbon sources. J Biotechnol 206:42–51. https://doi.org/10.1016/j.jbiotec.2015.04.005
Zhao Y, Zhu K, Li J, Zhao Y, Li S, Zhang C, Xiao D, Yu A (2021) High-efficiency production of bisabolene from waste cooking oil by metabolically engineered Yarrowia lipolytica. Microb Biotechnol. https://doi.org/10.1111/1751-7915.13768
Zinjarde S, Apte M, Mohite P, Kumar AR (2014) Yarrowia lipolytica and pollutants: interactions and applications. Biotechnol Adv 32(5):920–933. https://doi.org/10.1016/j.biotechadv.2014.04.008
Zinjarde SS, Pant AA (2002) Hydrocarbon degraders from tropical marine environments. Mar Pollut Bull 44(2):118–121. https://doi.org/10.1016/S0025-326X(01)00185-0
We thank Chengjia Zhang and Nannan Dong from the Analysis and Testing Center of SKLMT (State Key Laboratory of Microbial Technology, Shandong University), for assistance in the fermentation experiment.
This work was supported by the National Natural Science Foundation of China (31970082 and 31770101), the National Natural Science Foundation of Shandong province (ZR2020YQ18), the Key R&D Program of Shandong Province (2020CXGC010602).
Ethics approval and consent to participate
Consent for publication
The authors declare that they have no competing interests.
