Identification, heterologous expression and characterization of a new unspecific peroxygenase from Marasmius fiardii PR-910
Bioresources and Bioprocessing volume 11, Article number: 33 (2024)
Abstract
Unspecific peroxygenases (UPOs) are glycosylated enzymes that provide an efficient method for oxyfunctionalizing a variety of substrates using only hydrogen peroxide (H2O2) as the oxygen donor. However, their poor heterologous expression has hindered their practical application. Here, a novel UPO from Marasmius fiardii PR910 (MfiUPO) was identified and heterologously expressed in Pichia pastoris. By employing a two-copy expression cassette, the protein titer reached 1.18 g L−1 in a 5 L bioreactor, marking the highest record. The glycoprotein rMfiUPO exhibited a smeared band in the 40 to 55 kDa range and demonstrated hydroxylation, epoxidation and alcohol oxidation. Moreover, the peroxidative activity was enhanced by 150% after exposure to 50% (v/v) acetone for 40 h. A semi-preparative production of 4-OH-β-ionone on a 100 mL scale resulted in a 54.2% isolated yield with 95% purity. With its high expression level, rMfiUPO is a promising candidate as an excellent parental template for enhancing desirable traits such as increased stability and selectivity through directed evolution, thereby meeting the necessary criteria for practical application.

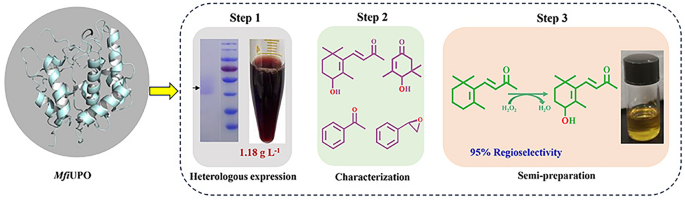

Graphical Abstract
Introduction
Unspecific peroxygenases (UPOs, EC 1.11.2.1) are newly discovered extracellular enzymes which belong to heme-thiolate proteins obtained from fungal species, which catalyze the selective oxyfunctionalization of organic molecules containing inert C-H bond under mild conditions using H2O2 as oxygen source (Ullrich et al. 2004; Sigmund et al. 2020). Furthermore, the extracellular nature and consequent higher stability, together with their self-sufficient monooxygenase activity (only requiring H2O2 to be activated), confer enormous advantages to UPOs in biosynthesis (Hobisch et al. 2021).
The initial discovery of the first UPO enzyme occurred in Agrocybe aegerita (AaeUPO) in 2004 (Ullrich et al. 2004). This significant milestone sparked growing interest in UPOs, which have been designated as the ‘‘generational successors’’ to P450s (Gomez de Santos et al. 2019; Wang et al. 2017). However, despite their advantages of solubility, extracellular nature, stability, and activation by H2O2, there are several obstacles hindering widespread research, application, and evolution. These include insufficient enzymological information and poor heterologous expression.
Up to now, over 4000 sequences have been annotated as UPOs (Kinner et al. 2021), but there were very few UPOs available with distinct properties such as AaeUPO (Molina-Espeja et al. 2014), CciUPO from Coprinopsis cinerea (Babot et al. 2013), PabUPO from Psathyrella aberdarensis (Gomez de Santos et al. 2021), MroUPO from Marasmius rotula (Gröbe et al. 2011), CglUPO from Chaetomium globosum (Kiebist et al. 2017), CviUPO from Collariella virescens (Linde et al. 2020), DcaUPO from Daldinia caldariorum (Linde et al. 2020), HspUPO from Hypoxylon sp. EC38 (Rotilio et al. 2021), MfeUPO from Myceliophthora fergusii and MhiUPO from Myceliophthora hinnulea (Püllmann et al. 2021), GmaUPO from Galerina marginata (Ma et al. 2022), among others. Therefore, it is crucial to access more enzymes to gain further insight into the natural function of UPOs.
Several UPOs have been expressed in their native fungal producers or heterologously in Aspergillus niger, Aspergillus oryzae, Escherichia coli, P. pastoris and Saccharomyces cerevisiae at the ‘mg-per-liter’ level. The highest protein levels reported so far were obtained from MroUPO with its natural host of M. rotula (445 mg L−1) and from evolved recombinant rAaeUPO produced with P. pastoris (217 mg L−1) (Gröbe et al. 2011; Molina-Espeja et al. 2015). However, the application in the pharmaceutical, cosmetic and fine chemical industry will only be feasible if cost-effective and reliable heterologous production of recombinant UPOs at the g L−1 scale is realized. The low level of heterologous expression for native UPOs is challenging for further characterizations and applications, making it difficult to create new variants with improved properties. Therefore, high level expression is the major challenging task for engineering and application of UPOs on an industrial scale.
In this study, a new unspecific peroxygenase from M. fiardii PR910 (MfiUPO) was mined and successfully expressed in P. pastoris using its native signal peptide, resulting in production levels at the g L−1 scale. The enzymatic properties of rMfiUPO were then investigated, and a variety of diverse substrates were employed for biotransformation. Finally, semipreparative synthesis was conducted on a 100 mL scale by taking the production of 4-OH β-ionone as an example. The obtained results provide a foundation for further study on the practical application and directed evolution of MfiUPO.
Materials and methods
Plasmids, strains and chemicals
Plasmid pPICZ-A, strains P. pastoris X33 and E. coli (DH5α) were purchased from Invitrogen (USA). Restriction endonucleases Not I, Cpo I, Spe I, BamH I, Bgl II and T4 DNA Ligase were purchased from Takara (Japan). ABTS (2,2ʹ-azinobis (3-ethylbenzothiazoline-6-sulfonic acid) diammonium salt) and NBD (5-nitro-1,3-benzodioxole) used for activity test were purchased from Sigma-Aldrich (USA). All other chemicals and media components were of the highest available purity from Aladdin (China).
UPO candidate mining
To obtain novel short-type UPOs and evaluate the catalytic activities, MroUPO and CglUPO were chosen as templates to conduct gene mining from NCBI database. Especially screening was performed by controlling the sequences of amino acids from 200 to 300. Then, 6 candidates annotated as chloroperoxidase and hypothetical protein were selected. The codons of candidates were optimized for P. pastoris expression, synthesized by GeneCreate (Wuhan, China), and cloned in the pPICZ-A under the control of the AOX1 promoter through restriction enzymes Not I and Cpo I. The resulted recombinant plasmid pPICZ-A-UPO was linearized by Bgl II and then transformed into P. pastoris X33 using electroporation (1.5 kv, 4 ms). The peroxygenase activity of cell-free supernatant was determined using the potential substrate of NBD. The candidate UPO with NBD activity was selected for further research.
Construction of multiple-copy expression cassette plasmids
The pPICZ-A-MfiUPO contained single copy of target gene was named as pMFI 1. Based on the pMFI 1 plasmid, the additional multiple copies of MfiUPO gene were introduced using the biobrick assembly method (Xiang et al. 2016). pPICZ-A-MfiUPO was digested using Bgl II + Spe I and Spe I + BamH I, respectively (Additional file 1: Fig. S1A). The digestive products were ligated by T4 DNA Ligase, then generated the construct pMFI 2 (2 copy). Follow the above method, pMFI 3 (3 copy) and pMFI 4 (4 copy) of the MfiUPO expression cassettes were constructed, respectively. All the multi-copy recombinant plasmids were confirmed by Bgl II digestion (Additional file 1: Fig. S1B) and DNA sequencing analysis. The four recombinant plasmids were linearized by Bgl II and then transformed into P. pastoris X33, respectively, to obtain four different recombinant P. pastoris strains MFI1c, MFI2c, MFI3c and MFI4c. Transformants were screened on YPD plates containing 300 mg L−1 Zeocin.
Small-scale flask fermentation of rMfiUPO
Single colonies of recombinant P. pastoris were picked and inoculated in 100 mL Buffered minimal glycerol (BMGY) (100 mM potassium phosphate pH 6.0, 1.34% yeast nitrogen base without amino acids, 1% glycerol, 1% yeast extract, 2% tryptone) at 28 ºC and 250 rpm, respectively. When optical density at 600 nm (OD600) was above 15, the cell pellets were harvested and resuspended in 100 mL BMMY (100 mM potassium phosphate buffer pH 6.0, 1.34% yeast nitrogen base without amino acids, 4 × 10–5% biotin, 1% methanol, 1% yeast extract, 2% tryptone) in a 1000 mL conical flask at 25 ºC and 250 rpm. They were supplemented with 1% (v/v) methanol every 24 h. After 168 h induction, the culture was harvested by centrifugation and supernatant was used for NBD activity determination. The clone with the highest activity was selected for cultivation in bioreactor.
Production of rMfiUPO in 5-L fed-batch bioreactor
P. pastoris clone containing MfiUPO was cultivated in 5 L glass vessel bioreactor (T&J Bio-engineering, Shanghai, China) and performed according to the Pichia Fermentation Process Guidelines of Invitrogen. 100 mL of preculture grown on YPD medium at 220 rpm and 28 ºC for 24 h was added into the 2.5 L basal salts medium (BSM) and run at 500 rpm and 28 ºC. After the glycerol has been completely consumed, the glycerol fed-batch phase followed with the addition of 50% (w/v) glycerol feed containing 12 mL L−1 of PTM1 trace salt (dissolved oxygen (DO) concentration should be kept above 30%) until the OD600 was above 180. The methanol feed was started by adding 5 mL h−1 per liter fermentation volume, without containing PTM1 trace salt. Within the first two to three hours, the addition of methanol was slowly increased so that the cells could adapt and the DO spike stay above 30%. Samples were taken regularly and NBD activity was determined. When the enzyme activity did not continue to increase, the cell-free supernatant containing rMfiUPO was harvested by centrifugation at 16,000 rpm for 10 min at 4 ºC.
Purification of rMfiUPO
The cell-free supernatant was concentrated 20-fold by tangential flow ultrafiltration (cut-off 10 kDa), then applied to anion exchange chromatography using 10 mM sodium acetate pH 5.5 as mobile phase eluting with a 0.67 M NaCl gradient within 15 column volumes. Fractions with NBD activities were pooled, further concentrated and desalinated by ultrafiltration. Enzyme concentration was estimated according to the characteristic UV–vis band of the reduced UPO complex (Fe2+-heme) with carbon monoxide (Otey et al. 2003).
Activity assays
rMfiUPO activities were determined by absorbance-based methods using ABTS, NBD and veratryl alcohol (VA) as substrates. Activities assays were determined according to the methods (Kiebist et al. 2017; Poraj-Kobielska et al. 2012; Ullrich et al. 2004).
-
(i) ABTS. 100 μL cell-free supernatant was mixed with 890 μL of 100 mM sodium phosphate/citrate buffer (pH 4.4) containing 0.3 mM ABTS and 2 mM H2O2. The plates were briefly stirred, and the absorbance was measured at 418 nm (ε418 = 36,000 M−1 cm−1).
-
(ii) NBD. 100 μL cell-free supernatant was mixed with 890 μL of 100 mM sodium phosphate buffer (pH 7.0) containing 1 mM NBD (final concentration of acetonitrile, 15%) and 1 mM H2O2. The plates were briefly stirred, and the absorbance was measured at 425 nm (ε425 = 9700 M−1 cm−1).
-
(iii) VA. 100 μL cell-free supernatant was mixed with 890 μL of 100 mM sodium phosphate buffer (pH 7.0) containing 5 mM VA and 1 mM H2O2. The plates were briefly stirred, and the absorbance was measured at 310 nm (ε310 = 9300 M−1 cm−1).
Enzyme characterization
pH activity profiles
The pH optima of rMfiUPO were determined for ABTS, NBD and VA, respectively. Reactions at appropriate concentrations of ABTS (300 μM), NBD (500 μM) and VA (5 mM) were analyzed in citric acid/dibasic sodium phosphate buffer (pH 2.2 ~ 5.0) and potassium phosphate (pH 5.5 ~ 10.0) buffers. Formation of the ABTS cation radical (ɛ418, 36,000 M−1 cm−1), 4-nitrocatechol (ɛ425, 9700 M−1 cm−1) and veratraldehyde (ɛ310, 9300 M−1 cm−1) products were tested by spectrophotometer, respectively.
Thermostability and solvent sensitivity
rMfiUPO (final concentration 0.5 μM) was prepared in 50 mM potassium phosphate buffer (pH 7.0), then splited into aliquotes of 50 μL. Sample was incubated in a thermocycler on a gradient ranging from 40 °C to 90 °C for 10 min, then chilled on ice and incubated at room temperature. Finally, samples were subjected to the ABTS and NBD assays as described above for activity assay. Thermostability values were calculated from the ratios between the residual activities at different temperatures and the initial activity at room temperature.
The relative activities in organic solvents were assessed with the ABTS activity assay, supplementing with 5% ~ 30% concentration of organic solvent (acetone, acetonitrile, DMSO, methanol and ethanol). Tolerance in organic solvent (retained activity after incubating 50 nM enzyme with 50% solvents after 5, 15 and 40 h, respectively) was defined as the ratio of the activity in the presence of organic solvent to that in the absence of organic solvent (control).
Enzyme kinetics
Kinetic constants were estimated at the optimal pH. Kinetic curves were obtained by varying the concentrations of ABTS (from 0.07 μM to 0.3 mM), NBD (from 0.07 μM to 1.5 mM) and VA (from 0.07 μM to 4.5 mM) in spectrophotometer and adding 3 ~ 75 nM rMfiUPO, respectively. The reactions were initiated by adding 2 mM H2O2, the time was monitored to ensure that the rates of reactions were in linear phase, and values were calculated as the change in absorbance over time. All reactions were incubated at 30 °C in triplicate. Data were fitted to the Michaelis–Menten equation using GraphPad Prism software 7.0.
SDS-PAGE analysis and deglycosylation
The molecular mass of rMfiUPO was analyzed by sodium dodecyl sulfate–polyacrylamide gel electrophoresis (SDS-PAGE) on a 12% gel. The separated protein bands were visualized with Coomassie Brilliant Blue R-250 staining, a protein molecular weight marker was used as standard. Enzymatic deglycosylation was performed using Endo-β-N-acetylglucosaminidase H (Endo H) for 12 h at 37 °C and detected by SDS-PAGE.
Bioconversions
The hydroxylation reaction was carried out in triplicate in glass vials at 30 °C and 300 rpm with a final volume of 1 mL. The reaction mixtures contained purified rMfiUPO (0.25 μM) solution, phosphate buffer (50 mM) pH 6.0, and substrates (1a ~ 3a and 5a, 10 mM). The reaction was started by the continuous addition of H2O2 to the final concentration of 2 mM. After 12 h conversions, samples containing substrates 1a ~ 3a and 5a were extracted with ethyl acetate (2 × 2 mL), and the organic layer was dried over Na2SO4, and analyzed on gas chromatography (GC). The detailed methods for GC analysis were described in the Additional file 1: Table S1.
The epoxidation reactions (1 mL scale) were performed as biological triplicates in 100 mM potassium phosphate (pH 7.0) containing 0.25 μM of rMfiUPO, 1 mM of styrene 4a and 2 mM H2O2. The substrate was prior dissolved in pure acetone yielding a 10% (v/v) co-solvent ratio in the final reaction mixture. Reactions were performed for 12 h at 30 °C in vials constantly shaken at 300 rpm, and subsequently quenched by the addition of an equal volume of ethyl acetate. Extraction was accomplished by vigorous vortexing for 30 s, followed by brief centrifugation (12,000 rpm for 1 min). The separated organic layer was then used for GC analysis (Additional file 1: Table S1).
Semipreparative-scale biotransformation
Synthesis of 3b: The reaction was carried out on a 100 mL scale in a wave vial with a septum cap at 30 °C and 300 rpm. The reaction mixture contained rMfiUPO (c final = 16 μM) and the substrate β-ionone 3a (2.88 g, c final = 150 mM) in phosphate buffer (50 mM, pH 6.0) with 15 vol % acetone. The conversion was stirred at room temperature while H2O2 (4 mM h−1) was continuously supplied with a syringe pump. Samples (2 mL) were taken from the reaction mixture every 30 min and ethyl acetate (2 mL) was added. The samples were centrifuged, and the supernatants were analyzed by GC. After complete conversion, the reaction mixture was extracted (3 × 200 mL ethyl acetate), then the combined organic phases were dried over Na2SO4, and evaporated under reduced pressure, and the product was purified by chromatography on silica gel with ethyl acetate/petroleum ether (1:10) as the eluent. The structure of preparative-scale biotransformation product 3b was verified by NMR.
Results and discussion
Unspecific peroxygenase candidate mining

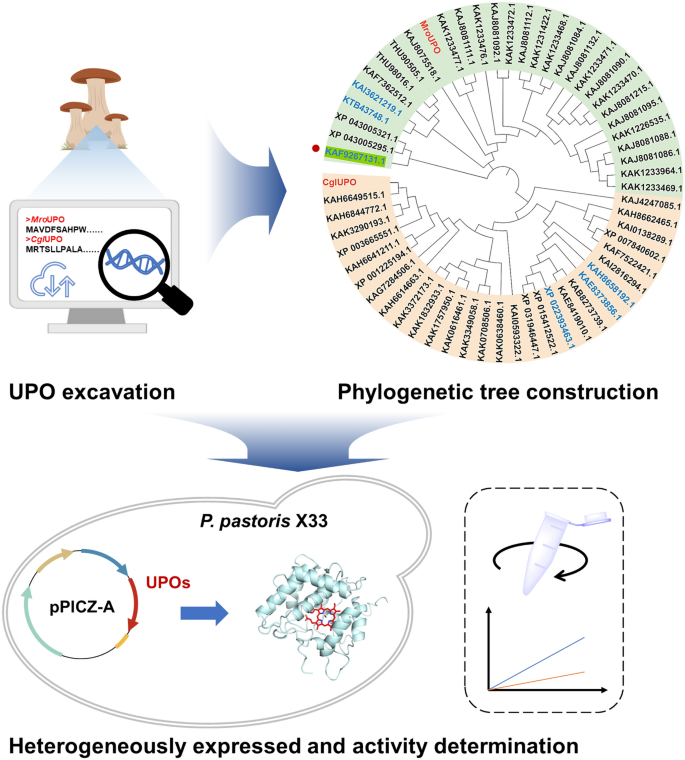

To identify novel efficient short-UPOs from the large amounts of putative sequences of NCBI database, MroUPO and CglUPO were chosen as prototype enzymes to facilitate target sequence selection. Firstly, according to multiple sequence alignments, 60 sequences were selected for generating a phylogenetic tree based on its high sequence identity (> 50%) (Fig. 1). Secondly, based on existing knowledge from literature combined with homology models of UPOs, six enzyme candidates were selected (Fig. 1, shown in blue). The sequence-optimized genes were synthesized and cloned into pPICZ-A plasmid, then linearized recombinant plasmids were transformed into P. pastoris X33 and target proteins were induced with methanol. The peroxygenase activities of six UPOs were determined using NBD as the model substrate. The results showed that only the MfiUPO (accession code, KAF9267131.1, amino acid sequence see Additional file 1: Table S2) from M. fiardii PR910 exhibited activity (457 U L−1) when expressed on shaking flask, while other enzymes were completely inactive.
Optimization of heterologous expression of rMfiUPO

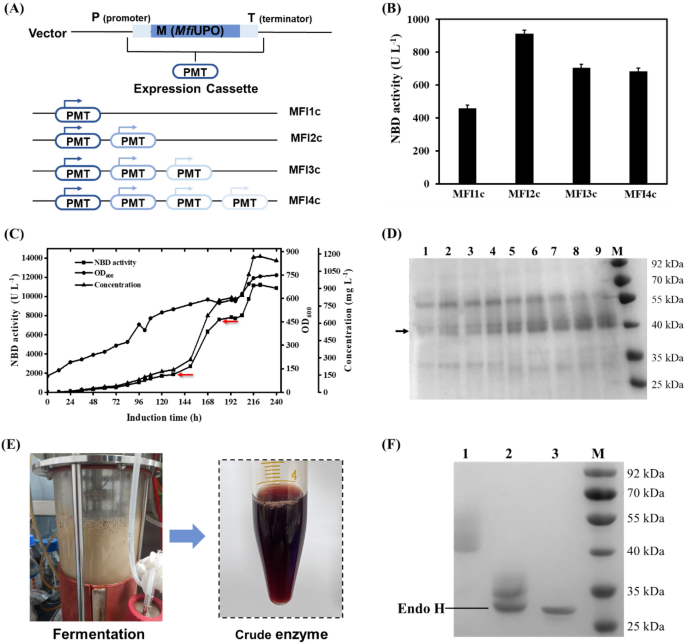

To improve the expression of rMfiUPO, biobrick assembly method was adopted to construct multiple-copy plasmids (Fig. 2A), the resulted plasmids were then linearized and transformed into P. pastoris X33, respectively. The positive clones of four recombinant P. pastoris strains MFI1c, MFI2c, MFI3c and MFI4c (means single-copy, 2-copy, 3-copy and 4-copy, respectively) were selected and expressed on shaking flask scale, respectively. After 7 d methanol induction, the results showed that the activities of multiple-copy expression cassette were better than that of single-copy, while the expression level of three- and four-copy were lower than that of two-copy, which needs further investigation. The NBD activities of rMfiUPO in recombinant strains MFI1c, MFI2c, MFI3c and MFI4c were 457 U L−1, 912 U L−1, 705 U L−1 and 685 U L−1, respectively (Fig. 2B). Additionally, the pHBM905M vector was also used for the construction of MfiUPO multiple-copy expression according to the procedure reported previously (Song et al. 2020). However, the activities of recombinant strains were lower than that of pPICZ-A vector (Additional file 1: Table S3).
The recombinant strain MFI2c was then selected for rMfiUPO production in a 5 L bioreactor, after 223 h methanol induction, the final OD600, NBD activity and protein concentration were 741, 11189 U L−1 and 1180 mg L−1, respectively (Fig. 2C). The expression level of rMfiUPO reached 1.18 g L−1, which was the highest heterologous expression level of UPOs in P. pastoris up to now (Table 1). It needs to be pointed out that yeast extract and tryptone were significant factors for rMfiUPO expression, during the production, 0.5% (m/v) yeast extract and 1.0% (m/v) tryptone were collaboratively supplemented in 130 h and 180 h, respectively (Fig. 2C, red arrow). The SDS-PAGE analysis of interval sampling indicated that the target protein was gradually increased (Fig. 2D). Additionally, the reddish supernatant from 5 L bioreactor also showed high protein concentration of rMfiUPO (Fig. 2E). Purified rMfiUPO revealed a smeared band in the range of 40 to 55 kDa, and exhibited a band at approx. 35 kDa that was retained after N-deglycosylation with Endo H (Fig. 2F). To understand how glycosylation affects enzymatic activity, we tested the activity of deglycosylated rMfiUPO and compared it to rMfiUPO (Additional file 1: Fig. S2). The results showed that the deglycosylated enzyme had a slightly lower activity, with a 16.6% reduction compared to rMfiUPO.
Characterization of rMfiUPO

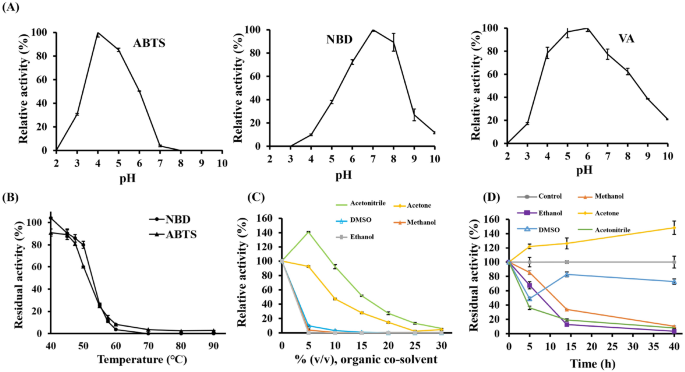

The pH value was a critical factor on bioconversions, rMfiUPO was optimally active at pH 7.0 and 6.0 on substrates NBD and VA, respectively, whereas acidic pH 4.0 was optimal for oxidation of substrate ABTS (Fig. 3A). Below 50 °C, rMfiUPO was only slightly affected, but when the temperature exceeded 60 °C, it was mostly inactivated. (Fig. 3B).
For the investigation of effect of organic solvents, several organic solvents such as acetone, acetonitrile, DMSO, methanol and ethanol were used to improve the availability of hydrophobic substrates in the aqueous phase. The activity and stability of rMfiUPO were evaluated in the presence of high concentrations of cosolvents with different polarities. Activity was reduced drastically in the presence of increasing concentrations of cosolvents in the following order: ethanol > methanol > DMSO > acetone > acetonitrile (Fig. 3C). In terms of stability in cosolvents, rMfiUPO was stable at concentrations as high as 50% (vol/vol) towards acetone and DMSO, with a half-life of over 40 h. Furthermore, the activity was boosted by acetone, which was up to 150% over 40 h (Fig. 3D). The reason for this could be attributed to the enhanced solubility of the substrate at higher acetone concentrations, which in turn increases the enzyme’s affinity for the substrate. It is worth noting that the enhanced enzyme activity resulting from the addition of acetone is a common occurrence, as reported in several other UPOs (Peter et al. 2011; Babot et al. 2013; Gomez de Santos et al. 2023).
To avoid H2O2 oxidative damage on enzyme, the capacity of rMfiUPO withstand various concentrations of H2O2 upon prolonged incubation was determined. The experiments were conducted by employing rMfiUPO with substrates ABTS, NBD and VA. As shown in Fig. 4A, the optimal activities of rMfiUPO for ABTS and NBD were observed at 4.0 and 3.8 mM H2O2, respectively, whereas for substrate VA, the highest activity was observed at 6.0 mM H2O2. The results shown that biotransformations catalyzed by rMfiUPO were less affected by elevated concentrations of H2O2, which also had certain reference significance for maintaining H2O2 concentrations below 4 mM during oxidation reaction.
The Michealis Mentens constants (Km), catalytic constants (kcat) and catalytic efficiencies ratios (kcat/Km) of ABTS, NBD and VA substrates were summarized in Fig. 4B and Table 2. rMfiUPO efficiently oxidized towards the non-phenolic substrate ABTS, exhibited remarkably low Km value of 22 μM, and the activity reached the plateau (kcat = 33.05 ± 2.48) at about 250 μM concentration. As a result of a lower measured Km, rMfiUPO had a better binding affinity with ABTS as compared to AaeUPO (25 μM), HspUPO (30 μM), PaDa-I (48 μM), rDcaUPO (59 μM), MroUPO (71 μM), PabUPO-I (105 μM), PabUPO-II (128 μM), CglUPO (106 μM) and rCviUPO (239 μM). Furthermore, the binding affinity with substrate NBD (Km 93 μM) was also higher than AaeUPO (684 μM), PaDa-I (483 μM) and CglUPO (532 μM) (Molina-Espeja et al. 2014; Gröbe et al. 2011; Rotilio et al. 2021; Gomez de Santos et al. 2021; Linde et al. 2020; Kiebist et al. 2017).
Reaction potential of rMfiUPO
To characterize the oxidation capacity of rMfiUPO, various substrates were investigated (Table 3). Ethylbenzene 1a, a common substrate for hydroxylation test, was regioselectively oxidized at the benzylic position to generate the corresponding (R)-alcohol 1b with 63% ee (Entry 1). In addition, phenol and β-ionone were also chosen as substrates for the hydroxylation reaction. Phenol 2a was selectively oxidized to hydroquinone 2b and catechol 2c in 80% and 20% yields, respectively (Entry 2). β-ionone 3a, a common terpenoid which has been explored by UPOs in recent years, could be oxidized efficiently by rMfiUPO to give 4-OH-β-ionone 3b with high regioselectivity (95%) (Entry 3). Turning to alkene, the epoxidation of styrene 4a resulted in complete conversion, yielding corresponding styrene oxides with only 7.1% ee (R) (Entry 4). Isophorone 5a was oxidized to produce 4-hydroxyisophoron 5b, 2,2,6-trimethylcyclo hexane-1,4-dione ketone 5c and 2,3-isophorone epoxide 5d with yields of 53%, 7% and 33%, respectively (Entry 5). The formation of the corresponding ketone 1d and 5c indicated that rMfiUPO has also the potential to perform the alcohol oxidation. Detailed information on the structural assignment of the products were showed in Additional file 1: Figs. S3, S4, S5, S6.
It needs to be pointed out that the regioselectvity of rMfiUPO catalyzed hydroxylation of β-ionone at C-4 position represents the highest reported among current UPOs. Both CglUPO and HinUPO were able to oxygenate β-ionone to give 4-OH β-ionone as main product, but with lower regioselectivity (84% and 79%) relative to rMfiUPO. Moreover, for AaeUPO, MroUPO, CciUPO and DcaUPO, in addition to C-4 hydroxylation, other positions (C-2 and C-3) hydroxylated products were also observed, which led to the much lower regioselectivity with the values ranging from 56 to 63% (Table 4). Thus, the highest regioselectivity of rMfiUPO makes it particularly advantageous for the efficient preparation and isolation of 4-OH β-ionone. It was known that the 4-OH β-ionones are the main aroma components of floral scents and important intermediates in the synthesis of hormone abscisic acid, which are particularly attractive for the flavor and fragrance industry and chemical synthesis (Brenna et al. 2002; Larroche et al. 1995).

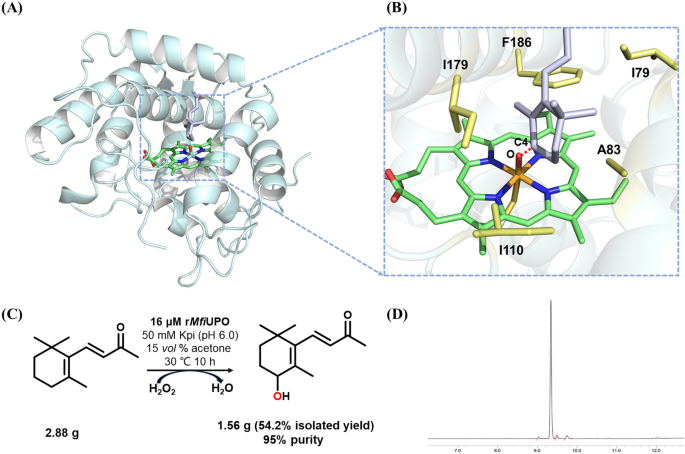

Next, to reveal the molecular basis of the high regioselectivity of rMfiUPO for C4 hydroxylation of β-ionone, we performed structural and computational analyses. First, Alphafold2 was used to predict the 3D structure of rMfiUPO. As shown in Fig. 5A, rMfiUPO is mainly composed of 8 α-helices and several loops. The substrate β-ionone was then docked to the active site to simulate its hydroxylation reaction (Fig. 5B). It can be seen that C4 is the closest to the Fe = O bond of rMfiUPO, making it easy to complete monooxygenation at the C4 position. This is consistent with the experiment results (Table 4). In addition, its binding pocket is composed of multiple hydrophobic residues and is highly hydrophobic. In particular, I179 and I110 have a strong anchoring effect on the hydrophobic ring of β-ionone, thus shortening the distance between C4 and heme. Finally, to demonstrate the practical feasibility of rMfiUPO catalyzed reaction, a semi-preparative production of 4-OH-β-ionone on a 100 mL scale was carried out with β-ionone as a substrate. As a result, the upscaled reaction (30 °C, 10 h) led to the synthesis of 1.56 g 4-OH-β-ionone (3b) (54.2% isolated yield) with 95% purity (Fig. 5C, D), indicating a great potential for industrial application. The structure of 4-OH-β-ionone (3b) was verified by NMR (Additional file 1: Fig. S7).
Conclusions
To sum up, a novel rMfiUPO was mined using MroUPO as a probe. Its heterologous expression in P. pastoris reached 1.18 g L−1, marking the highest record for UPO production to date. rMfiUPO exhibited lower Km values for both peroxidase and peroxygenase reactions and demonstrated exceptional oxidation characteristics. Notably, it oxidized β-ionone to produce 4-OH-β-ionone with a remarkable regioselectivity of 95%, surpassing the performance of currently reported UPOs. With its high-level expression, rMfiUPO could serve as a new template for the rational design of variants to achieve desirable traits such as increased activity, stability, a broader substrate spectrum, and higher regio- and enantioselectivity. This could pave the way for an efficient oxyfunctionalization biocatalyst in synthesizing high-value chemicals for industrial production applications.
