Nitric oxide mediates red light-induced perylenequinone production in Shiraia mycelium culture

Abstract

Perylenequinones (PQs) from bambusicolous Shiraia fungi serve as excellent photosensitizers for photodynamic therapy. However, the lower yield of PQ production in mycelium cultures is an important bottleneck for their clinical application. Light has long been recognized as a pivotal regulatory signal for fungal secondary metabolite biosynthesis. In this study, we explored the role of nitric oxide (NO) in the growth and PQ biosynthesis in mycelium cultures of Shiraia sp. S9 exposed to red light. The continuous irradiation with red light (627 nm, 200 lx) suppressed fungal conidiation, promoted hyphal branching, and elicited a notable increase in PQ accumulation. Red light exposure induced NO generation, peaking to 81.7 μmol/g FW on day 8 of the culture, with the involvement of nitric oxide synthase (NOS)- or nitrate reductase (NR)-dependent pathways. The application of a NO donor sodium nitroprusside (SNP) restored conidiation of Shiraia sp. S9 under red light and stimulated PQ production, which was mitigated upon the introduction of NO scavenger carboxy-PTIO or soluble guanylate cyclase inhibitor NS-2028. These results showed that red light-induced NO, as a signaling molecule, was involved in the regulation of growth and PQ production in Shiraia sp. S9 through the NO-cGMP-PKG signaling pathway. While mycelial H₂O₂ content exhibited no significant alternations, a transient increase of intracellular Ca²⁺ and extracellular ATP (eATP) content was detected upon exposure to red light. The generation of NO was found to be interdependent on cytosolic Ca²⁺ and eATP concentration. These signal molecules cooperated synergistically to enhance membrane permeability and elevate the transcript levels of PQ biosynthetic genes in Shiraia sp. S9. Notably, the combined treatment of red light with 5 μM SNP yielded a synergistic effect, resulting in a substantially higher level of hypocrellin A (HA, 254 mg/L), about 3.0-fold over the dark control. Our findings provide valuable insights into the regulation of NO on fungal secondary metabolite biosynthesis and present a promising strategy involving the combined elicitation with SNP for enhanced production of photoactive PQs and other valuable secondary metabolites in fungi.

Graphical Abstract

Introduction

Shiraia bambusicola is a pathogenic fungus to parasitize bamboo twigs, and its fruiting body has been used traditionally in Chinese medicine as Zhu Huang to treat conditions like rheumatoid arthritis, tracheitis and pains (Zhong and Xiao 2009). Shiraia hypha and fruiting bodies contain bioactive perylenequinones (PQs) such as hypocrellins and elsinochromes (Khiralla et al. 2022). Hypocrellin A (HA), a type of hypocrellins, exhibits strong photodynamic effects on tumor cells and microbial pathogens when exposed to visible light and oxygen. It has advantages such as high yields of reactive oxygen species (ROS), low dark toxicity, and rapid metabolism for the biomedical application (Miller et al. 1997). However, due to difficulties in artificial cultivation of the fruiting body and challenges in chemical synthesis of PQs like hypocrellins, Shiraia mycelium cultures have emerged as a biotechnological alternative for PQ production (Zhao and Liang 2005; Yang et al. 2009). To improve the low PQ productivity in Shiraia mycelium cultures, various abiotic elicitation strategies have been explored, including ultrasound exposure (Sun et al. 2017), Triton X-100 treatment (Lei et al. 2017) and lanthanum elicitation (Lu et al. 2019). Light, as an abiotic factor for Shiraia, also plays a role in regulating hypocrellin biosynthesis. For instance, Gao et al. (2018) reported that different light conditions promoted S. bambusicola growth, but decreased hypocrellin production. Our previous research showed that a light/dark shift (24 h: 24 h) stimulated HA production in Shiraia sp. S8 (Sun et al. 2018). Recent findings indicated that continuous blue-light exposure inhibited Shiraia HA production (Li et al. 2022), while red light (627 nm) at 200 lx significantly promoted HA (Ma et al. 2019a). Red light has been recognized as an essential environmental signal that facilitates the production of fungal metabolites, such as exo- and endo- polysaccharides of Ganoderma lucidum (Poyedinok et al. 2008), mycophenolic acid of Penicillium brevicompactum (Shu et al. 2010), and fumonisin B1-B3 of Fusarium verticillioides (Fanelli et al. 2012).

Following light perception, small molecular signals such as reactive oxygen species (ROS), adenosine triphosphate (ATP) and ion fluxes are induced to amplify the light signal for downstream reactions, including secondary metabolite production (Tisch and Schmoll 2010). For example, red light significantly promoted H₂O₂ production in Monilinia fructicola (Verde-Yáñez et al. 2023). Intracellular Ca²⁺ in the spores of Onoclea sensibilis increased from 0.1 to 10 μmol in response to red light exposure at 2.4 J m⁻² s⁻¹ (Wayne and Hepler 1985). In addition, a transient increase of intracellular ATP content was observed in Trichoderma viride upon white light exposure (Farkavš et al. 1985). Recently, nitric oxide (NO) has emerged as a new signaling molecule that modulates fungal growth, development and the biosynthesis of fungal secondary metabolites (Zhao et al. 2020). NO generation was also observed in fungi during light exposure, such as in Trichophyton rubrum, where intense pulsed light at 420 nm upregulated nitric oxide synthase (NOS) to synthesize NO, leading to fungal growth inhibition (Huang et al. 2019). Experiments using nitric oxide donor (sodium nitroprusside, SNP or S-nitrosoglutathione, GSNO) and NOS inhibitor (L-nitroarginine) demonstrated that NO inhibited the light-stimulated formation of conidia of Neurospora crassa (Ninnemann and Maier 1996; Filippovich et al. 2019). However, there have been no reports regarding NO generation in fungi induced by red light or its signaling roles in fungal secondary metabolite biosynthesis. Therefore, as a follow-up to our efforts to promote Shiraia HA production by light (Ma et al. 2019a) and understand the physiological roles of NO during the abiotic elicitation on Shiraia fungi (Li et al. 2020; Ma et al. 2021), we therefore wish to investigate red light-induced NO generation and its relationship with other eliciting responses, including ROS production, Ca²⁺ fluxes, extracellular ATP (eATP) levels, and Shiraia PQ biosynthesis. Additionally, a novel strategy involving combined elicitation with SNP (a NO donor) and red light is established for biotechnological production of hypocrellins in mycelium cultures.

Material and methods

Strains and culture conditions

The fungal strain Shiraia sp. S9 was isolated in our Lab (Ma et al. 2019b) and registered in China General Microbiological Culture Collection Center with accession number CGMCC16369. The fungal culture was maintained on potato dextrose agar (PDA; 200 g/L potato, 20 g/L glucose, 15 g/L agar) slants at 4 °C. For inoculation, spore suspension (4 mL of 10⁷ spores/mL) of Shiraia sp. S9 from PDA slants was transferred to 150 mL Erlenmeyer flasks containing 50 mL of liquid medium (potato, 100 g/L; starch, 20 g/L; NaNO₃, 4 g/L; KH₂PO₄, 1.5 g/L; CaCO₃, 0.5 g/L; VB1, 0.01 g/L; pH 6.3) for seed culture and incubated at 28 °C with shaking at 200 rpm for 2 days. The seed culture (10%, v/v) was poured into a 150 mL Erlenmeyer flask containing 50 mL of the same liquid medium for production culture (Sun et al. 2017).

Red light treatment

For red light exposure, Shiraia cultures were exposed to red light (627 nm, 200 lx) for 8 days at 28 °C in an illumination incubator (ZD-8802, Hualida, Suzhou, China). The LED lamps (XYC-T5001, Xiaoyecao Photoelectric Technology Co., Ltd., Shenzhen, China) with a wavelength of 627 nm were installed on the incubator, and the light intensity was adjusted to 200 lx. More details of light conditions refer to our previous study (Ma et al. 2019a). For the control (dark treatment), flasks were wrapped with aluminum foil. For SNP treatment, SNP was dissolved in sterilized distilled water to make a 100 mM stock solution and filter sterilized. The stock solution was then added to the liquid medium to a final concentration of 5 μM. For the combined treatment, mycelia were exposed to red light and treated with SNP (1–20 μM) on different day (day 1–5) during 8 day cultures. The experiments were carried out in shake-flask cultures using 150 mL Erlenmeyer flasks containing 50 mL medium on a rotary shaker at 200 rpm and at 28 °C. The treatments consisted of triplicate independent repeats (ten flasks per replicate) and all results were expressed as mean ± standard deviation (SD).

Observation of fungal morphology and conidia quantification

The fungal morphology of S9 was observed by a stereoscopic microscope (SMZ1000, Nikon, Tokyo, Japan), and the pellet diameter was measured in triplicates at different cultivation times (days 1–8). For spores count, the spore suspension was prepared by washing 8-day-old S9 with sterile water and the conidia number was determined using a hemocytometer under a microscope (CX21, Olympus, Tokyo, Japan). To observe the mycelial branches, a sterile coverslip was inserted on the periphery of a 3-day-old-S9 strain and continued to cultivate for 2 days at 28 ℃. The coverslip was removed and the hypha branching was observed under an inverted fluorescence microscope (TS2R-FL, Nikon, Tokyo, Japan). The determination of distance between two branches refers to the research by Ziv et al. (2013).

Determination of NO levels and NOS, nitrate reductase (NR) activity

NO production was determined using the NO-specific fluorescent probe 4,5-diaminofluorescein diacetate (DAF-2 DA, Sigma-Aldrich, St. Louis, MO, USA) (Turrion‐Gomez and Benito 2011). Mycelia were harvested and washed 3 times with sterilized distilled water. After washing, mycelia were incubated in darkness with 10 μM DAF-2 DA for 30 min at 28 °C. The fluorescence intensity was measured using a fluorescence microscope (CKX41, Olympus, Tokyo, Japan) with an excitation/emission wavelength of 470/525 nm. NO levels in hyphae were determined using a Nitric Oxide Assay Kit (Beyotime Biotechnology, Nanjing, China) (Li et al. 2020). The activity of NOS and NR was measured following the manufacturer’s instructions of the NOS Kit and the NR Kit (Nanjing Jiancheng Institute of Bioengineering, Nanjing, China). The protein concentration was determined using the Enhanced BCA Protein Assay Kit (Beyotime Biotechnology, Shanghai, China). Both NO contents and the activity of NOS and NR were measured in the shake-flask cultures. The treatments consisted of triplicate independent repeats (ten flasks per replicate).

cGMP determination

cGMP content in mycelia was determined using an ELISA Kit (Jiangsu Meimian Industrial Co., Ltd., Yancheng, China). Fresh mycelia were ground on the ice at a ratio of tissue (g): 0.01 M PBS (pH 7.2–7.4) (mL) of 1: 9, and tissue homogenate was centrifuged at 3000 rpm/min for 20 min at 4 ℃. The supernatant was used for cGMP content and protein concentration determination. The NO scavenger 2-(4-carboxyphenyl)-4,4,5,5-tetramethylimidazoline-1-oxyl-3-oxide (cPTIO) at 100 μM and soluble guanylate cyclase (sGC) inhibitor NS-2028 at 20 μM were added 30 min prior to the red light treatment.

Detection of Ca²⁺, H₂O₂ and extracellular ATP

Intracellular Ca²⁺ levels were measured using the Fluo-3-AM (Beyotime Biotech., Haimen, Jiangsu, China) as a probe. The fungal pellets cultured under different conditions were incubated with 5 µM Fluo-3-AM for 2 h. The mycelia were washed 3 times with PBS and were photographed under fluorescence microscopy (BX51, Olympus, Tokyo, Japan) with excitation at 480 nm and emission at 515 nm. The inhibitors of EGTA (Ca²⁺ chelator, 5 mM) and La³⁺ (membrane channel blocker, 2 mM) were added 30 min before the red light irradiation. The H₂O₂ content was determined as Mirshekari et al. (2019) described with some modifications. Briefly, fungal mycelia (300 mg) were ground into homogenates with 4 mL of 0.1% trichloroacetic acid in ice bath and then centrifuged at 12000 rpm for 20 min at 4 °C. The supernatant (0.5 mL) was diluted with 0.5 mL of potassium phosphate buffers (10 mM, pH 7.0) and 1 mL of potassium iodide (10 M). Finally, the absorbance of the mixture was measured at 390 nm by a Shimadzu UV-2600 spectrophotometer (Kyoto, Japan). For eATP detection, the fermentation broth cultivated for different times was collected and measured using a luciferin-luciferase ATP assay kit (Beyotime Biotech., Haimen, Jiangsu, China) according to Wu et al. (2008). The eATP antagonists purinoceptor inhibitor pyridoxalphosphate-6-azophenyl-2′, 4′-disulfonic acid (PPADS, Abcam, Cambridge, MA, USA) at 10 µM and a specific inhibitor of membrane purinoceptors inhibitor reactive blue (RB, Yuanye Biotech., Shanghai, China) at 10 µM were added 30 min prior to the red light treatment.

Membrane permeabilization assay

The membrane permeability was measured using a high-affinity nucleic acid stain fluorescent dye SYTOX Green (Molecular Probes, Eugene, Oregon, USA). The mycelia cultured for 5 days were treated with 0.5 μM SYTOX Green for 30 min and photography through a fluorescent microscope (CKX41, Olympus, Japan) with an excitation/emission wavelength of 488/538 nm. The NO donor SNP (5 μM) and scavenger cPTIO (100 μM), and sGC inhibitor NS-2028 (20 μM) were added 30 min prior to the red light treatment.

PQ extraction and quantification

The fungal PQ extraction in the mycelium culture refers to our previous study (Lei et al. 2017). Therein, the PQ contents were detected by the reverse-phase Agilent 1260 HPLC system (Agilent, Wilmington, NC, USA) with Agilent HC-C18 column (250 × 4.6 mm) (Agilent, Santa Clara, CA, USA) with a mobile phase (acetonitrile: water at 65: 35, v/v). The injection volume was 10 μL with the flow rate 1 ml/min, and the UV detection wavelength was 465 nm (Tong et al. 2017). HPLC chromatograms of PQ standards were presented in Additional file 1: Fig. S1. Total hypocrellin A production refers to the sum of intracellular and extracellular hypocrellin A.

Quantitative real-time PCR analysis

The primer of genes related to the sporulation (Ma et al. 2019a; Zhao et al. 2021b), genes for HA biosynthesis and internal reference gene (18S ribosomal RNA) are listed in Additional file 1: Table S1. The real-time quantitative PCR (RT-qPCR) was measured in the CFX96-C1000 Touch Real-Time PCR Detection System (Bio-Rad, Hercules, CA, USA) for gene transcription analysis.

Statistical analysis

All experimental data were performed in triplicate independent experiments. Data were analyzed using one-way analysis of variance (ANOVA) with Dunnett′s multiple-comparison tests and student’s t-test. All the experimental results are expressed as mean ± standard deviation (SD) of triplicate experiments. Statistical significance was defined as p < 0.05.

Results

Effect of red light on fungal growth and PQ production

To explore the influence of red light on the production of PQs, Shiraia sp. S9 was inoculated on the PDA plate or in mycelium culture under red light treatment. The intensity (200 lx) and exposure time (24 h/day) for red light were chosen based on our previous study (Ma et al. 2019a). After red light treatment, the fungal pellets became darker and tighter in the liquid cultures (Fig. 1A), but there was no significant difference in the pellet diameter (Fig. 1B). Under red light exposure, the number of mycelial branches was increased and the branching distance was shortened by 41.7%, whereas the spore formation was inhibited and the conidia count decreased by 22.2% compared to the dark control group (Fig. 1C, D). In the liquid culture, both pH value and residual sugar content remained unaltered following red light treatment (Additional file 1: Fig. S2).

Fig. 1

Effects of red light on the growth and development of Shiraia sp. S9. A The pellet morphology (15 ×) and pellet diameters (B) during the culture. The liquid culture of S9 was incubated in the dark or red light treatment at 28 ℃ and 150 r/min. The intensity of red light (627 nm) was 200 lx. C The mycelial morphology (400 ×) under the dark or red light treatment. D The length between mycelial branches and spore concentration of S9. Values are mean ± SD from three independent experiments (^**p < 0.01 vs. dark control, ten flasks or plates per replicate)

Although the application of red light did not elicit significant effects on fungal growth (pellet diameter) in liquid culture (Fig. 1B), the secretion of red pigments by the fungus was promoted in the plate (Fig. 2A). Furthermore, in liquid cultures, the exposure to red light notably boosted the production of red PQ pigments, both in the mycelium (Fig. 2B, C) and cultural broth (Table 1). Specifically, in mycelium culture, the content of individual PQs such as HA, HC, elsinochrome A (EA), EB and EC exhibited substantial increases, with fold changes of 3.1, 3.6, 2.0, 1.9 and 2.1, relative to the dark control (Table 1).

Fig. 2

Effects of red light on morphology and perylenequinone (PQ) production of Shiraia sp. S9. A The solid-state culture of Shiraia sp. S9. The PDA plate was cultivated at 28 ℃ under dark (control group) or red light (treatment group) conditions, respectively. The intensity of red light (627 nm) was 200 lx. B The liquid culture of Shiraia sp. S9. The culture was maintained in a 150 mL flask containing 50 mL medium at 150 r/min and 28℃ and the photos were taken on day 3. C The chromatogram of individual PQs in the mycelium. Values are mean ± SD from three independent experiments (ten flasks or plates per replicate)

Table 1 Effects of red light on the individual perylenequinone (PQ) production in liquid culture of Shiraia sp. S9*

Red light-induced NO generation

In our investigation of the impact of red light on NO generation in Shiraia sp. S9, we used the NO-specific fluorescent probe DAF-2 DA as previously described (Turrion‐Gomez and Benito 2011). As shown in Fig. 3A, a conspicuous green fluorescence of DAF-2 DA appeared in the mycelia after red light treatment. The NO content increased to 1.9 times compared to the dark control (Fig. 3B). Notably, when the culture medium was pretreated with NO scavenger cPTIO, red light-induced fluorescence markedly diminished (Fig. 3A). Furthermore, the addition of NOS inhibitor Nω-nitro-l-arginine methyl ester (l-NAME) and NR inhibitor sodium tungstate dehydrate (STD) resulted in a suppression of NO content in mycelia by 27.0% and 33.3%, respectively (Fig. 3B). The time course of NO generation revealed that NO level began to elevate on day 4 after red light treatment and reached the highest point at 81.7 μmol/g FW on day 8, about 2.4-fold higher than the control (Fig. 3C). To further investigate on the sources of NO production, we assessed the enzyme activity of NOS and NR. Under red light treatment, both NOS and NR activity had a significant increase, reaching their peak value (24.0 U/mg protein of NOS and 23.3 U/mg protein of NR) on day 8 and day 6, respectively (Fig. 3D). Chen et al. (2022) reported that NO was involved in the l-arginine-induced PQ formation through the sGC pathway in Shiraia sp. Slf14(w). However, the corresponding gene encoding sGC was not found in Shiraia genome. In an effort to investigate on the involvement of sGC-cGMP pathway during red light treatment, we used sGC inhibitor NS-2028 and measured the content of cGMP. Red light treatment induced a 50.5% increase in cGMP content, reaching 12.7 pmol/g fresh weight (FW) on day 8. However, this increase was mitigated in the presence of the sGC inhibitor NS-2028 or the NO scavenger cPTIO (Fig. 3E). These findings collectively suggest that NO-sGC-cGMP pathway could be involved in the elicitation of red light.

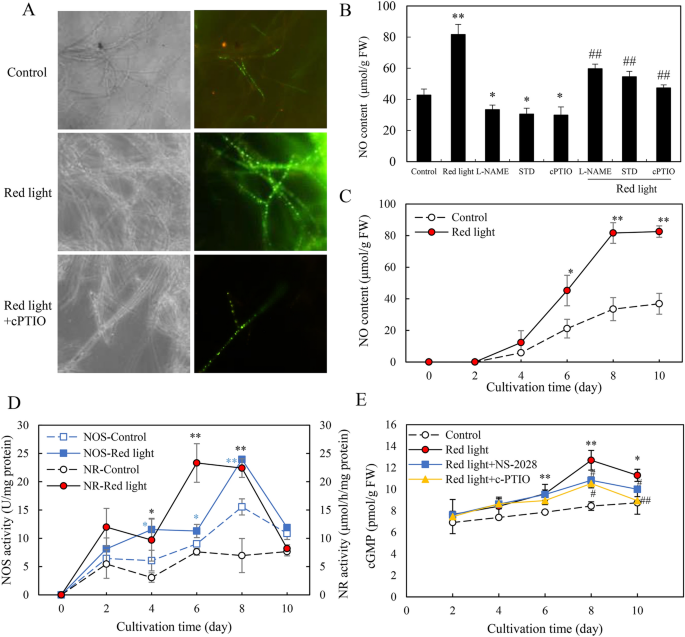

Fig. 3

Effects of red light on NO generation of Shiraia sp. S9 in liquid culture. A Bright-field image (left) and fluorescence microscopy of DAF-2 DA-stained mycelia (right) (400 ×) in the cultures. cPTIO (100 μM) were added 30 min before red light treatment and the photo was taken on day 8. The intensity of red light (627 nm) was 200 lx. B The NO content in the mycelium. l-NAME (100 μM), STD (100 μM) and cPTIO (100 μM) were added 30 min before red light treatment respectively, and the mycelia were harvested on day 8. C Time course of NO content. D NOS and NR activity in Shiraia sp. S9. E cGMP content in Shiraia sp. S9. NS-2028 (20 μM) and cPTIO (100 μM) were added 30 min prior to the red light treatment. The culture was maintained in a 150 mL flask containing 50 mL medium at 28 ℃ and 150 r/min. Values are mean ± SD from three independent experiments. (^*p < 0.05 and ^**p < 0.01 vs. control. ^##p < 0.01 vs. red light treatment, ten flasks per replicate)

NO involved in the effects of red light on Shiraia growth

Red light treatment reduced both the pycnidia production and spore numbers, which were subsequently restored by NO donor SNP (Fig. 4A). The NO scavenger cPTIO or sGC inhibitor NS-2028 further inhibited the spore concentration (Fig. 4B). Additionally, the length between mycelial branches was shortened by red light and the addition of SNP further decreased the branching length. Conversely, the addition of cPTIO or NS-2028 led to an increase of branching length when compared to red light treatment alone (red light + cPTIO or NS-2028 vs. red light in Fig. 4B). Furthermore, based on our previous transcriptional analysis of S. bambusicola S8 under red light (Ma et al. 2019a), we analyzed the expression levels of genes related to sporulation, including sexual differentiation process protein (ISP7), cleistothecium development (CSN3), stage v sporulation protein k (SSPK), 30 kDa heat shock protein (HSP30), and transcriptional factor BrlA and WetA. These genes have been reported to be responsive to external NO application and be also related to fungal conidiation (Boylan et al. 1987; Zhao et al. 2021b). In our study, their expressions were significantly down-regulated by red light, about 4.5-, 8.8-, 3.7-, 2.8-, 2.1-, 2.5-fold relative to the control, respectively. Importantly, the suppressed expressions of these genes were partially restored after the addition of SNP, but were further suppressed by cPTIO and NS-2028 (Fig. 4C). These results indicated the involvement of NO and the sGC-cGMP pathway in the regulation of fungal growth and development of Shiraia sp. S9 under red light conditions.

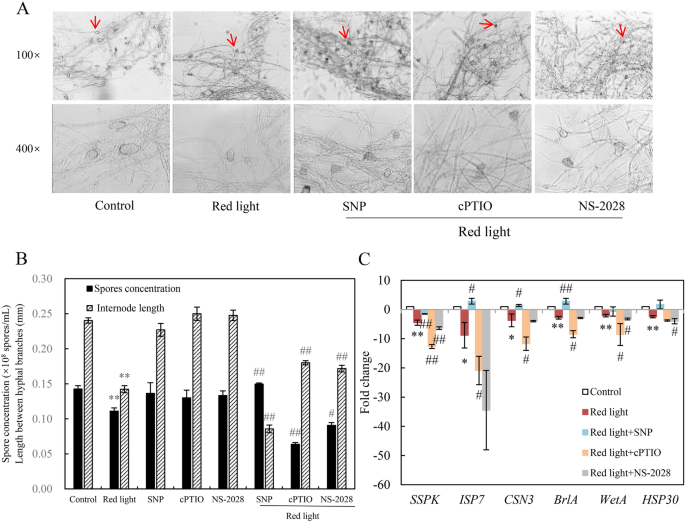

Fig. 4

Effects of NO on the growth and development of Shiraia sp. S9 under the red light. A The morphologic characteristics of S9. The red arrow indicates pycnidium. SNP (5 μM), cPTIO (100 μM) and NS-2028 (20 μM) mixed with PDA medium were poured into a Petri dish and the plate was incubated at 28 ℃ for 8 days. The intensity of red light (627 nm) was 200 lx. B The number of spores and the length between mycelial branches of S9. C The relative expression levels of genes associated with sporulation. The culture was maintained in a 150 mL flask containing 50 mL medium at 28 ℃ and 150 r/min under the dark or red light treatment. Values are mean ± SD from three independent experiments (^*p < 0.05 and ^**p < 0.01 vs. control. ^#p < 0.05 vs. red light treatment, ten plates per replicate)

NO involved in red light-induced fungal membrane permeability

To examine the impact of red light on the membrane permeability of Shiraia sp. S9, we employed SYTOX Green, a high-affinity nucleic acid stain fluorescent dye, as described by Thevissen et al. (1999). Following 5 days of exposure to red light, a pronounced green fluorescence signal was evident (Fig. 5A), indicating an enhanced membrane permeability. Remarkably, the red light-induced fluorescent signal was further intensified upon the addition of the NO donor SNP, about 1.3-fold compared to the group subjected to red light alone (red light + SNP vs. red light in Fig. 5). Conversely, the addition of NO scavenger cPTIO or sGC inhibitor NS-2028 attenuated red light-induced fluorescence (Fig. 5A, B), thereby suggesting the involvement of red-light induced NO signal in the increased membrane permeability of Shiraia sp. S9.

Fig. 5

Effects of NO on hyphal cell membrane permeability of Shiraia sp. S9 under the red light. A The integrity of mycelial cell membrane. The mycelia cultured for 5 days were treated with 0.5 μM SYTOX Green for 30 min and photography through a fluorescent microscope. SNP (5 μM), cPTIO (100 μM) and NS-2028 (20 μM) were added 30 min prior to the red light treatment, respectively. The intensity of red light (627 nm) was 200 lx. B The mean fluorescence intensity. The culture was maintained in a 150 mL flask containing 50 mL medium at 28 ℃ and 150 r/min under the dark or red light treatment. Values are mean ± SD from three independent experiments (*p < 0.05 and **p < 0.01 vs. control. ^#p < 0.05 vs. red light treatment, ten flasks per replicate)

Red light-induced ROS, Ca²⁺ and eATP signals

We conducted assessments of the other signaling molecules, including ROS, Ca²⁺ and extracellular ATP (eATP) as part of the early signaling events in Shiraia cultures during elicitation (Lu et al. 2019; Li et al. 2021). Notably, an increase in Ca²⁺ content induced by red light was observed, as evidenced by the intense green fluorescence exhibited by Fluo-3 AM (Fig. 6A). The increased Ca²⁺ content was further substantiated through the reduction of the fluorescence intensity upon the application of the Ca²⁺ chelator EGTA and membrane channel blocker La³⁺ (Fig. 6B). Furthermore, red light induced eATP content to 127 nM after 45 min, about 1.6-fold increase compared to the control (Fig. 6C). However, there was no significant change in H₂O₂ contents during the red light treatment (Fig. 6D). To delve into the interaction between Ca²⁺ or eATP signals and NO, we employed eATP antagonists (the purinoceptor inhibitor PPADS and RB) and Ca²⁺ antagonists (EGTA and LaCl₃), respectively. The red light-induced NO production was markedly inhibited by eATP antagonists (PPADS or RB) (Fig. 6E). Moreover, pretreatment of EGTA or LaCl₃ resulted in a 15.2% and 36.7% decrease in NO content, respectively (EGTA or LaCl₃ + Red light vs. Red light in Fig. 6F). These findings collectively indicate the involvement of both eATP and Ca²⁺ in the regulation of NO production during red light treatment.

Fig. 6

Effects of red light on the signal molecules in Shiraia sp. S9. A The relative fluorescence intensity of Ca²⁺ in S9. B Changes in the fluorescence of Ca²⁺. bright-field image (above) and fluorescence microscopy (below) of Fluo-3 AM-stained mycelia (400 ×). EGTA (5 mM) and LaCl₃ (2 mM) were added 30 min prior to the red light, respectively. The intensity of red light (627 nm) was 200 lx. The red light-induced eATP release (C) and H₂O₂ content (D) in the mycelium of S9. E The effect of eATP signal on NO content. PPADS (10 μM), RB (10 μM) were added 30 min prior to the red light treatment, respectively. F The effect of Ca²⁺ signal on NO content. Values are mean ± SD from three independent experiments (*p < 0.05 and **p < 0.01 vs. control. ^#p < 0.05 and ^##p < 0.01 vs. red light treatment, ten flasks per replicate)

The mediation of NO in red light-induced Shiraia PQ biosynthesis

Exposure to red light significantly enhanced the accumulation of PQs (Fig. 2, Table 1). In conjunction with this observation, we investigated the expression levels of genes associated with PQ synthesis, including major facilitator superfamily (MFS), O-methyl-transferase (Omef), multicopper oxidase (MCO), monooxygenase (Mono), polyketide synthase (PKS), FAD/FMN-containing dehydrogenase (FAD) and zinc finger transcription factor (ZFTF) (Zhao et al. 2016). When the mycelium culture was exposed to red light, the transcriptional levels of these genes were up-regulated, with fold increases of 3.0-, 4.7-, 10.8-, 6.9-, 3.9-, 3.2- and 1.6-fold, respectively (Fig. 7A). Furthermore, we delved into the role of NO in red light-induced PQ production of Shiraia sp. S9. The application of the NO donor SNP resulted in a further promotion of intracellular PQ contents, particularly HA (12.33% increase). However, both intracellular PQs (HA, HC and EA) and extracellular PQs were inhibited by the NO scavenger cPTIO or sGC inhibitor NS-2028 (Table 1). The transcription levels of genes related to PQ synthesis were similarly enhanced by SNP but repressed by cPTIO or NS-2028 (Fig. 7A). These findings collectively suggest that NO and its sGC-cGMP pathway play a pivotal role in the enhanced PQ production in Shiraia sp. S9 cultures exposed to red light.

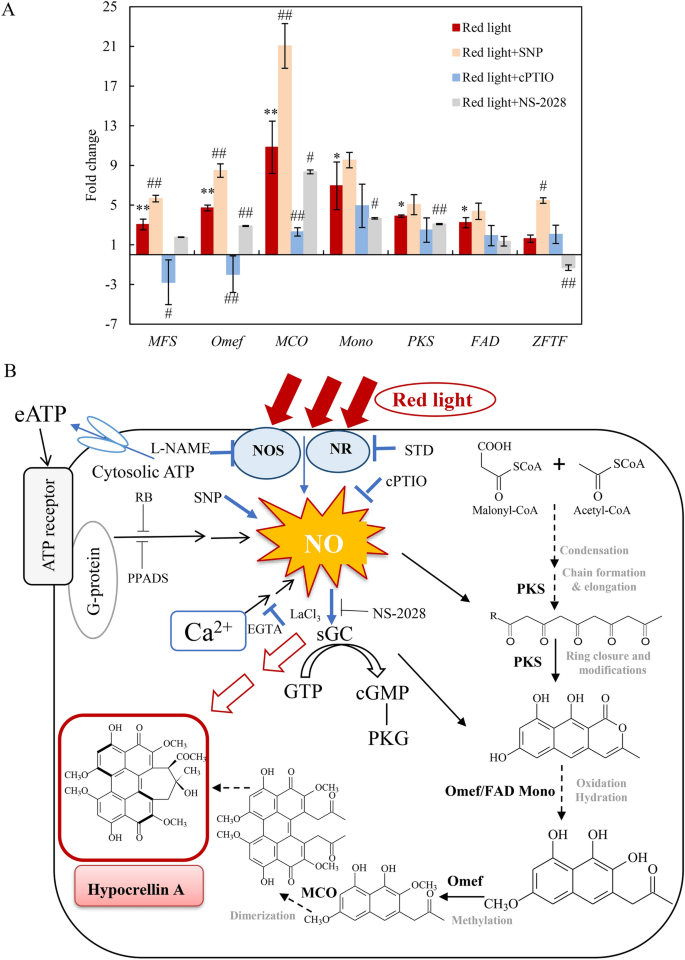

Fig. 7

Effects of NO on the expression of perylenequinone (PQ) biosynthetic genes under red light treatment (A). SNP (5 μM), cPTIO (100 μM) and NS-2028 (20 μM) were added to the culture 30 min before red light treatment, respectively. The intensity of red light (627 nm) was 200 lx. Values are mean ± SD from three independent experiments. (^*p < 0.05 and ^**p < 0.01 vs. control. ^#p < 0.05 and ^##p < 0.01 vs. red light treatment, ten flasks per replicate). B A schematic diagram of red light-induced HA biosynthesis of Shiraia sp. S9. NO nitric oxide, eATP extracellular ATP, EGTA Ca²⁺ chelator, LaCl₃ membrane channel blocker, RB an inhibitor of eATP signal transduction across the plasma membrane, PPADS the purinoceptor inhibitor, sGC soluble guanylate cyclase, NS-2028 sGC inhibitor

Combined elicitation of red light and SNP on Shiraia HA production

To enhance the production of HA, a key bioactive PQ in Shiraia mycelium cultures, we introduced SNP (5 μM) in the culture 30 min prior to initiating red light treatment according to our pre-experiment results (Additional file 1: Fig. S3, Fig. 4). Although the red light treatment or its combination with SNP (1, 5, 10 and 20 μM) did not yield significant changes in fungal biomass (Additional file 1: Fig. S3A), it did lead to a significant enhancement in HA production (Additional file 1: Fig. S3B–D). Furthermore, when subjected to the combined treatment of red light and 5 μM SNP on day 1, HA content in both the mycelium and cultural broth was stimulated significantly. Consequently, the total HA production was boosted by 38.6% compared to the red light treatment alone (Additional file 1: Fig. S3D). Subsequently, we introduced 5 μM SNP into the red light cultures at different time points (day 1–5). The choice of day 1 for SNP addition was based on its eliciting effects on HA production (Additional file 1: Fig. S4). Under the optimized elicitation conditions, where SNP (5 μM) was added on day 1 of the mycelium culture under red light exposure (200 lx), the total HA production reached 254 mg/L, about 3.0-fold increase over the dark control (Fig. 8).

Fig. 8

Time profiles of fungal biomass (A), HA content in mycelium (B), the released HA in cultural broth (C) and total HA production (D) of Shiraia sp. S9. The culture was maintained in a 150 mL flask containing 50 mL medium at 150 r/min and 28 ℃ under the dark or red light treatment for 8 days. The intensity of red light (627 nm) was 200 lx. SNP (5 μM) was added on day 1 of culture, 30 min before the red light treatment. Values are mean ± SD from three independent experiments (*p < 0.05 and **p < 0.01 vs. control. ^#p < 0.05 and ^##p < 0.01 vs. red light treatment, ten flasks per replicate)

Discussion

Shiraia spp. are pathogenic fungi known to colonize bamboo branches in Eastern Asia (Morakotkarn et al. 2007). The Shiraia infection usually occurs in the brim of bamboo forest and its fruitbodies were formed at the shoot apex of bamboos (Li et al. 2009; Liu et al. 2012), implying a possible dependence on light for the fungal growth and development. Given that photoactive PQs play a significant role in fungal virulence and pathogenicity by generating ROS (Daub et al. 2013), it is reasonable to hypothesize that the PQ-producing fungi like Shiraia, Cercospora and Elsinoё species may exhibit sensitivity to light during growth and infections. Fungi typically generate ROS as a response to stress conditions induced by ultraviolet radiation (UV) and blue light exposure (Kim et al. 2013; Schumacher and Gorbushina 2020). In our previous study, it was observed that a light/dark shift (24: 24 h) or the intermittent blue light (6 h per day) at 200 lx stimulated HA production in Shiraia mycelium cultures, with concomitant induction of fungal ROS generation (Sun et al. 2018; Li et al. 2022). In the present study, red light (627 nm) at 200 lx was found to promote the accumulation of fungal PQs, including HA, HC and EA-EC in Shiraia sp. S9 (Table 1), however, there was no significant changes in H₂O₂ production in Shiraia mycelia under red light treatment (Fig. 6D). To the best of our knowledge, the only published work on fungal H₂O₂ production induced by red light (light-emitting diode, Philips 20W/T9/BLB) at 660 nm was conducted in Monilinia fructicola by Verde-Yáñez et al. (2023). In addition to ROS, NO is another signaling molecule in fungal responses to light exposure (Cánovas et al. 2016). NO has been shown to participate in the light-dependent regulation of conidiation in Neurospora crassa (Ninnemann and Maier 1996) and Aspergillus nidulans (Marcosa et al. 2020). Huang et al. (2017; 2019) reported that intense pulsed light (IPL) could induce NO generation in the dermatophyte Trichophyton rubrum, inhibiting its growth through nitrosative damage with ROS. Our current study demonstrates red light-induced NO generation (Fig. 3), and its regulatory effects on Shiraia growth, development (Fig. 4) and PQ production (Fig. 2, Table 1). Similar reports on induced NO generation have been found in Shiraia species treated with both biotic elicitors from Aspergillum niger (Du et al. 2015) and Phytophthora boehmeriae (Du et al. 2019), as well as abiotic elicitation such as Triton X-100 treatment (Li et al. 2020) or heat stress (Xu et al. 2023). Thus, NO may be one of important signals in the elicitation of Shiraia fungi by red-light exposure. Unlike the aforementioned elicitation methods, red light induced NO production in a longer duration (approximately 4–8 days) (Fig. 3C), and this elicitation by red light appeared to be independent of ROS in Shiraia cultures (Fig. 6D). This discrepancy likely arises from the different physiological responses to red light compared to other elicitors. NO can be synthesized through oxidative pathway mediated by NOS converting L-arginine to NO (Gorren and Mayer 2007). While the process of NO biosynthesis in fungi is not yet fully understood (Cánovas et al. 2016), l-arginine has been implicated in NO synthesis (Chen et al. 2022), and a NOS-like (NOSL) gene has been cloned from Shiraia sp. Slf14(w) (Xu et al. 2023). In our study, red light-induced NO production was inhibited by the NOS inhibitor (l-NAME), aligning with the role of NOS in Shiraia. Furthermore, the induced NO production was significantly suppressed by NR inhibitor STD (Red light + STD vs. Red light in Fig. 3B), suggesting the possible occurrence of a NR-dependent side reaction contributing to induced NO production in an alternative pathway (Yamasaki and Sakihama 2000). To our knowledge, this study represents the first report of fungal NO generation induced by red light and its effects on fungal growth and secondary metabolite biosynthesis.

After red-light exposure the fungal pellets of Shiraia sp. S9 had a dark tight core within the filamentous aggregation (Fig. 1A), suggesting alternations of fungal growth and PQ production. Although Shiraia biomass remained unchanged (Additional file 1: Figs. S3A, S4A), red light had inhibitory effects on fungal conidiation (Fig. 1D) and led to a reduction in the distance between hyphal branches (Fig. 1C, D), indicating that red light could be unfavorable for fungal growth and development. Röhrig et al. (2013) found that the spore germination of A. nidulans was significantly inhibited in the presence of red light, which was depended on the phytochrome FphA. The phytochrome FphA, light sensor VeA, CryA and the white collar (WC) complex (LreA, LreB, WC-1, 2) could mediate the transition of fungal asexual and sexual development under red light (Purschwitz et al. 2008). Therefore, sensing red light is complex signal-transduction processes for fungal development and metabolite biosynthesis. NO has been reported to play a role in the initiation and development of the spore production of Coniothyrium minitans (Gong et al. 2007). Zhao et al. (2021b) also observed up-regulation of conidiation-specific genes in response to SNP (0.2 mmol/L) and their suppression by the NO scavenger cPTIO. In our study, the induced NO could mitigate the inhibitory effects of red light on fungal growth (Fig. 4). NO can activate sGC, leading to the conversion of GTP to cGMP, which subsequently binds to protein kinase G (PKG) and initiates NO-cGMP-PKG signaling pathway to elicit the specific cellular responses (Zhao et al. 2020). When the sGC inhibitor NS-2028 was introduced into Shiraia cultures under red light, fungal conidiation was further suppressed and the distance of hyphal branches increased (red light + NS-2028 vs. red light in Fig. 4B, C). Simultaneously, cGMP production was induced by red light during the cultures (Fig. 3E), suggesting a regulatory role of sGC in fungal sporulation and hyphal growth. Furthermore, exogenous NO supplied by SNP not only promoted fungal conidiation (Fig. 4B), but also potentiated the red light-induced perylenequinone accumulation of Shiraia sp. S9 (Table 1, Additional file 1: Fig. S3, Fig. 4). Mycelium cultures exposed to red-light in the presence of a sGC inhibitor NS-2028 or a NO scavenger cPTIO significantly decreased the contents of individual PQs (Table 1). Therefore, our study suggests that NO can also mediate red light-induced PQ biosynthesis through the NO-sGC-GMP signaling pathway.

In addition to NO generation, red light exposure also induced the production of other signal molecules, such as eATP and Ca²⁺, during the early stage of mycelium culture (Fig. 6). Our study demonstrated an effective inhibition of fungal NO production by purinoceptor inhibitors (RB, PPADS) (Fig. 6E), as well as by the calcium chelator EGTA and the calcium channel blocker La³⁺ (Fig. 6F). These findings strongly suggest that eATP and Ca²⁺ play pivotal roles as key signals in mediating the physiological responses induced by NO in Shiraia sp. S9 under red light exposure. Our previous study showed that eATP acted as the intercellular signal to induce HA biosynthesis during co-culture of Shiraia sp. S9 with a bacterium Pseudomonas fulva SB1 (Li et al. 2021). The involvement of Ca²⁺/calmodulin (CaM) signaling in PQ production of Shiraia sp. Slf14 was also suggested, as evidenced by the effects of Ca²⁺ supplement and the use of Ca²⁺ sensor inhibitors (chlorpromazine and tacrolimus) (Liu et al. 2018). In the current study, we observed significant upregulation in the expressions of seven genes (MFS, Omef, MCO, Mono, PKS, FAD and ZFTF) from the hypocrellin synthesis gene cluster in response to red light (Fig. 7). Both the red light-induced expressions of HA biosynthetic genes (Fig. 7A) and HA production (Table 1) were markedly inhibited by the NO scavenger cPTIO. These results collectively suggest that NO can act as a signal molecule with eATP and Ca²⁺, working synergistically to enhance the biosynthesis of HA under red light conditions.

SNP, a NO donor has been utilized in plant cell cultures to stimulate production of plant secondary metabolites, such as hypericin, puerarin and catharanthine (Xu et al. 2005a, b; 2006). More recently, researchers have extended their efforts to use SNP as an elicitor in submerged mycelium cultures to enhance fungal metabolites, including the production of ganoderic triterpenoid in Ganoderma lucidum (Gu et al. 2017) and polyphenols in Inonotus obliquus (Zheng et al. 2009). In our previous work, we observed that the intracellular HA content of Shiraia sp. S9 increased by 73.31–178.96% when treated with 0.02 mM SNP on day 3 of a 9-day-culture (Ma et al. 2021). Additionally, Zhao et al. (2021a) reported that exogenous addition of 0.01 mM SNP promoted PQ production (HA and elsinochrome A) in S. bambusicola S4201 by 156% compared to the control. In the current study, we combine SNP treatment with red light exposure in the mycelium culture of Shiraia sp. S9 (Fig. 8). When 5 μM SNP was added on day 1 of the culture under red light exposure at 200 lx, fungal HA production increased to 254 mg/L, about 3.0-fold over the dark control. This approach using red-light treatment offers biotechnological advantages, particularly in fungal HA production in large-scale bioreactors with light‐emitting diodes. Further increases in HA production can be expected through the optimization of culture conditions and the refinement of the combined eliciting strategies.

Conclusions

In conclusion, this study represents the first assessment of the mediating role of NO in the regulation of Shiraia conidiation, hyphal growth, and PQ production in response to red light exposure. Our investigation clearly showed that red light could inhibit fungal conidiation, increase hyphal branching and stimulate PQ accumulation in Shiraia sp. S9. The NO donor SNP potentiated red light-induced responses in fungal conidiation and PQ biosynthesis. Moreover, endogenous NO generation in the hyphae was induced by red light via NOS- or NR-dependent routes. The impact of red light on fungal conidiation and PQ production is partially mitigated upon the introduction of NO scavenger cPTIO or sGC inhibitor NS-2028, suggesting the NO-cGMP-PKG signaling pathway in Shiraia sp. after red light exposure. It is interesting to note that NO collaboratively functions as a signaling molecule with eATP and Ca²⁺, working synergistically to enhance PQ biosynthesis under red light conditions. NO generation induced by red light was further implicated in enhancing membrane permeability and upregulating transcript levels of PQ biosynthetic genes in Shiraia sp. S9, which led to the increase of both intracellular and extracellular PQ production. Importantly, the synergistic combination of red light exposure and NO donor SNP treatment amplified the stimulation of HA production in Shiraia mycelium culture. Our study provided a new understanding of NO signaling in biosynthesis of fungal metabolites, and shed new light on the signaling events during red light exposure. The new strategy of combined elicitation could be harnessed in photo-bioreactors for the potential biotechnological production of fungal secondary metabolites with pharmaceutical and industrial applications.
