Identification of a novel metabolic engineering target for carotenoid production in Saccharomyces cerevisiae via ethanol-induced adaptive laboratory evolution

Abstract

Carotenoids are a large family of health-beneficial compounds that have been widely used in the food and nutraceutical industries. There have been extensive studies to engineer Saccharomyces cerevisiae for the production of carotenoids, which already gained high level. However, it was difficult to discover new targets that were relevant to the accumulation of carotenoids. Herein, a new, ethanol-induced adaptive laboratory evolution was applied to boost carotenoid accumulation in a carotenoid producer BL03-D-4, subsequently, an evolved strain M3 was obtained with a 5.1-fold increase in carotenoid yield. Through whole-genome resequencing and reverse engineering, loss-of-function mutation of phosphofructokinase 1 (PFK1) was revealed as the major cause of increased carotenoid yield. Transcriptome analysis was conducted to reveal the potential mechanisms for improved yield, and strengthening of gluconeogenesis and downregulation of cell wall-related genes were observed in M3. This study provided a classic case where the appropriate selective pressure could be employed to improve carotenoid yield using adaptive evolution and elucidated the causal mutation of evolved strain.

Introduction

Carotenoids are a large kind of isoprenoid pigment that can be used in many fields such as colorants, antioxidants, and nutrients (Saini and Keum 2019). Currently, carotenoids are produced by chemical synthesis or extraction from natural sources, which are mostly restricted by complicated structures and shortage of raw materials (Mussagy et al. 2019). Wild-type Saccharomyces cerevisiae does not normally accumulate carotenoids but engineered strains, obtained through rational engineering, have achieved enhanced carotenoid yield in S. cerevisiae (Wang et al. 2019). Many strategies have been applied and high levels of yields were obtained (Chen et al. 2016; Hong et al. 2019; Shi et al. 2019; Xie et al. 2015), while the highest yield of 73 mg/g CDW was achieved through lipid engineering (Ma et al. 2019). However, it was difficult to discover new targets that were relevant to the heterologous production of carotenoids and, furthermore promote the production of carotenoids in recombinant S. cerevisiae based on previous studies. Fortunately, random disturbance in the genes at a whole-genome scale (through mutagenesis or evolution) provided a choice for acquiring a carotenoid hyper-producer (Zhu et al. 2018). For instance, using a single atmospheric and room temperature plasma (ARTP) treatment, astaxanthin yield was improved by 0.83-fold over the parental strain and three potential targets related to astaxanthin biosynthesis in yeast were revealed (Jin et al. 2018). Furthermore, a combined strategy composing physical mutagenesis by ARTP and adaptive laboratory evolution (ALE), driven by hydrogen peroxide, was executed and the titer of astaxanthin was increased nearly fourfold (Jiang et al. 2020).

ALE is a widely used technology to achieve insights into the mechanisms of adaptive mutations that accumulate under designed culture conditions for long periods of screening (Dragosits and Mattanovich 2013). ALE has been proven to be a potent tool in metabolic engineering, both for the revelation of new design principles and the engineering of excellent strains (Zhu et al. 2018). Many superior phenotypes have been achieved through ALE, such as improvement of the growth rate and production, the adaption of strains to utilize non-native substrates, and enhancement of the resistance towards environmental stresses (Sandberg et al. 2019). Furthermore, the relationship between genomic changes and the excellent phenotype could be uncovered by whole-genome resequencing combined with systems biology (Yang et al. 2019). For example, ALE has been applied to adapting hydrogen peroxide-tolerant yeast to improve carotenoids production (Reyes et al. 2014), and the beneficial mutations led to increased yield have been revealed (Godara et al. 2019). Compared to random mutagenesis approaches such as ARTP and ultraviolet light, ALE with sequential passages is a reasonably easy technique for confirming crucial mutations related to the beneficial phenotype due to its low mutation probability. Furthermore, the production of the target product could be improved by introducing the identified mutations into an engineered producer (Lee and Kim 2020).

ALE used suitable stress as a driving force for screening mutants with superior phenotypes. Because carotenoid yield was facilitated by engineering microbial membranes which could also increase ethanol tolerance (Guo et al. 2020; Hong et al. 2019), we hypothesized that ethanol stress might be used as a driving force for the adaptation of yeast for increased carotenoids accumulation. As a proof of concept, ethanol-induced ALE was applied to a recently constructed S. cerevisiae strain, BL03-D-04, harboring the carotenoid synthetic pathway (Su et al. 2020b). Improvement of carotenoid yield was obtained through this novel ALE strategy to screen for higher carotenoid producers. The underlying cause related to the promotion of carotenoids accumulation in the evolved strain were assessed using whole-genome resequencing and transcriptome analysis. The inactivation of phosphofructokinase 1 (PFK1) was determined as the causal mutation of the evolved strain with improved carotenoid yield, and strengthening of gluconeogenesis and downregulation of cell wall-related genes were identified as the likely regulation that resulted in increased carotenoid yield.

Material and methods

Microorganisms and growth conditions

S. cerevisiae strain BL03-D-4, derived from BY4742 (MATα, his3Δ1, leu2Δ0, lys2Δ0, ura3Δ0), was chosen as the parental strain. All S. cerevisiae strains used in this study are listed in Additional file 1: Table S1. Primers are provided in Additional file 1: Table S2. For cultivation, a single colony was picked up from a fresh YPD plate and transferred to a 5 mL YPD medium. After being cultured at 200 rpm and 30 °C, 1 mL seed culture was inoculated into a 250 mL shake-flask with 50 mL YPD medium, or modified YPD medium (YPM) to an optical density (OD₆₀₀) of about 0.05 and then incubated at 30 °C for 24 to 96 h. After incubation, the cultures were analyzed for biomass and carotenoid content. The YPD medium contained 20 g L⁻¹ tryptone, 20 g L⁻¹ glucose, and 10 g L⁻¹ yeast extract (Oxoid, LOTs of 2,665,431–02). YPM medium contained 20 g L⁻¹ tryptone, 20 g L⁻¹ glucose, 10 g L⁻¹ yeast extract (Angel, FM802, LOT: 2018082210C9), salt (10 g L⁻¹ KH₂PO₄, 2.5 g L⁻¹ MgSO₄, 3.5 g L⁻¹ K₂SO₄, 0.25 g L⁻¹ Na₂SO₄) and 1 mL trace metal solution (TMS) described in previous literature (Su et al. 2020b).

Adaptive laboratory evolution experiments

Sequential passages and batch cultures were performed using the parental strain (BL03-D-4) and YPD media with different concentrations of ethanol under the culture conditions illustrated in Fig. 1. Cells were inoculated into 50 mL YPD medium at OD₆₀₀ of 0.05 to maintain the growth phase. After each cultivation, cells with appropriate concentrations were plated on YPD plates for single colony isolation, based on cell color. The single colonies obtained were inoculated in the YPD medium for further screening.

Fig. 1

Schematic diagram of the ethanol-induced adaptive laboratory evolution. Gradually increasing (from 2 to 12% or from 4 to 12%) and specific concentrations (2%, 4%, 8%, and 10%) of ethanol were selected as the driving forces for the ALE. After screening and analytical certification, the excellent strain will be turned into another round of evolution. The mutations of excellent strain were uncovered through whole-genome resequencing and then parental strain was reverse engineered to gain a rationally designed strain

Whole-genome resequencing and transcriptome analysis

The strains chosen for whole-genome resequencing were cultivated in 50 mL YPD medium at 30 °C in a shaker at 200 rpm for 24 h. Genomic DNA was extracted according to the manufacturer’s protocol using the HiPure Yeast DNA Kit (Magen, Guangzhou, China). At least 5 μg of each genomic DNA sample was provided to Shanghai Majorbio Bio-pharm Technology Co. Ltd, for sequencing using the Illumina HiSeq 2000 platform. Paired-end reads of ~ 250 bp were generated. The average sequencing depths of the samples were 70 to 90. Fastq DNA-seq raw data were deposited in the Genome Sequence Archive (GSA) server at the BIG Data Center (http://bigd.big.ac.cn, GSA accession No. CRA003704).

Total RNA from yeast cells was extracted according to our previous work (Su et al. 2020a). The concentrations and quality of the RNA samples were examined by Biospec-nano (Shimadzu, Kyoto, Japan). 1 μg total RNA sample was used for mRNA library preparation and RNA sequencing (Illumina HiSeq), performed by Shanghai Majorbio Bio-pharm Technology Co. Ltd. Fastq RNA-seq raw data were deposited into NCBI (GEO accession number GSE164470). Data processing was accomplished by the online Majorbio Cloud Platform (www.majorbio.com).

Gene deletions

Auxotroph marker HIS3 including a promoter and terminator, was amplified from the genomic DNA of S. cerevisiae S288C. The homologous arm (~ 50 bp) was designed in primers. For deletions of target genes, one-step integration of PCR-amplified deletion cassettes, including HIS3, was adopted (Chen et al. 2016). Primers PFK1-F and PFK1-R were used for amplification of HIS3 from genomic DNA of S. cerevisiae S288C. Primers PFK1-F-2 and PFK1-R-2 were used for the addition of homologous arms targeted to PFK1. Primers PFK2-F and PFK2-R were used for amplification of HIS3 from genomic DNA of S. cerevisiae S288C. Primers PFK2-F-2 and PFK2-R-2 were used for the addition of homologous arms targeted to PFK2. PFK1 and PFK2 deletions were verified by diagnostic PCR using paired primers PFK1-F-2/PFK1-CHECK-R and PFK2-F-2/PFK2-CHECK-R, respectively.

Cell dry weight, specific growth rate and carotenoid quantification

Cell dry weight (CDW) was determined according to the OD₆₀₀ value and correlated to CDW by the CDW/OD₆₀₀ standard curve [y = 0.184x + 0.891 (x is OD₆₀₀, y is CDW, R² = 0.992]. The specific growth rate (μ) was calculated by the equation, μ = (ln X2 − ln X1)/(t2 − t1), where X1 and X2 are the biomasses at time t1 and t2, respectively.

For carotenoid quantification, strain culture after fermentation was transferred to a 1.5-mL sample tube and the cells were collected by centrifugation at 12,000 rpm for 5 min. The sedimentary cells were disrupted using 3 mol L⁻¹ HCl and boiling for 4 min. Then, cell debris was washed thrice by sterile water, resuspended in acetone for extraction, and centrifuged at 12,000 rpm for 2 min. The supernatant was transferred to a new tube for quantification of total carotenoids using a UV/Vis spectrometer at 470 nm. The extinction coefficient was adopted using an A 1% 1 cm of 3450 (Su et al. 2020b).

Morphological observation

The morphology of the strains was observed by a light microscope (DM6/MC190, Leica). In brief, the strains were cultivated in 50 mL YPD medium at 30 °C for 48 h, followed by centrifuging and washing with PBS three times. They were then observed through the microscope.

Results

Adaptive laboratory evolution of BL03-D-4 under ethanol stress

Because the heterologous accumulation of carotenoids in S. cerevisiae poses a metabolic burden on host cells, a suitable pressure was needed to endow the higher producers a striking feature (Reyes et al. 2014). Based on the already known mechanisms of ethanol tolerance (Ma and Liu 2010), we hypothesized that yeast strain would present different levels of carotenoids yield with the fluctuant composition of the membrane under ethanol stress, and there might be some status fitted to the carotenoids accumulation. Thus, in this study, an ethanol-induced ALE strategy was developed for improving carotenoid yield. For the ALE experiment, sequential and batch cultures were performed in YPD medium supplemented with different concentrations of ethanol (v/v) (Fig. 1). When the cell growth reached a plateau, the ALE process was terminated and the evolved cells were plated on YPD plates without ethanol to screen darkened colonies. Subsequently, an evolved strain M3 (deposited at Guangdong Microbial Culture Collection Center with GDMCC No. 61336) was obtained in the sequential cultures, through a range of adaptive experiments with gradually rising concentrations of ethanol (the first horizontal panel of Fig. 1 at 10% after three subcultures) based on darkened cell color (Additional file 1: Figure S1). Furthermore, M3 was also turned into another round of evolution. However, no better strain was obtained using the above ALE strategy.

Shake-flask fermentation showed that the carotenoid yield of M3 increased about 5.1- and 2.4-fold compared with BL03-D-4 in YPD and YPM media, respectively (Fig. 2a). After 96 h of incubation, the carotenoid yield of M3 reached 42.4 mg/g CDW in the YPM medium (YPM medium facilitated carotenoid accumulation (Su et al. 2021)). The specific growth rate of strain M3 increased markedly, compared to that of the parental strain BL03-D-4 in the concentration from 2 to 8% ethanol (Fig. 2b). Both strains grew poor in the presence of 10% ethanol (Additional file 1: Figure S2). We also observed that the additional supplement of ethanol had a remarkably repressive effect on the carotenoid yield of M3 especially under a high concentration of ethanol (Fig. 2c). However, there was no significant difference in cell growth between BL03-D-4 and M3 during the cultivation without ethanol (Fig. 2d), indicating that the ALE process had no significant influence on the biomass of M3. Therefore, the improvement of carotenoids yield in M3 was not due to facilitating the strain growth, but was probably concerned with the change of metabolic pathway involved in genetic mutations and systematic transcriptional regulation, which needs to be further investigated.

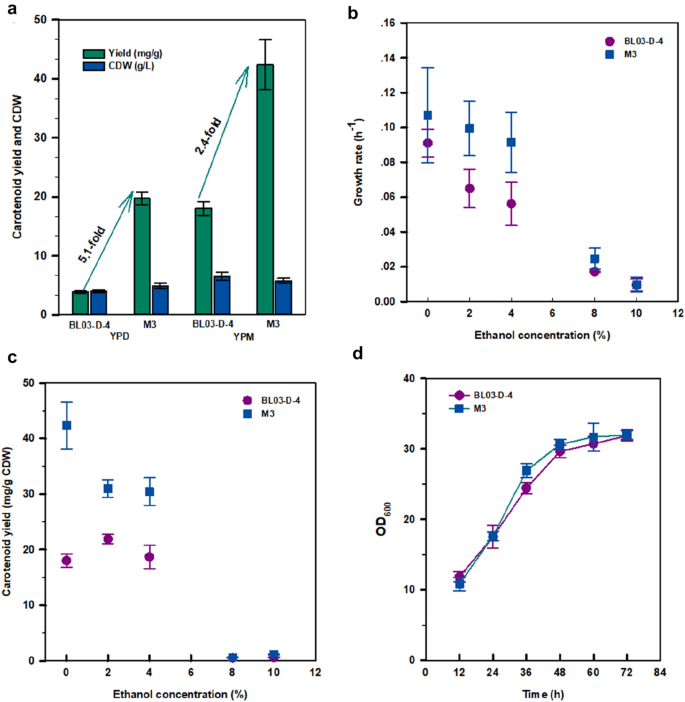

Fig. 2

Characterization of parental (BL03-D-4) and evolved (M3) strains. Carotenoid yields and biomasses of BL03-D-4 and M3 in YPD and YPM media after 96 h of incubation (a). Specific growth rates of BL03-D-4 and M3 under different concentrations of ethanol (b). Effect of different concentrations of ethanol on carotenoid yields of BL03-D-4 and M3 (c). Growth curves of BL03-D-4 and M3 in YPM media without ethanol stress (d). Error bars represent standard deviations of three replicates

Whole-genome resequencing of the evolved strain M3

To identify the genetic basis of the improved carotenoids yield, whole-genome resequencing of strain BL03-D-4 and M3 was performed using the Illumina HiSeq platform through paired-end sequencing. Coverage depth was approximately 70 to 90 reads. Overall, 14 single nucleotide polymorphisms (SNPs) and 100 insertion and deletions (INDEL) were detected in M3, compared to BL03-D-4 after the evolution process (full mutation lists are available in Additional file 2). The resequencing results suggested that M3 had acquired a loss-of-function mutation of PFK1 since M3 generated a stop codon in the front part of the PFK1 gene, which encoded 6-phosphofructokinase 1. It has been reported that PFK1 was involved in glycolysis and gluconeogenesis which was related to NADPH generation (Kwak et al. 2020). Furthermore, the E. coli central metabolic network was rewired after deletion of pfkA which indicated that reduced glycolysis by weakening 6-phosphofructokinase had a profound effect on metabolism (Hollinshead et al. 2016). Thus, combined with the genome resequencing results, we speculated that the loss-of-function mutation of PFK1 in M3 was related to the promoted carotenoid yield.

Determining causal mutation

To determine whether the loss-of-function mutation of PFK1 confers the improvement of carotenoids yield, the inactivation of PFK1 was reverse-engineered into BL03-D-4. The reverse-engineered strain BE1 showed remarkably increased carotenoid yield relative to BL03-D-4, which was not significantly different compared to M3 (Fig. 3) without ethanol or under different concentrations of ethanol, fully recovering the evolved carotenoids phenotype (Additional file 1: Figure S3). BE1 represented a similar colonial morphology compared with M3, but with a different morphology to parental strain BL03-D-4 (Additional file 1: Figure S1 and S4). Deletion of PFK1 had little effect on the growth of strain BE1 without ethanol or under different concentration of ethanol (Fig. 3), these results suggested that mutations other than PFK1 mutation contributed to the normal growth of M3 and counteracted the negative effect of the loss-of-function mutation of PFK1. Since there was an isoenzyme (PFK2) of PFK1 in S. cerevisiae, BL03-D-4 was engineered with the deletion of PFK2 to generate BE2 to test whether PFK2 mutation has any similar effect on the pentose phosphate pathway (PPP). As shown in Fig. 3b, PFK2 deletion exerted a severe suppression on the growth of BE2 and no increase of carotenoids was detected in this strain after 96 h fermentation. However, BE2 represented a similar colonial morphology compared with M3 and BE1 after long cultivation (about 8 days) (Additional file 1: Figure S4). These results suggested that PFK2 might be the key enzyme responsible for the conversion of glucose-6-phosphate (G6D) to fructose 1,6-bisphosphatase (FBP) in S. cerevisiae which was different compared to E. coli (Hollinshead et al. 2016). Morphology observation of BL03-D-4, M3, BE1, and BE2 was carried out through a microscope at 1000 × magnification. These pictures showed that evolved (M3) and knockout strains (BE1 and BE2) presented a larger size of morphology compared to the parental strain (BL03-D-4) (Additional file 1: Figure S5). This change of morphology might be responsible for the promoted carotenoid accumulation.

Fig. 3

Carotenoid yields (a) of evolved (M3), and knockout strains (BE1 and BE2), and growth patterns (b) of M3, BE1, and BE2. Effect of different concentrations of ethanol on carotenoid yields of M3 and BE1 (c). Specific growth rates of M3 and BE1 under different concentrations of ethanol (d). These strains were, respectively, grown in the YPM media at 30 °C for 96 h. Error bars represent standard deviations of three replicates. Two-tailed Student’s t test was carried out, ns (not significant)

Transcriptome analysis of evolved strain M3

To gain insights into the phenotypic changes that were generated during the ALE process to improved carotenoids yield, we performed a transcriptome analysis of BL03-D-4 and M3. For the transcriptome analysis, strains were cultured in YPM media without the addition of ethanol, and cells were collected after 24 h. We defined the gene sets that showed greater than twofold differences in expression levels between BL03-D-4 and M3. There were 37 up-regulated genes and 162 down-regulated genes in M3 compared with BL03-D-4 through differential expression analysis (Fig. 4a, full lists are available in Additional file 3). We also screened gene functions using GO classification and KEGG enrichment and found enrichment in both up-regulated and down-regulated gene sets in M3 (Fig. 4). KEGG pathway enrichment analysis was executed to further explore the cause of PFK1 mutation promoting carotenoids accumulation (Fig. 4c). The differentially expressed genes were primarily enriched in the glycolysis/gluconeogenesis pathway and the majority were down-regulated indicating that the loss-of-function mutation of PFK1 might change G6P biosynthesis in S. cerevisiae and regulate the cell wall systems involved in carotenoid accumulation. Furthermore, the GO enrichment analysis demonstrated that the differentially expressed genes were mainly involved in cell wall organization, and almost all genes were down-regulated in this study (Fig. 4b). These results indicated that there might be a relationship between PFK1 mutation-improved carotenoid accumulation and the cell wall systems.

Fig. 4

Differentially expressed genes generated by transcriptome analysis in YPM media after 24 h of incubation. a Volcano plot of the differentially expressed genes in M3. The horizontal coordinate represented the fold change, and the vertical coordinate represented a significant difference Padjust (logarithmic transformation at the base of 10). Red dots represented up-regulated genes, and green dots represented down-regulated genes. b, c Histogram of GO enrichment and KEGG pathway enrichment analysis. The vertical coordinate shows the enriched GO terms and the pathway names, and the horizontal coordinate represents the number of genes and Padjust of differentially expressed genes in the term and the pathway, respectively. d Overview of significantly changed genes in metabolic pathways. Pentose phosphate pathway (oxidative phase, yellow; non-oxidative phase, blue): GND, glucose 6-phosphate dehydrogenase; 6PGL, 6-phosphogluconolactonase; 6PGD, 6-phosphogluconate dehydrogenase; TKL, transketolase; TAL, transaldolase. Glycolysis and gluconeogenesis (green): HXK, hexokinase; PGI, phosphoglucose isomerase; INO1, inositol-3-phosphate synthase; PFK, phosphofructokinase; FBP1, fructose 1,6-bisphosphatase; FBPA, fructose-bisphosphate aldolase; GAPD: glyceraldehyde phosphate dehydrogenase; PGK, phosphoglycerate kinase; PGM, phosphoglycerate mutase; ENO, enolase

Discussion

Currently, there are hundreds of genes involved in ethanol stress, including glycolysis, ethanol metabolism, plasma membrane composition and cell wall biogenesis in S. cerevisiae (Ma and Liu 2010). Ethanol resistance was a complex phenotype regulated by multiple genes, in addition to the molecular genetics for enhancing S. cerevisiae ethanol tolerance such as global transcription machinery engineering (Alper et al. 2006), transposon mutation (Kim et al. 2011), genome shuffling (Snoek et al. 2015), and metabolic engineering (Lam et al. 2014). The ALE was also used as a conventional approach to improve the ethanol tolerance (Voordeckers et al. 2015). Ma et al. also found that many genes relating to cell wall composition were vital for cell wall organization and most of them were down-regulated under ethanol pressure. They proposed that cell wall structures might undergo significant remodeling processes in response to ethanol stress (Ma and Liu 2010). Furthermore, a crucial factor for the ratio of glucan and mannan in the walls could be the direction of the glucose 6-phosphate/mannose 6-phosphate interconversion (Kratky et al. 1975).

As described above, the loss-of-function mutation of PFK1 was identified in M3. Previous researches showed that PFK1 was involved in glycolysis and gluconeogenesis (Tripodi et al. 2015). In E. coli, two isoenzymes (pfkA and pfkB) referred to the phosphofructokinase and pfkA was considered to be the key enzyme accounting for the conversion of G6P to FBP. The deletion of pfkA prolonged lag phase, impaired both cell growth and acetate overflow, accumulated G6P, relieved glucose catabolite repression, and alleviated the Embden–Meyerhof pathway (EMP) repression on gluconeogenesis. The glycolytic flux redistribution resulted in metabolic burdens, cofactor imbalances, and decreasing carbon yield (Hollinshead et al. 2016). Similarly, it was reported that the EMP was replaced (deletion of PGI) with the Entner–Doudoroff pathway (EDP) and oxidative PPP to boost isoprenoid biosynthesis, along with overexpression of zwf and pgl genes, leading to a 104% squalene increase in E. coli (Xu et al. 2019). However, there is little reference to PFK1 mutation in S. cerevisiae.

To clarify the effect of the inactivation of PFK1 on cell metabolism, we screened the genes whose expression levels were dramatically changed in M3. As shown in Fig. 4d and Additional file 1: Table S3, M3 generally showed lower expression levels in the PPP and cell wall-related genes than BL03-D-4. NADPH generation was highly reliant on the oxidative PP pathway. The metabolic flux toward the oxidative PPP was always limited due to the rigid glycolysis flux in S. cerevisiae (Minard and McAlister-Henn 2005; Zampar et al. 2013). Therefore, the increase of G6P fluxes toward the oxidative PPP through glucose-6-phosphate dehydrogenase (G6PD), instead of glycolysis, was necessary for efficient NADPH production and enhanced production of isoprenoids (Kwak et al. 2020). Similarly, efficient carotenoid biosynthesis needed NADPH providing reducing power (Hong et al. 2019; Zhao et al. 2015). Surprisingly, and in contrast, the first and second steps of the oxidative PPP were significantly down-regulated in M3, which presented a remarkable improvement of carotenoid yield in our study (Fig. 4d). This result suggested that the loss-of-function mutation of PFK1 might contribute to a new mechanism for improving carotenoid yield. For resisting the ethanol pressure, the variation of membrane fluidity was the major way in S. cerevisiae (Wang et al. 2018; Yang et al. 2019). In this study, it might be the cell wall remodeling that mainly stands up to ethanol stress. For cell wall biogenesis, many genes involved in cell wall organization were down-regulated without ethanol pressure in M3 (Additional file 1: Table S3). It is worth mentioning that thickened cell walls and larger yeast were observed in the micafungin resistant yeast (Li et al. 2014). Furthermore, secretory pathways transported cell wall proteins onto the plasma membrane, as well as transferring lipids, via vesicles, to repair membrane destruction under ethanol stress and they might contribute to ethanol tolerance in Kluyveromyces marxianus (Mo et al. 2019). Changes of the cell wall might be responsible for the change of membranes, which further affected the storage ability of those fat-soluble carotenoids. The strategy based on this probable mechanism could supplement the previously reported approaches about improving carotenoid yield in S. cerevisiae.

Conclusions

In conclusion, a new ethanol-induced ALE was successfully applied to improve carotenoid yield in engineered S. cerevisiae and a hyper-producer was isolated from evolution with a 5.1-fold increase in carotenoid yield. The loss-of-function mutation of PFK1 was revealed as being the cause of increased carotenoid yield through whole-genome resequencing and reverse engineering. Transcriptomic analysis revealed the strengthening of gluconeogenesis and downregulation of cell wall-related genes, as a potential perturbation for the improvement of carotenoid yield. This study provided a classic case where the appropriate selective pressure could be employed to improve carotenoid yield using ALE and identified a novel metabolic engineering target PFK1 for carotenoid production in S. cerevisiae.
