Optimization of bioconversion process for trehalose production from enzymatic hydrolysis of kudzu root starch using a visualization method

Abstract

Background

Trehalose has many advantages due to its inertness and the ability to stabilize biomolecules. Trehalose synthase can catalyze intramolecular rearrangement of the inexpensive maltose into trehalose in a single step, which represents a simple, fast, and low-cost method for the future industrial production of trehalose.

Results

In this work, an intelligent visualization method for producing trehalose via trehalose synthase was for the first time established and optimized by corresponding enzymatic hydrolysis with kudzu root starch as the initial raw material. For the first step, kudzu root starch was liquefied by α-amylase at a certain dextrose equivalent value of 19–21, and β-amylase and pullulanase to saccharify for a certain time, a four-factor nine-level experimental design with nine experiments was performed according to the uniform design table U ^*₉ (9⁴) to optimize the yield of maltose. Then, optimization of trehalose conversion ratio from kudzu root starch hydrolysate was carried out with a four-factor 12-level experimental design to forecast the optimal process conditions. By comparing verification tests and predicted results, the optimized operating conditions were pH 7.1, 22 °C, 32.5 % (14,000 U/ml) loading amounts of TreS enzyme and after 24 h, along with a 70.6 % trehalose conversion rate.

Conclusions

The intelligent visualization method has succeeded in exploiting the conversion process of trehalose from kudzu root starch hydrolysate, which contributes significant benefits to the further commercial production of trehalose.

Background

Trehalose is a non-reducing disaccharide in which the two glucose unites are linked through an α,α-(1,1)-glycosidic bond (Schiraldi et al. 2002). Production of this disaccharide is of commercial importance and opens a new field for its application in foods, cosmetics, and medicines, ranging from serving as a sweetener to a biomaterial stabilizer (Ohtake and Wang 2011). However, the conventional methods for the extraction from transformed plants and fermentation of yeast were not practical to produce trehalose on an industrial scale due to low yield and high cost. At the end of the last century, the Hayashibara Co. Ltd. has developed a two-step enzymatic system (trehalose-6-phosphate synthetase and trehalose-6-phosphate phosphatase) from a bacterial strain belonging to the genus Arthrobacter sp. Q36 isolated from soil sample (Maruta et al. 1995). The novel approach of trehalose production has led to a major reduction in the commercial price of trehalose from several hundred US$/kg to 5–6 US$/kg, and for the first time, was successfully exploited in industrial production of trehalose. Nevertheless, further decrease in the production cost could be achieved by the application of other brand-new enzymatic route (Chang et al. 2012).

Except for the above two-enzyme system, four other main enzymatic routes are involved in trehalose biosynthesis: (1) maltooligosyltrehalose trehalohydrolase and maltooligosyltrehalose synthase (Fang et al. 2004); (2) trehalose phosphorylase (Carpinelli et al. 2006); (3) trehalose glycosyltransferring synthase (TreT) (Kouril et al. 2008), and (4) trehalose synthase (TreS) (Elbein et al. 2003). Among these routes, the intramolecular rearrangement of maltose into trehalose by TreS is a simple, fast, and low-cost method for the future industrial production of trehalose (Fig. 1). In our previous study, a novel TreS that comes from Deinococcus genus with high activity and conversion efficiency was identified and subsequently expressed in Escherichia coli (Jiang et al. 2013). Unfortunately, commercial utilization of trehalose is still hindered due to its high production cost compared with the other two disaccharides (Jiang et al. 2015). Since the carbon source employed in the culture medium has high share in the substrate cost, the exploitation of cheaply renewable agricultural residues has been strongly stimulated. Kudzu root is a rapid-growing and high-climbing perennial leguminous vine which is native to Eastern Asia (mainly in China, Japan, and Korea), and used as a forage crop and harvested for its root starch, fiber and medicinal qualities (Wang and Chen 2011). In general, fresh kudzu root contains 15–35 % starch, which could be hydrolyzed by enzymes or acids to generate starch sugar (such as glucose, fructose, maltose syrups, cyclodextrins, and amylose) and starch derivatives (such as carboxy alkyl starch, ammonia alkyl starch, hydroxyalkyl starch and acetyl starch) (Allen 2003).

Fig. 1

Overview of trehalose synthesis from maltose by trehalose synthase.

In recent years, more and more newly developed optimization strategies have been used to determine the optimal level of each experimental parameter. Compared with other statistical methods, uniform design (UD) reduces the number of experiments in a multiple-dimension optimization and allows the largest possible number of levels for each factor (Yan and Bogle 2007). The intelligent visualization method is different from others in that the contours of the objective function can be viewed at the same time as the new mapping of the data from multi-dimensional space to a two-dimensional plane. The optimized operating point or region can be found intuitively according to the distribution of the objective function. Then the near-optimal point can be mapped back to the original multi-dimensional space with an inversion mapping method, and will be represented in terms of original variables (Shi et al. 2009). The visualization method was applied to solve two types of problems, one is the determination of optimal operation point or region for a chemical process and the other is optimization of multi-objective problems (Zhang et al. 2010). In this study, kudzu root starch was treated by a series of enzymatic hydrolysis to produce maltose, which was further transformed into trehalose by TreS. With the data obtained from single-factor experiments and uniform design, we fully took the advantages of the intelligent visualization software to fit the data and obtained the optimal yield point of trehalose production.

Methods

Materials

Kudzu root starch was supplied from Hunan Province, China, in November 2014. Enzymes of α-amylase (EC 3.2.1.1, 1 unit to liberate 1.0 mg maltose from starch in 3 min at pH 6.5 at 75 °C in phosphate buffer) for liquefaction, β-amylase (EC 3.2.1.2, 1 unit to liberate 1.0 mg maltose from starch in 3 min at pH 4.8 at 60 °C in acetate buffer) and pullulanase (EC 3.2.1.41, 1 unit to liberate 1.0 mmol of maltotriose from pullulan/min at pH 4.8 at 60 °C in acetate buffer) for saccharification were purchased from Aladdin Industrial Co. (Shanghai, China). The recombinant E. coli BL21 (DE3) harboring pET22b(+)-treS, in which the treS gene encoding the TreS from Deinococcus desert, was constructed previously in our laboratory (Jiang et al. 2013).

Preparation of the hydrolysate of kudzu root starch

Twenty gram kudzu root starch was mixed with 100 ml deionized water to total weight of 120 g. Adjusting the slurry to pH 6.9 by 1 mol/l HCl or 1 mol/l NaOH. Heating to 75 °C until kudzu root starch was dissolved completely, then α-amylase was added for liquefaction. The reaction condition parameters of the liquefaction were 150 U α-amylase/g starch at 75 °C, and pH 6.5 (Soni et al. 2003). After cooling to 60 °C, pH of the mixture was adjusted to 4.8 with 1 mol/l HCl. Then, different amounts of β-amylase and pullulanase were added for saccharification, the resulting syrup was maintained at 60 °C and was continually stirred using a magnetic stirrer and aliquots were removed at time intervals of 2, 4, 6, 8, 10, 12, 14 and 15 min for dextrose equivalent (DE) analysis (Lin et al. 2011).

Visualization method

Kudzu root starch was used as the substrate of conversion of maltose. There are four important factors influencing the value of conversion rate, namely DE (X ₁), the amount of β-amylase (X ₂) and pullulanase (X ₃), as well as the saccharification time (X ₄). At first, a four-factor nine-level experimental design with nine experiments was performed according to the UD table U ^*₉ (9⁴). The experimental design and results as well as the predicted outputs were calculated by the intelligent visualization method (Version 1.0, China) (Jiang et al. 2015). Similarly, kudzu root starch hydrolysate was used as the catalytic substrate of trehalose production. There are four important factors influencing the value of conversion rate, namely pH (X ₁), reaction temperature (X ₂), enzyme concentration (X ₃), and reaction time (X ₄). A four-factor 12-level experimental design with 12 experiments was performed according to the UD table U ^*₁₂ (12⁴).

The basic principles of visualization method are shown in Additional file 1: Figure S1. Firstly, the simple data in multi-dimensional space are mapped to a two-dimensional plane with a mapping model, in which the contours of the objective functions are generated automatically. According to the distribution of the contours, the optimized operating direction or region can then be located intuitively. Finally, an optimal point found in the above region can be mapped back to the original multi-dimensional space with an inversion mapping method, which will be represented in terms of original variables.

The above mapping process is established based on a neural network as shown in Fig. 2. For an optimization problem with an m-dimensional input vector, x, and an l-dimensional output vector, y, the data are mapped to two new variables, z ₁ and z ₂, in a two-dimensional mapping plane as follows:

$$z_{1}=\omega_{1}X^{T},z_{2}=\omega_{2}X^{T}$$

(1)

$$Y = VP^{T} = \left[ {\begin{array}{*{20}c} {v10} & {v11} & \cdots & {v1p} \\ {v20} & {v21} & \cdots & {v2p} \\ \cdots & \cdots & \cdots & \cdots \\ {vl0} & {vl1} & \cdots & {vlp} \\ \end{array} } \right]\left[ {\begin{array}{*{20}c} 1 \\ {f1(z1,z2)} \\ \cdots \\ {fp(z1,z2)} \\ \end{array} } \right] ,$$

(2)

where $X = \left[ { 1,x_{1} ,x_{2} , \ldots ,x_{m} } \right],\;w_{j} = \left[ {w_{0j} ,w_{1j} ,w_{2j} , \ldots ,w_{mj} } \right],\;j = 1,{ 2},\;Y = [y_{ 1} ,y_{ 2} , \ldots ,y_{l} \left] {,\;{\user2 {P}} = } \right[ 1,f_{1} \left( {z_{1} ,z_{2} } \right),f_{2} \left( {z_{1} ,z_{2} } \right), \ldots ,f_{p} \left( {z_{1} ,z_{2} } \right)\left] {,\;V = } \right[v_{ 1} , v_{ 2} , \ldots , vL\left] {_{L \times p}^{T} ,\;\nu_{k} = } \right[\nu_{k0} ,\nu_{k1} , \ldots ,\nu_{k(p + 1)} ],\;k = 1, 2, \ldots ,l,$ where X is an m-dimensional input vector, Y is an l-dimensional output vector, z ₁ and z ₂ are two variables on mapping plane, w ₁, w ₂ and V are the weight vectors of the neural network, P is a nonlinear extending vector for enhancing the mapping effect. First, m-dimensional input vector X is first mapped to a two-dimensional plane described with vector $z\left( { = \left[ {z_{ 1} ,z_{ 2} } \right]} \right)$. Then z is mapped to n-dimensional output Y through nonlinear mapping. In this work, we take simply $P = \left[ { 1,f_{1} \left( {z_{1} ,z_{2} } \right),f_{2} \left( {z_{1} ,z_{2} } \right), \ldots ,f_{p} \left( {z_{1} ,z_{2} } \right)} \right] = \left[ { 1,z_{ 1} ,z_{ 2} ,z_{1}^{2} ,z_{2}^{2} ,z_{ 1} z_{ 2} } \right].$

Fig. 2

Mapping model.

Therefore, it is able to use the two variables z ₁ and z ₂ to describe the contour of the objective function Y on the plane in case of the neural network trained with sample data. According to the contour distribution of the objective function on the plane, it is easy to decide the optimal point or region on the plane. Based on the linear relationship between x and z, the optimal point c on the plane can be mapped inversely to the original multi-dimensional space by the following equation:

$$x^{c}=x^{a}+\beta(x^{b}-x^{a})$$

(3)

where x ^a, x ^b and x ^c are points in multi-dimensional space corresponding to points a, b and c. β is the step size, which equals to the ratio of the distance between points a and c to that between points a and b:

$$\beta=\frac{\overline{ac}}{\overline{ab}}$$

(4)

where 0 ≤ β ≤ 1 for interpolation and β ≥ 1 for extrapolation. In practical applications, first two reference points on the plane are selected in the optimization direction, and then the step size is determined to reach the optimal point. Given an optimization direction and step size, one can calculate the corresponding optimal point in the original multi-dimensional space.

Enzyme assay

The recombinant TreS was constructed in Escherichia coli BL21(DE3), which was described in detail in our previous study (Jiang et al. 2013). The E. coli cells were harvested by centrifugation at 12,000×g for 20 min at 4 °C and suspended in PBS buffer (40 mM NaH₂PO₄–Na₂HPO₄, pH 7.0) followed by sonification and centrifugation to remove insoluble cell debris. The supernatant was filtered through a 0.45-μm filter and the recombinant TreS was purified through a Ni–NTA affinity chromatography column according to the manufacturer’s purification protocol manual (Novagen, Ni–NTA His•Bind Resins). The purified TreS was resuspended in PBS buffer with the fixed the enzyme activity of 14,000 U/ml. The standard reaction was performed by adding 1.5 μl of purified TreS into 50 μl of reaction solution containing in 50 mM sodium phosphate buffer with different pH values and 150 mM maltose and incubating at different temperatures. The reaction was terminated by heating the mixture in boiling water for 15 min. One unit (U) of enzyme activity was defined as the amount of enzyme that catalyzes the formation of 1 nmol trehalose per min in 1 ml system under the specified conditions. The trehalose conversion rate (CR) was calculated by the ratio of the trehalose product to the amount of maltose substrate.

Analytical methods

The starch solubility and the content of maltose in the hydrolysate were determined by DE, which was analyzed using the Lane–Eynon method (Yildiz et al. 2005). The maltose yield rate (YR) was calculated by the ratio of the maltose product to the amount of starch substrate. The amount of trehalose, glucose, and maltose was measured using a HPLC (Dionex) system equipped with a Sepax HP-Amino column and a refractive index detector. The mobile phase was acetonitrile–water (75:25). The flow rate was 0.6 ml/min and column temperature was 30 °C. The resulting data were analyzed off-line with Origin 6.0 software (Microcal, Northampton, MA, USA). All experiments were carried out in duplicate or triplicate.

Results and discussion

Kudzu root starch hydrolysis

With respect to starch content and yield, kudzu is considered to rival the carbohydrate production from maize and sugar cane (Sage et al. 2009). For a better trehalose production, a higher maltose concentration with a lower glucose concentration was preferable with kudzu starch hydrolysate as the substrate. Previous studies suggested that the liquefaction DE value of starch was found to influence the saccharide composition, and the optimum liquefaction DE of starch for maltose syrup production was 8–11 (Marchal et al. 1999). Both a too high and too low DE value can significantly affect the production of maltose, the former one causes a rapid decrease of maltose yield, while the latter one results in a high viscosity which is harmful to the following saccharification process (Besselink et al. 2008). In this study, α-amylase was used to hydrolyze kudzu root starch granules to obtain utmost maltose. Our preliminary experiments showed that it needed only 8 min of liquefaction time to reach a DE value of 8–11 with kudzu root starch, which was faster than rice and corn starch (e.g., 22–27 min) (Additional file 2: Figure S2) (Roy and Gupta 2004). Small granules in kudzu root could be the most possibly reason to increase enzyme susceptibility and easily to be liquefied (Kim and Robyt 1999). However, the optimal DE value was finally selected among 19–21 to obtain the utmost starch utilization and maltose content in the present study (Additional file 3: Figure S3, Additional file 4: Table S1).

After liquefaction of kudzu root starch, different amounts of β-amylase and pullulanase were added for saccharification. As we all know, β-amylase, debranching enzyme, can hydrolyze α-1,4 links dextrins and pullulanase can specifically cleave certain α-1,6 links in starch for more maltose production. Various combinations of DE value, β-amylase and pullulanase amount, as well as the saccharification time are listed in Table 1 according to the orthogonal design scheme, together with the experimental results. Figure 3 shows the mapping diagram of hydrolysis yield of kudzu root starch. Sample data in multi-dimensional space were mapped and reduced to a two-dimensional plane by the visualization method, with nine blue points (hollow points) representing nine groups of experiments, respectively. The lines formed an elliptical shape with the increment directed from both the top left corner and the bottom right corner to the center. The optimal result (e.g., point 2 and 3) can be intuitively observed in the mapping diagram, and the optimal reaction conditions could be obtained by inversely mapping the optimal point in the two-dimensional plane to original multi-dimensional space. Value of the optimal predicted point by extrapolating from point 1 to 3 with step size 0.5 was 93.8 % of maltose yield with the hydrolytic conditions of 19 of DE, 32.5 U/g starch of β-amylase, 1.25 U/g starch of pullulanase, and 42 h of saccharification time (Table 2). The value of these factors at the predicted point is inside the operating bound which indicates that the predicted point is feasible. Also, the result from the verification experiment with the same hydrolytic parameters came to the highest value of 94.6 % in terms of maltose yield from kudzu root starch hydrolysates. Sugar compositions and the content of kudzu root starch hydrolysate are also shown in Table 3. The process of saccharification will inevitably produce a small quantity of glucose (about 3.5 %), which has been proved to inhibit the conversion efficiency of TreS (Wang et al. 2007).

Table 1 Uniform design scheme and results of maltose yield rate

Fig. 3

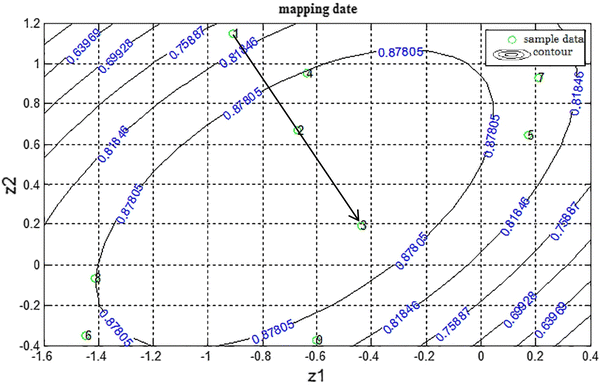

Contours on the mapping plane for the yield rate of maltose. The full line represented contours, small circles and numbers represented sample data, arrows represented the direction of data optimizing.

Table 2 Comparison of prediction results and test results of maltose yield rate

Table 3 Sugar contents of kudzu root starch hydrolysate

Optimize the process of trehalose production

So far, a number of TreSs from several bacterial strains have been identified and characterized (Jiang et al. 2013). However, these TreSs are still not satisfying in a practical application with regard to conversion efficiency, because they catalyze the conversion of maltose into trehalose in a reversible reaction, together with a side reaction of hydrolysis to irreversibly form glucose. Therefore, in the process of trehalose production, the degree of trehalose conversion rate (CR) was regarded as the most important property. The reaction condition parameters of the intramolecular transglycosylation from maltose into trehalose by TreS were summarized in many previous studies and listed in Table 4 (Jiang et al. 2013; Ma et al. 2006; Lee et al. 2005; Xiuli et al. 2009; Wang et al. 2007b, c; Zhu et al. 2008). Various combinations of pH (6–8.5), reaction temperature (15–40 °C), TreS concentration (10–40 %, 14,000 U/ml) and reaction time (18–36 h) are shown in Table 4 according to the orthogonal design scheme, together with the experimental results.

Table 4 Uniform design scheme and results of trehalose conversion rate

Figure 4 presents the mapping diagram of trehalose yield with maltose as the substrate, which was obtained from kudzu root starch hydrolysate. The objective function as shown in Fig. 4 is a hyperbola, and the center is a saddle point. Twelve green points in figure represent 12 groups of trehalose production tests, respectively. It is clear that a high conversion rate can be obtained by decreasing z ₁. Taking points 10 and 3 as references and step size as 1.6, a predicted point is obtained through extrapolation in the direction of the arrow. The predicted data and the corresponding reaction parameters are listed in Table 5. The results from the verification experiment indicated that the optimal conditions of trehalose production are pH 7.1, temperature of 22 °C, 32.5 % (14,000 U/ml) of TreS enzyme loading amounts and for 24 h, trehalose conversion rate from kudzu root starch hydrolysate could reach up to 70.6 %, which was among the highest values ever produced in the enzymatic catalysis process (Jiang et al. 2013).

Fig. 4

Contours on the mapping plane for the conversion rate of trehalose. The full line represented of contours, small circles and numbers represented of sample data, arrows represented of the direction of data optimizing.

Table 5 Comparison of prediction results and test results of trehalose conversion rate

Conclusion

In conclusion, an integrated bio-process of trehalose production from kudzu root starch through two-stage enzymatic hydrolysis into malt syrup was established with the help of the intelligent visualization method in this study. The high-yield of 94.6 % maltose was realized by α-amylase, β-amylase and pullulanase pretreatment under the optimum DE of 19 and saccharificaiton condition of 32.5 U β-amylase/g starch and 1.25 U pullulanase/g starch. Furthermore, the optimum conditions of trehalose production were obtained with the maximum trehalose conversion rate of 70.6 %, which was considered as a good candidate for the large-scale production of trehalose in the near future. Thus, application of the visualization method for optimization of parameters of enzyme catalytic reaction conditions was proved successful, and its further application in biocatalysis technology was expected.
