Heterologous expression of an acidophilic multicopper oxidase in Escherichia coli and its applications in biorecovery of gold

Abstract

Background

Copper oxidase is a promising enzyme for detection of oxidation, which can function as a biosensor and in bioremediation. Previous reports have revealed that the activity of the multicopper oxidase (MCO, EC 1.10.3.2) from the Proteus hauseri ZMd44 is induced by copper ions, and has evolved to participate in the mechanism of copper transfer.

Results

From P. hauseri ZMd44, a full-length, 1497-base-pair gene, lacB, encoding 499 amino acids without signal peptide, was cloned into Escherichia coli (E. coli) to obtain high amounts of MCO. The use of the pET28a vector yielded better enzyme activity, which was approximately 400 and 500 U/L for the whole cell and soluble enzyme extracts, respectively. The crude enzyme showed activity at an optimal temperature of 55 °C and it remained highly active in the range of 50–65 °C. The optimal pH was 2.2 but the activity was significantly inhibited by chloride ions. This MCO has great potential for Au adsorption (i.e., 38% w/w) and the Au@NPs were directly adsorbed on enzyme’s surface.

Conclusion

An acidophilic MCO from bioelectricity generating bacterium, P. hauseri, is first cloned and heterologously expressed in E. coli with high amounts and activity. This MCO has great potential for Au adsorption and can be used as a biosensor or applied to bioremediation of electronic waste.

Background

The enzyme multicopper oxidase (MCO) is a type of laccase (EC 1.10.3.2) that has important industrial applications owing to its oxidizing and degrading activities on a wide variety of aromatic compounds (Mayer and Staples 2002; Claus 2003; Rodgers et al. 2010). For instance, laccases are used in the process of paper-pulp bleaching to degrade lignin (Larsson et al. 2001). Furthermore, MCO, as one of laccases, has a high demand in different manufacturing processes such as wine production, medical analysis, electrochemical detection (Li et al. 2015), bioremediation (Santhanam et al. 2011), and gold nanoparticle preparation (Guo et al. 2015).

Proteus hauseri strain ZMd44 is a gram-negative bacterium with outstanding performance in biodecolorization of azo-dyes (Ng et al. 2013), and has been used in the microbial fuel cell (MFC) system (Chen et al. 2010, 2012). In addition, its MCO-laccase activity of 357 U/L at optimal cultivation condition was induced by copper (Zheng et al. 2013). Furthermore, this MCO-laccase participates in the transport of copper ions from the medium to the cells (Grass and Rensing 2001). By whole genome sequencing, it has been found that P. hauseri ZMd44 possesses LacA and LacB (Wang et al. 2014). However, genetic engineering of any laccase or multicopper oxidase from the Proteus genus has not been illustrated in the literature thus far. Owing to the insufficient enzyme production by naturally occurring microbes, heterologous expression of the laccase genes via E. coli cloning is urgently required.

Genetic heterologous expression may be influenced by different factors, including protein structure (Gopal and Kumar 2013), effect of bacterial strain (Moreira et al. 2014), and the use of different expression vectors (Rosano and Ceccarelli 2014). In general, the most common plasmid used in recombinant engineering of E. coli is the pET system, owing to its strong expression levels. In this study, three different vectors, pET22b, pET28a, and pET32a, are used to produce recombinant MCO. All the vectors contain the same T7 promoter, and the resulting proteins are fused to a 6-Histidine tag for protein affinity purification. While pET28a is a vector in which recombinant protein would be overexpressed intracellularly, the pET22b vector includes a signal peptide, pelB, so that the recombinant protein is secreted to the periplasam. Finally, vector pET32a contains a fusion protein, TrxA, which works as a chaperone to assist in protein folding and to enhance soluble protein expression (Baneyx and Mujacic 2004).

Over the past decades, the number of consumers using electronic devices manufactured by the semiconductor industry is rapidly increasing, resulting in the accumulation of a huge amount of electronic waste (Natarajan and Ting 2014, 2015). Routine recovery of gold (Au) from industrial metal waste is expensive. Further, biotechnology industries are taking eco-friendly approaches to recover metals from waste, which have significantly contributed to control the pollution in the environment. Previous studies showed Proteus spp. (Chen et al. 2010, 2012) and Shewanella spp. (Ng et al. 2014, 2015) with good performance in biodecolorization and metal absorption, but they never been used of genetic approach. Therefore, the use of genetically engineered MCO for bioremediation is a promising and cost-effective solution.

Until now, only few research studies have explored the heterologous expression of MCO in E. coli. This is the first attempt to determine the optimal vector to express MCO. Additionally, the optimal reaction conditions, including temperature, pH, and ion effect, were assessed. Finally, the use of the recombinant MCO in Au adsorption and gold nanoparticle (Au@NPs) preparation, and its catalytic activity, were also explored.

Methods

Cloning and construction of recombinant LacB in E. coli

All cloning was performed in E. coli strain DH5α. Reagents used in polymerase chain reaction (PCR), including long and accurate LA-Taq DNA Polymerase, PCR-grade dNTPs, restriction enzymes, T4 DNA ligase, and DNA ladder marker, were obtained from Takara (Dalian, China). PCR products and restriction-digested DNA were purified by DNA gel extraction and PCR cleanup kits (Axygen). Genomic DNA was isolated from 5 mL of overnight cultures at 37 °C in LB broth, using bacterial genomic DNA miniprep Kit (Axygen). The entire open reading frames of lacB were amplified with primers shown in Table 1, using genomic DNA from the ZMd44 as DNA template. The resulting PCR products were inserted between the T7 promoter and the terminator in the vectors pET32a, pET28a, and pET22b, and introduced into E. coli BL21(DE3) cells, as shown in Fig. 1a–c. Recombinant colonies grown on LB plates with corresponding antibiotics (i.e., kanamycin or ampicillin) were verified by colony PCR and double enzymatic digestion with NcoI and XhoI. All strains, plasmids, and primers used in this study are shown in Table 1.

Table 1 List of strains, plasmids, and oligonucleotide primers in this study

Fig. 1

Construction map for lacB in different vectors as a pET28a, b pET32a, and c pET22b and d molecular structure simulation of LacB via SWISS-MODEL

Culture and heterologous expression of recombinant MCO

The expression host BL21 (DE3) harboring the recombinant ZMd44-lacB vector was cultivated in LB medium with corresponding antibiotics and agitation (200 rpm) at 37 °C. Once the cultures reached a biomass with OD₆₀₀ between 0.6 and 0.8, the isopropyl β-d-1-thiogalactopyranoside (IPTG) inducer and the key factor CuSO₄ were added to the cultures at a final concentration of 0.1 mM and 0.5 mM, respectively. At this point, the incubation temperature was changed to 22 °C with the same agitation speed. After 12 h in culture, the recombinant bacteria were placed in an incubator at 22 °C without agitation for an additional 12 h. For cell density analysis, sample was taken out from the broth to measure the optical density by a spectrophotometer at a wavelength of 600 nm (VersaMaxTM microplate reader, Molecular Devices, CA). The OD₆₀₀ values were converted to biomass in terms of g/L via a calibration between optical density and dry cell weight. All the experiments were run in triplicate and designated as (A) +IPTG and Cu, (B) +IPTG, and (C) without induction, taking into consideration different cell fractions (i.e., W = whole cell, S = supernatant, P = pellet, and M = periplasm).

Determination of MCO activity and protein concentration

MCO activity was determined by a spectrophotometric method based on the use of ABTS [2,2-azinobis(3-ethylbenzothiazoline-6-sulfonic acid)] as substrate. To this end, a 200 μL reaction mixture containing 100 μL of 2 mM ABTS, 95 μL of 50 mM reaction buffer (pH 3.0), and 5 μL of enzyme solution was prepared. Enzyme activity was monitored with a spectrophotometer (VersaMax™ microplate reader, Molecular Devices, CA) set up at a wavelength of 420 nm (i.e., OD₄₂₀) for the ABTS substrate. Reaction rates were calculated using a molar extinction coefficient of 36 mM/cm. One unit was defined as the amount of enzyme that oxidized 1 μmol of substrate per minute (min). Protein concentrations were determined by the Bradford method (Bradford 1976), using bovine serum albumin as the standard.

Protein expression determined by SDS-PAGE

Proteins were run in gels prepared with 0.1% SDS, using 12% separating gel and 4% stacking gel. Tris–glycine buffer (pH 8.3) containing 0.1% SDS was used as electrode buffer. Samples at same concentration in terms of OD = 5 were treated with buffer and heated at 100 °C for 5 min before loading onto the gel. Electrophoresis was run from the cathode to the anode at a constant current of 20 mA per slab at room temperature in a Biorad mini gel electrophoresis unit. Proteins were visualized by staining with Coomassie blue R-250. Stained SDS gels were scanned on the Image scanner Labscan 6.0 (GE Healthcare). Subsequently, band intensities were quantified by densitometry, using the Quantity One 4.6.2 analysis software (BioRad).

Biochemical characterization of LacB

LacB activity was analyzed using 2 mM ABTS in 50 mM sodium citrate buffer (pH 2.2), and the reaction was incubated at a temperature range of 37–65 °C. The crude enzyme of MCO was analyzed in 50 mM buffer at variable pHs. Different concentrations of CuSO₄, CuCl₂, and NaCl were included in the ABTS substrate at a range of 0–2 mM.

Purification of recombinant LacB

The supernatant of the recombinant LacB solution produced from the pET28a-lacB vector in BL21(DE3) cells was loaded onto the AKTA system (GE, USA), using a His-trap affinity column for purification. The purified enzymes were put into a micro-centrifuge tube at 30-kDa molecular weight cut-off (GE, Millipore), to remove the imidazole and concentrate the solution for Au adsorption.

Application of recombinant LacB on Au adsorption

Adsorption of free Au ions

Solutions containing 100 ppm of AuHCl₄ and 50 ppm of purified recombinant LacB were prepared. Two milliliters of both solutions were mixed and agitated for 1 h at 70 rpm. Following agitation, 4 mL of the solution was transferred into the Amicon^® device equipped with a 3 kDa molecular cut-off filter and centrifuged for 25 min. The resulting filtrate was used to measure the Au concentration by inductively coupled plasma with atomic emission spectroscopy (ICP-AES) (Thomas 2001).

Adsorption of Au@NPs

A solution containing 1 mM AuHCl₄ and 38.8 mM sodium citrate was prepared as follows: 60 mL of AuHCl₄ solution was heated until boiling, followed by the addition of 6 mL of sodium citrate solution. Once the color of the solution changed from yellow to purple, the solution was left to cool at room temperature. This solution was the Au nanoparticle solution. Next, 300 μL of Au nanoparticle solution and 200 ppm of purified recombinant LacB were mixed together and agitated for 1 h at 70 rpm. Following agitation, 200 μL of the solution was loaded into a 96-well plate to monitor the optical density with a spectrophotometer set up at a wavelength of 350–750 nm (VersaMax™ microplate reader, Molecular Devices, CA).

Characterization of MCO-Au

Zeta potential (Malvern Zetasizer Nano ZS, UK) was used to measure the isoelectric points of MCO or MCO with Cu (MCO^+Cu) following Au adsorption. The zeta potential was measured in 100 mM phosphate buffer. Each sample was analyzed at least by triplicate. MCO^+Cu and MCO^+Cu after Au adsorption were further analyzed for their kinetic parameters against ABTS. The ABTS concentrations ranged from 0.01 to 2 mM at pH 2.2. The Michaelis–Menten kinetics was assumed and fitted by Lineweaver–Burk plot, using Sigmaplot 10.0 software.

Nucleotide sequence accession number

The sequences of lacB of P. hauseri ZMd44 have been deposited in the GenBank database under accession number JF718783.

Results and discussion

Cloning Mco-lacB from P. hauseri ZMd44

The full-length 1578 bp gene sequence encoding LacB, which included a signal peptide of 27 amino acids, was obtained from genomic annotation of the biodecolorizing bacterium, Proteus hauseri Zmd44 (Ng et al. 2013; Chen et al. 2010). Although the native multicopper laccase activity has been reported in P. hauseri (Zheng et al. 2013) and P. mirabilis (Olukanni et al. 2010), the heterologous expression of such kind of enzyme in E. coli has never been explored. Therefore, we cloned and overexpressed lacB in the E. coli for the first time. LacB exhibited activity after expression in the pET22b vector but it is not satisfying. LacB was shown to be a simple monomer by SWISS-MODEL simulation (Fig. 1d); therefore, this study focussed on the heterologous expression of LacB in different vectors.

Mco-lacB expression in different vectors

The constructions of recombinant protein were confirmed by enzymatic digestion with the restriction enzymes NcoI and XhoI. The triplicate results from the growth curves shown in Fig. 2 reveal that the addition of IPTG and CuSO₄ into the cultures negatively affected cell growth. This could be due to two reasons: (i) the IPTG and copper ion may have a toxic impact on cell growth; (ii) the recombinant pET22b-lacB may have higher toxicity in the cells owing to the signal peptide, pelB, which is secreted to the periplasm and accumulates copper, leading to cell death. Next, protein expression patterns detected by SDS-PAGE were different from those of the selected vectors, as shown in Fig. 3a. For pET28a, most of the recombinant LacB was soluble and had an estimated yield of 1330 mg/L, as quantified by in-gel densitometry (Fig. 3a). However, LacB expression from the pET32a and pET22b vectors was found in the pellet (Fig. 3a). We speculate that the fusion protein TrxA expressed in the pET32a vector could have increased the load of the cells, resulting in the wrong folding of the MCO, which may become an inclusion body. On the other hand, in the pET22b vector, the recombinant MCO was expressed in the periplasm and also may have become an inclusion body. The time course of pET22b-lacB biomass shown in Fig. 2c indicates considerable cell death at 24 h, whereas no cell lysis occurred in case of pET28a-lacB and pET32a-lacB. As shown in the activity analysis of Fig. 3b, the recombinant MCO expressed by pET28a had the highest activity among the three expression vectors. This activity was about 400 and 500 U/L at an optimal pH of 2.2 for whole cell and supernatant, respectively. This result was consistent with the color of the cell pellet obtained by centrifugation (Fig. 2d), where the chelation of copper ion represents a key event for MCO activity (Grass and Rensing 2001). In the case of the pET28a-lacB vector, copper ions can be transferred into the cell and combined with the MCO, generating a blue color (Fig. 2d) that translates into the highest MCO activity. Recently, a cell-free system to synthesize an active multicopper oxidase has been reported (Li et al. 2016). In such publication, the yield was almost 1.2 mg/mL, which is as similar to the heterologous expression in the pET system. The alternative method to improve heterologous protein in E. coli can be accomplished by shifting to lower temperature and applied experimental design (Wu et al. 2017). In our strategy based on vector’s property, we found that the best protein production came from the pET28a vector, which included neither the original signal peptide nor the pelB signal peptide from pET22b or fusion TrxA from pET32a in E. coli.

Fig. 2

Time course of biomass growth, using different expression vectors and conditions. Circles represent LB + IPTG and Cu, triangles represent LB + IPTG, and squares represent LB. a pET28a-lacB, b pET32a-lacB, c pET22b-lacB, and d cell pellets harvested after centrifugation

Fig. 3

a SDS-PAGE analysis of recombinant MCO generated from (left) pET28a-lacB at 24 h, (middle) pET32a-lacB at 24 h, and (right) pET22b-lacB at 14 h transformed in E. coli BL21(DE3) cells. Samples used are W, whole cell; S, supernatant; P, pellet; and M, periplasm; where subscript of a, b and instead of induction by IPTG with Cu, IPTG and none of them. Mw means molecular weight. The arrows indicated the overexpression of MCO. b Crude MCO activity in whole cell lysates, soluble and cell pellet from recombinant (left) pET28a, (middle) pET32a and (right) pET22b at different pHs

MCO-lacB characterization

The pH effect on crude MCO is shown in Fig. 3b. Increasing the pH value caused the MCO activity to drop dramatically. The best pH value was 2.2, where MCO showed a 10-fold increase in activity when compared to its activity at pH 3.5. In the presence of ABTS, only single electron transfer takes place in the reaction instead of a proton transfer (Bertrand et al. 2002). Consequently, the optimal pH would be lower. The optimal temperature ranged from 55 to 65 °C, as shown in Fig. 4a. In addition, the recombinant MCO showed relatively high activity in the range of 50–65 °C. Compared to the native MCO of P. hauseri ZMd44 (Zheng et al. 2013), the recombinant MCO possessed a higher enzymatic activity and a wider thermo-resistance range. Therefore, the catalytic performance of MCO can be enhanced through heterologous expression, which increases its applicability in industry. Regarding the effect of the use of different ions (Fig. 4b), our results showed that the addition of copper ion (CuSO₄) at the optimal concentration of 0.5–1 mM could increase MCO activity. However, addition of the copper ion at concentrations higher than 1 mM resulted in an unexpected decrease of MCO activity. This suggests that the appropriate addition of the copper ion may help electrons to be transferred to the substrate, whereas an excess of copper ion may become an obstacle and may slow down the rate of electron transfer. Although the catalytic activity of MCOs can be enhanced by copper addition, the inhibition of such activity by chloride ion became more evident upon addition of copper (II) chloride and sodium chloride. As the chloride ion was added in the reaction system, the MCO activity dropped dramatically in spite of the presence of copper ion. Other groups have reported similar results in which MCO activity could be strongly inhibited by the chloride ion (Naqui and Varfolomeev 1980; Kepp 2015).

Fig. 4

Characterization of recombinant crude LacB. a Effect of incubation temperature on MCO activity. b Effect of metal ion addition on MCO activity

Recently, Sondhi et al. reported that the strain Bacillus tequilensis SN4 had the highest catalytic activity of MCO (i.e., k _cat is 4020/min) at pH 5.5 and 85 °C (Sondhi et al. 2014). As shown in Table 2, the reaction conditions of MCO activity are very diverse among different microbes (Ye et al. 2010; Ausec et al. 2015; Yang et al. 2016; Safary et al. 2016). However, rare forms of MCO show acidophilic properties and accordingly our results of P. hauseri MCO had optimal activity at pH 2.2. More importantly, this is the first attempt to detect the gold-binding properties of this MCO. The enzymatic activity was highly inhibited after addition of AuHCl₄ because of chloride inhibition. Finally, the Au ion was from AuHCl₄; thus, the Vmax of LacB is tenfold than that of LacB-Au (Table 2), which represented the chloride inhibition was dominating. This mechanism when gold binding to enzyme will be discussed in the next section.

Table 2 Comparison of the catalytic kinetic parameters of MCO on ABTS from different microorganisms

Application and characterization of recombinant MCO-lacB for Au adsorption

It has been reported that Au nanoparticle could be adsorbed on MCO and function as a switch on ABTS reaction (Guo et al. 2015). We attempted to evaluate the ability of recombinant MCOs to adsorb Au following two approaches: free ion and nanoparticle. Purified recombinant MCO was used for Au ion adsorption experiments (Fig. 5a). This showed that 37 and 39% Au (mg) was adsorbed per milligram of MCO with (Sa) and without (Sb) copper ion in significant level (P value < 0.05). MCOs supplemented with copper ion possessed a very similar ratio of Au adsorption. This adsorption percentage is relatively higher than other protein for gold adsorption. Maruyama et al. applied three proteins to adsorb the gold ion, which showed that the adsorption percentage is 3.6, 4, and 1.6% for ovalbumin, BSA, and lysozyme, respectively (Tatsuo et al. 2007). Actually, in the Au biorecovery research, some reports revealed that a specific peptide bond on the gold surface (1,1,1) but not adsorbed of gold ions (Brown 1997, 2000). Alternatively, the adsorption of Au nanoparticles (Au@NPs) on MCO was similar in the presence or absence of copper ion (Fig. 5b). The Au@NPs were directly adsorbed on the MCO’s surface, as the adsorption ability is totally determined by the surface property. As shown in Fig. 5b, the adsorption of Au@NPs showed a peak at a wavelength of 530 nm, and the optical density increased as the recombinant MCO was added to the culture. Adsorption of Au@NPs on the MCO could have caused a blockade of the light pathway, and as a result, there would be an increase in optical density.

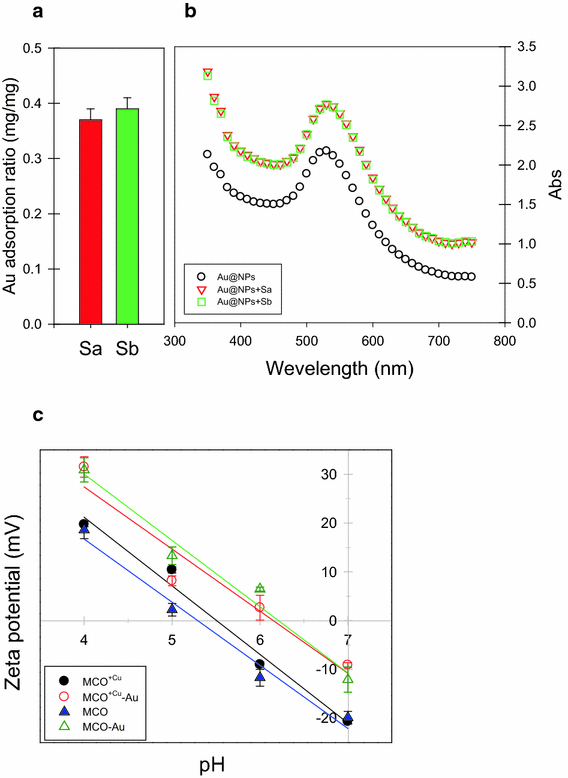

Fig. 5

Application of recombinant LacB in Au adsorption. a Supernatant fractions of MCO produced by BL21 cells harboring the pET28a-lacB vector under IPTG and copper (Sa), or IPTG only (Sb). b Spectrum scanning of free Au@NPs or Au@NPs adsorption by Sa and Sb. c Zeta potential analysis of MCO and MCO^+Cu before and after adsorption of Au

The initial working conditions of MCO and MCO^+Cu (i.e., cultured with Cu) for adsorbing Au were determined at pH 7.75 and 7.73, respectively. However, the zeta potential of both samples following Au adsorption was determined at different pHs. These results are shown in Fig. 5c. The isoelectric points of MCO and MCO^+Cu were determined at pH 5.29 and pH 5.51, respectively. This showed that the recombinant proteins were anionic and the Au adsorption on the protein was through electrostatic interactions. The isoelectric points of MCO and MCO^+Cu upon Au adsorption were determined at pH 6.21 and 6.15, respectively. At this point, the proteins were still anionic, but the isoelectric point shifted to a higher pH, especially for MCO. We suggest that Au ions compete for the same binding site within the protein, affecting the chelation of the copper ion by the MCO and causing structural changes. Higher isoelectric points showed that, at the same pH, there were fewer negative charges of the protein after Au adsorption. This is consistent with the fact that Au possesses protons combined to the proteins, which partially neutralize the protein’s negative charges.

Conclusion

We optimized the heterologously expression of MCO and investigated the extent of its applications. Among the three different vectors analyzed in this study (i.e., pET28a, pET22b, and pET32a), pET28a, carrying the lacB gene, showed the best results regarding expression levels, cell growth, and enzyme activity at different pHs. The optimal pH of the recombinant MCO was 2.2 at an incubation temperature of 55 °C with the addition of 0.5 mM of copper. We also found that the addition of chloride ion strongly inhibited MCO activity. This is the first attempt to explore the ability of MCO from P. hauseri to adsorb Au or Au@NPs, which may become a novel application for bioremediation in the future.
