Enzyme screening
Initially, six immobilized PAs were examined for kinetically controlled synthesis of N-bromoacetyl-7-ACA (Fig. 2), since biocatalyst is a key factor affecting the enzymatic reactions. As shown in Fig. 2, all the enzymes tested could accept methyl bromoacetate as the substrate, and catalyze N-bromoacetylation of 7-ACA. However, enzymes from different sources exhibited totally different catalytic performances in the synthesis of N-bromoacetyl-7-ACA. As shown in Fig. 2, of the enzymes tested, PGA-750 that gave a yield of approximately 90% after 3 h was the best biocatalyst, while SIPA-V was the worst. No acylation reactions occurred in the absence of enzymes. Previously, Wei and co-workers reported that PA from B. megaterium could catalyze efficiently the coupling of d-phenylglycine methyl ester to 7-aminodesacetoxymethyl-3-chlorocephalosporanic acid, thus furnishing cefaclor (Yang and Wei 2003). Therefore, PA from B. megaterium may be a versatile biocatalyst which can accept the esters bearing and without the aryl group as the substrates. Except for PGA-750, the maximal yields of less than 52% were obtained with other enzymes after 11 h. In addition, after reaching the maximal yields, further prolongation of reaction time would result in the decreased product yields in all cases, which may be attributed to the occurrence of the side reaction—enzymatic hydrolysis of the desirable product N-bromoacetyl-7-ACA. In addition to the product yields, the 7-ACA conversions were monitored (Additional file 1: Figure S1). It could be found that the substrate conversions increased remarkably as the reaction proceeded in all cases; besides, the substrate conversions were higher than the corresponding yields. The stability of 7-ACA in the absence and presence of the immobilized enzyme was tested (Additional file 1: Figure S2). It was found that 7-ACA was very stable in buffer without enzyme, while it was quickly degraded into two unknown compounds within 4 h in the presence of enzyme. Hence, the reason for the fact that the conversions were generally higher than the yields might be attributed to the significant enzymatic hydrolysis of 7-ACA. It was reported that cephalosporin-C deacetylase and acetyl xylan esterase were capable of hydrolyzing 7-ACA into its deacetylated derivative (Takimoto et al. 2004; Montoro-García et al. 2010). Presently, the enzyme(s) responsible for the 7-ACA decomposition remains unknown, which is underway in our laboratory.
Effect of acyl donors

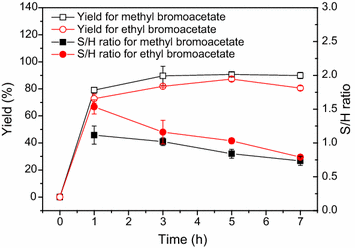

Figure 3 shows the effect of acyl donors on the synthesis of N-bromoacetyl-7-ACA. It was found that the reaction rate appeared to be slightly higher with methyl bromoacetate as the acyl donor than that with ethyl ester; additionally, a slightly higher product yield (approximately 90%) was obtained with the former. Besides, the substrate conversions were more than 95% after 7 h. It suggests that the two esters tested are good acyl donors for the enzymatic N-acylation of 7-ACA. In addition to the conversions and yields, the S/H ratios (the molar ratios of N-bromoacetyl-7-ACA to bromoacetic acid, the selectivity toward synthesis), a parameter that is often used to assess the economics of the enzymatic process (Bruggink et al. 1998; Wegman et al. 2002; Ribeiro et al. 2005; Cao et al. 2000), were also tracked (Fig. 3). As shown in Fig. 3, the S/H ratios were higher with ethyl ester as the acyl donor than those with methyl ester. Furthermore, the S/H ratios decreased significantly as the reaction progressed in the two cases, which is consistent with the previous results (Cao et al. 2000). The S/H ratios were approximately 1.0 with both methyl and ethyl esters, when the maximal yields were achieved. In terms of the yield, reaction rate, and S/H ratio, methyl bromoacetate was considered as the optimal acyl donor and used in the following studies.
Effect of key conditions
Some key conditions including the substrate molar ratio (the molar ratio of methyl bromoacetate to 7-ACA), pH, and temperature were optimized to improve the enzymatic synthesis of N-bromoacetyl-7-ACA (Fig. 4). Figure 4a shows the influence of the substrate molar ratio on the enzymatic reaction when the concentration of 7-ACA was 40 mmol/L. As shown in Fig. 4a, increasing the substrate molar ratio resulted in the significant improvement in the conversions as well as the yields. For example, the maximal conversion and yield were 61% and 53%, respectively, with the substrate molar ratio of 1.0, while being 90% and 83%, respectively, with the substrate molar ratio of 2.0. Nonetheless, using lower substrate molar ratios seemed to be favorable for synthesis, resulting in the higher S/H ratio, which is in good agreement with the previous results (Ferreira et al. 2007; Ribeiro et al. 2005).
The effect of pH on the enzymatic reaction and the 7-ACA solubility was studied, when pH varied from 7.0 to 9.0 (Fig. 4b). As shown in Fig. 4b, pH had a significant effect on the product yield. For example, the product yield was approximately 73% at pH 7.0, while it increased to 89% at pH 7.5. The highest product yield was observed at pH 7.5. It has been well demonstrated that alkaline pH can facilitate the enzymatic hydrolytic reactions (Ospina et al. 1996), which may explain the results obtained in this work that the yields (76–81%) are lower under higher pH. As shown in Fig. 4b, the S/H ratio decreased markedly from 1.2 to 0.7 when pH increased from 7.0 to 8.0, suggesting that PA catalyzed preferably the hydrolytic reaction under alkaline pH. Nonetheless, higher solubility of 7-ACA was found in alkaline media, likely due to the presence of the carboxylic acid group in this molecule. The 7-ACA solubility reached approximately 76 mmol/L in pH 9.0 Tris–HCl buffer (100 mmol/L), and its solubility was closely dependent on the buffer types (Additional file 1: Figure S3). To identify the optimal pH for this enzyme reaction, the stability of 7-ACA and the immobilized enzyme were also studied under various pH (Additional file 1: Figures S4 and S5). As shown in Additional file 1: Figure S4, the changes in the 7-ACA concentrations appeared not to be correlated with pH, and 7-ACA of about 10 and 25% degraded after 3 and 24 h in all cases, respectively. In addition, the immobilized enzyme PGA-750 appeared to be very stable at various pH (Additional file 1: Figure S5). In particular, the enzyme almost retained its original activity after incubation of 216 h at pH 7.5 and 9.0, which may be partially accounted for by the fact that the protein was covalently immobilized on the carrier. The excellent stability of this immobilized enzyme might highlight its industrial application potential.
The effect of reaction temperature on the synthesis of N-bromoacetyl-7-ACA is shown in Fig. 4c. It was found that reaction temperature exerted a substantial effect on the product yield. The highest product yield was obtained at 20 °C. Higher temperature resulted in the lower yields when the temperature was more than 20 °C, which is in good agreement with previous results in the enzymatic synthesis of other semi-synthetic antibiotics (Aguirre et al. 2006; Wei et al. 2003). The reason might be that, as compared to synthesis, the hydrolytic reactions became predominant at high temperature (e.g., 30 and 40 °C), which could be verified by the lower S/H ratios at higher temperature (Fig. 4c).
Effect of the substrate concentrations
The effect of the 7-ACA concentrations on the enzymatic reaction is exhibited in Fig. 5. The substrate conversions (approximately 90%) as well as the product yields (83–88%) were found to be comparable when the substrate concentrations were less than 40 mmol/L. However, the conversion and yield decreased significantly to 79 and 74%, respectively, with the substrate concentration of 60 mmol/L. In addition, the initial reaction rate increased with increasing the substrate concentration, suggesting that there exists no substrate inhibition within the concentration range tested. Interestingly, it was found that the S/H ratio appeared to be higher at higher substrate concentration, and the S/H ratios of more than 1.5 were achieved when the 7-ACA concentrations were beyond 50 mmol/L. Previously, other groups also demonstrated that the reactions preferred synthesis to hydrolysis at higher reactant concentrations (Youshko et al. 2000, 2004). The substrate concentration of 50 mmol/L was used in the subsequent studies, due to the good S/H ratio and satisfactory product yield.
Effect of enzyme dosage
The optimization of enzyme dosage was conducted to improve the enzymatic reaction (Fig. 6). As shown in Fig. 6, the initial reaction rate increased significantly with the increment of enzyme dosage. For instance, the initial reaction rate was around 1.5 mmol/L min with the enzyme dosage of 1.0 U/mL, while it increased substantially to 5.7 mmol/L min with 5.0 U/mL. In addition, the increase in the enzyme dosages led to the improved yields, and the highest yield of up to 85% was achieved with the enzyme dosage of 4 U/mL. The optimal enzyme dosage was regarded as 4 U/mL, where the S/H was around 1.5.
Operational stability of the immobilized enzyme
Finally, the operational stability of the immobilized enzyme PGA-750 was studied under the optimal reaction conditions (Fig. 7). It could be found that the immobilized enzyme had good stability, which is in good agreement with the above results (Additional file 1: Figure S5). No significant deactivation was observed during 7 runs, and the relative yield of approximately 90% was obtained in 7th batch. Unfortunately, the immobilized enzyme significantly lost its activity in the following batches. The relative yield decreased to around 63% at 11th batch. As described above, bromoacetic acid and methanol would be produced as the by-products during the enzymatic synthesis of the desired product (Scheme 1), which may have a detrimental effect on the enzyme stability.
