Citrus limetta peels: a promising substrate for the production of multienzyme preparation from a yeast consortium


Citrus limetta peels (CLP), a waste material generated by juice industries, has scarcely been reported for the production of yeast enzymes. The study was conducted to obtain a multienzyme preparation from a yeast consortium under solid-state fermentation of CLP. The substrate, CLP, was pretreated using either acid or alkali, and factors affecting production of multienzyme were studied by generating two separate Plackett–Burman designs. Since, alkali-pretreated CLP yielded higher titers; therefore, significant factors affecting multienzyme preparation using this substrate were optimized by employing Box–Behnken design. The analysis revealed that under optimized conditions, i.e., cultivation of yeast strains for 72 h to alkali-pretreated CLP moistened with mineral salt medium having pH 5 yielded more than 10 IU mL−1 of cellulase, xylanase, and amylase. The multienzyme was studied for its application to saccharify fruit and non-fruit wastes and for orange juice clarification. The data showed that the enzyme preparation could release 3.03 mg L−1 h−1 of reducing sugars from various crude substrates and was able to reduce turbidity of orange juice by 11% with substantial decrease in viscosity and acidity. Hence, CLP appeared as a promising substrate to produce multienzyme preparation from yeast consortium.


Solid-state fermentation (SSF) or cultivation of microorganism on solid materials in the absence of free water has remained a promising technology in eastern hemisphere of the globe for many centuries and is still considered as an attractive process for the countries like India and Pakistan (Manan and Webb 2017). Indeed, availability of agro-industrial wastes with the requirement of technologically simple bioreactors renders the development of SSF-based processes to get due attention in such countries. Among various waste materials, brans, straws, bagasses, and fruits peels have been studied extensively as raw materials under SSF (Ferreira et al. 2016); the choice of specific substrate, however, depends on the product and local agriculture practices.

The utilization of fruit peels as fermentation raw material offers benefits for being cost-effective and can provide additional revenues to food-processing industries. Various literature reports (Li et al. 2015; Sagar et al. 2018) describe fermentative production of multienzyme using fruit peels such as those of Mango (Mangifera indica), Pomegranate (Punica granatum), Apple (Malus pumila), Mosambi (Citrus limetta), Banana (Musa acuminate), and Orange (Citrus reticulata). Pakistan being sixth largest citrus fruit producer can be benefitted by the development of fermentation processes based on fruit juice industry’s waste. Indeed, the cultivation area of citrus fruits in Pakistan has been increased from 33,000 to 197,450 Ha in 2012; consequently the production reached to 115.52 million MT that accounts for 4% of global production (Yasin Ashraf et al. 2013). Hence, the country holds large citrus juice industries that generate waste including fruit peels in abundant quantities.

The waste, peels of most of the citrus fruits, accounts for ~ 50% of total fruit weight (Oberoi et al. 2010), but it does not attain any commercial importance and is largely used as cattle feed or disposed as municipal waste (Oberoi et al. 2010; Sharma 2012). It contains fermentable sugars including glucose, fructose, and sucrose along with insoluble polysaccharides pectin and cellulose (Grohmann et al. 1995) with low levels of non-fermentable components such as lignin. Amongst citrus wastes, the waste of Citrus reticulata is a well-studied substrate for the enzyme and ethanol production under solid-state and submerged fermentation (Oberoi et al. 2011; Sandhu et al. 2012); however, Citrus limetta has not been frequently described, particularly under SSF.

Solid-state fermentation provides microorganism conditions similar to their natural environment where members in a consortium interact synergistically, and hence, complex substrates can be degraded effectively (Sutherland 2001) and cellulosic ethanol can be obtained (Lynd et al. 2002). It has also been reported that one strain in a consortium utilizes toxic or undesirable by-product produced by the other strain (Herrero et al. 1985), and hence, higher yields are obtained (Sadhu 2013). Moreover, the consortium yields multiple products in a single pot, such as, more than three plant cell wall degrading enzymes (PCWDEs) can be produced (Rehman et al. 2014). A heterogeneous enzyme preparation is benefitted by integrated activities and co-operativity among its components, and is suitable to be applied to saccharify crude lignocellulosic substrates (Zhang et al. 2004).

Production of an enzyme under SSF is affected by a number of factors which are traditionally studied by labor- and time-intensive strategy in which one factor is varied at a time. Optimization of production of multiple enzymes from a single process without using statistical approaches cannot be carried out conveniently. Indeed, statistical tools for design of experiments (DoE) can be used to investigate the effect of different variables on the production of enzyme cocktails in relatively fewer numbers of experiments (Pirzadah et al. 2014). DoE tools including Plackett–Burman design (PBD) and response surface methodology (RSM) have been employed earlier to produce pectinase from a yeast using commercially available pectin as substrate (Ahmed et al. 2019).

Penetration into solid substrates through hyphae renders fungi suitable organism to be utilized under SSF (Raimbault 1998). Yeasts, on the other hand, have been traditionally used for submerged fermentation processes. The yeast-based SSF processes offer an advantage as these can be completed in a shorter duration and can be extended to proceed for consolidated bioprocessing to obtain ethanol directly from crude substrates (Shariq and Sohail 2018). Earlier, the yeast strains Saccharomyces cerevisiae MK-157 and Candida tropicalis MK-118 were co-cultured to produce cellulase and xylanase under SSF of sugarcane bagasse (Qadir et al. 2018). In this manuscript, the production of multienzyme preparation from a consortium of MK-157, MK-118 and C. tropicalis MK-160 under SSF of CLP is reported. The factors affecting production of the enzyme cocktail were screened using PBD and the levels of significant factors were optimized by employing Box–Behnken design (BBD) in RSM approach.

Materials and methods

Yeast consortium

Three of the indigenous yeast strains, C. tropicalis MK-118 and MK-160 and S. cerevisiae MK-157 were retrieved from the culture collection available in the lab of the corresponding author. MK157 was previously reported for its ability to produce endoglucanase (EG) (Shariq et al. 2018) MK-160 for xylanase (Xyl) (Shariq and Sohail 2018), and MK-118 for EG, β-glucosidase (BGL) and Xyl production (Shariq and Sohail 2020). All the three strains were maintained on Sabouraud’s dextrose agar (SDA). The suitability of the three yeast strains to be co-cultured was evaluated by cross streaking on SDA plates.

Inoculum was prepared by separately inoculating the isolated colonies of MK-118, MK-157, and MK-160 in SDB, and incubating at 30 °C for 24 h with shaking at 150 rpm. The density of cultures was checked at 600 nm against blank and maintained at 1.0 for inoculating in the medium of production. As given in DoE, either 0.25 or 0.5 mL g−1 of substrate was transferred for multienzyme production.

Preparation of the substrate

Different fruit wastes including peels of Mango, Pomegranate, Apple, Sweet Lime (CLP), Banana, and Orange were locally collected and chopped in 1–2 cm pieces, washed with excessive tap water to remove any chemical contaminants and residual sugars. After washing, the materials were solar dried and then placed in an oven at 60 °C for overnight. Dried materials were ground and passed from 100 µm mesh size sieve.

Since, higher titers of the enzymes were obtained by the SSF of CLP, therefore, this waste was further exploited. Before its utilization for multienzyme production, CLP was pretreated separately with 0.5%, 0.75%, and 1% of sulfuric acid or sodium hydroxide by keeping the material in acid or alkali (at the rate of 50 mL g−1) at room temperature for 24 h. The slurry was then washed excessively with tap water until the pH of the wash-through became neutral. The washed slurry was oven dried at 60 °C and clumps were grinded to powder, if needed.

Solid-state fermentation

Solid-state fermentation was performed with 1 g of native and chemically pretreated CLP in 100 mL Erlenmeyer flasks, sterilized by autoclaving for 30 min, and moistened with mineral salt medium (Qadir et al. 2018), or with 0.5% yeast extract and 0.5% peptone (YEP). The experiments were performed as given in statistical designs (PBD or BBD).

Initially, PBD was adopted for screening of significant factors that affected EG, BGL, Xyl, amylase, and pectinase production from yeast consortium of MK-118, MK-157, and MK-160 under SSF of CLP. Two different PBDs (each comprised of 20 experiments) were generated separately for acid or alkali-pretreated CLP using Minitab 16 software for seven variables including four chemical factors (type of moistening agent, and its pH, moisture content, and pretreatment), two physical factors (temperature and incubation time), and one biological factor (inoculum size). Each factor was adjusted at either high level or low level, i.e., temperature (30, 35 °C), moistening agent (MSM, YEP), pH (5, 7), moisture content (50, 80%), inoculum size (0.25, 0.5 mL g−1), pretreatment (with acid/alkali or untreated), and incubation time (48, 72 h).

After performing experiments, crude enzymes were harvested and assayed for EG, BGL, Xyl, amylase, and pectinase activities, and responses were taken as IU mL−1 of the enzymes. The data were analyzed using Minitab 16. After analysis, the most significant factors affecting multienzyme production were identified.

At harvest, 10 mL of 50 mM sodium citrate buffer (pH 4.8) containing 0.05% (v/v) tween 80 was added to fermented CLP and placed in an orbital shaker at 100 rpm for 1 h. After filtration, CLP was separated and filtrate was centrifuged at 3000×g for 20 min and supernatant was taken as crude enzyme preparation.

Enzyme assays

EG, BGL, Xyl, amylase, and pectinase activities in crude enzyme preparation were assayed by measuring reducing sugars according to Miller (1959) by incubating 25 μL of crude enzyme preparation with 25 μL of buffered substrates at 35 °C for 30 min. Carboxymethyl cellulose, salicin, beechwood xylan, starch, and citrus pectin (0.5% in 50 mM sodium citrate buffer, pH 4.8) were used as substrate for EG, BGL, Xyl, amylase, and pectinase. The reaction was quenched by boiling the mixture after adding 150 μL of dinitrosalicylic acid and chilling on ice for 5 min. The contents were diluted with 720 μL of distilled water and OD540 was taken. One unit of enzyme was defined as the amount of enzyme that liberates one micromole of reducing sugars equivalent to glucose or xylose or galacturonic acid in 1 min under standard assay conditions.


Different agro-industrial or fruit wastes including Sugarcane bagasse (SB), Banana peels, Mango peels, Apple peels, Orange peels, CLP, and Pomegranate peels were subjected to saccharification by multienzyme preparation, and results were compared with the saccharification of commercially purified substrates, carboxymethyl cellulose (CMC), beechwood xylan, and pectin. Each substrate (1 g) was transferred to 50 mM sodium citrate buffer (pH 4.8) containing 0.2% sodium azide and loaded with multienzyme preparation standardized with 10 IU mL−1 of pectinase. Saccharification was accomplished at 35 °C with shaking at 100 rpm for 4 days by taking aliquots intermittently and analyzed for the amount of reducing sugars as given earlier (Rehman et al. 2014).

Clarification of orange juice

The multienzyme preparation was studied for its application to clarify orange juice. Oranges were purchased locally and juice was extracted using manual screw type extractor. The enzyme preparation standardized as 10 IU mL−1 of xylanase was added to 100 mL of juice and kept for 60 min at 35 °C in a water bath. After treatment, the enzyme was denatured by briefly boiling it for 5 min followed by centrifugation at 4000×g for 20 to remove pulp. Absorbance of the enzymatically treated juice was taken at 660 nm and compared with distilled water to calculate percentage transmittance. The viscosity of the juice was measured using Ostwald viscometer at room temperature by taking time of flow into consideration and using the formula as given Nagar et al. (2012).

Results and discussion

Fruit wastes largely remain under-utilized and hence offer prospect for being used as fermentation raw material. Previously, SSF of Orange peels (Mantzouridou et al. 2015) and Apple pomace (Madrera et al. 2015) has been reported by employing the strains of S. cerevisiae, Hanseniaspora valbyensis, and H. uvarum, respectively. However, these and similar studies employed one or two strains of the yeasts to obtain one product. The production of multienzyme preparation under SSF of a fruit waste by employing a yeast consortium has not been reported, so far.

Initially, the yeast strains, MK-118, MK-157, and MK-160, were cross streaked on SDA plates; as none of the strains showed any inhibitory effect, and therefore, it was perceived that these strains can be used to develop a consortium. As a first step, various fruit waste materials including peels of Mango, Pomegranate, Apple, Sweet Lime (CLP), Banana, and Orange were utilized as a source of carbon under SSF and production of multienzyme was investigated. The results showed that the highest titers of EG (26.64 IU mL−1) were expressed when Mango peels were used as SSF substrate (Table 1). SSF of Banana peels and Apple peels did not produce appreciable amount of enzymes, whereas SSF of Orange peels gave 5.5, 7.7, and 2.3 IU mL−1 of EG, BGL, and Xyl titers, respectively. In comparison, SSF of CLP yielded 9.03 IU mL−1 of EG, 7.4 IU mL−1 of BGL, and 10.3 IU mL−1 of Xyl. On the basis of highest titers of EG, BGL, and Xyl, CLP was selected for further studies. The utmost possible literature survey did not show any report describing CLP for the production of PCWDEs.

Table 1 Production of endoglucanase (EG), β-glucosidase (BGL) and xylanase (Xyl) by consortium of yeasts under solid-state fermentation (SSF) of some crude substrates

Although, SSF processes using untreated substrates have been reported (Rehman et al. 2014; Naseeb et al. 2015), however, appropriate pretreatment process renders accessibility of fermentable components of waste material to organisms (Deswal et al. 2011) and improves the yield significantly (Qadir et al. 2018). In this context, the utilization of CLP was evaluated after its separate pretreatment with acid and alkali and multienzyme preparation was studied. In addition to pretreatment, seven factors affecting multienzyme production by SSF of acid-pretreated or alkali-pretreated CLP were investigated using two separate PBDs.

Investigation of factors affecting production of multienzyme under SSF of acid-pretreated and alkali-pretreated CLP

The data obtained after analysis of PBD for SSF of acid-treated CLP indicated that there was ~ 1.5-fold increase in the titers of individual activities of multienzyme preparation than that of un-optimized experiments. For instance, EG titers as high as 16.48 IU mL−1 (Table 2) were obtained.

Table 2 Plackett–Burman for acid-pretreated substrate

Moreover, the factors were screened for their significant effect by analyzing the data and the main effect, regression coefficient, and T and P values of each variable (see Additional file 1: Table S1) were determined. Typically, a lowest P value is associated with higher T value (Pirzadah et al. 2014). The analysis highlighted that the studied factors affected individual activity of the enzymes in multienzyme preparation differently. Moistening agent and inoculum size were found significant for the EG production, while moistening agent alone was significant for the BGL production. Incubation time along with moisture content had a significant role for pectinase production. Amylase production was found significantly influenced by inoculum size, pH, incubation time, and pretreatment of CLP with acid. While none of the factors had significant effect on xylanase production. Previously, Yahya et al. (2016) did not get any significant factor for the production of amylase by A. tubingenses SY1 when nine factors were screened using PBD; it was argued that the robustness of the process interferes with the determination of the significant factor.

The significant factors explored in this study have been described for their pivotal role in fermentation process. For instance, inoculum size if kept at low level, affects the cell density drastically, whereas a higher inoculum may yield high cell density, but it results in rapid depletion of nutrient thereby retards the productivity (Yoon et al. 2014). Moistening agent and the level of moisture depend on type of organism and fermentation substrate. In their studies on pectinase production by Pseudozyma sp. under SSF of citrus peels, Sharma et al. (2014) demonstrated that owing to their high contents of fermentable carbohydrates, such materials do not need to be moistened by higher level of moistening agents.

The data obtained after performing experiments as suggested by PBD for alkali-pretreated CLP indicated that the highest titers of EG, BGL, Xyl, amylase, and pectinase were found as 14.75, 18.5 L, 18.06, 17.86, and 38.31 IU mL−1 respectively (Table 3). It was evaluated that pretreatment was found statistically significant for the production of all the enzymes activities under SSF of alkali-pretreated substrate. For BGL and pectinase, moistening agent and incubation time were also considered as significant factors. Moreover, Xyl and amylase production were significantly influenced by pH and moistening agent, respectively (see Additional file 1: Table S2).

Table 3 Plackett–Burman for alkali-pretreated substrate

In general, temperature is regarded as significant environmental factor that affects SSF or SmF, but in the current study, temperature did not show any effect on the production of any enzyme under SSF of CLP. The ability of the strains of C. tropicalis used in the consortium to grow under a wide range of temperature may be considered to explain this observation (Shariq and Sohail 2018).

For further optimization of the enzyme production, one design (either for acid-pretreated CLP, design 1, or alkali-pretreated CLP, design 2) needed to be selected according to the objectives of the study. Two-way analysis of variance (two-way ANOVA) was performed to statistically prove which pretreated substrate is better for multienzyme preparation (see Additional file 1: Table S3). F value and F critical value was correlated to determine any significant difference between the IU mL−1 of the two designs. It was concluded that mean of IU mL−1 of the design 2 is greater than design 1, because F value is greater than F critical value. Furthermore, P value of the model is less than 0.05 which presented a definite significant difference between IU mL−1 of the two designs. Hence, it can be concluded that alkali-pretreated CLP is a better substrate for multienzyme preparation than acid-pretreated CLP. This finding can be linked with the studies conducted by Qadir et al. (2018) where damaging effect of alkaline pretreatment on sugarcane bagasse was more pronounced than that of acidic pretreatment; consequently, fermentation of alkali-pretreated substrate yielded more enzymes. Therefore, in this study, RSM was performed for the optimization of factors affecting multienzyme preparation under SSF of alkali-pretreated CLP.

Optimization of multienzyme preparation by yeast consortium under SSF of alkali-pretreated CLP using Box–Behnken design

Although, PBD offers useful observation about the variable’s effects on a response, however, it does not provide actual values of every variable used optimally in a process. Therefore, BBD was employed to examine the interactive effect of factors on EG, BGL, and Xyl production, and to determine optimal value of each variable. Four significant variables, i.e., incubation time, moistening agent, pretreatment, and pH, were studied. Pectinase and amylase production was also analyzed. Temperature, inoculum size, and moisture content (factors other than significant) were adjusted at 30 °C, 500 µL g−1, and 80%, respectively. A BBD design consisted of 27 experiments was generated with four variables (at three levels: − 1, 0, + 1). The design matrix of the variables together with the experimental responses is shown in Table 4.

Table 4 Box–Behnken design matrix for production of endoglucanase (EG), β-glucosidase (BGL), xylanase (Xyl), pectinase (PEC), and amylase (AMY) under SSF of Citrus limetta peels (CLP) by the yeast consortium

The response of experimental runs of EG, BGL, XYL, amylase, and pectinase activities varied from 0.96 to 13.30, 0.888 to 16.5, 4 to 15.67, 0.917 to 14.01, and 21.944 to 32.06 IU mL−1, respectively (Table 4). Experiment number 20 and 22 showed highest protein titer, i.e., 22.75 and 22.5 mg mL−1, while experiment number 9 and 11 gave lowest protein titer, i.e., 11 mg mL−1 (data not shown). It was observed that production of the enzymes was lower than compared to the activities obtained during PBD, but BBD offers an exact value of each significant factor, and hence, this is proven as cost-effective method.

Additionally, the regression coefficient equations were calculated and production of EG, BGL, Xyl, and amylase was expressed as the second-order polynomial equations:

$$\begin{aligned} {\text{EG activity }}\left( {{\text{IU mL}}^{ - 1} } \right) & = 126.7 - 127.3\,A - 0.125\,B - 23.60\,C + 1.07\,D \\ &\quad + 26.47\,A^{2} + 0.000295\,B^{2} + 1.200\,C^{2} - 0.985\,D^{2} + 0.1053\,AB \\ & \quad + 11.35\,AC + 0.43\,AD + 0.0050\,BC + 0.0052\,BD + 0.431\,CD \\ \end{aligned}$$
$$\begin{aligned} {\text{BGL activity}}\left( {{\text{IU mL}}^{ - 1} } \right) & = - 15.5 - 54.7\,A + 0.539\,B + 15.1\,C - 26.25\,D \\ & \quad + 79.6\,A^{2} - 0.00308\,B^{2} - 0.941\,C^{2} + 0.423\,D^{2} - 0.260\,AB \\ & \quad - 12.00\,AC + 6.57\,AD + 0.0089\,BC + 0.0518\,BD + 3.01\,CD \\ \end{aligned}$$
$$\begin{aligned} {\text{Xyl}}\left( {{\text{IU mL}}^{ - 1} } \right) & = 62.6 - 131.5\,A - 0.169\,B + 3.02\,C - 4.98\,D + 59.13\,A^{2} \\ & \quad - 0.00156\,B^{2} - 0.575\,C^{2} - 0.794\,D^{2} + 0.108\,AB - 0.30\,AC \\ & \quad + 14.44\,AD + 0.0599\,BC - 0.0205\,BD - 0.288\,CD \\ \end{aligned}$$
$$\begin{aligned} {\text{Amylase}}\left( {{\text{IU mL}}^{ - 1} } \right) & = 39.4 - 138.4\,A + 0.672\,B - 0.49\,C - 6.53\,D + 53.8\,A^{2} \\ & \quad - 0.00681\,B^{2} - 0.806\,C^{2} + 0.150\,D^{2} - 0.018\,AB + 7.72\,AC \\ & \quad + 3.57\,AD + 0.0624\,BC - 0.0181\,BD + 0.778 \, CD, \\ \end{aligned}$$

where A, B, C, and D represent coded values for pretreatment, incubation time, pH, and moistening agent, respectively.

The EG, BGL, Xyl, amylase, and pectinase responses were analyzed through BBD which generated ANOVA for each enzyme that revealed that the model was significant (see Additional file 1: Table S4) as indicated by F value of 12.66, 39.259, 9.22, and 9.80, respectively, and small P value of the model (i.e., < 0.05). R2 values for EG, BGL, Xyl, and amylase were 92.67%, 91.92%, 91.49%, and 91.96%, respectively, represent that the model can demonstrate above indicated percentages of total variation, and hence, the models for EG, BGL, Xyl, and amylase have good correspondence with the experimental data (Salihu et al. 2011; Cui and Zhao 2012).

The contour plots and response surface plots were used for predicting enhanced production by anticipating the optimal values of different variables. According to the analysis of results obtained, it can be speculated that pretreatment with 0.5% NaOH and moistening agent 2 (MSM + YE) can be used to get more titers of EG (Fig. 1a, b). Additional file 1: Fig. S1a, b presents that 0.5% NaOH-pretreated substrate with moistening agent’s pH 6.7 is the best combination for EG production. This finding was in agreement with Rahnama et al. (2013), where 0.5% alkali-pretreated substrate was found a better substrate for cellulase and xylanase production by Trichoderma harzianum SNRS3 under SSF. Neutral pH was reported as optimal pH by Hmad et al. (2014) for the production of cellulase from filamentous fungus Stachybotrys microspora (mutant strain A19). The analysis of data revealed that there was an enhanced production of EG with an increase in the incubation time and 0.5% NaOH-pretreated substrate (Fig. 1c); however, a decline in EG production was observed upon further increase in NaOH (see Additional file 1: Fig. S1c). This can be explained as enzyme production reaches to maximum in log phase of the growth, and this finding was in agreement by Rosyida et al. (2015).

Fig. 1

Contour plots of EG showing interaction between: a moistening agent and pretreatment, b moistening agent’s pH and pretreatment, c incubation time and pretreatment, d moistening agent and its pH, e moistening agent and incubation time, and f moistening agent’s pH and incubation time

For the production of BGL, two factors NaOH pretreatment and moistening agent interacted in a way that under SSF of 0.5% NaOH-pretreated substrate moistened with YEP, consortium of yeasts gave enhanced titer of BGL, while incubation time and pH were kept constant (Fig. 2a). However, BGL production was adversely affected with an increase in the amount of NaOH for pretreatment (see Additional file 1: Fig. S2a). There was no significant relationship between pH and pretreatment variables (see Fig. 2b; Additional file 1: Fig. S2b), while, when 0.5% NaOH pretreatment was compared with incubation time, plot showed that 80 h and above incubation time with 0.5% NaOH-pretreated substrate were considered as a better combination (Fig. 2c, Additional file 1: Fig. S2c). Brijwani et al. (2010) demonstrated maximum filter paperase activity of 10.7 FPU gds−1 and β-glucosidase of 10.7 IU gds−1 within 96 h incubation time under SSF of wheat bran with optimized conditions of temperature at 30 °C, pH of growth medium 7 and 70% moisture content. YEP (moistening agent 3) with pH above 6 and more than 70 h incubation time showed best combination for BGL production (Fig. 2). Suwannarangsee et al. (2014) studied that yeast extract and initial pH of media had pronounced effect on the production of cell wall degrading enzymes by Aspergillus aculeatus BCC199.

Fig. 2

Contour plots of BGL showing interaction between: a moistening agent and pretreatment, b moistening agent’s pH and pretreatment, c incubation time and pretreatment, d moistening agent and it’s pH, e moistening agent and incubation time, and f moistening agent’s pH and incubation time

The data further demonstrated that enhanced production of Xyl can be achieved using CLP treated with 0.5% NaOH moistened with MSM while keeping incubation time and moistening agent’s pH constant (Fig. 3). A decline in production of Xyl was observed with moistening agents other than MSM and increase in the amount of NaOH for pretreatment purpose (see Additional file 1: Fig. S3a). Whereas, pH 5–6.5 was found appropriate if the cultivation was carried out until 85 h. Earlier, SSF of wheat bran for 72 h by Aspergillus fischeri was found appropriate for the production of cellulase free xylanase with the initial medium pH 9 (Tariq et al. 2018). However, in the present study, increase in incubation time and media pH revealed decreased Xyl production (see Additional file 1: Fig. S3f).

Fig. 3

Contour plots of XYL showing relationship between a moistening agent and pretreatment, b moistening agent’s pH and pretreatment, c incubation time and pretreatment, d moistening agent and its pH, e moistening agent and incubation time, and f moistening agent’s pH and incubation time

Likewise, moistening agent’s pH and pretreatment with alkali were the most promising factors for the production of amylase by the yeast consortium (Fig. 4). Indeed, pretreatment with 0.5% alkali and moistening with MSM with pH ranged 6.5–7 appeared as suitable combinations for the production of amylase (see Additional file 1: Fig. S4).Whereas, under given conditions, incubation time of 58–90 h was deduced as good condition for the said enzyme production.

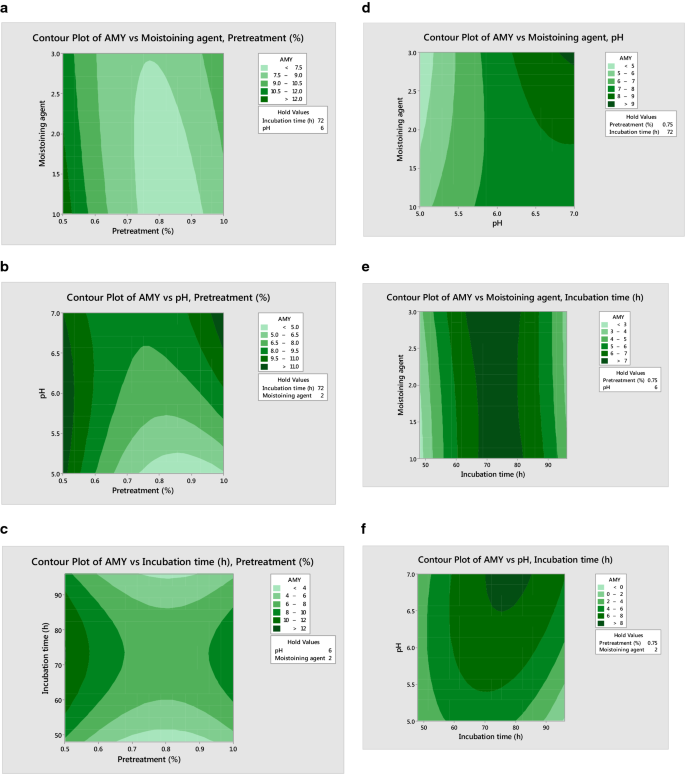

Fig. 4

Contour plots of AMY showing relationship between a moistening agent and pretreatment, b moistening agent’s pH and pretreatment, c incubation time and pretreatment, d moistening agent and it’s pH, e moistening agent and incubation time, and f moistening agent’s pH and incubation time

To summarize, the optimum levels of the factors were: NaOH pretreatment 0.5%, incubation time 72 h, MSM as moistening agent with pH 5 for EG, BGL, Xyl, and amylase. Under optimized conditions, the maximum activity of EG, BGL, Xyl, and amylase was predicted by the model as 10.93, 11.67, 15.40, and 13.23 IU mL−1, respectively. Confirmation experiments were performed, and titers of EG, BGL, Xyl, and amylase were obtained as 9.56, 11.84, 15.09, and 12.32 IU mL−1 (see Additional file 1: Table S5). The titers of EG obtained were similar to those were obtained by Qadir et al. (2018) from a yeast co-culture using sugarcane bagasse as substrate. However, the cost of CLP would apparently be much lower than that of sugarcane bagasse and, hence, provides a merit to study this consortium further.

The model was declared as insignificant for pectinase production according to ANOVA evaluation as determined by large P value, i.e., 0.373 (see Additional file 1: Table S6) and lower R2 value (58.57%). Therefore, pectinase production was not correlated with the change in variables.

Nonetheless, CLP appeared as promising substrate for the production of multienzyme preparation; however, technoeconomic assessment is needed prior to reveal feasibility of large-scale production as various factors impede exploitation of such substrates at commercial level as discussed by (Chew et al. 2017). Moreover, the extraction of any other enzyme of interest from fermented CLP (Arshad et al. 2014) through recently developed reverse micelle technology (Sankaran et al. 2019) or any other method that will aid to extend the product range, and hence, the cost can further be reduced.

Saccharification of crude substrates by the multienzyme preparation

The multienzyme preparation produced by the yeast consortium was evaluated for its ability to be utilized for the saccharification of crude substrates, particularly fruit peels. Since, the crude substrate vary in their compositions, therefore, the multienzyme preparation was standardized for pectinase, xylanase, or cellulase preparation considering the major constituent of the substrate. The data demonstrated that when the multienzyme preparation (standardized at 10 IU mL−1 of pectinase) from the yeast consortium was applied to hydrolyze untreated peels of Sweet Lime, Pomegranate, Apple, and Orange, it produced reducing sugars at the rate of 2.56, 1.23, 1.47, and 1.57 mg mL−1 h−1, respectively. In the same manner, the preparation standardized with xylanase hydrolyzed Mango peels and Banana peels at the rate of 0.433 and 0.2 mg mL−1 h−1, respectively (see Additional file 1: Table S7). The multienzyme preparation (standardized with cellulase) appeared as the most suitable for the saccharification of Sugarcane bagasse with the rate of 3.033 mg mL−1 h−1. The hydrolysis of all the substrates reached to maximum levels in 24 h except for the hydrolysis of orange peels (see Additional file 1: Fig. S5). Hence, the reaction can be terminated in a shorter period of time compared to the findings by Naseeb et al. (2015). The hydrolysis of pectin released the most amount of reducing sugars than that of any other substrate tested in this study that can be attributed to the pectinolytic potential of the enzyme preparation. The rates of hydrolysis of crude substrates were, however, higher than that of commercially purified CMC and Xylan. Possible synergistic interaction among enzyme activities in the cocktail could be attributed to the efficient hydrolysis of crude substrate than that of purified substrates. Tariq et al. (2018) observed a synergistic action of yeast xylanase over bacterial cellulase preparations for the hydrolysis of untreated Sugarcane bagasse. Degree of synergy also observed by Song et al. (2016) when bioconversion of Corncob powder, Corn straw, and Rice straw were performed by cellulase and xylanases’ mixture.

Clarification of orange juice

Citrus juices are popular throughout the world and contribute to fulfill requirements for vitamin C. During juice extraction, presence of hemicelluloses, pectin, and starch imparts turbidity and viscosity (Lee et al. 2006) that need to be reduced to give juices sufficient clarity (Sharma 2012). Pectinases are largely applied for clarification of juices, whereas a few reports describe role of xylanase in this regard (Sharma 2012). Interestingly, synergism between xylanase and pectinase is also known for its significance in commercial application of the two enzymes. In this study, the multienzyme preparation was standardized to 10 IU mL−1 of xylanase and its potential to clarify orange juice was investigated. The results obtained revealed that the turbidity of orange juice was reduced to 11.19% within 2 h of incubation, which is in line with the findings of Nagar et al. (2012) where 10.78% of pineapple juice clarification was obtained by xylanase. However, the level of clarification was much lower than reported by Ahmed and Sohail (2019) using pectinase preparation from yeast, indicating need of further studies on the multienzyme preparation produced in this study. Viscosity of orange juice also reduced to 5.2 Pa.s from 6.4 Pa.s and acidity reduced to 0.64%.


Peels of Citrus limetta (CLP) found as the promising substrate for the production of multienzyme preparation by a yeast consortium under solid-state fermentation. Pretreatment of CLP with alkali was proved better than acid pretreatment. The multienzyme preparation had potential to be applied for the saccharification of fruit- and non-fruit-based waste materials. In addition, the multienzyme preparation showed substantial efficacy in the clarification of orange juice.

Availability of data and materials

The data sets used and/or analyzed during the current study are available from the corresponding author on reasonable request.



Box–Behnken design




Citrus limetta peels


carboxymethyl cellulose


design of experiment






mineral salt medium




Plackett–Burman design


plant cell wall degrading enzymes


Sabouraud’s dextrose agar


solid state fermentation




yeast extract peptone


  1. Ahmed A, Sohail M (2019) Characterization of pectinase from Geotrichum candidum AA15 and its potential application in orange juice clarification. J King Saud Univ Sci.

    Article  Google Scholar

  2. Ahmed A, Khan MN, Ahmad A et al (2019) Optimization of pectinase production from Geotrichum candidum AA15 using response surface methodology. Pak J Bot 51:743–750.

    CAS  Article  Google Scholar

  3. Arshad ZIM, Amid A, Yusof F et al (2014) Bromelain: an overview of industrial application and purification strategies. Appl Microbiol Biotechnol 98:7283–7297

    CAS  Article  Google Scholar

  4. Brijwani K, Oberoi HS, Vadlani PV (2010) Production of a cellulolytic enzyme system in mixed-culture solid-state fermentation of soybean hulls supplemented with wheat bran. Process Biochem.

    Article  Google Scholar

  5. Chew KW, Yap JY, Show PL et al (2017) Microalgae biorefinery: high value products perspectives. Bioresour Technol.

    Article  PubMed  Google Scholar

  6. Cui F, Zhao L (2012) Optimization of xylanase production from Penicillium sp. WX-Z1 by a two-step statistical strategy: Plackett–Burman and Box–Behnken experimental des. Int J Mol Sci.

    Article  PubMed  PubMed Central  Google Scholar

  7. Deswal D, Khasa YP, Kuhad RC (2011) Optimization of cellulase production by a brown rot fungus Fomitopsis sp. RCK2010 under solid state fermentation. Bioresour Technol.

    Article  PubMed  Google Scholar

  8. Ferreira JA, Mahboubi A, Lennartsson PR, Taherzadeh MJ (2016) Waste biorefineries using filamentous ascomycetes fungi: present status and future prospects. Bioresour Technol 215:334–345

    CAS  Article  Google Scholar

  9. Grohmann K, Cameron RG, Buslig BS (1995) Fractionation and pretreatment of orange peel by dilute acid hydrolysis. Bioresour Technol.

    Article  Google Scholar

  10. Herrero AA, Gomez RF, Roberts MF (1985) 31P NMR studies of Clostridium thermocellum. Mechanism of end product inhibition by ethanol. J Biol Chem 260:7442–7451

    CAS  PubMed  Google Scholar

  11. Hmad IB, Abdeljalil S, Saibi W et al (2014) Medium initial pH and carbon source stimulate differential alkaline cellulase time course production in Stachybotrys microspora. Appl Biochem Biotechnol.

    Article  PubMed  Google Scholar

  12. Lee WC, Yusof S, Hamid NSA, Baharin BS (2006) Optimizing conditions for enzymatic clarification of banana juice using response surface methodology (RSM). J Food Eng.

    Article  Google Scholar

  13. Li PJ, Xia JL, Shan Y, Nie ZY (2015) Comparative study of multi-enzyme production from typical agro-industrial residues and ultrasound-assisted extraction of crude enzyme in fermentation with Aspergillus japonicus PJ01. Bioprocess Biosyst Eng.

    Article  PubMed  Google Scholar

  14. Lynd LR, Weimer PJ, van Zyl WH, Pretorius IS (2002) Microbial cellulose utilization: fundamentals and biotechnology. Microbiol Mol Biol Rev.

    Article  PubMed  PubMed Central  Google Scholar

  15. Madrera RR, Bedriñana RP, Valles BS (2015) Production and characterization of aroma compounds from apple pomace by solid-state fermentation with selected yeasts. LWT Food Sci Technol.

    Article  Google Scholar

  16. Manan MA, Webb C (2017) Modern microbial solid state fermentation technology for future biorefineries for the production of added-value products. Biofuel Res J 4:730–740

    Article  Google Scholar

  17. Mantzouridou FT, Paraskevopoulou A, Lalou S (2015) Yeast flavour production by solid state fermentation of orange peel waste. Biochem Eng J.

    Article  Google Scholar

  18. Miller GL (1959) Use of dinitrosalicylic acid reagent for determination of reducing sugar. Anal Chem.

    Article  Google Scholar

  19. Nagar S, Mittal A, Gupta VK (2012) Enzymatic clarification of fruit juices (apple, pineapple, and tomato) using purified Bacillus pumilus SV-85S xylanase. Biotechnol Bioprocess Eng.

    Article  Google Scholar

  20. Naseeb S, Sohail M, Ahmad A, Khan SA (2015) Production of xylanases and cellulases by Aspergillus fumigatus MS16 using crude lignocellulosic substrates. Pak J Bot 47:779–784

    CAS  Google Scholar

  21. Oberoi HS, Vadlani PV, Madl RL et al (2010) Ethanol production from orange peels: two-stage hydrolysis and fermentation studies using optimized parameters through experimental design. J Agric Food Chem.

    Article  PubMed  Google Scholar

  22. Oberoi HS, Vadlani PV, Nanjundaswamy A et al (2011) Enhanced ethanol production from Kinnow mandarin (Citrus reticulata) waste via a statistically optimized simultaneous saccharification and fermentation process. Bioresour Technol.

    Article  PubMed  Google Scholar

  23. Pirzadah T, Garg S, Singh J et al (2014) Characterization of Actinomycetes and Trichoderma spp. for cellulase production utilizing crude substrates by response surface methodology. Springerplus.

    Article  PubMed  PubMed Central  Google Scholar

  24. Qadir F, Shariq M, Ahmed A, Sohail M (2018) Evaluation of a yeast co-culture for cellulase and xylanase production under solid state fermentation of sugarcane bagasse using multivariate approach. Ind Crops Prod.

    Article  Google Scholar

  25. Rahnama N, Mamat S, Shah UKM et al (2013) Effect of alkali pretreatment of rice straw on cellulase and xylanase production by local Trichoderma harzianum SNRS3 under solid state fermentation. BioResources.

    Article  Google Scholar

  26. Raimbault M (1998) General and microbiological aspects of solid substrate fermentation. Electron J Biotechnol 1:1–15

    Article  Google Scholar

  27. Rehman S, Aslam H, Ahmad A et al (2014) Production of plant cell wall degrading enzymes by monoculture and co-culture of Aspergillus niger and Aspergillus terreus under SSF of banana peels. Brazilian J Microbiol 45:1485–1492

    CAS  Article  Google Scholar

  28. Rosyida VT, Indrianingsih AW, Maryana R, Wahono SK (2015) Effect of temperature and fermentation time of crude cellulase production by Trichoderma reesei on straw substrate. Energy Procedia 65:368–371

    CAS  Article  Google Scholar

  29. Sadhu S (2013) Cellulase production by bacteria: a review. Br Microbiol Res J.

    Article  Google Scholar

  30. Sagar NA, Pareek S, Sharma S et al (2018) Fruit and vegetable waste: bioactive compounds, their extraction, and possible utilization. Compr Rev Food Sci Food Saf.

    Article  Google Scholar

  31. Salihu A, Alam MZ, Abdulkarim MI, Salleh HM (2011) Optimization of lipase production by Candida cylindracea in palm oil mill effluent based medium using statistical experimental design. J Mol Catal B Enzym.

    Article  Google Scholar

  32. Sandhu SK, Oberoi HS, Dhaliwal SS et al (2012) Ethanol production from Kinnow mandarin (Citrus reticulata) peels via simultaneous saccharification and fermentation using crude enzyme produced by Aspergillus oryzae and the thermotolerant Pichia kudriavzevii strain. Ann Microbiol.

    Article  Google Scholar

  33. Sankaran R, Bong JH, Chow YH et al (2019) Reverse micellar system in protein recovery—a review of the latest developments. Curr Protein Pept Sci.

    Article  PubMed  Google Scholar

  34. Shariq M, Sohail M (2018) Application of Candida tropicalis MK-160 for the production of xylanase and ethanol. J King Saud Univ Sci.

    Article  Google Scholar

  35. Shariq M, Sohail M (2020) Production of cellulase and xylanase from Candida tropicalis (MK-118) on purified and crude substrates. Pak J Bot.

    Article  Google Scholar

  36. Shariq M, Muhammad F, Ahmad A et al (2018) Production and characterization of endoglucanase from an indigenous yeast strain. Pak J Bot 50:2413–2421

    CAS  Google Scholar

  37. Sharma PK (2012) Optimization of process parameters for fruit juice clarification using silica immobilized xylanase from Pseudomonas sp. Pure Appl Biol.

    Article  Google Scholar

  38. Sharma S, Sharma J, Mandhan RP (2014) Lucrative pectinase production by novel strain Pseudozyma sp. SPJ with statistical optimization techniques using agro-industrial residues. Front Biol.

    Article  Google Scholar

  39. Song HT, Gao Y, Yang YM et al (2016) Synergistic effect of cellulase and xylanase during hydrolysis of natural lignocellulosic substrates. Bioresour Technol.

    Article  PubMed  Google Scholar

  40. Sutherland IW (2001) Biofilm exopolysaccharides: a strong and sticky framework. Microbiology 147:3–9

    CAS  Article  Google Scholar

  41. Suwannarangsee S, Arnthong J, Eurwilaichitr L, Champreda V (2014) Production and characterization of multi-polysaccharide degrading enzymes from Aspergillus aculeatus BCC199 for saccharification of agricultural residues. J Microbiol Biotechnol.

    Article  PubMed  Google Scholar

  42. Tariq R, Ansari I, Qadir F et al (2018) Optimization of endoglucanase production from thermophilic strain of Bacillus licheniformis RT-17 and its application for saccharification of sugarcane bagasse. Pak J Bot 50:807–816

    CAS  Google Scholar

  43. Yahya S, Jahangir S, Shaukat SS et al (2016) Production optimization by using Plackett-Burman design and partial characterization of amylase from Aspergillus tubingensis SY 1. Pak J Bot 48:2557

    CAS  Google Scholar

  44. Yasin Ashraf M, Ashraf M, Akhtar M et al (2013) Improvement in yield, quality and reduction in fruit drop in Kinnow (Citrus reticulata Blanco) by exogenous application of plant growth regulators, potassium and zinc. Pak J Bot 45:433–440

    Google Scholar

  45. Yoon LW, Ang TN, Ngoh GC, Chua ASM (2014) Fungal solid-state fermentation and various methods of enhancement in cellulase production. Biomass Bioenergy 67:319–338

    CAS  Article  Google Scholar

  46. Zhang C, Xing XH, Liu MS (2004) Production of multienzymes consisting of alkaline amylase and cellulase by mixed alkalophilic culture and their potential use in the saccharification of sweet potato. Biochem Eng J.

    Article  Google Scholar
