Response surface optimization of biodiesel yield from pre-treated waste oil of rendered pork from a food processing industry

Article metrics

  • 76 Accesses

Abstract

In this study, the waste oil of rendered pork (WO-RP) from a food processing industry was studied as a source of biodiesel. The WO-RP was characterized and was found to have a high acid value of 4.30 mg KOH/g. A pre-treatment using H2SO4 was done through the standard titration method that resulted in a reduction of acid value to 0.75 mg KOH/g. The transesterification process over the KOH catalyst was carried out and optimized using the central composite design (CCD) using the Design Expert 7.0 software. The optimum conditions were found at 3:1 methanol–oil molar ratio, 0.55% catalyst loading, and 45-min reaction time. At optimum conditions, the biodiesel yield was 95.28 ± 0.15%. Its chemical characteristics were tested in terms of acid value at 0.75 mg KOH/g, ash content at 0.01 wt%, density at 0.86 g/cm3, HHV at 39.98 MJ/kg, water content at 0.10%, and kinematic viscosity at 6.9 mm2/s. The FAME profile shows the presence of linoleic, palmitic, oleic and stearic acid as major fatty acid components and functional group shows carbonyl group with traces of carboxylic at 1719 cm−1 and the sharp peak of esters at 1749 cm−1 indicating that the derived product is biodiesel.

Introduction

The global energy production is a vital link that drives the economy, and 90% of non-renewable energy sources from fossil fuel (natural gas, petroleum, and coal) and nuclear power plant continuously powers it. However, two emerging problems are associated with the use of fossil-based fuel. One of these is availability. Due to the growing population and industrialization, the energy resources become rapidly depleted, and it takes a long time for it to regenerate over the years. Accordingly, it is estimated that in the year 2040, the world energy demand will rise over 60% (US Energy Information Administration 2017). The world is not yet ready for this eventuality to write the obituary of fossil fuels, which is forecasted to last only in the next 45 years (Mabayo et al. 2018). Second is the environmental concern due to unwanted \({\text{CO}}_{2}\) emitted after burning fossil-based fuel (Russel 2003). The \({\text{CO}}_{2}\) is one of the known offenders of global warming, for it contributed as much as 72% of the greenhouse gases (Kibasi 2018). These greenhouse gases absorb long-wave radiation from the earth that results in increasing atmospheric temperature (Shaftel and Jackson 2016). For this reason, scientists worldwide have been searching for alternative sources that are economically viable and environmentally sustainable.

One of these is the production of biodiesel from underutilized raw material. Biodiesel is an environmentally sound alternative source of petrodiesel because of less toxicity, better lubricating properties, renewability, biodegradability, and lesser greenhouse gas emission than fossil diesel fuel (Mansir et al. 2018). These are proven from the previous studies of Bankovic-Ilic et al. (2014), Encinar et al. (2011), Arazo et al. (2016) and Feddern et al. (2011), among others. As to the economic aspect, there have been several studies reported as to biodiesel production using low-cost oils such as the study of Pan et al. (2018), Zhang et al. (2018), Ibrahim et al. (2019) and Sun et al. (2019) among others.

However, the technology of bio-based energy is still at an infant stage and is expensive to commercialize. This is significantly affected by the costly raw materials used and the efficiency of the process. At present, biodiesel is blended with petrodiesel fuels in most countries. The United States mandates a 20% blend, while China requires at least a 10% blend (Lane 2016). In the Philippines, a 10% blend is expected to be observed starting the year 2020 (13th Congress of the Philippines 2006).

The challenge nowadays is to produce a biofuel that is technically feasible, economically viable, and environmentally sustainable. One consideration is the use of waste oil from industries and manufacturing entities. This supports the movement of legislators in the Philippines through the proposed “Anti-Used Cooking Oil Act,” which prevents the recycling of used cooking oil in the country. Therefore, industries using cooking oil are now in trouble with the disposal of their wastes as not to violate regulatory and statutory requirements. One of these industries is the SLERS Industries, Inc., with waste oil of rendered pork (WO-RP).

This study used the WO-RP from SLERS Industries, Inc. for the production of energy-giving liquid-phase fuel called biodiesel. This explores specifically the possibility of producing an alternative fuel for the said company to their LPG-ran burners used in cooking their products from their own generated waste. In the refining process, pre-treatment of waste oil was employed using the esterification process to minimize its acid value. The production of biodiesel from WO-RP is optimized through the transesterification process, considering the effects of methanol–oil ratio, catalyst dosage, and reaction time. The biodiesel product is analyzed by the free fatty acid level, acid value, FAME profile, functional groups, ash content, water content, higher heating value, kinematic viscosity, density, and pH.

Materials and methods

Preparation of waste oil of rendered pork

The waste oil of rendered pork (WO-RP) was collected from the SLERS Industries, Inc. in Alae, Bukidnon, Philippines. The waste oil was settled in a separatory funnel for 7 days forming two layers classified as the active oil and inactive oil (composed of residual fats). The active oil was gathered and filtered using filter paper. The filtered oil was washed with hot water several times and was heated under 105 ± 5 °C for 60 min for water content removal.

Characteristics of waste oil of rendered pork

The properties of WO-RP was determined in terms of fatty acid level at University Agrivironmental Laboratory, pH value through pH paper, moisture content using KF titration, functional groups through Fourier Transform Infrared Radiation (FTIR) analysis using Shimadzu FTIR 8400S at Pilipinas Kao, Jasaan, Misamis Oriental, Philippines, and fatty acid profile through gas chromatography and mass spectroscopy (GC–MS) at F.A.S.T. Laboratory—Cubao, Philippines.

Pre-treatment of WO-RP

The pre-treatment process was done using a 500-mL round bottom flask Pyrex reactor equipped with a reflux condenser and immersed in the water bath. First, 100 mL of WO-RP was heated under 60 ± 5 °C. The process employed 0.5% and 1% \({\text{H}}_{2} {\text{SO}}_{4}\) variation at 6:1 methanol–oil ratio. Conversion efficiency was observed every 60-min interval of reaction. Each sample was allowed to settle for 180 min and was purified using deionized water for acid value determination.

Acid value determination

The acid level was determined through titration analysis in accordance with the method described by Sahar et al. (2018). Titration was carried out using a manual bottle-top burette with LCD (Brand gmbh.co kg). First, a standard amount of indicator solution was prepared by dissolving 1.0 g of phenolphthalein in a 50% solution of ethanol and water (50 mL ethanol:50 mL water). Then, the prepared 10 mL of ethanol was mixed to 0.5 g of oil sample in an Erlenmeyer flask with two drops of indicator solution. The prepared sample was titrated using 0.1 mol of NaOH/L \({\text{H}}_{2} {\text{O}}\) (4 g of NaOH dissolved in 1-L distilled water) until the first color change. Triplication of data per sample was done during this process and was calculated using Eq. (1) (Sahar et al. 2018), where FFA is the free fatty acid level (%), V is the volume of titrant, N is the normality of titrant and W is the weight of the oil sample.

$${\text{FFA}} = V \times N \times \frac{28.2}{W}$$
(1)
$${\text{AV}} = {\text{FFA}} \times 1.989$$
(2)

Parametric and optimizations studies

Central composite design (CCD) of the Response Surface Methodology (RSM) was used in this study using the Design Expert 7.0 software. Each run of the experiment was based on the generated combination of CCD in terms of methanol–oil ratio, amount of catalyst, and reaction time. Presented in Table 1 are the range and level of the variables employed in this study. In determining these range and level, the parametric study principle was employed, which took one variable as constant, while varying the other variables to determine the peak of the graph once the data are plotted (Gumaling et al. 2018).

Table 1 Range and level of the variables based on the parametric study

The values determined in the parametric studies were carried out in the actual experimental runs and optimization studies. These values were considered in the experimental design for the transesterification experiment with the aid of CCD.

Transesterification experiment

A constant amount of 25-mL pretreated WO-RP was placed in the 500-mL capacity Pyrex reactor immersed in the water bath equipped with a water condenser. The solution was heated under 65 ± 5 °C in a hotplate with a magnetic stirrer. The magnetic capsule stirred the mixture vigorously and distributed the heat of the reaction mixture, and the temperature was monitored using a thermometer. The prepared methanol and catalyst were mixed in a beaker and poured slowly into the reactor. In this stage, the triglyceride is converted into methyl esters as manifested by two phases (upper phase—biodiesel, lower phase—glycerol). After that, overnight settling was employed using a decanter to separate the biodiesel product from glycerin and catalyst. Afterward, purification and characterization of biodiesel followed. The scheme of the transesterification process is presented in Fig. 1.

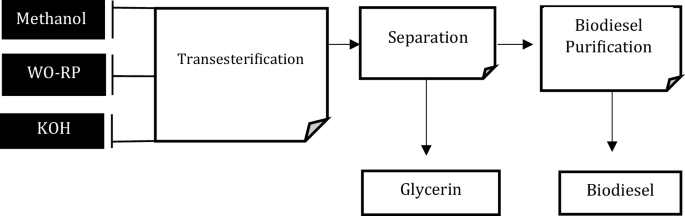

Fig. 1
figure1

Schematic flow of the transesterification process

Biodiesel purification and yield

A two-stage process was employed in the biodiesel purification. The first stage was done through washing in the separatory funnel using distilled water, and the second stage was done by drying through heating at 120 °C in a hot air oven for 1 day.

The biodiesel yield, by mass, of WO-RP was determined using a digital analytical balance. Equation 3 was used in the calculation, where \(\% {\text{Yield}}\) is the percent biodiesel yield (%), \(m_{1}\) is the mass of produced biodiesel, and \(m_{2}\) is the mass of the bio-oil sample.

$$\% {\text{Yield}} = \frac{{m_{1} }}{{m_{2} }} \times 100$$
(3)

Product analysis and characterization

The biodiesel produced was analyzed and compared to the conventional diesel in terms of acid value, ash content, density, high heating value (HHV), kinematic viscosity, water content, fatty acid methyl ester (FAME) profile, and functional group.

The acid value was determined using titration and computation method, adopting the procedure in the study of Sahar et al. (2018). The ash analysis was done following the ASTM 0482-07 (Standard test method for ash from petroleum products) at F.A.S.T Laboratory—Cubao, Philippines. The density at room temperature was obtained using the standard method using analytical balance (mass) and graduated cylinder (volume). The high heating value was determined using the Bomb Calorimeter Precision Method following the ASTM D4809 (Standard test method for the heat of combustion of liquid hydrocarbon fuels). Water content was determined using Karl Fischer Titration at F.A.S.T Laboratories—Cubao, Philippines. The kinematic viscosity of biodiesel was determined by following the ASTM D-445-71 (Kinematic viscosity of transparent, opaque liquid) at Philippine Sinter Corporation, Villanueva, Misamis Oriental, Philippines. The FAME profile was done using gas chromatography–mass spectrometry following the official method of analysis of AOAC international, 19th ed., 2012 at F.A.S.T Laboratories—Cubao, Philippines, and the functional group analysis was done through Fourier Transform Infrared (FTIR) spectroscopy (Shimadzu FTIR 8400S) at Pilipinas Kao, Incorporated in Jasaan, Misamis Oriental, Philippines.

Results and discussion

Characterization of waste oil of rendered pork

The WO-RP was allowed to settle for about 7 days, forming a two-layer phase, mostly active oil (compose of vegetable oil and unsaturated fats) and inactive oil (consist of saturated fat, residual skin, and meat). The active oil was taken and used throughout the conduct of the study. Moisture content is considered as the culprit that hinders the biodiesel reaction processes. In acid esterification, water present tends to dilute sulfuric acid out from the methanol resulting in the unavailability of acid to catalyze the esterification (Diaz-Felix et al. 2009). While in base transesterification, it will react to base catalyst forming saponification reaction. Therefore, moisture content was measured before subjecting to pre-treatment and transesterification. It was found to be 0.14% after washing WO-RP and heating at 105 ± 5 °C for 60 min. This value is low enough from the study of Encinar et al. (2011), which uses 0.3% moisture content for both acid and base transesterification without any significant effect on the reaction.

The active and inactive oil of WO-RP were characterized (Table 2) according to its acid value and FFA, and this contains 8.55 \({\text{mg KOH}}/{\text{g}}\) (4.30 wt%) and 9.74 \({\text{mg KOH}}/{\text{g}}\) (4.90 wt %), respectively. This value is lower than the report of Dias et al. (2009) using waste lard with an acid level 14.57 \({\text{mg KOH}}/{\text{g}}\) (7.3 wt%) and higher than the result of Sahar et al. (2018) of waste cooking oil with an acid value 5.5 \({\text{mg KOH}}/{\text{g}}\).

Table 2 Characteristics of waste oil of rendered pork

The acid value of waste fats is expected to be higher than of vegetable oils (Dias et al. 2009; Banković-Ilić et al. 2014). However, the above result shows a slight difference only of the acid number, which contradicts the ideas of the above observation. This may be because of the blending of vegetable oil with rendered fats that neutralized the acid level of saturated fats. This idea is consistent with the study of Canoira et al. (2008) and Dias et al. (2009) that the blending of vegetable oil will improve the chemical properties of animal fats, including the acid value. However, the above value is still not favorable in base transesterification and requires pre-treatment to lower the acid level below 1 \({\text{mg KOH}}/{\text{g}}\) (Abdullah et al. 2013). The density of WO-RP at room temperature was found to be at 0.897 g/cm3; this value is not far from the study of Sander et al. (2018) that obtained 0.916 using lard.

The functional groups of WO-RP were then analyzed using FTIR spectrometry. Presented in Fig. 2 and Table 3 is the FTIR spectrum and the various peaks under 500–5000 cm−1 wavenumber. Using the LabCognition irAnalyze software, spectral peaks of alkane (C–H stretch) was determined between 2850 and 3000 cm−1 wavelengths with an actual peak at 2909 cm−1.

Fig. 2
figure2

Fourier Transform Infrared Radiation (FTIR) spectrum of WO-RP

Table 3 The main peak of the FTIR spectrum of WO-RP and their assignments

Aromatic compound (C=C stretch) was also identified in the spectra around 1400–1600 cm−1 with actual wavelength at 1498 cm−1. A short peak of ether was in the range of 1000–1300 cm−1 with actual value 1089 and 1039 cm−1. A presence of carbonyl was also observed in the spectrum with actual value at 1689 cm−1 which is within the range of 1670–1820 cm−1. This value also signifies the presence of carbonyl compound group of aldehydes and ketones ranging between 1650 and 1750 cm−1 which are important indicators of good oil quality in the biodiesel refinery (Arazo et al. 2016).

The major fatty acid contents, as shown in Table 4, were 46.70% oleic acid, 23.90% palmitic acid, and 13.30% linolenic acid. These values are higher than the results in the study of Dias et al. (2009) in terms of linolenic using pork lard as well as to the result reported by Encinar et al. (2011) in terms of both oleic and linolenic acids. The fatty acid content of the feedstock is a good indicator of biodiesel viscosity and density because fatty acid is a long chain of carbon. The increasing value of fatty acid means an increasing level of viscosity (Refaat 2009; Encinar et al. 2011), indicating the unsuitability of oil in the direct transesterification reaction.

Table 4 Fatty acid composition of waste oil of rendered pork

Pre-treatment result

The pre-treatment of WO-RP was done following the optimum conditions reported in the study of Chai et al. (2014) using sulfuric acid (\({\text{H}}_{2} {\text{SO}}_{4}\)). Catalyst loading was varied (0.5% and 1%) to compare the conversion rate of acid value at a different time interval. Presented in Fig. 3 is the effectivity of the two different catalyst loadings.

Fig. 3
figure3

Effect of reaction time on acid value

A rapid decrease in the first 60 min was observed, but the data tended to be steady with a slight difference in acid level in the next time interval. This behavior is inclined to the previous studies where the formation of water tended to dilute acid catalyst out from the methanol resulting in the unavailability of acid to catalyze the reaction (Dias et al. 2009; Encinar et al. 2011; Banković-Ilić et al. 2014).

The optimum conversion rate was observed at 0.75 \({\text{mg KOH}}/{\text{g}}\) acid value using a 0.5% catalyst loading in 180 min. A slight difference can be observed using 120-min reaction at 0.79 \({\text{mg KOH}}/{\text{g}}\) acid level using the same loading (Chai et al. 2014). After choosing the best pre-treatment condition, transesterification of the esterified oil using the condition of (Sahar et al. 2018) of 6:1 methanol–oil ratio, 1% catalyst load for 60 min was carried out. A higher acid value than the standard acid value of 0.80 \({\text{mg KOH}}/{\text{g}}\) for biodiesel according to the ASTM D6751-02, 2002 was obtained in the 120-min treatment; thus, 180-min treatment was used throughout the conduct of the study. This condition is not far from the industrial practices of pre-treatment using 6:1 methanol–oil ratio, 65 °C, and 120 min (Chai et al. 2014).

Parametric study analysis

Figure 4 presents the results of the parametric study conducted. The first part was studied by varying methanol–oil ratio at five levels with catalyst load at 1%, and the reaction time at 60 min. The recorded yield is presented in Fig. 4a, which shows the optimum peak of methanol–oil ratio at run 4, with the actual yield at 92.6%. A decrease of yield was observed after increasing amount of methanol. Therefore, 4:1 methanol–oil ratio was selected and held constant at 0 level in the next part of the parametric study.

Fig. 4
figure4

Biodiesel yield at varied a methanol–oil ratio, b catalyst loading, and c time

On the next stage, catalyst load was varied around 0.25–1.50% while taking methanol–oil ratio and reaction time as constant. The catalyst loading of 0.75% was found to be the most efficient level as could be seen in Fig. 4b, so it was taken as constant in the next stage of the parametric study varying reaction time to complete the exact range and levels of all variables. The peak values of catalyst loading (0.75%) and methanol–oil ratio (4:1) were held constant and the time was varied from 30 to 90 min.

It could be observed that, at 60 min, the highest biodiesel yield was recorded (Fig. 4c). In general, the parametric results of the three variables were found to be at 4:1 methanol–oil ratio, 0.75%, catalyst loading, and 60-min reaction time. This condition was then considered as the center point in the response surface optimization of biodiesel yield from the waste oil of rendered pork.

Response surface analysis of WO-RP

Table 5 presents the response values using central composite design (CCD) as the experimental design. The design was generated to evaluate and optimize the process variables of methanol–oil molar ratio, catalyst loading, and reaction time. The response measure WO-RP biodiesel yield varies from 87.23% (run 15) to 96.17% (run 17). The highest yield of 96.17% is higher compared to the yield in the study of Ezekannagha et al. (2017), which signifies that the biodiesel yield from WO-RP can still be maximized through the aid of response surface optimization.

Table 5 Experimental design matrix and the resulting yield

Model fitting of WO-RP

The analysis of variance (ANOVA) of the response surface-reduced quadratic model for the percentage of oil yield from WO-RP was carried out and presented in Table 6. The model p-value of < 0.0001 implies that the generated model is significant. This means that there is only a < 0.01% chance that error could occur due to the unexpected data variation due to the interaction of the operating variables.

Table 6 ANOVA of the reduced quadratic model of oil yield from WO-RP

The lack of fit p-value of 0.9327 implies that the lack of fit is not significant relative to the pure error. The analysis fit summary suggested that the response surface-reduced quadratic model best fitted the results in predicting the biodiesel yield from WO-RP. A high coefficient of determination (\(R^{2}\)) value of 0.9657 means that the model is robust in predicting the biodiesel yield. This also implies that there is 96.57% certainty that the generated model can explain the variability of data. Equation 4 shows the reduced quadratic model equation based on actual factors, where A represents methanol:oil ratio, B represents catalyst loading, and C represents reaction time.

$${\text{Yield}}(\% ) = 92.56 + 0.15A + 24.40B - 0.045C + 0.06AC - 0.29BC - 0.63A^{2} - 12.19B^{2}$$
(4)

It could be observed in the model equation that terms AB and C2 were neglected because of their high p-value, which means that they are not significant terms. The regression analysis showed that A is a significant term (p-value < 0.0001), which means that methanol–oil ratio is an essential factor in the study. This could be justified by the coefficient of A in the established model equation, which is positive, denoting that increasing A means increasing yield. The same happens with the increase of B since catalyst loading is also considered significant with p-value < 0.0001.

On the other hand, the reaction time is found to be not significant (p-value \(0.1427),\) which is once again justified by the generated model equation where the numerical coefficient of C is negative, which implies that increase in its value could result in a decrease in the biodiesel yield. The interaction of the variables and their quadratic effects can also be seen in the equation where positive coefficients mean the interaction positively affects the yield, and negative coefficients mean otherwise. Using the CCD generated model equation, the results of the actual run were validated, as shown in Table 7.

Table 7 Actual vs. predicted oil yield from WO-RP

It can be observed in the table that the actual and predicted responses are close to each other, which justifies the reliability of the data gathered.

Effect of operating variables to the biodiesel yield

Figures 5 and 6 show the 3D plots showing the effects of variables in biodiesel yield. The amount of methanol/oil ratio, catalyst loading, and reaction in the transesterification process is significant (Sahar et al. 2018).

Fig. 5
figure5

3D plot of the effects of methanol–oil ratio and time to FAME yield

Fig. 6
figure6

3D plot of the effects of catalyst loading and time to FAME yield

As illustrated in Fig. 5, increasing reaction time showed opposite results concerning to methanol–oil ratio. At low methanol–oil ratio, increasing time results in decreasing biodiesel yield. On the other hand, at high methanol–oil ratio, increasing time showed increased biodiesel yield. This inconsistency in the variable reaction time is consistent with the result in the ANOVA that reaction time is not significant while methanol–oil ratio is significant, showing the same trend of biodiesel yield regardless of the reaction time. Also, as reflected in Fig. 5, an increase in the methanol–oil ratio corresponds to a decreasing trend in the yield. This is similarly observed in the study of Sahar et al. (2018). As explained, higher methanol–oil ratio affects the solubility of glycerin which causes a decrease of the FAME yield.

Meanwhile, the interaction effect of catalyst loading and reaction time is shown in Fig. 6. The same observation can be interpreted that reaction time is not significant because of the inconsistency of the effects of reaction time to the biodiesel yield. At low catalyst loading, the biodiesel yield increases as the reaction time increases. However, at high catalyst loading, the biodiesel yield decreases as the reaction time decreases. This as well supports the ANOVA result that reaction time is not significant, and catalyst loading is significant considering a similar trend of biodiesel yield regardless of time. It is also noticeable that the increase in the catalyst load decreases the FAME yield. It is reported by Sahar et al. (2018) that higher catalyst dose favors the soap formation in the reaction mixture which decreases the FAME yield.

Numerical optimization of the biodiesel yield

Numerical optimization was carried out following the conditions with the highest desirability suggested by the CCD. The chosen solution was carried out in the optimization study and verified with the actual runs. Three verification runs were conducted, and the mean plus the standard deviation was recorded.

The result of the actual runs was compared to the CCD theoretical yield, as summarized in Table 8. The percent error of 0.89% is below the 5% acceptable error. This result supported the claim that the response surface-reduced quadratic model used is valid.

Table 8 Optimization and validation of biodiesel yield

Characterization of biodiesel produced from WO-RP

The biodiesel product was characterized according to the most important properties of the biodiesel. This includes free fatty acid level, acid value, and density. Presented in Table 9 are the properties of the derived biodiesel, which were also compared to ASTM and EN standards.

Table 9 Characteristic of biodiesel compared to ASTM and EN standards

The acid number of the biodiesel was found to be at 0.75 mg KOH/g, which is higher than the result of Sahar et al. (2018) with the acid value of 0.6 mg KOH/g. This result is in agreement with their observation that the use of hot distilled water during purification can significantly affect the acid value of biodiesel. However, the above results are still on the range of acid value standard stipulated in ASTM D6751-12 for biodiesel.

The recorded ash content of biodiesel was 0.01% which passes the maximum required ash content for biodiesel. This result is similar to the study of Sander et al. (2018) obtaining a value of 0.01% and lower from the study of Shalaby and El-gendy (2012) and Yesilyurt (2019) obtaining a value of 0.02% and 0.019%, respectively. Aside from effective distilled washing, inorganic contaminants such as insoluble solids remain from biodiesel were also removed with glycerin during 24-h settling, showing the advantageous effect of having the by-product in the reaction (Al-Hamamre and Yamin 2014). Ash content is an indication of inorganic contaminants that are present to the oil or biodiesel. These inorganic compounds quickly oxidize during the combustion process resulting in ash formation, which is gradually deposited in the engine and decreases performance efficiency (Hagenow et al. 2010; Ap et al. 2011). This result means that the ash content of the biodiesel produced in this study is low enough not to cause such problems above.

It can be observed that the density of WO-RP rapidly decreases after being converted into biodiesel obtaining a value of 0.86 g/cm3 from 0.89 g/cm3. This can be a good indication that the triglycerides are effectively converted into methyl esters. In comparison, this value is lower than the result of Sahar et al. (2018) obtaining 0.87 g/cm3, and way higher than the results of Abdullah et al. (2013) having 0.82 g/cm3; both of them used waste cooking oil in producing biodiesel. This property is said to be an influencing factor that acts as fuel mass that measures the ability of the fuel to reach the combustion chamber (Barabas and Todoru 2011). The result of this study indicates that the biodiesel produced will not affect the injection efficiency of the engine during the combustion process supported that it passes to the density required for biodiesel stipulated in ASTM and EN standards.

The high heating value (HHV) of biodiesel was found to be 39.98 MJ/kg. This value is higher than the results of Sahar et al. (2018), Al-Hamamre and Yamin (2014) and Yesilyurt (2019), obtaining a value of 37.2 kJ/g, 35.66 MJ/kg and 37.11 MJ/kg, respectively. However, this is slightly lower than petroleum-based diesel at 41.2 MJ/kg but still, pass to the minimum required of heating value for fuel at 35–40 MJ/kg (Barabas and Todoru 2011). It can be observed that there is only a small difference in the heating value of WO-RP and the produced biodiesel. It is similar to the previous observation of Issariyakul et al. (2007) and Enweremadu and Mbarawa (2009) that the heating value of methyl esters is not much different from their parent oil. In general, this value means that the produced biodiesel holds enough amount of heat energy that could run a diesel engine by converting heat energy into a mechanical form of energy (Ashraful et al. 2014).

The high viscosity of vegetable oil and rendered animal fats is one of the major reasons that make this oil unsuitable for direct use in a diesel engine. The viscosity of fuel must be indefinite, to avoid engine problems such as poor atomization during injection in the combustion chamber (Kumar and Ali 2010) and the formation of engine deposits (Knothe and Steidley 2005). From its viscous property, it can be observed that the biodiesel viscosity improved up to 6.9 mm2/s. This is in line with the previous report (Lam et al. 2010; Macedo et al. 2013; Verma et al. 2016) that the transesterification process can significantly improve the chemical properties of bio-oil, including its viscosity. It is slightly higher to the maximum number required for biodiesel from both ASTM and EN standards. However, in some countries like Egypt, this result is still in the range of acceptable value of kinematic viscosity for diesel engine fuel (Shalaby and El-gendy 2012).

Water content removal was done according to the methods described by Abdullah et al. (2013) wherein they gain 0.02% water content of biodiesel after oven drying for 24 h at 120 °C. It can be observed that the water content of biodiesel is at 0.10% which is opposite value of water level. This usually happens when the biodiesel is stored for a longer time before subjecting to water content analysis. Supported that the biodiesel is much more hygroscopic than petrodiesel (Prankl et al. 2004; Barabas and Todoru 2011; Fregolente et al. 2012), it will attract water during higher temperature and precipitated (as free water) after lowering the temperature. This process may repeat and lead to the accumulation of water in biodiesel. Also, the study of Fregolente et al. (2012) synthesized the water absorbance of biodiesel and blended biodiesel–diesel fuel. They reported that even at a constant humidity, biodiesel absorbs moisture 6.5 times higher than petroleum diesel fuel. They observed that this hydrophilicity of biodiesel is due to its ester bonds presence, which gives high absorption capacity in moisture. These ideas suited to the result of this study, which suggests the need for proper containment of biodiesel to maintain its acceptable water content level.

The fatty acid methyl ester profile of the resulted biodiesel was done to confirm that the produced product is possessing major acid found in the biodiesel. Also, it is necessary to determine the amount of these fatty acids from biodiesel because these indicate how good is the performance efficiency of the fuel as the relative amounts of these correspond to some advantages and disadvantages. Presented in Fig. 7 is the chromatogram of GC–MS analysis of biodiesel from WO-RP.

Fig. 7
figure7

Chromatogram of GC–MS of biodiesel from WO-RP

As shown in Fig. 7, four significant peaks of fatty acid were found to be identified as the sharp peak of oleic acid (C16:1n9c), palmitic acid (C16:0), linoleic acid (C18:2n6c) and followed by a medium peak of stearic acid (C18:0). This result is also found from the study of Sahar et al. (2018), Sander et al. (2018) and Dias et al. (2009), which claims as major acid components that identify biodiesel. For better illustration, summarized in Table 10 are the fatty acids of biodiesel with their relative percentage.

Table 10 Fatty acid methyl ester profile of biodiesel from WO-RP

The results show the presence of two different acids. First is saturated fatty acid (lauric, myristic, palmitic, and stearic). Second is unsaturated fatty acid which is composed of two distinct acids, monounsaturated (oleic, palmitoleic, cis-10-heptadecanoic, and cis-11-eicosenoic) and polyunsaturated (linoleic acid and cis-11-14-eicosadienoic). From the recent publication of Gumaling et al. (2018), the presence of palmitic and stearic acid at considerable quantities signifies low iodine value, which means the biodiesel is stable at room temperature. As shown in Table 10, a substantial amount of palmitic acid at 22.3% and stearic acid at 8.31% was obtained. Therefore, a considerable concentration of this acid in biodiesel indicates good biodiesel storability which is necessary for more extended storage of fuel before use.

The results also show the total percentage of saturated acids at 32.4 which is higher than the results of Al-Hamamre and Yamin (2014). As previous studies presented, an increasing number of saturated fatty acids means increasing the thermal and oxidative stability of fuel, giving the excellent advantage of fuel to store for a longer time, particularly in high-temperature environments (Refaat 2009; Shalaby and El-gendy 2012; Lin and Lin 2012). Therefore, the substantial amount of these acids in the biodiesel indicates good storability which is necessary during transport and containment of fuel. Also, the increase of saturated acid shows higher pour point and cloud point of fuel indication of good biodiesel quality as engine fuel (Kumar et al. 2016).

The spectral peak of the functional group that corresponds compounds can be a good indication that the produced product is possessing components of biodiesel (Shalaby and El-gendy 2012; Meena Devi et al. 2015; Mabayo et al. 2018). Therefore, FTIR spectrometry is done to determine the group of compounds present in biodiesel. This is presented in Fig. 8 ranging 500–5000 cm−1 wavenumber.

Fig. 8
figure8

Fourier Transform Infrared Radiation (FTIR) spectrum of biodiesel

It could be observed that the FTIR spectrum of WO-RP dramatically changed after it is converted into biodiesel. This indicates that the transesterification process significantly transforms WO-RP into biodiesel. However, the existence of a few peaks was obtained due to similarities that are found between triglycerides and methyl esters (Ezekannagha et al. 2017). Using ir-analyze, the main compounds of biodiesel were determined and summarized in Table 11.

Table 11 Main peak of the FTIR spectrum of biodiesel and their assignment

The result shows the presence of a carbonyl group with short C=H vibration of carboxylic acid around 1700–1725 cm−1. Also, a sharp peak of esters were found at wavenumber at around 1725–1750 cm−1 (Coates 2000). This compound was not found before WO-RP was subjected to transesterification, but then, traces of carboxylic at 1719 cm−1 and strong peak of esters at 1749 cm−1 occurred after the refining process justifying that the product derived has components of biodiesel (Arazo et al. 2016; Mabayo et al. 2018; Gumaling et al. 2018). However, sulfates containing hetero-xy compounds was observed around 1180–1200 cm−1 with X-O group vibration suggesting further purification of biodiesel to remove or eliminate these compounds, which might cause sulfates emission (Feddern et al. 2011).

In general, the biodiesel produced from WO-RP is proven to be a potential source of biodiesel in the country, considering its comparable properties from previous studies of Sahar et al. (2018), Dias et al. (2009) and Abdullah et al. (2013) including petroleum diesel fuel.

Conclusions

The results of this study show that at the optimum conditions of 3:1 methanol–oil molar ratio, 0.55% catalyst loading, and 45-min reaction time, the biodiesel yield was recorded to be 95.28 ± 0.15%. This high yield of biodiesel concludes that the acid pretreatment of the waste oil of rendered pork was effective in reducing the initial acid value of the oil significantly. Furthermore, the physicochemical characterization of the derived biodiesel indicated significant results as presented in this study, which is a good indicator that the WO-RP was successfully converted into biodiesel with comparable characteristics and properties with the commercial diesel in the market. Thus, the results of this study could potentially impact positively in solving the energy problems faced by the world at present.

Statement of novelty

This work takes advantage of the utilization of waste oil of rendered pork from a food processing company as a source of high-quality biodiesel, which can be used as a substitute of the company to their LPG in cooking their product. Sustainability, in this sense, can be achieved since the company will utilize its waste to supply fuel for its production. The biodiesel yield was also optimized using the central composite design of the response surface methodology to achieve the optimum conditions for biodiesel production.

Availability of data and materials

All data generated or analyzed during this study are included in this article.

Abbreviations

ANOVA:

analysis of variance

ASTM:

American Society for Testing and Materials

CCD:

central composite design

EN:

European Standards

FAME:

fatty acid methyl ester

FFA:

free fatty acid

FTIR:

Fourier Transform Infrared Radiation

GCMS:

gas chromatography and mass spectroscopy

HHV:

high heating value

RSM:

response surface methodology

WO-RP:

waste oil of rendered pork

References

  1. 13th Congress of the Philippines (2006) Biofuels Act of 2006. Republic of the Philippines

  2. Abdullah NH, Hasan SH, Yusoff NRM (2013) Biodiesel production based on waste cooking oil (WCO). Int J Mater Sci Eng. https://doi.org/10.12720/ijmse.1.2.94-99

  3. Al-Hamamre Z, Yamin J (2014) Parametric study of the alkali catalyzed transesterification of waste frying oil for Biodiesel production. Energy Convers Manag 79:246–254. https://doi.org/10.1016/j.enconman.2013.12.027

  4. Ap R, Turtelli Pighinelli ALM, Jin K (2011) Biodiesel production and quality. In: Bernardes MA (ed) Biofuel’s engineering process technology. Rijeka, InTech

  5. Arazo RO, Bayron MC, Abregana VD et al (2016) Production of high quality biodiesel from waste chicken fats. J High Educ Res Discipl 4:58–70

  6. Ashraful AM, Masjuki HH, Kalam MA et al (2014) Production and comparison of fuel properties, engine performance, and emission characteristics of biodiesel from various non-edible vegetable oils: a review. Energy Convers Manag 80:202–228. https://doi.org/10.1016/j.enconman.2014.01.037

  7. Banković-Ilić IB, Stojković IJ, Stamenković OS et al (2014) Waste animal fats as feedstocks for biodiesel production. Renew Sustain Energy Rev 32:238–254. https://doi.org/10.1016/j.rser.2014.01.038

  8. Barabas I, Todoru I-A (2011) Biodiesel quality, standards and properties. In: Montero G, Stoytcheva M (eds) Biodiesel-quality, emissions and by-products. Rijeka, InTech

  9. Canoira L, Rodríguez-Gamero M, Querol E et al (2008) Biodiesel from low-grade animal fat: production process assessment and biodiesel properties characterization. Ind Eng Chem Res 47:7997–8004. https://doi.org/10.1021/ie8002045

  10. Chai M, Tu Q, Lu M, Yang YJ (2014) Esterification pretreatment of free fatty acid in biodiesel production, from laboratory to industry. Fuel Process Technol 125:106–113. https://doi.org/10.1016/j.fuproc.2014.03.025

  11. Coates J (2000) Interpretation of infrared spectra, a practical approach. Encycl Anal Chem 12:10815–10837

  12. Dias JM, Alvim-Ferraz MCM, Almeida MF (2009) Production of biodiesel from acid waste lard. Bioresour Technol 100:6355–6361. https://doi.org/10.1016/j.biortech.2009.07.025

  13. Diaz-Felix W, Riley MR, Zimmt W, Kazz M (2009) Pretreatment of yellow grease for efficient production of fatty acid methyl esters. Biomass Bioenergy 33:558–563. https://doi.org/10.1016/j.biombioe.2008.09.009

  14. Encinar JM, Sánchez N, Martínez G, García L (2011) Study of biodiesel production from animal fats with high free fatty acid content. Bioresour Technol 102:10907–10914. https://doi.org/10.1016/j.biortech.2011.09.068

  15. Enweremadu CC, Mbarawa MM (2009) Technical aspects of production and analysis of biodiesel from used cooking oil—a review. Renew Sustain Energy Rev 13:2205–2224. https://doi.org/10.1016/j.rser.2009.06.007

  16. Ezekannagha CB, Ude CN, Onukwuli OD (2017) Optimization of the methanolysis of lard oil in the production of biodiesel with response surface methodology. Egypt J Pet 26:1001–1011. https://doi.org/10.1016/j.ejpe.2016.12.004

  17. Feddern V, Cunha A, De Pra MC et al (2011) Animal fat wastes for biodiesel production. In: Rossi M, Amaretti A, Raimondi S, Leonardi A (eds) Biodiesel-feedstocks and processing technologies. Rijeka, InTech

  18. Fregolente PBL, Fregolente LV, Wolf Maciel MR (2012) Water content in biodiesel, diesel, and biodiesel–diesel blends. J Chem Eng Data 57:1817–1821. https://doi.org/10.1021/je300279c

  19. Gumaling RP, Agusan JR, Ellacer NVCR et al (2018) Increased bio-oil yield from Swietenia macrophylla seeds through microwave pretreatment and ultrasonic-assisted solvent extraction. Sustain Environ Res 28:430–437. https://doi.org/10.1016/j.serj.2018.06.003

  20. Hagenow G, Reders K, Heinze H-E et al (2010) Fuels. In: Mollenhauer K, Tschoeke H (eds) Handbook of diesel engines. Springer, Berlin, pp 77–125

  21. Ibrahim AP, Omilakin RO, Betiku E (2019) Optimization of microwave-assisted solvent extraction of non-edible sandbox (Hura crepitans) seed oil: a potential biodiesel feedstock. Renew Energy. https://doi.org/10.1016/j.renene.2019.04.010

  22. Issariyakul T, Kulkarni MG, Dalai AK, Bakhshi NN (2007) Production of biodiesel from waste fryer grease using mixed methanol/ethanol system. Fuel Process Technol 88:429–436. https://doi.org/10.1016/j.fuproc.2006.04.007

  23. Kibasi T (2018) Time for change. IPPR Progressive Rev 25:133–136. https://doi.org/10.1111/newe.12104

  24. Knothe G, Steidley KR (2005) Kinematic viscosity of biodiesel fuel components and related compounds. Influence of compound structure and comparison to petrodiesel fuel components. Fuel 84:1059–1065. https://doi.org/10.1016/j.fuel.2005.01.016

  25. Kumar D, Ali A (2010) Nanocrystalline lithium ion impregnated calcium oxide as heterogeneous catalyst for transesterification of high moisture containing cotton seed oil. Energy Fuels 24:2091–2097. https://doi.org/10.1021/ef901318s

  26. Kumar A, Shukla SK, Tierkey JV (2016) A review of research and policy on using different biodiesel oils as fuel for C.I. engine. Energy Procedia 90:292–304. https://doi.org/10.1016/j.egypro.2016.11.197

  27. Lam MK, Lee KT, Mohamed AR (2010) Homogeneous, heterogeneous and enzymatic catalysis for transesterification of high free fatty acid oil (waste cooking oil) to biodiesel: a review. Biotechnol Adv 28:500–518. https://doi.org/10.1016/j.biotechadv.2010.03.002

  28. Lane J (2016) Biofuels mandates around the world: 2016. BiofuelsDigest

  29. Lin C-Y, Lin Y-W (2012) Fuel characteristics of biodiesel produced from a high-acid oil from soybean soapstock by supercritical-methanol transesterification. Energies 5:2370–2380. https://doi.org/10.3390/en5072370

  30. Mabayo VIF, Aranas JRC, Cagas VJB et al (2018) Optimization of oil yield from Hevea brasiliensis seeds through ultrasonic-assisted solvent extraction via response surface methodology. Sustain Environ Res 28:39–46. https://doi.org/10.1016/j.serj.2017.08.001

  31. Macedo TDO, Pereira RG, Pardal JM et al (2013) Viscosity of vegetable oils and biodiesel and energy generation. Int J Chem Mol Eng 7:251–256

  32. Mansir N, Teo SH, Rashid U et al (2018) Modified waste egg shell derived bifunctional catalyst for biodiesel production from high FFA waste cooking oil. A review. Renew Sustain Energy Rev 82:3645–3655. https://doi.org/10.1016/j.rser.2017.10.098

  33. Meena Devi R, Subadevi R, Paul Raj S, Sivakumar M (2015) Comparative studies on biodiesel from rubber seed oil using homogeneous and heterogeneous catalysts. Int J Green Energy 12:1215–1221. https://doi.org/10.1080/15435075.2014.893879

  34. Pan H, Li H, Zhang H et al (2018) Effective production of biodiesel from non-edible oil using facile synthesis of imidazolium salts-based Brønsted-Lewis solid acid and co-solvent. Energy Convers Manag 166:534–544. https://doi.org/10.1016/j.enconman.2018.04.061

  35. Prankl H, Körbitz W, Mittelbach M, Wörgetter M (2004) Review on biodiesel standardization world-wide

  36. Refaat AA (2009) Correlation between the chemical structure of biodiesel and its physical properties. Int J Environ Sci Technol 6:677–694. https://doi.org/10.1007/BF03326109

  37. Russel A (2003) Combustion emissions. In: Air pollution and cancer, pp 37–47

  38. Sahar Sadaf S, Iqbal J et al (2018) Biodiesel production from waste cooking oil: an efficient technique to convert waste into biodiesel. Sustain Cities Soc 41:220–226. https://doi.org/10.1016/j.scs.2018.05.037

  39. Sander A, Antonije Košćak M, Kosir D et al (2018) The influence of animal fat type and purification conditions on biodiesel quality. Renew Energy 118:752–760. https://doi.org/10.1016/j.renene.2017.11.068

  40. Shaftel H, Jackson RSC (2016) A blanket around the earth. In: NASA

  41. Shalaby EA, El-gendy NS (2012) Two steps alkaline transesterification of waste cooking oil and quality assessment of produced biodiesel. Int J Chem Biochem Sci 1:30–35

  42. Sun S, Guo J, Duan X (2019) Biodiesel preparation from Phoenix tree seed oil using ethanol as acyl acceptor. Ind Crops Prod 137:270–275. https://doi.org/10.1016/j.indcrop.2019.05.035

  43. US Energy Information Administration (2017) International energy outlook 2017

  44. Verma D, Raj J, Pal A, Jain M (2016) A critical review on production of biodiesel from various feedstocks. J Sci Innov Res 5:51–58

  45. Yesilyurt MK (2019) The effects of the fuel injection pressure on the performance and emission characteristics of a diesel engine fuelled with waste cooking oil biodiesel-diesel blends. Renew Energy 132:649–666. https://doi.org/10.1016/j.renene.2018.08.024

  46. Zhang Q, Wei F, Ma P et al (2018) Mesoporous Al–Mo oxides as an effective and stable catalyst for the synthesis of biodiesel from the esterification of free-fatty acids in non-edible oils. Waste Biomass Valoriz 9:911–918. https://doi.org/10.1007/s12649-017-9865-5
